This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

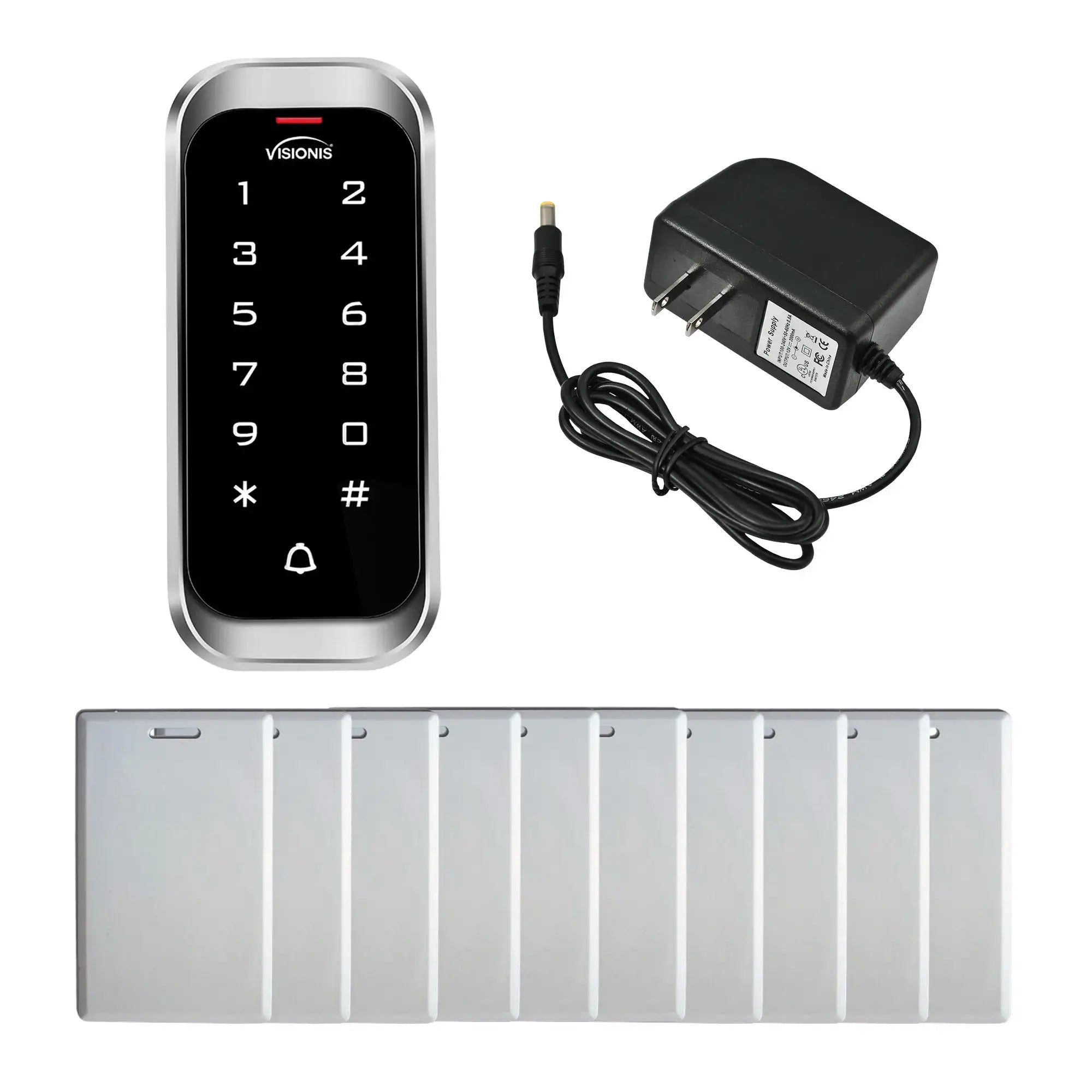

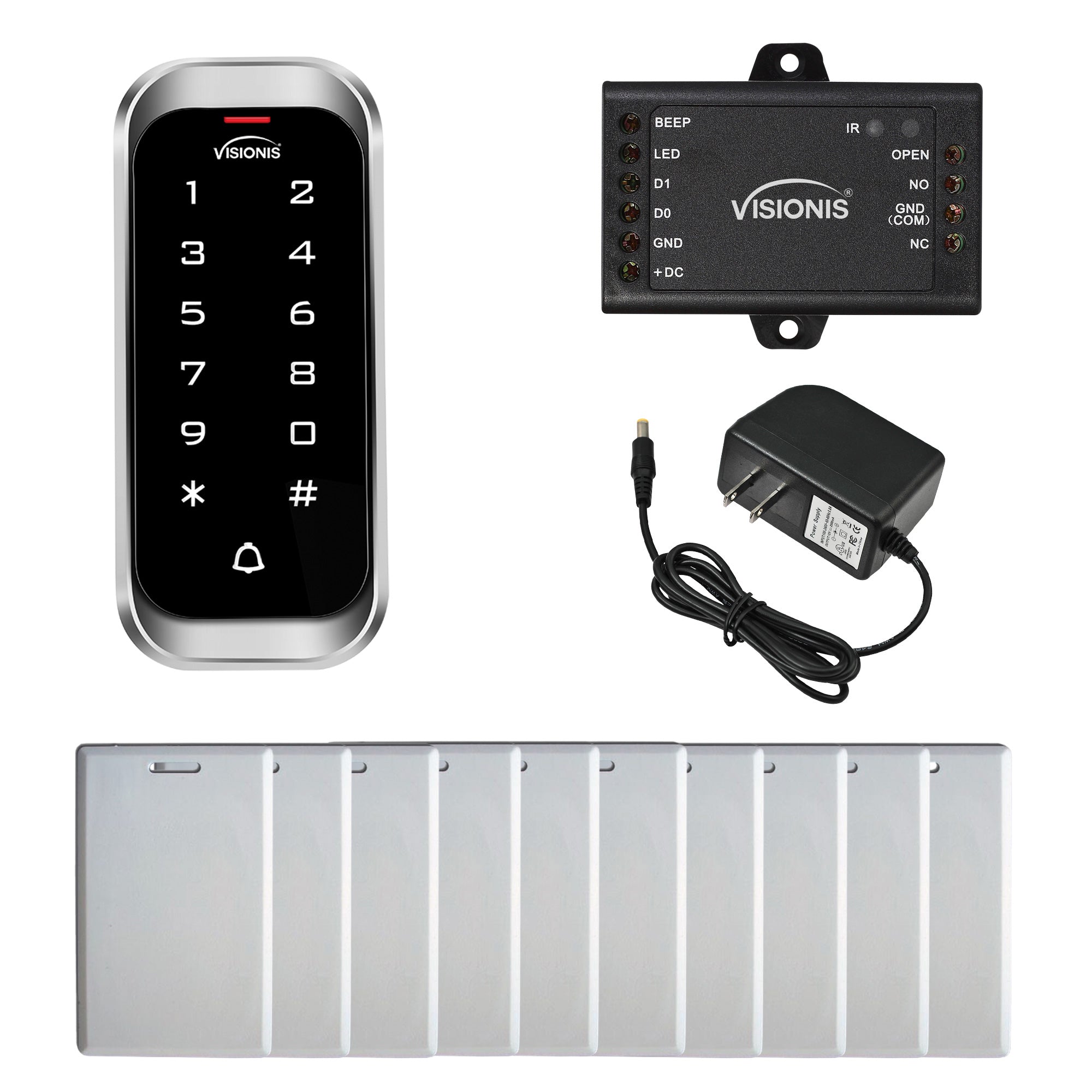

The 5678 kit contains a VIS-3003 slim sized outdoor keypad used for access control, a mini controller, 10 proximity cards, and a power supply. A diverse keypad in its functionality, you can gain access through three different options. You can enter a pin code onto the keypad, use a proximity card, and/or use a proximity key tag. This keypad will allow up to 1000 users through either of the three access options. Since this is a standalone system, meaning that there is no software, it is recommended for you to keep a record of all personnel and their assigned user ID with key code, key card or key tag.



The VIS-3003 is compatible with EM, and MFR proximity cards.



On the keypad, you will notice a doorbell towards the bottom. This will allow people from the outside to ring the doorbell and notify those inside that there is someone wanting to come in. Once someone has entered a programmed code, card, or tag, the locking mechanism will disengage and allow for entrance. The locking mechanism will then engage again and remain closed until it is unlocked by one of the three access options. Through the outdoor keypad, you can program your delay from 0 to 99 seconds. The meaning of having a delay is setting a time until the maglock engages again. The popular applications for this keypad are for offices, commercial buildings, or any room that needs restricted access.



The VIS-MINI-CNTRL is a mini single door control panel that can work with any Wiegand 26~37 bits output reader. It uses Atmel microcontroller to assure stable performance, and it is equipped with an infrared remote control for easy operation. The VIS-MINI-CNTRL supports 1,000 users.



IMPORTANT:

  • Professional installation is recommended.
  • For better security the VIS-MINI-CNTRL needs to be installed inside the facility in a restricted area. This device becomes the hub of this standalone application and all the credentials are being stored on the device while no information is stored on the reader itself. Additional recommendations for added security is to add the controller within an enclosure.
  • If the keypad/card reader (entry device) is tampered with, the door will remain locked. The mini controller is the one controlling and securing your locking device.
  • The VIS-MINI-CNTRL offers a more secure option to provide additional security to all type of standalone access control products.
Characteristics

Model No. VIS-3003:

  • Input Voltage: DC 12V
  • Idle current: ≤25mA
  • Card Reading Distance: 2 - 3 cm (0.78 - 1.18 in.)
  • Card Frequency: 125KHz for EM // 13.56MHz for MFR
  • Card Transmission Format: Wiegand26
  • Keypad Transmission Format: 4bit, 8bit and Virtual card number
  • Operating Temperature: -45°C ~ 55°C (-49°F ~ 131°F)
  • Operating Humidity: 0%~95%
  • Product Size: 133Lx59Wx21H (mm) - 5.23Lx2.32Wx0.82H (in.)
  • Protection Level: IP68 - No ingress of dust; complete protection against contact (dust tight), and waterproof
Packaging of this product

Model No. VIS-MINI-CNTRL:

  • User Capacity: 1,000
  • Operating Voltage: 9~24V DC
  • Idle Current: < 20mA
  • Relay One: (NO, NC, Common)
  • Adjustable Relay Output Time: 1~99 Seconds (5 seconds default)
  • Lock Output Load: 2 Amp Maximum
  • Wiegand Interface Input: Wiegand 26~37 bits
  • Wiegand Interface Output: Wiegand 26~37 bits (for user transfer)
  • Environment: Indoor
  • Operating Temperature: -40°C~60°C (-40°F~140°F)
  • Operating Humidity: 0 ~ 90%RH
  • Physical: ABS Shell
  • Dimensions: L65 x W54 x H19 (mm) - L2.56 x W2.13 x H0.75 (in.)
  • Unit Weight: 40g
  • Shipping Weight: 100g

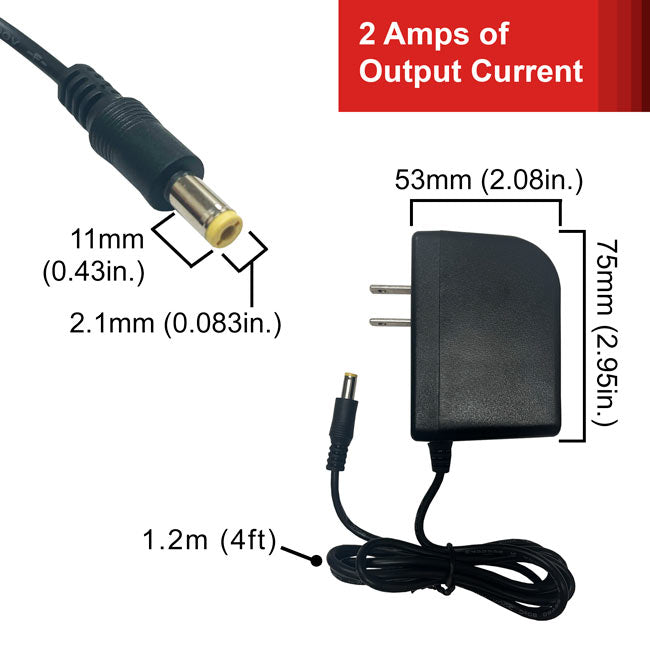

Model No. VISCP200:

  • Input Voltage Range: AC90V-264V
  • Input Frequency Range: 50Hz-60Hz
  • Output Voltage Range: DC12V+/-5%
  • Output Current: 2A
  • Output Power: 24 Watts
  • Output Ripple&Noise: ≤46MV
  • Output Efficiency: ≥79%
  • Environment Operating: -30°C~45°C 20%~90%RH
  • Environment Storage Temp.: -40°C~85°C 10%~95%RH
  • Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
  • Product Weight: 116g
  • Certificate: UL, CE, RoHS, FCC
Description

The 5678 kit contains a VIS-3003 slim sized outdoor keypad used for access control, a mini controller, 10 proximity cards, and a power supply. A diverse keypad in its functionality, you can gain access through three different options. You can enter a pin code onto the keypad, use a proximity card, and/or use a proximity key tag. This keypad will allow up to 1000 users through either of the three access options. Since this is a standalone system, meaning that there is no software, it is recommended for you to keep a record of all personnel and their assigned user ID with key code, key card or key tag.



The VIS-3003 is compatible with EM, and MFR proximity cards.



On the keypad, you will notice a doorbell towards the bottom. This will allow people from the outside to ring the doorbell and notify those inside that there is someone wanting to come in. Once someone has entered a programmed code, card, or tag, the locking mechanism will disengage and allow for entrance. The locking mechanism will then engage again and remain closed until it is unlocked by one of the three access options. Through the outdoor keypad, you can program your delay from 0 to 99 seconds. The meaning of having a delay is setting a time until the maglock engages again. The popular applications for this keypad are for offices, commercial buildings, or any room that needs restricted access.



The VIS-MINI-CNTRL is a mini single door control panel that can work with any Wiegand 26~37 bits output reader. It uses Atmel microcontroller to assure stable performance, and it is equipped with an infrared remote control for easy operation. The VIS-MINI-CNTRL supports 1,000 users.



IMPORTANT:

  • Professional installation is recommended.
  • For better security the VIS-MINI-CNTRL needs to be installed inside the facility in a restricted area. This device becomes the hub of this standalone application and all the credentials are being stored on the device while no information is stored on the reader itself. Additional recommendations for added security is to add the controller within an enclosure.
  • If the keypad/card reader (entry device) is tampered with, the door will remain locked. The mini controller is the one controlling and securing your locking device.
  • The VIS-MINI-CNTRL offers a more secure option to provide additional security to all type of standalone access control products.

Download Datasheets and Manuals of this product

VIS-3003

VIS-MINI-CNTRL
