Small Cabinet Magnetic Lock with 140lbs of Force VIS-ML120 Visionis

Small Cabinet Magnetic Lock - Isntallation Options

Small Magnetic Lock with 140lbs of Force VIS-ML120 Visionis

Small Magnetic Lock with 140lbs of Force VIS-ML120 Visionis DIMENSIONS

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

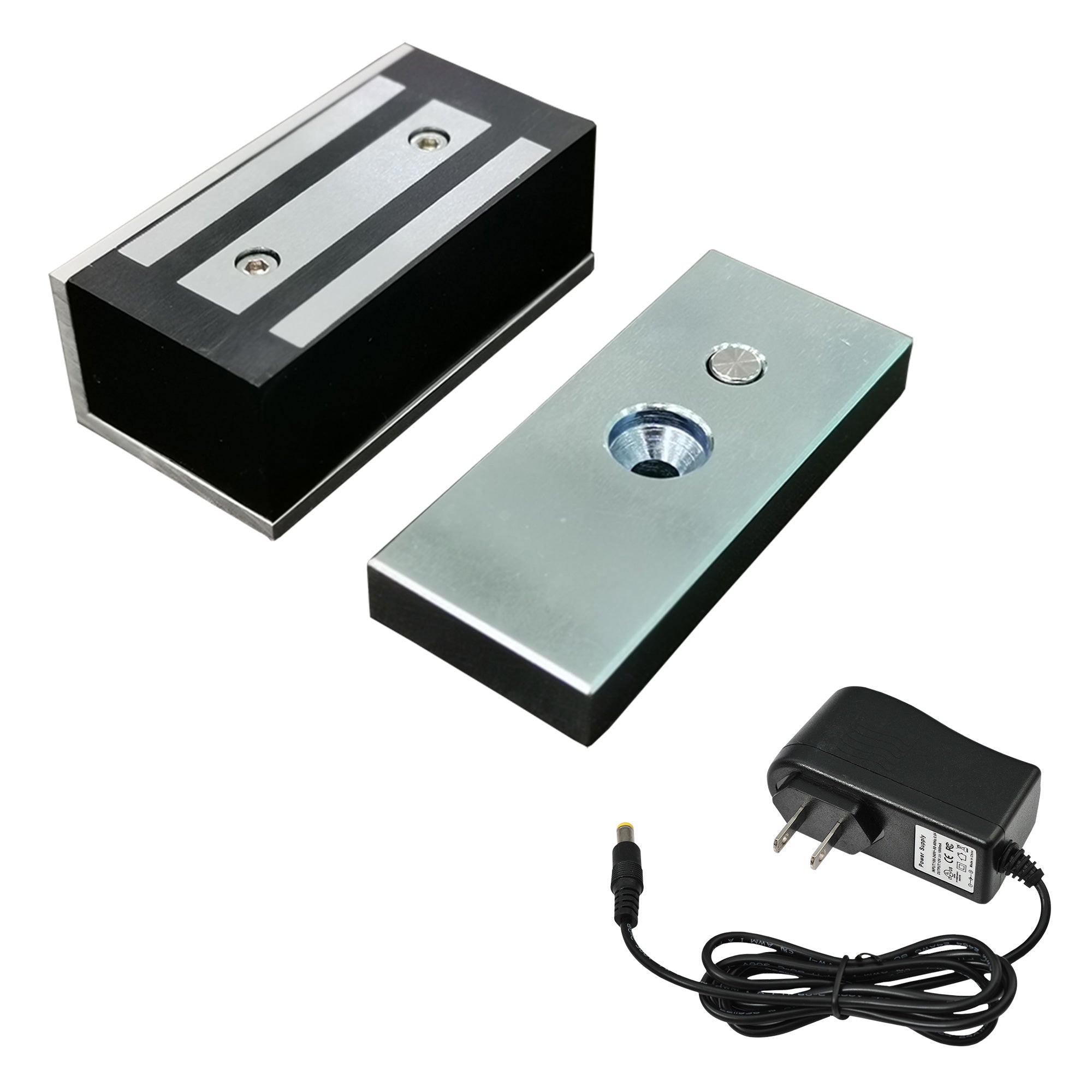

Kit Includes:

(1)

VIS-ML120: Small Electric Cabinet and Small Door Maglock 140lbs for Indoor and Outdoor Use Fail Safe Normally Closed 12V

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

The 5373 kit comes with the VIS-ML120, which is a miniature maglock designed for smaller applications and a power supply. The popular uses for this maglock are for cabinets and small doors.

Providing a quick and safe solution, this cabinet lock can be installed on outswinging and inswinging doors, frameless glass doors, and narrow door frames. These mini maglocks make a great way to do DIY home or office safes for anything you may want to give extra protection for.

Characteristics

Model No. VIS-ML120:

Voltage Input: 12VDC / 24VDC
Current Draw: 12V / 200mA ; 24V / 100mA (±5%)
Holding Force: Up to 140lbs (63kg)
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55°C (32~131°F)
Operating Humidity: 0~95% (non condensing)
Weight (Magnet): 0.7 kg (±1%)
Dimensions Magnet: 36 x 69 x 26 mm (1.41 x 2.71 x 1.02 inches)
Dimensions Armature: 68 x 32 x 10 mm (2.67 x 1.25 x 0.39 inches)

Model No. VIS-CP200:

Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

The 5373 kit comes with the VIS-ML120, which is a miniature maglock designed for smaller applications and a power supply. The popular uses for this maglock are for cabinets and small doors.

Providing a quick and safe solution, this cabinet lock can be installed on outswinging and inswinging doors, frameless glass doors, and narrow door frames. These mini maglocks make a great way to do DIY home or office safes for anything you may want to give extra protection for.

Download Datasheets and Manuals of this product

VIS-ML120

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help

Visionis by Visionis

Small Electric Cabinet and Small Door Magnetic Lock 140lbs (63kg) VIS-ML120. For Indoor and Outdoor Use. Fail Safe Normally Closed + Power Supply - FPC-5373 Visionis

Translation missing: en.products.product.sku:FPC-5373

UPC Code: 723980160303 Weight: 2.0 lb

Regular price: $29.74
Sale price: $29.74
Regular price

Shipping calculated at checkout.

Out of Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
