What is the holding strength of the VIS-ML120 mini maglock?

It provides up to 140 lbs (63 kg) of holding force—ideal for cabinets, drawers, and light doors.

Can I use this magnetic lock for a frameless glass cabinet?

Yes, you can use the ZMINI bracket that allows installation on frameless glass, metal, or wooden doors.

Is the lock easy to install for DIY users?

Absolutely. The compact size and included bracket make this mini maglock simple to install with basic tools.

What voltage does this lock support?

It supports 12VDC or 24VDC, offering compatibility with standard access control power supplies.

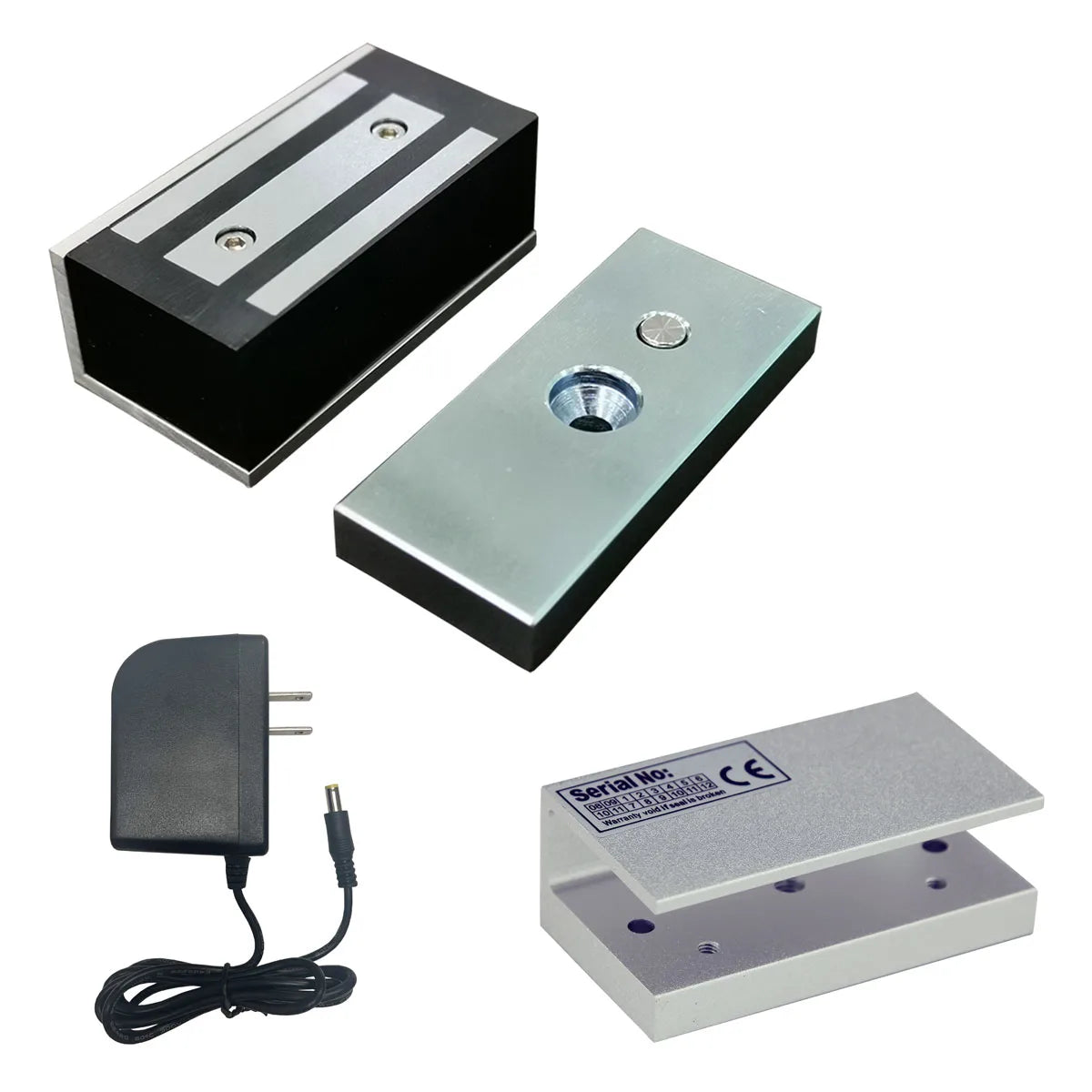

Cabinet Magnetic Lock + U Bracket for Glass Door + Power Supply - FPC-5372

Small Cabinet Magnetic Lock with 140lbs of Force VIS-ML120 Visionis

Small Cabinet Magnetic Lock - Isntallation Options

Small Magnetic Lock with 140lbs of Force VIS-ML120 Visionis

Small Magnetic Lock with 140lbs of Force VIS-ML120 Visionis DIMENSIONS

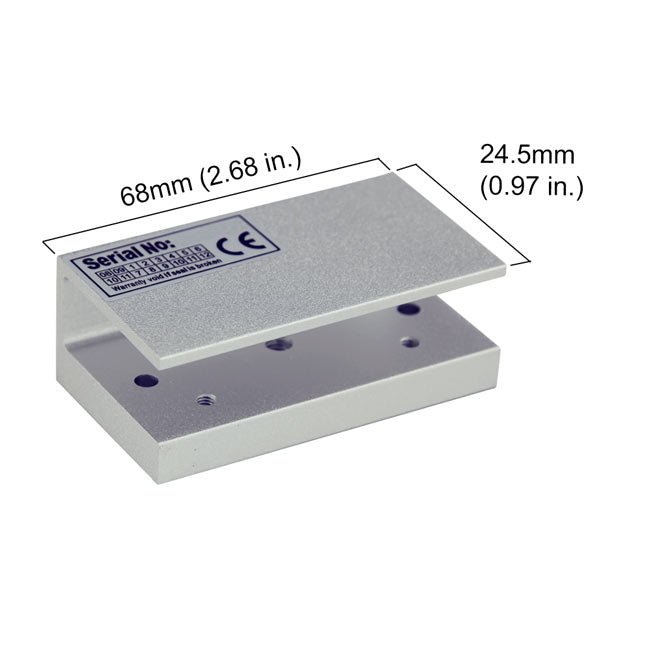

U Bracket for cabinet magnetic lock 140lbs (63kg) dimensions. For Glass Doors - VIS-UMINI-120

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

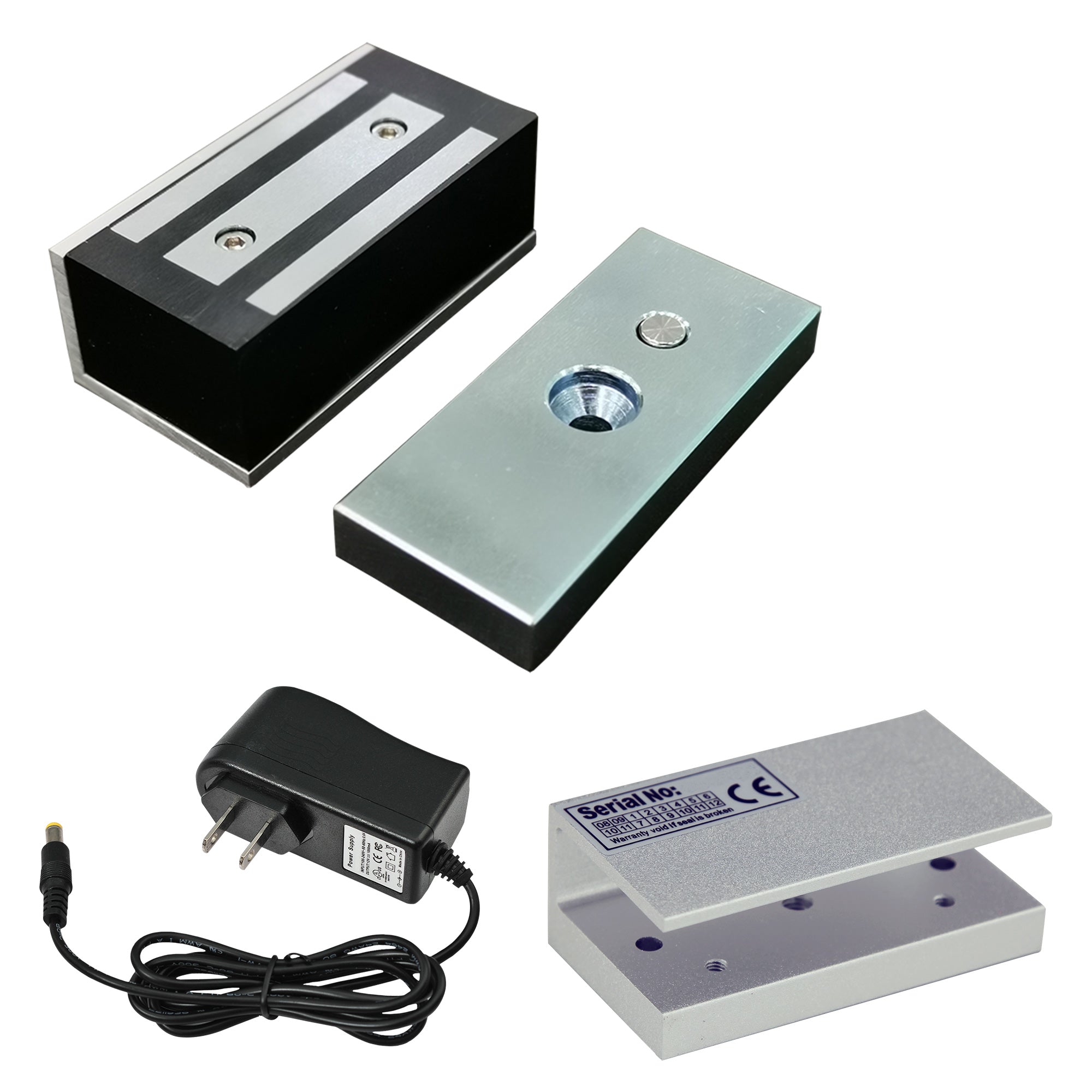

Kit Includes:

(1)

VIS-ML120: Small Electric Cabinet and Small Door Maglock 140lbs for Indoor and Outdoor Use Fail Safe Normally Closed 12V

VIS-UMINI-120: U Bracket for 140lb Electric Maglock for Glass Doors

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

Secure your valuables with the VISIONIS FPC-5372 Cabinet Magnetic Lock Kit, designed specifically for glass cabinet doors and other small access points. This all-in-one kit includes the compact VIS-ML120 mini maglock, a power supply, and a UMINI bracket specially built for frameless glass doors—offering a strong, discreet, and clean installation without drilling into glass frames.

The VIS-ML120 delivers 140 lbs of holding force, making it an ideal electromagnetic cabinet lock for drawers, small doors, display cases, and DIY home or office safes. Its compact size, dual voltage support, and anti-rust coating make it a favorite among both installers and DIY users.

⚠️ Note: This kit is intended for glass doors only—not for installations on glass door frames.

Key Features:

Compact mini maglock with 140 lb (63 kg) holding force
Designed for frameless glass doors (not frames)
Includes power supply and UMINI bracket for easy glass mounting
Supports both 12VDC and 24VDC input
Ideal for cabinets, display cases, drawers, and home safes
Blue zinc-plated finish for corrosion resistance
Perfect for DIY or professional installations on glass surfaces

Characteristics

Model No. VIS-ML120:

Voltage Input: 12VDC / 24VDC
Current Draw: 12V / 200mA ; 24V / 100mA (±5%)
Holding Force: Up to 140lbs (63kg)
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55°C (32~131°F)
Operating Humidity: 0~95% (non condensing)
Weight (Magnet): 0.7 kg (±1%)
Dimensions Magnet: 36 x 69 x 26 mm (1.41 x 2.71 x 1.02 inches)
Dimensions Armature: 68 x 32 x 10 mm (2.67 x 1.25 x 0.39 inches)

Model No. VIS-CP200:

Cable Length: 1.2 meters (4 feet)
Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

Secure your valuables with the VISIONIS FPC-5372 Cabinet Magnetic Lock Kit, designed specifically for glass cabinet doors and other small access points. This all-in-one kit includes the compact VIS-ML120 mini maglock, a power supply, and a UMINI bracket specially built for frameless glass doors—offering a strong, discreet, and clean installation without drilling into glass frames.

The VIS-ML120 delivers 140 lbs of holding force, making it an ideal electromagnetic cabinet lock for drawers, small doors, display cases, and DIY home or office safes. Its compact size, dual voltage support, and anti-rust coating make it a favorite among both installers and DIY users.

⚠️ Note: This kit is intended for glass doors only—not for installations on glass door frames.

Key Features:

Compact mini maglock with 140 lb (63 kg) holding force
Designed for frameless glass doors (not frames)
Includes power supply and UMINI bracket for easy glass mounting
Supports both 12VDC and 24VDC input
Ideal for cabinets, display cases, drawers, and home safes
Blue zinc-plated finish for corrosion resistance
Perfect for DIY or professional installations on glass surfaces

Product FAQs

What is the holding strength of the VIS-ML120 mini maglock?

It provides up to 140 lbs (63 kg) of holding force—ideal for cabinets, drawers, and light doors.
Can I use this magnetic lock for a frameless glass cabinet?

Yes, you can use the ZMINI bracket that allows installation on frameless glass, metal, or wooden doors.
Is the lock easy to install for DIY users?

Absolutely. The compact size and included bracket make this mini maglock simple to install with basic tools.
What voltage does this lock support?

It supports 12VDC or 24VDC, offering compatibility with standard access control power supplies.
Where can this electromagnetic cabinet lock be used?

This lock is perfect for securing file cabinets, jewelry displays, small doors, drawers, and home or office safes.
Is this lock waterproof?

No. The VIS-ML120 is intended for indoor use only.

Download Datasheets and Manuals of this product

VIS-ML120

VIS-UMINI-120

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help

Visionis by Visionis

Small Electric Cabinet and Small Door Magnetic Lock 140lbs (63kg) VIS-ML120. For Indoor Use. Fail Safe Normally Closed + U Bracket for Glass Door + Power Supply - FPC-5372 Visionis

Translation missing: en.products.product.sku:FPC-5372

UPC Code: 723980160297 Weight: 2.0 lb

Regular price: $37.63
Sale price: $37.63
Regular price

Shipping calculated at checkout.

Out of Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

NOTE

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
