300lb Indoor Electromagnetic Lock with LED Sensor VIS-ML300LED
    300lb Indoor Electromagnetic Lock with LED Sensor VIS-ML300LED
300lb Indoor Electromagnetic Lock with LED Sensor VIS-ML300LED
300lb Indoor Electromagnetic Lock with LED Sensor VIS-ML300LED
    300lb Indoor Electromagnetic Lock with LED Sensor VIS-ML300LED
300lb Indoor Electromagnetic Lock with LED Sensor VIS-ML300LED

Below are more variations of this product:

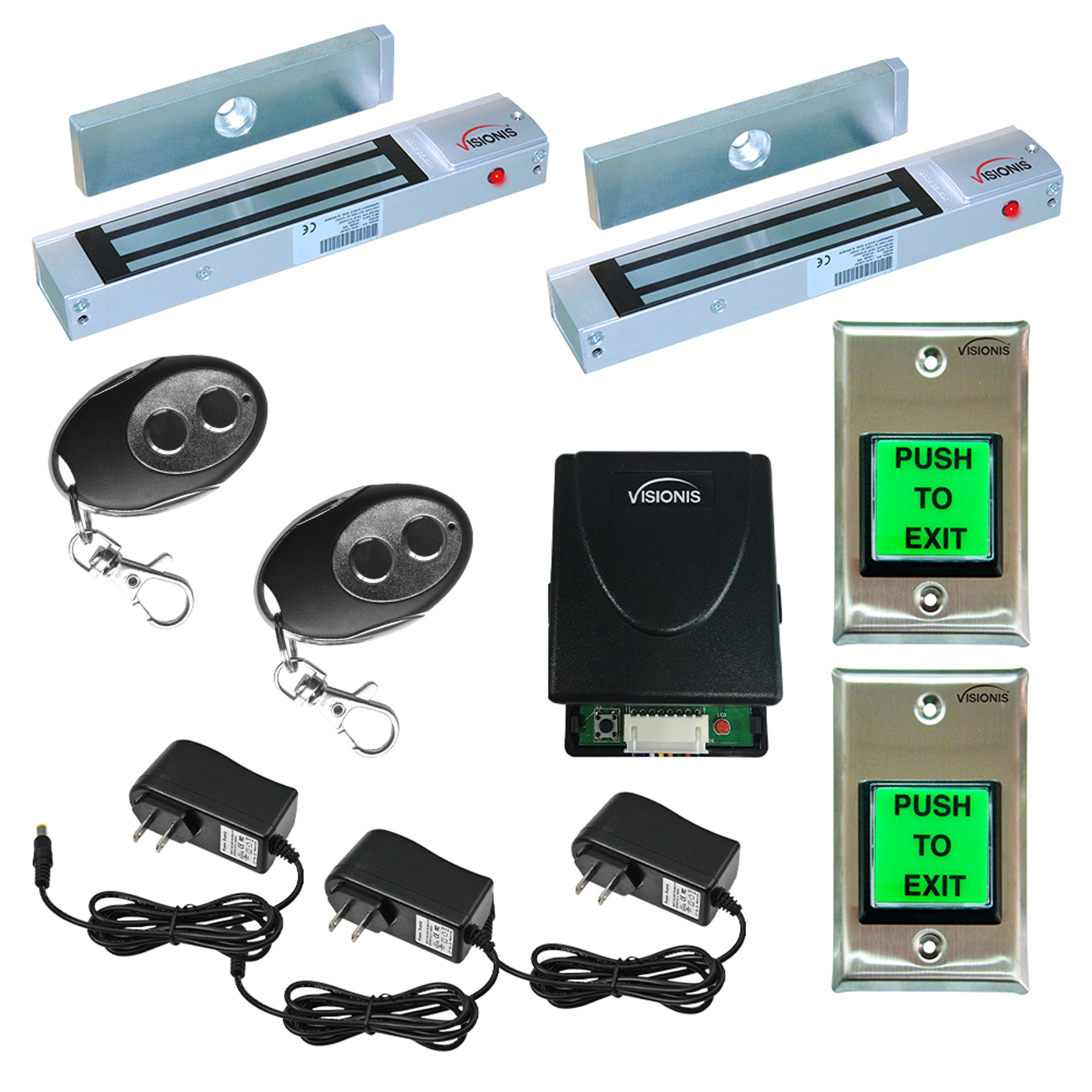

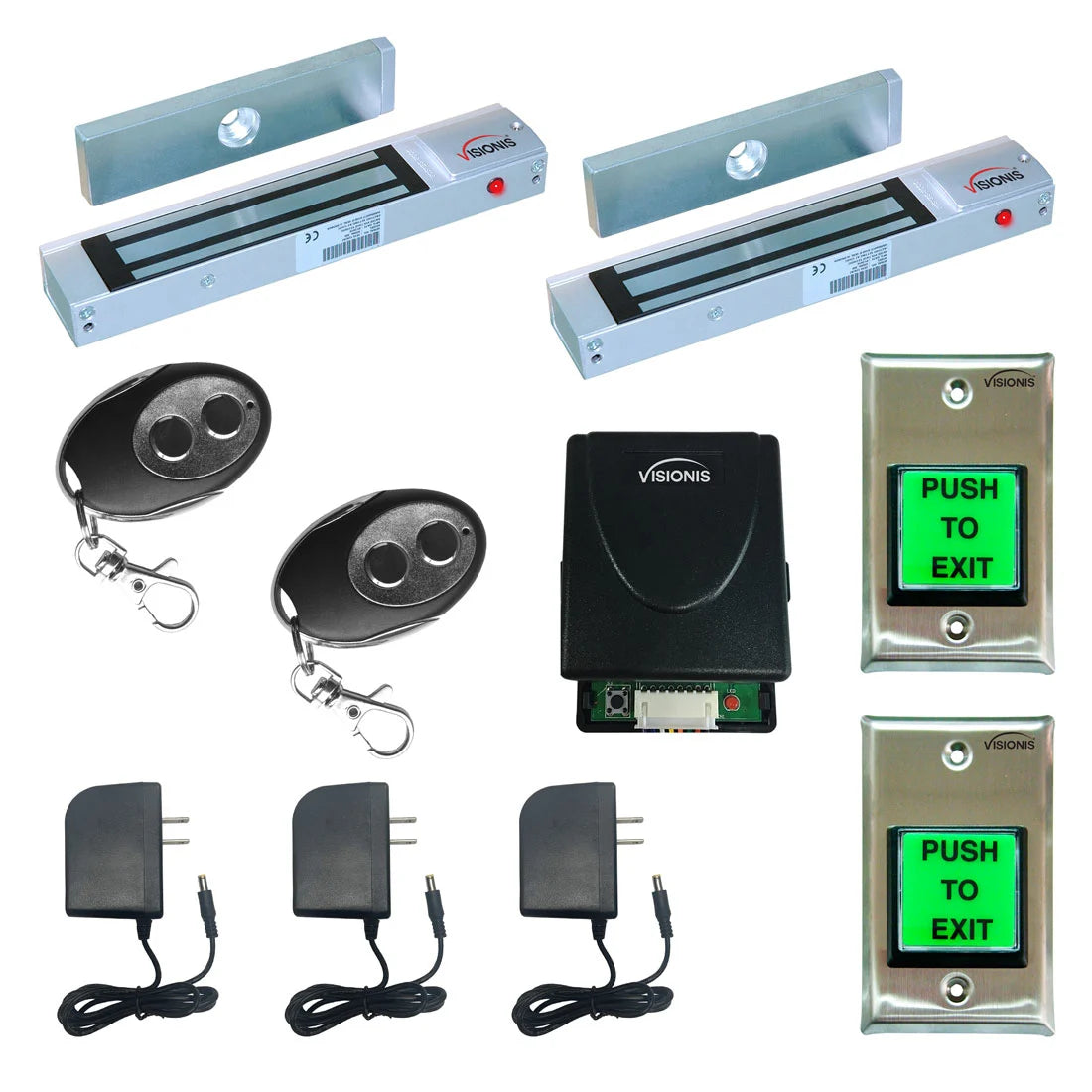

Kit Includes:

(2)
(1)
(2)
(2)
(3)
VIS-ML300LED: 300lbs Indoor Electromagnetic Lock
VIS-8007: 2 Channels RF Receiver 315MHz
VIS-8008: 2 Channels RF 315MHz Transmitter remote control
VIS-7000: Green Square Push to Exit Button for Door Access Control with LED Light, NC, COM and NO Outputs
VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed
Description

Description

The 5008 kit is a two door 300lbs Maglock Buzz-in kit for doors that opens out. It is mainly used for customers that do not want to physically get up and open the door. With this system, you will be able to let people in by clicking on the wireless RF remote, the VIS-8008.

 The remote communicates with the wireless receiver, which can program up to 50 remotes, and it has a range of 150 feet. There are two main features on the receiver that will allow you to program the wireless receiver in two different ways. The default function of the receiver is that when the power is on, the mag lock of your kit is locked and when you press the remote the maglock will unlock temporarily to open the door. The other function that the receiver has is the ON/Off feature. This feature is very similar to a light switch; when you program this option you would press the remote once and the door will unlock and remain unlocked until you press the button again. When you press the remote again, the door will then lock.

 This magnetic lock system also brings an exit button that will allow you to exit from the inside of the door. Keep in mind that this exit button does not bring a delay meaning that you would have to press the exit button at the same time that you open the door.The remotes include two buttons that will allow you to control two doors.

Characteristics

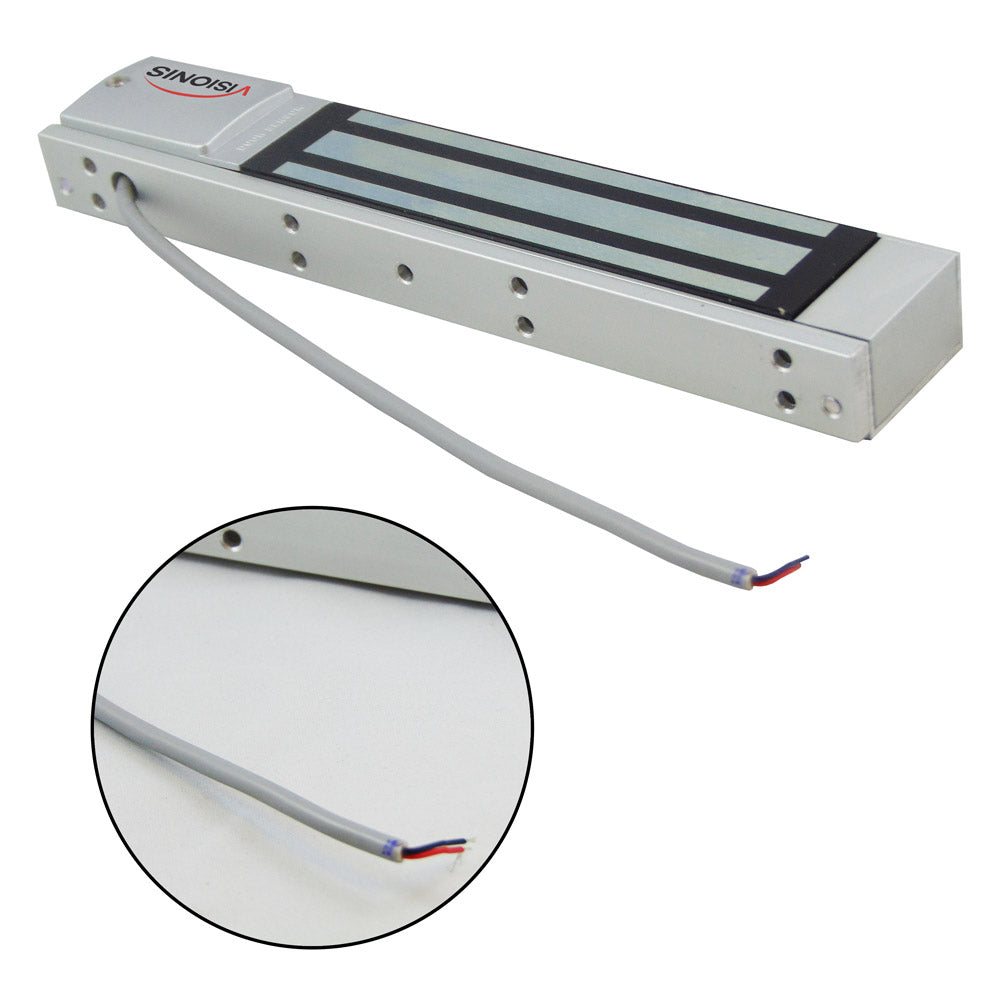

Model VIS-ML300LED:

  • Voltage Input: 12 VDC / 24 VDC
  • Current Draw: 12V / 300mA ; 24V / 150mA (±5%)
  • Holding Force: Up to 300 lbs (136 kg)
  • Anti-Rust Surface Treatment: Blue Zinc Plating
  • Operating Temperature: 0~55° C ( 32~131° F)
  • Operating Humidity: 0~95% ( non condensing)
  • Weight ( Magnet): 0.6 kg (±1%)
  • Dimensions: Magnet - (L)210x(W)35x(T)21 mm Armature - (L)130x(W)33x(T)11 mm
  • Green/Red LED Indication for EM Lock Status
Packaging of this product

Model No. VIS-8007:

  • Operating Frequency: 315mhz
  • Number of Codes: 1,048,576
  • Operating Voltage: DC12V
  • Operating Distance: Up to 160ft (50m) – The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.
  • Operating Temperature: 0°C-70°C or 32°F - 158°F
  • Current Draw: 19mA
  • Compatible Transmitter: VIS-8008
  • RF channels: Two
  • No. of Remotes that are able to connect to one Receiver: Up to 50
  • Case Construction: ABS Plastic
  • Dimensions: 62*43.5*30mm (2.44* 1.71*1.18 Inches)
  • Weight: 43g or 1.52 Ounces
Packaging of this product

Model No. VIS-8008:

  • Frequency: 315 MHz
  • Chip: 1527
  • Input Voltage: 6V
  • Button Quantity: 2 buttons
  • Input Power: 0.06W
  • Compatible Receiver: VIS-8007
  • Input Current: 0.01A
  • Operating Distance: Up to 160ft (50m) – The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.
Packaging of this product

Model No. VIS-7000:

  • Stainless-steel face-plate
  • "PUSH TO EXIT" & "PRESIONE PARA SALIR" inserts included
  • Fits into standard single-gang box,Large square green color push button.
  • 12-inch, AWG 18 wire leads
  • Degree of Protection: IP-40
  • LED: Yes
  • LED Life: 20.000 hours
  • Switch Material: Plastic
  • Switch Plate Material: Stainless Steel
  • Attention: This exit button is meant for indoor use. This Exit button does not have a delay.
Packaging of this product

Model No. VIS-CP200:

  • Input Voltage Range: AC90V-264V
  • Input Frequency Range: 50Hz-60Hz
  • Output Voltage Range: DC12V+/-5%
  • Output Current: 2A
  • Output Power: 24 Watts
  • Output Ripple&Noise: ≤46MV
  • Output Efficiency: ≥79%
  • Environment Operating: -30°C~45°C 20%~90%RH
  • Environment Storage Temp.: -40°C~85°C 10%~95%RH
  • Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
  • Product Weight: 116g
  • Certificate: UL, CE, RoHS, FCC
Description

Description

The 5008 kit is a two door 300lbs Maglock Buzz-in kit for doors that opens out. It is mainly used for customers that do not want to physically get up and open the door. With this system, you will be able to let people in by clicking on the wireless RF remote, the VIS-8008.

 The remote communicates with the wireless receiver, which can program up to 50 remotes, and it has a range of 150 feet. There are two main features on the receiver that will allow you to program the wireless receiver in two different ways. The default function of the receiver is that when the power is on, the mag lock of your kit is locked and when you press the remote the maglock will unlock temporarily to open the door. The other function that the receiver has is the ON/Off feature. This feature is very similar to a light switch; when you program this option you would press the remote once and the door will unlock and remain unlocked until you press the button again. When you press the remote again, the door will then lock.

 This magnetic lock system also brings an exit button that will allow you to exit from the inside of the door. Keep in mind that this exit button does not bring a delay meaning that you would have to press the exit button at the same time that you open the door.The remotes include two buttons that will allow you to control two doors.

Download Datasheets and Manuals of this product

VIS-ML300LED

VIS-8007

VIS-8008

VIS-7000

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

FPC-5008 Two Door Access Control Outswinging Door 300lbs Electromagnetic Lock Kit With Visionis Wireless Receiver And Remote Kit

FPC-5008

UPC Code: 701980450075
Product Weight: 0.0 lb
$175.43
$175.43
Shipping calculated at checkout.

In Stock
Phone Support Icon

Phone Life-Time Technical Support

Return Policy Icon

30-Day No Questions Return Policy

Free Shipping Icon

*Free Shipping within the USA

Contact an Expert
Return Policy
NOTE
Order Before 3:00pm EST on a week day and your order will be shipped out the same day
Free Shipping
*Free shipping within the USA
Including Puerto Rico, Hawaii and Alaska

Popup Title

Popup description
ATTENTION:
Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
