VIS-3031: Standalone biometric fingerprint and card reader with time & attendance tracking

Dimensions VIS-3031: Standalone biometric fingerprint and card reader

Package includes: Biometric fingerprint reader, wires, screws

Dimensions 1200lb Indoor Electromagnetic Lock with LED Sensor VIS-ML1200LED

VIS-ML1200LED - 1200lb Indoor Electromagnetic Lock with LED Sensor

1200lb Indoor Electromagnetic Lock with LED Sensor VIS-ML1200LED

touchless exit button with LED indicators for access control systems. VIS-7013 VISIONIS

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

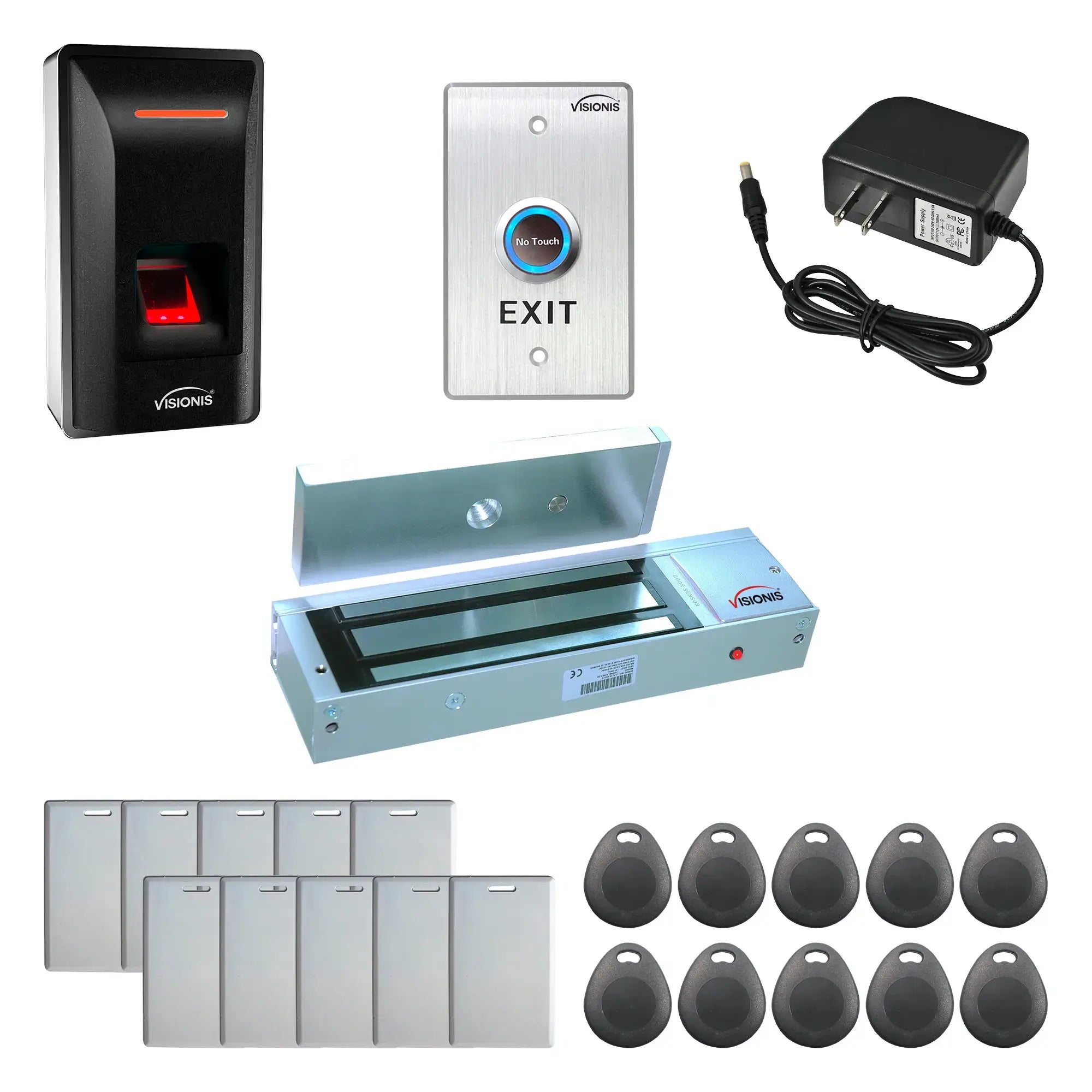

Kit Includes:

(1)

(10)

(1)

VIS-ML1200LED: 1200lb Indoor Electromagnetic Lock with LED Sensor

VIS-3031: Indoor Access Control Biometric Fingerprint Reader Standalone + TCP/IP + Wiegand 26 + 3000 EM Cards or Fingerprints + Time and Attendance

VIS-7013: Indoor Stainless Steel No Touch Request to Exit Button with Time Delay Standard Size with LED Light NC COM and NO Outputs

FPC-5267: Pack of Proximity Cards, 125kHz, 26-Bit

FPC-5274: Pack of RFID Proximity Key Fobs, 125kHz, 26-Bit

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

Upgrade your security with the FPC-9236 access control kit—an all-in-one solution for managing entry to a single out-swinging door using advanced fingerprint reader and card reader technology. This professional-grade kit includes everything you need for secure, streamlined access control in offices, restricted areas, labs, and commercial facilities.

Key Features:

Indoor Biometric Fingerprint Reader
The included VIS-3031 device functions as a standalone fingerprint reader and biometric reader, supporting both fingerprint and RFID card access. Store up to 3,000 users and 70,000 event logs for advanced time and attendance tracking.
Powerful Magnetic Lock (1200lbs Holding Force)
The VIS-ML1200LED electromagnetic lock ensures strong, reliable door locking with green/red LED status indicators and durable blue zinc plating for rust resistance.
Wave-to-Exit Infrared Sensor
The VIS-7013 allows for touch-free door release, improving hygiene and convenience. Adjustable range and delay make it ideal for high-traffic access points.

Ideal For:

Offices and commercial buildings
IT/server rooms
Private labs and research facilities
Industrial security zones

Characteristics

Model No. VIS-ML1200LED:

Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 500mA ; 24V / 250mA (±5%)
Holding Force: Up to 1200 lbs (545 kg)
Hall Effect Contact: SPDT rated 2A at 24 VDC
Magnetic Contact Rating: 28 VDC, 0.2A, 5W
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C (32~131° F)
Weight (Magnet): 2.5 kg (±1%)
Dimensions: Magnet - (L)266x(W)67x(T)39 mm Armature - (L)185x(W)61x(T)16.5 mm
Green/Red LED Indication for EM Lock Status

Model No. VIS-3031:

Standalone Application: The unit needs to be connected to the ethernet so you can use the software and add fingerprints.
Communication: TCP/IP
Working Voltage: DC12V±10%/1A
Users / Records: 3.000 / 70.000
Recognition Mode: RFID Fingerprint
Wiegand Input: 1
Wiegand: 26 - 34
Exit Button Input: 1
Door-magnet Input: 1
Alarm Output / Input: 1 / 1
Lock Control Output: 1
Refusal Rate: < 0.01%
Fales Rate: < 0.0001%
Working Humidity: 20% ~ 60%
Working Temperature: -10°C ~ 45°C (14°F ~ 113°F)
Size: 122Lx77Wx45H (mm) - 4.80Lx3.03Wx1.77H (in.)

Model No. VIS-7013:

Contact Rating: 12-24V, 3A
Output Contact: NO/NC/COM
Detection Range: 5-15cm (1.96 - 5.90in.), Adjustable
Power: 12VDC or 24VDC
LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
Time Delay: 0.5~22s
Panel: 4mm (0.15) Thick Aluminium Alloy (CNC)
Suitable for: Hollow Door
Mechanical Life: 100.000 tests
Operating Temperature: -20°C~+55°C (14°F-131°F)
Operating Humidity: 0-95% (relative humidity)
Weight: 0.105kg
Dimensions: 115L × 70W × 25H mm - 4.52L x 2.75W x 0.98H in.

Model No. VIS-CP200:

Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

Key Features:

Indoor Biometric Fingerprint Reader
The included VIS-3031 device functions as a standalone fingerprint reader and biometric reader, supporting both fingerprint and RFID card access. Store up to 3,000 users and 70,000 event logs for advanced time and attendance tracking.
Powerful Magnetic Lock (1200lbs Holding Force)
The VIS-ML1200LED electromagnetic lock ensures strong, reliable door locking with green/red LED status indicators and durable blue zinc plating for rust resistance.
Wave-to-Exit Infrared Sensor
The VIS-7013 allows for touch-free door release, improving hygiene and convenience. Adjustable range and delay make it ideal for high-traffic access points.

Ideal For:

Offices and commercial buildings
IT/server rooms
Private labs and research facilities
Industrial security zones

Download Datasheets and Manuals of this product

VIS-ML1200LED

VIS-3031

VIS-7013

VIS-PROXCARD

Datasheet

VIS-KEYTAG / VIS-KEYTAG-BLUE

Datasheet

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help

Visionis by Visionis

FPC-9236 One Door Access Control Out Swinging Door 1200lbs Maglock + VIS-3031 Indoor Biometric Fingerprint Reader/Card Reader Standalone TCP/IP + Wiegand 26, Time and Attendance, 3000 EM Cards and Fingerprints

Translation missing: en.products.product.sku:FPC-9236

UPC Code: 734598807030 Weight: 14.0 lb

Regular price: $333.03
Sale price: $333.03
Regular price

Shipping calculated at checkout.

In Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
