This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Single Door Mini Controller VIS-MINI-CNTRL
RECOMMENDATION: Use the Mini Controller VIS-MINI-CNTRL for Added Security

Pairing your keypad with a mini controller keeps user credentials secure inside a protected area, preventing tampering or breaches. It's an essential upgrade for enhanced security and reliable access control.

Discover More Benefits
Description

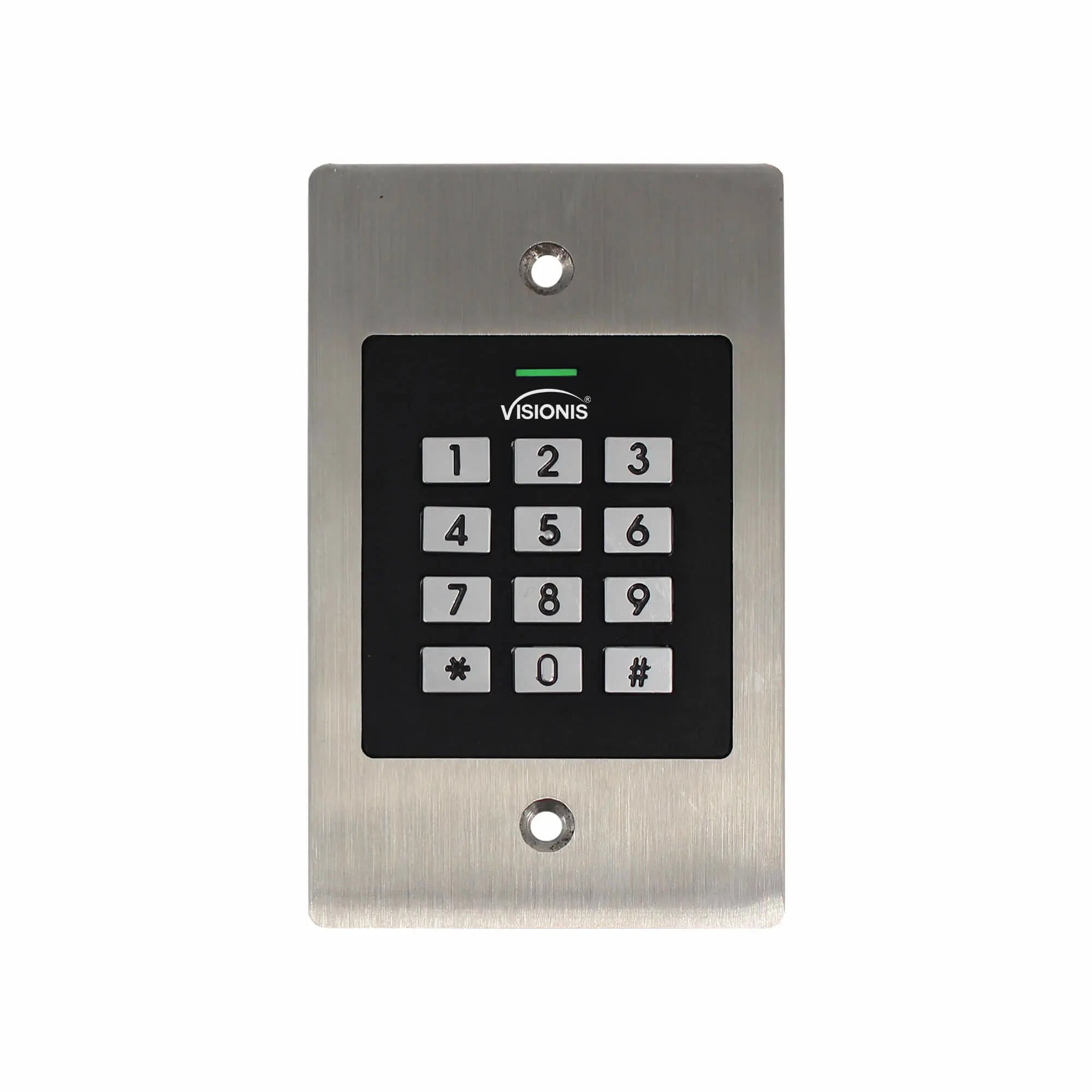

VIS-3029 Waterproof Keypad and Prox Card Reader Description

The Visionis VIS-3029 is a robust and reliable outdoor access control keypad and card reader designed for standalone operation or integration with Wiegand 26-bit systems. With an IP66 waterproof rating, this weatherproof keypad is built to withstand harsh environments, making it suitable for indoor and outdoor use.

Supporting up to 1,000 users, it offers multiple access methods, including proximity cards, PIN codes, or a combination of both. Its durable stainless steel construction and compact design make it an excellent choice for high-security installations.

Key Features

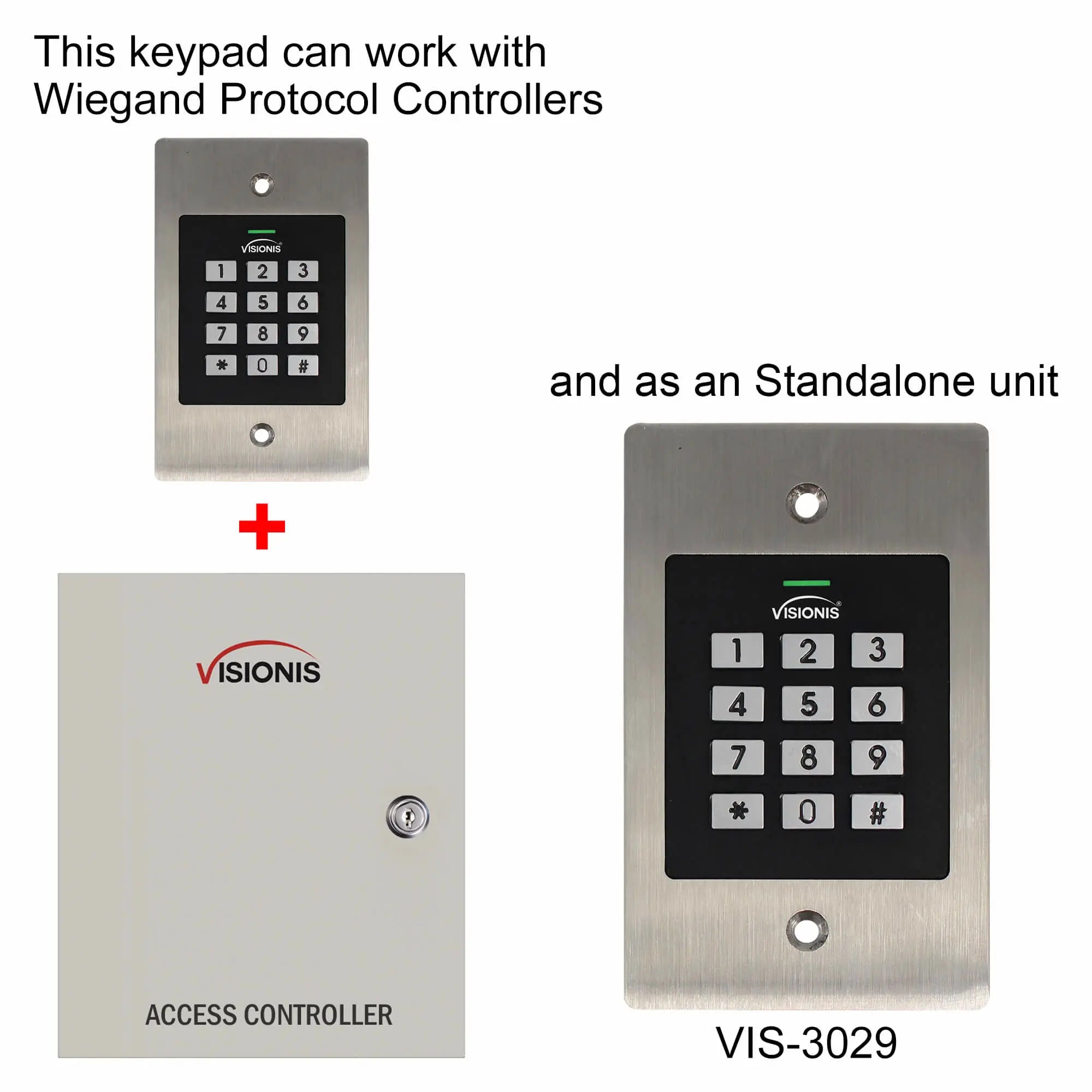

  • Standalone Access Control Keypad: Operates independently or with Wiegand systems.
  • Weatherproof and Durable: IP66 rating ensures resistance to water and dust.

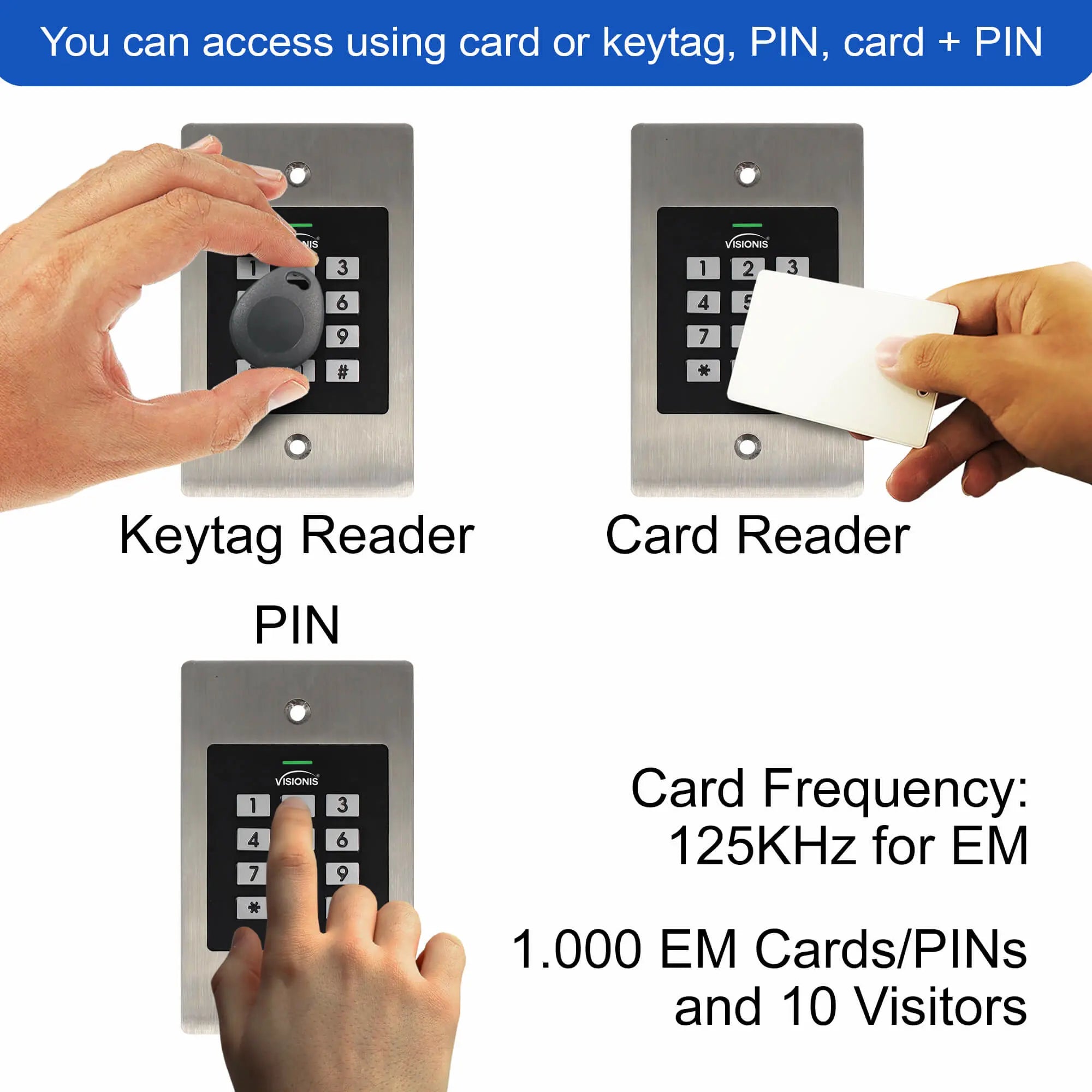

  • Flexible Access Options: Supports card, PIN code, or card + PIN combinations.
  • High User Capacity: Accommodates up to 1,000 users for versatile applications.
  • Compact and Sleek Design: Fits seamlessly into any environment, whether residential or commercial.



Characteristics

Model No. VIS-3029:

  • Proximity Card Reader: EM
  • Radio Technology: 125KHz Proximity Card
  • Read Range: 0~6 cm (0~2.36 in.)
  • Wiring Connections: Relay output, exit button, Wiegand (in&out)
  • Relay: One (NO, NC, Common)
  • Adjustable Relay Output Time: 0~99 Seconds (5 seconds default)
  • Lock Output Load: 2 Amp Maximum
  • User Capacity: 1000 Cards/PINs and 10 Visitors - PIN Length: 4-6 digits
  • Operating Voltage: 12~18VDC
  • ldle Current: ≤30mA
  • Active Current: ≤120mA

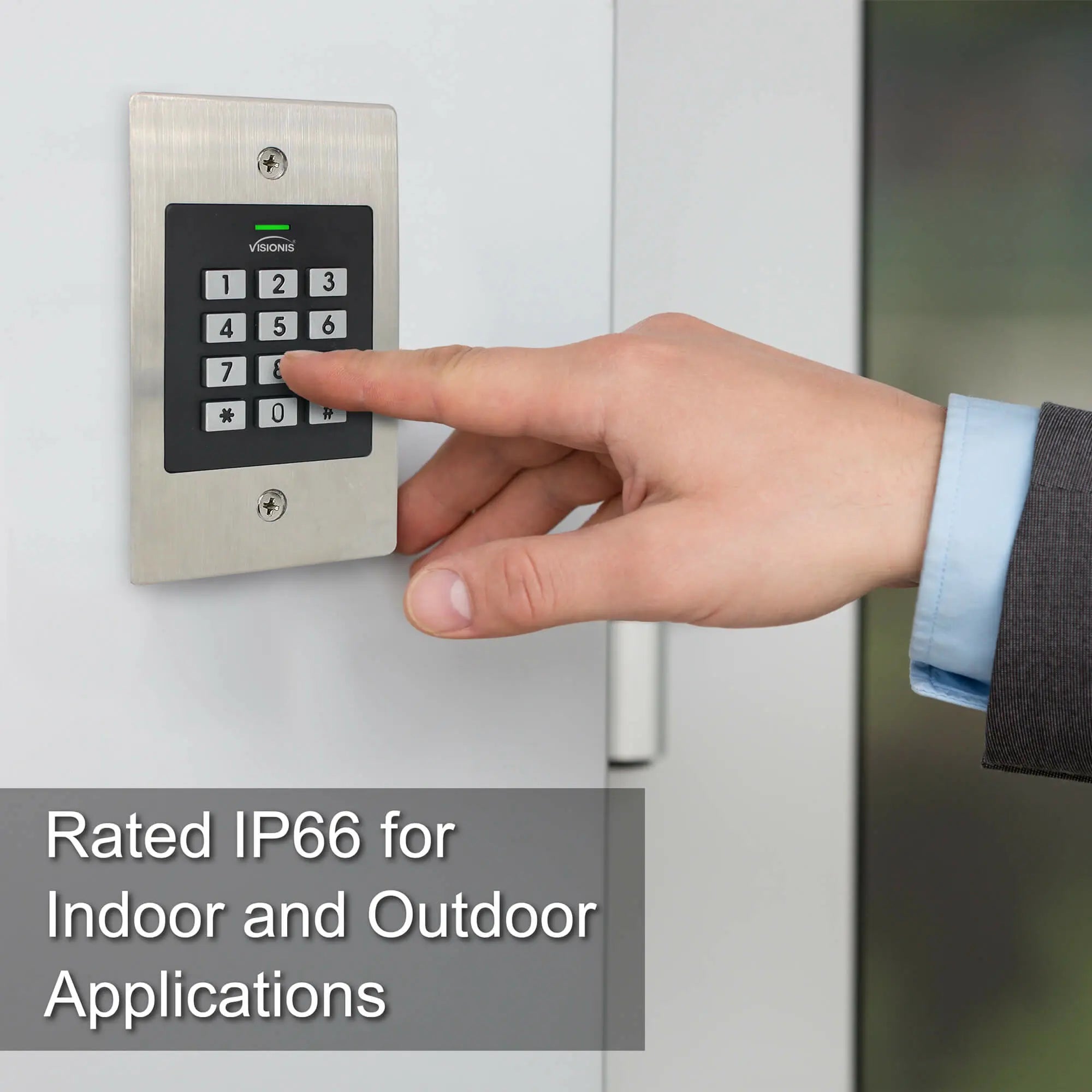

  • Index of Protection: IP66 (No ingress of dust; complete protection against contact (dust-tight). Protection against powerful water jets.)
  • Operating Temperature: -40ºC ~ 60ºC (-40ºF ~ 140ºF)
  • Operating Humidity: 10%RH ~ 99%RH
  • Physical / Color: Stainless Steel Plate / Silver & Black

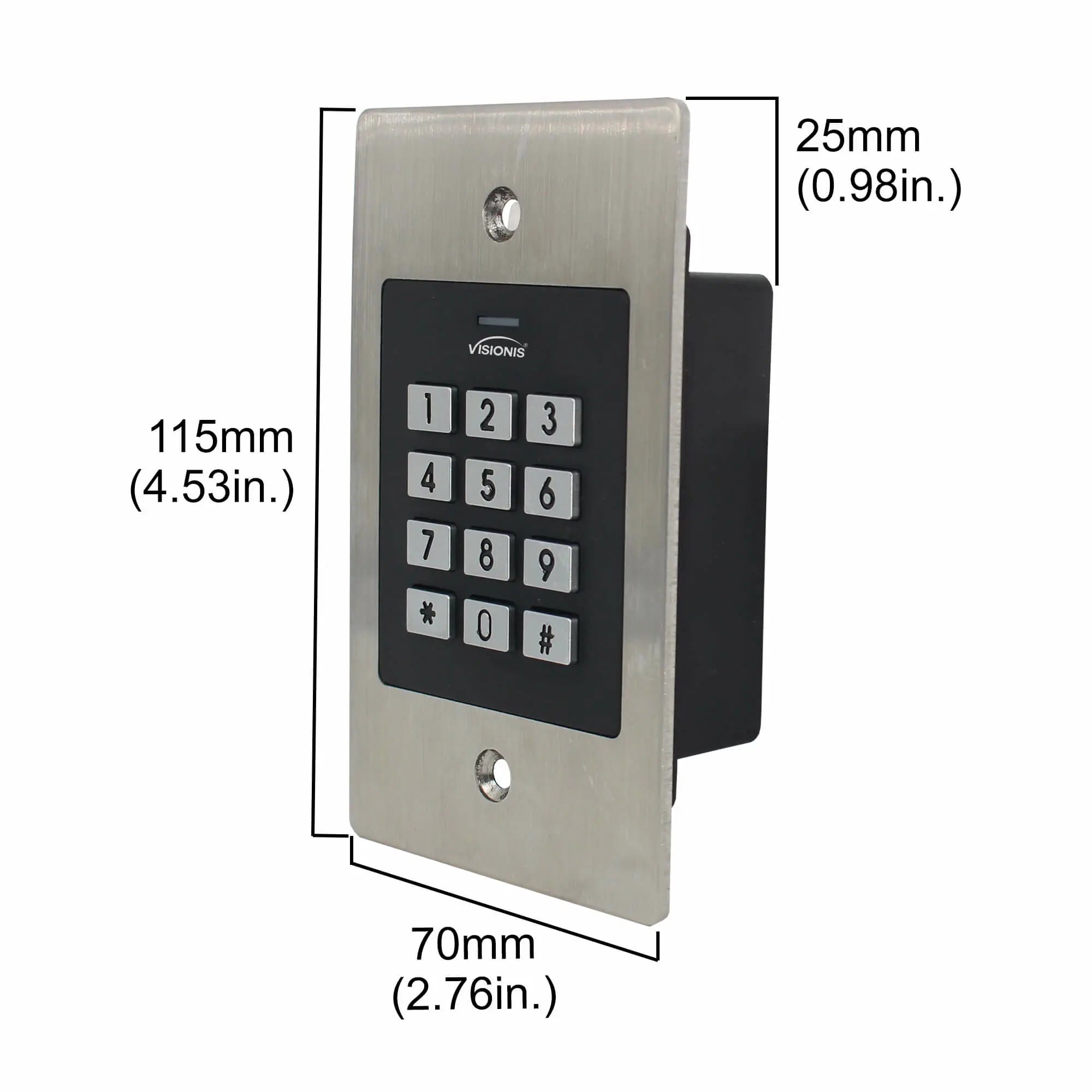

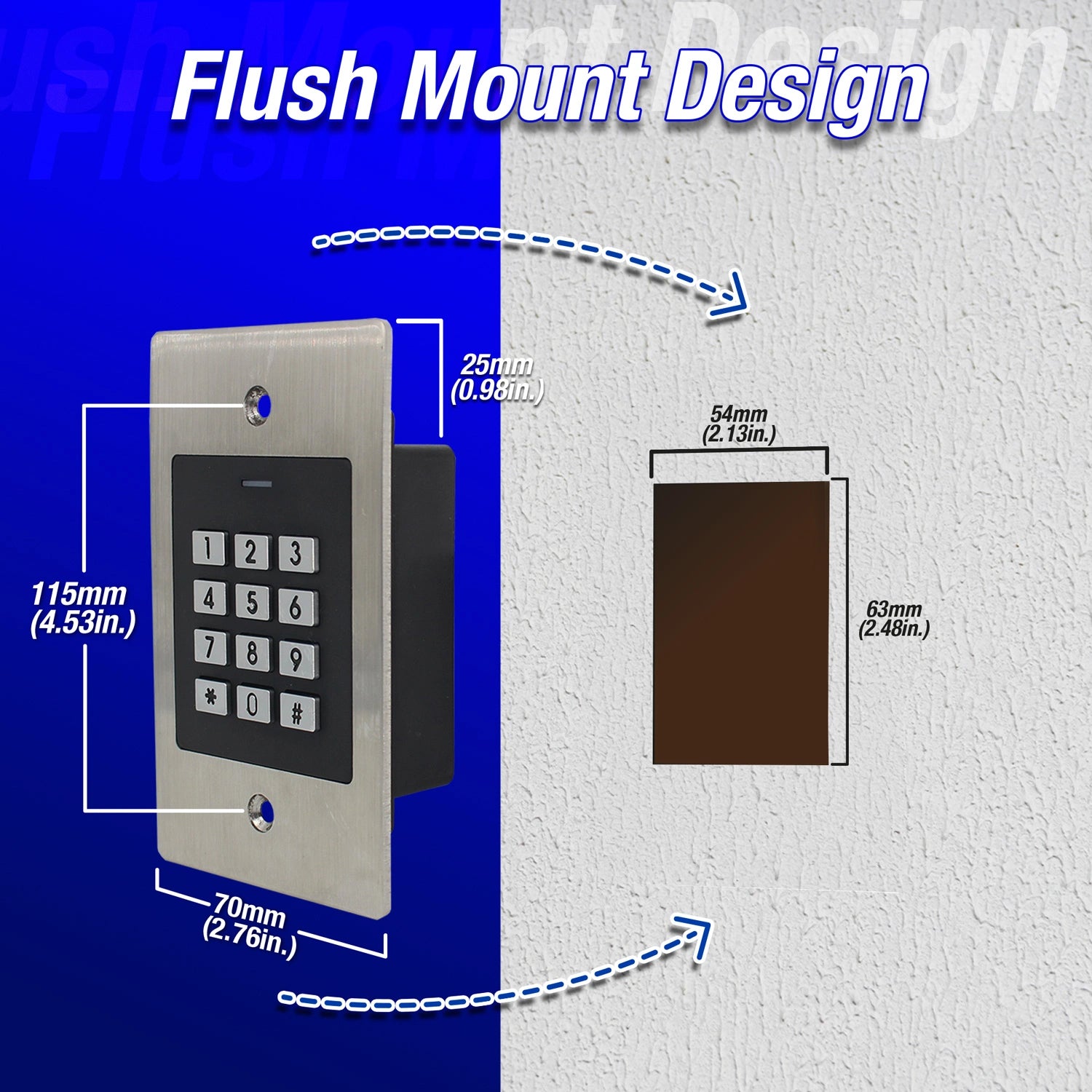

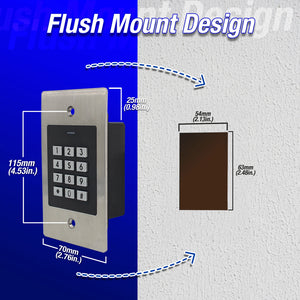

  • Dimensions: L115 x W70 x H25 (mm) - L4.53 x W2.76 x H0.98 (in.)
  • Unit Weight: 230g

Description

VIS-3029 Waterproof Keypad and Prox Card Reader Description

The Visionis VIS-3029 is a robust and reliable outdoor access control keypad and card reader designed for standalone operation or integration with Wiegand 26-bit systems. With an IP66 waterproof rating, this weatherproof keypad is built to withstand harsh environments, making it suitable for indoor and outdoor use.

Supporting up to 1,000 users, it offers multiple access methods, including proximity cards, PIN codes, or a combination of both. Its durable stainless steel construction and compact design make it an excellent choice for high-security installations.

Key Features

  • Standalone Access Control Keypad: Operates independently or with Wiegand systems.
  • Weatherproof and Durable: IP66 rating ensures resistance to water and dust.
  • Flexible Access Options: Supports card, PIN code, or card + PIN combinations.
  • High User Capacity: Accommodates up to 1,000 users for versatile applications.
  • Compact and Sleek Design: Fits seamlessly into any environment, whether residential or commercial.



Characteristics
Packaging of this product

Model No. VIS-3029:

  • Proximity Card Reader: EM
  • Radio Technology: 125KHz Proximity Card
  • Read Range: 0~6 cm (0~2.36 in.)
  • Wiring Connections: Relay output, exit button, Wiegand (in&out)
  • Relay: One (NO, NC, Common)
  • Adjustable Relay Output Time: 0~99 Seconds (5 seconds default)
  • Lock Output Load: 2 Amp Maximum
  • User Capacity: 1000 Cards/PINs and 10 Visitors - PIN Length: 4-6 digits
  • Operating Voltage: 12~18VDC
  • ldle Current: ≤30mA
  • Active Current: ≤120mA
  • Index of Protection: IP66 (No ingress of dust; complete protection against contact (dust-tight). Protection against powerful water jets.)
  • Operating Temperature: -40ºC ~ 60ºC (-40ºF ~ 140ºF)
  • Operating Humidity: 10%RH ~ 99%RH
  • Physical / Color: Stainless Steel Plate / Silver & Black
  • Dimensions: L115 x W70 x H25 (mm) - L4.53 x W2.76 x H0.98 (in.)
  • Unit Weight: 230g
