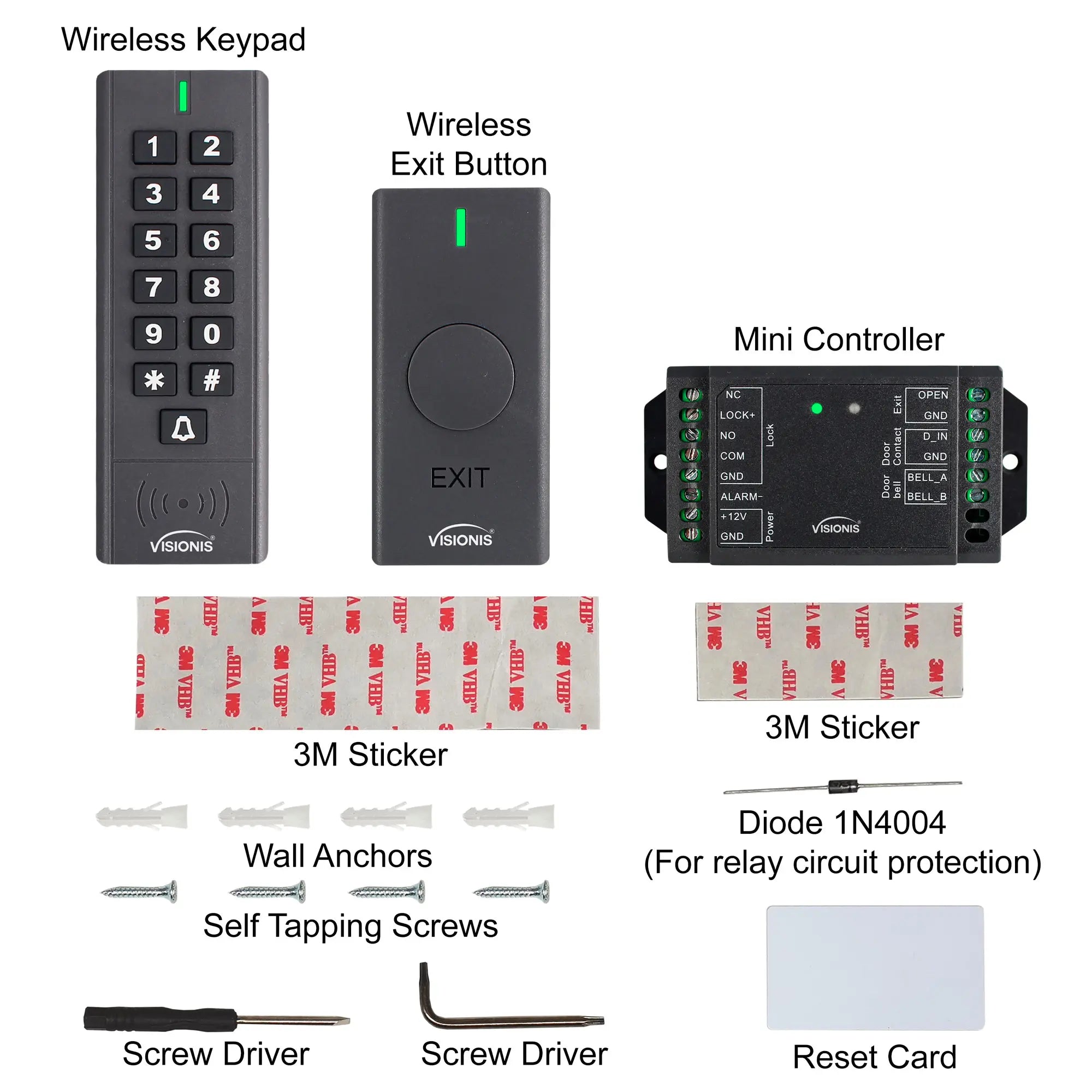

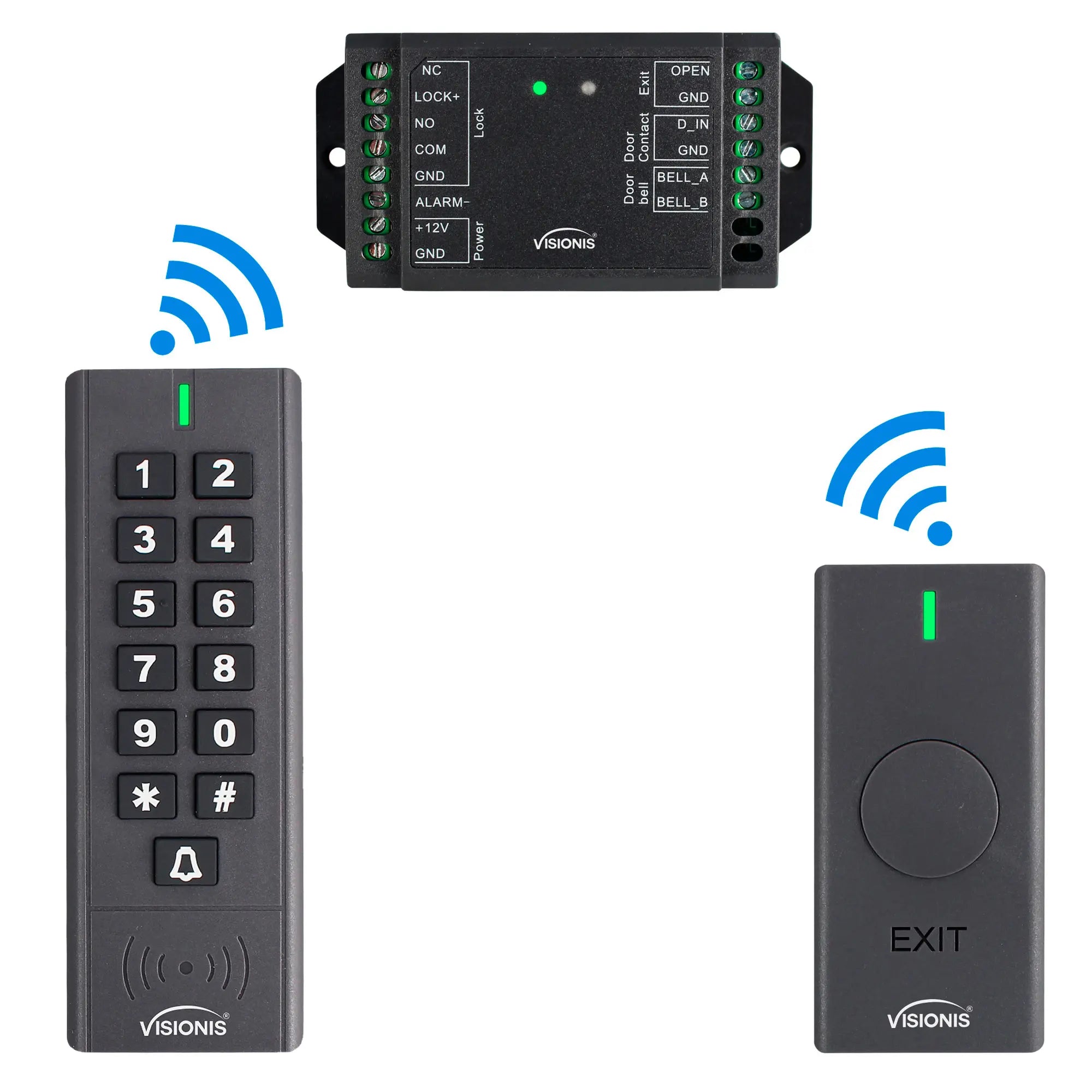

The device is a single door wireless access control, consists of a wireless & waterproof keypad, a mini controller, and a wireless exit button. 433MHz rolling code of encryption algorithm and the split design guarantees higher-secure.

The keypad can store 600 PIN/card users, including 500 common users and 100 visitors’ users. PIN length can be 4~8 digits, with internal & external alarm, door contact, exit button (wired) and doorbell.

Because of ultra-low power consumption, the keypad and exit button can work as long as one year (bases on 20 times/day), with just 3 units of AAA batteries and 1 unit Li-battery. It will remind people to replace batteries intelligently if low battery.



Features:

• Waterproof, conforms to IP65
• 600 PIN / card users (500 common users + 100 visitor users)
• PIN length: 4~8 digits
• Backlit keypad
• Communication frequency: 433MHz
• Communication distance: 50m Max.
• Door contact, alarm and doorbell output
• Pulse mode, toggle mode
• Tri-color LED status display
• Ultra-low power consumption (wireless keypad≤10uA)



ATTENTION:

• If your keypad is not paired with the controller when you receive it, don’t worry—the pairing button is located inside the mini controller box.
• The Keypad and Exit Button are used as complete wireless transmitters. The black mini box is used as the Receiver.

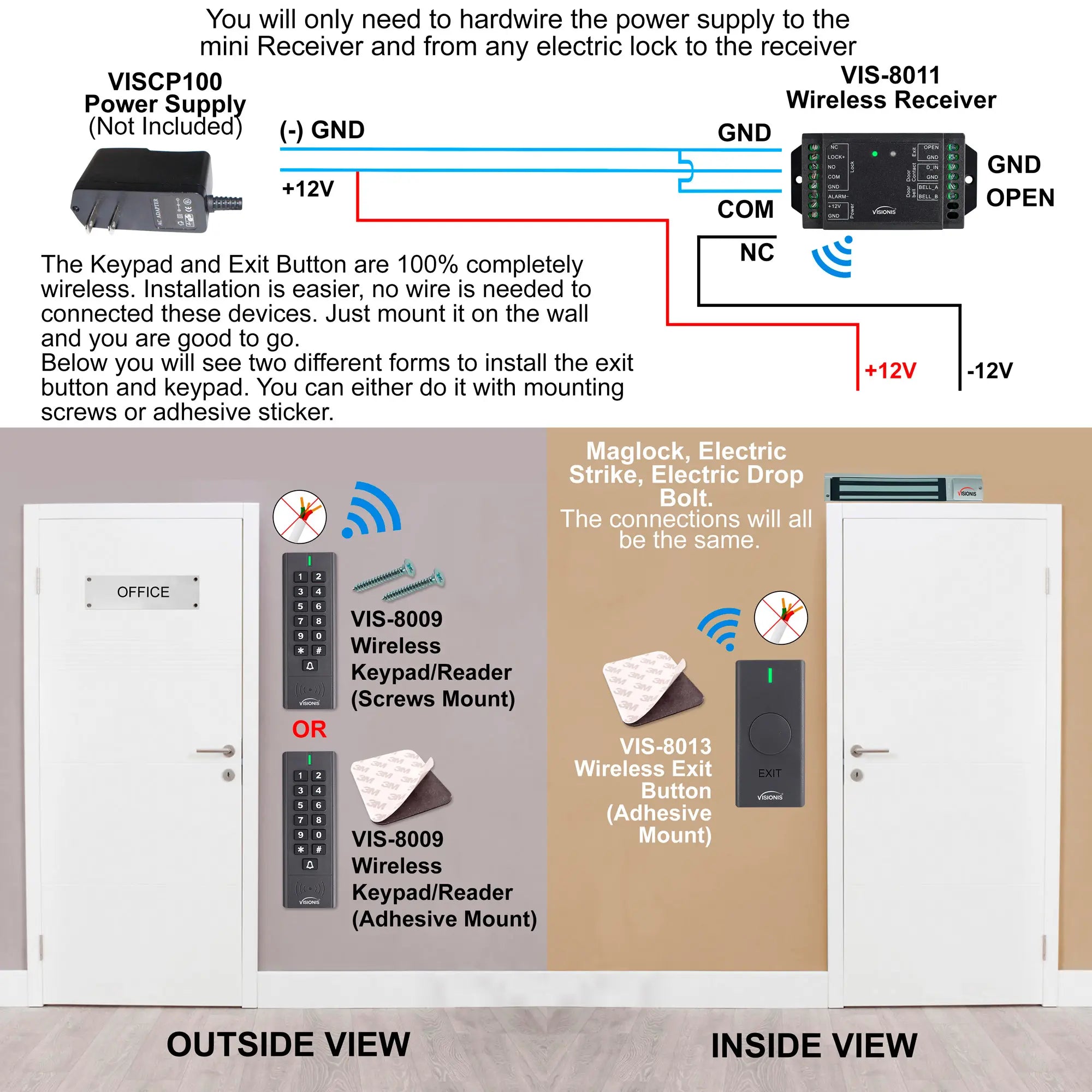

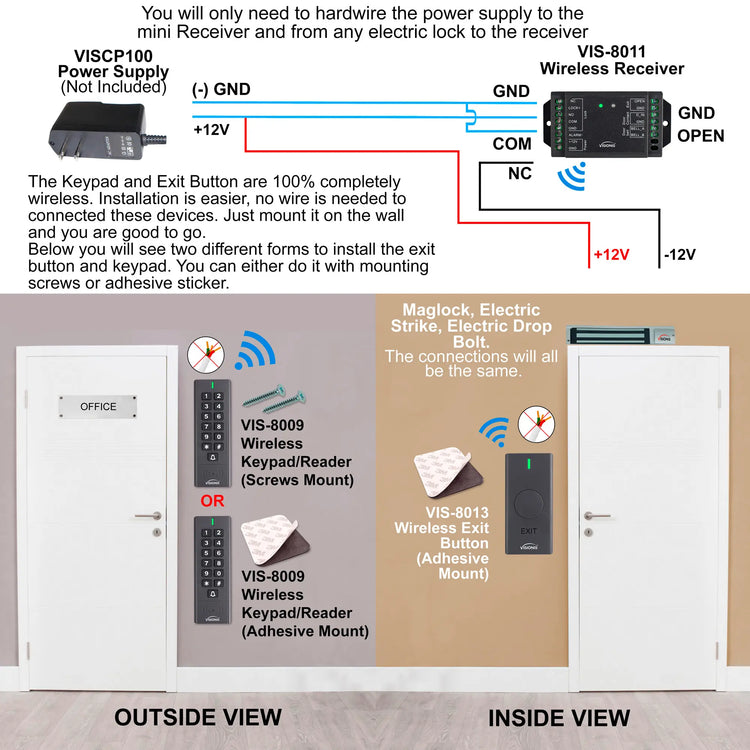

• Keep in mind that if you use any type of Electrical lock, you must HARD WIRE it to the receiver.
• The wireless keypad uses 3 Units of AAA batteries and they are INCLUDED.
• The Wireless Exit Button uses 1 unit of 2032 lithium battery, THE BATTERY IS INCLUDED FOR THE EXIT BUTTON.
• All Wireless Devices included in this kit have already been paired with the receiver. No pairing is needed.

---
