Kit Includes:

(5)

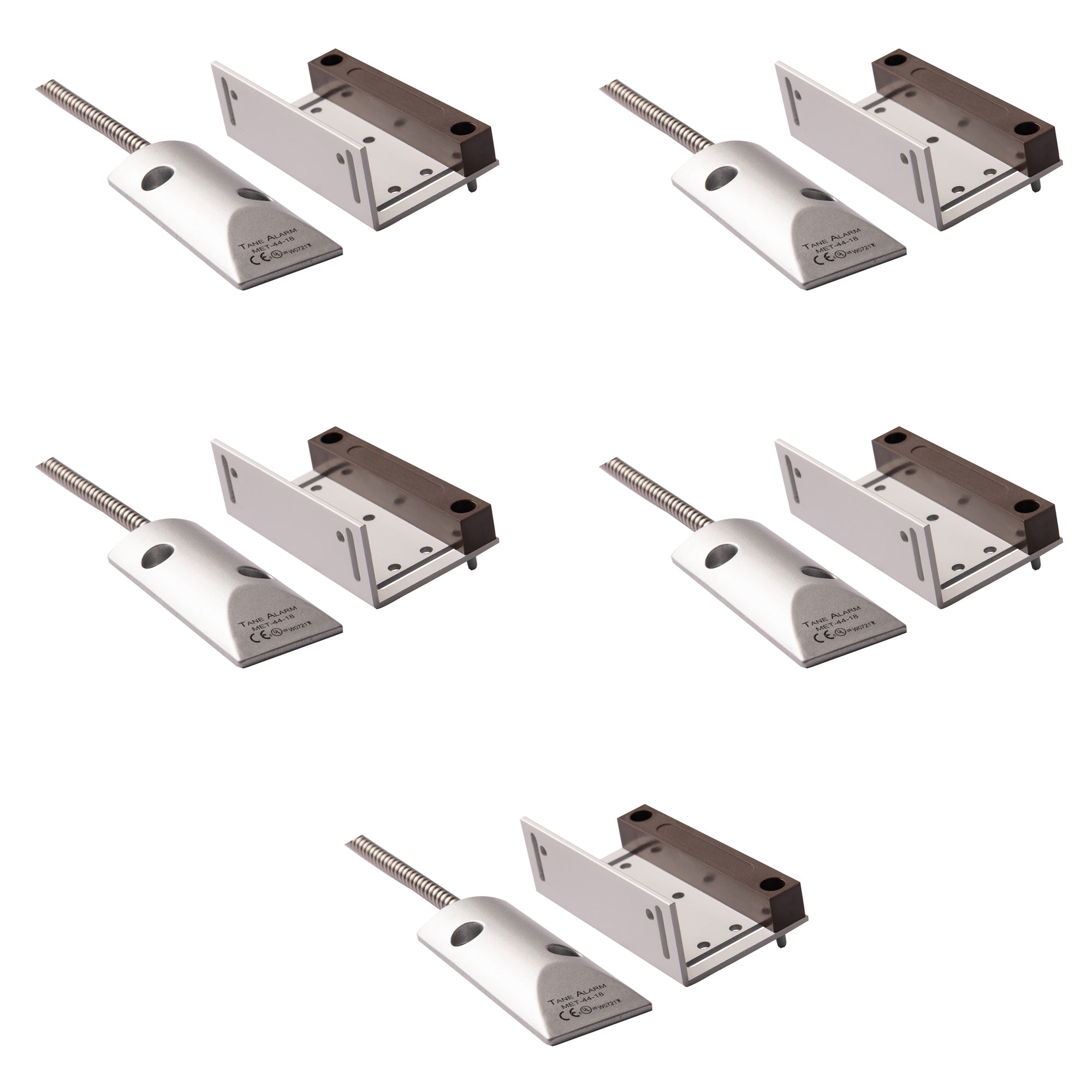

MET-44-WG: TANE Wired Surface Mount Armored Magnetic Door Contact Reed Switch Aluminum Case for Alarm Security, Home Security, Burglar Alarm Systems, UL Listed

Description

4.22″L×1.73″W×.47″H Surface Mount Armored Commercial Type.

The TANE MET-44-WG magnetic contact is built for serious protection. Featuring a rugged aluminum housing and 18-inch armored leads, this surface-mount contact is designed for securing commercial doors, overhead doors, and industrial spaces. UL Listed and built to withstand tough environments.

You can install this surface mount armored magnetic contact on the door or window frame. This product does NOT INCLUDE screws or adhesive tape.

Contact Size: 4.22″L×1.73″W×.47″H (107.2mm×44mm×12mm)
Standard Magnet Size: 4.13″L×2.42″W×1.5″H (105mm×61.7mm×38mm)
Color: Aluminum Case
18″ (458mm) Armored Leads
Standard Gap: 2″ (50).

Dimensions

MET-44-WG Surface Mount Armored Magnetic Door Contact dimensions

Characteristics

Model No. MET-44-WG:

Color: Aluminum Case
Contact Size: 4.22"L×1.73"W×.47"H (107.2mm×44mm×12mm)
Standard Magnet Size: 4.13"L×2.42"W×1.5"H (105mm×61.7mm×38mm)
Gap Inch (mm): 2" (50)
Loop Open/Closed: CLOSED
Reed Form: Normally Open
Max. Contact Rating (W): 10
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC110/DC100
Max. Switching Current (A): 0.5
Operating Temperature:-40°C to +60°C (-40°F to 140°F)

Description

4.22″L×1.73″W×.47″H Surface Mount Armored Commercial Type.

The TANE MET-44-WG magnetic contact is built for serious protection. Featuring a rugged aluminum housing and 18-inch armored leads, this surface-mount contact is designed for securing commercial doors, overhead doors, and industrial spaces. UL Listed and built to withstand tough environments.

You can install this surface mount armored magnetic contact on the door or window frame. This product does NOT INCLUDE screws or adhesive tape.

Contact Size: 4.22″L×1.73″W×.47″H (107.2mm×44mm×12mm)
Standard Magnet Size: 4.13″L×2.42″W×1.5″H (105mm×61.7mm×38mm)
Color: Aluminum Case
18″ (458mm) Armored Leads
Standard Gap: 2″ (50).

Dimensions

MET-44-WG Surface Mount Armored Magnetic Door Contact dimensions

Download Datasheets and Manuals of this product

TANE MET-44-WG

Tane by Tane

TANE Wired Surface Mount Armored Magnetic Door Contact Reed Switch Aluminum Case For Alarm Security, Home Security, Burglar Alarm Systems + UL Listed MET-44-WG-PK5 (Pack Of 5)

Name: TANE Wired Surface Mount Armored Magnetic Door Contact Reed Switch Aluminum Case For Alarm Security, Home Security, Burglar Alarm Systems + UL Listed MET-44-WG-PK5 (Pack Of 5)
Brand: Tane
SKU: MET-44-WG-PK5
Price: 119.0 USD
Availability: OutOfStock

Translation missing: en.products.product.sku:MET-44-WG-PK5

UPC Code: 734598804442 Weight: 1.0 lb

Regular price: $119.00
Sale price: $119.00
Regular price

Shipping calculated at checkout.

Out of Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

NOTE

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
