Description
  • Operating voltage: 12~24 VDC
  • 2-3/4″ (70mm) Gap for overhead doors
  • Adjustable to fit most door-channel widths
  • 24″ (61cm) Armored wire leads
  • Reed switch has deactivated rhodium on gold underplating
  • For closed-loop circuits
  • IP66 – Epoxy sealed for weatherproof installation
  • Mounting bracket included
  • Limited lifetime warranty
Characteristics

  • IP Rating: IP66 – Epoxy sealed
  • Operating Voltage: 12~24 VDC
  • Loop Type: Closed loop
  • Electrical Configuration: SPDT
  • Operation Gap: 2-3/4″, (70mm)
  • Material – Magnet: ABS plastic on L-bracket
  • Material – Switch: Heavy-duty cast-aluminum case
  • Material – Terminals: 24″ (61cm) armored leads
  • Contacts: Deactivated rhodium on gold under-plating
  • Contact Rating: 0.2A@10VDC (max), 3W (max)
  • Operating Temperature: -15º~+160º F (-25º~70º C)
  • Switch Cycles: 50 Million (0.1mA@5VDC)
  • Switch Dimensions: 4-5/16″x1-3/4″x7/16″ (110x44x11mm)
  • Magnet Dimensions: 3-15/16″x2″x2″ (100x51x51mm)
  • Magnet Type: Alnico 5

Description
  • Operating voltage: 12~24 VDC
  • 2-3/4″ (70mm) Gap for overhead doors
  • Adjustable to fit most door-channel widths
  • 24″ (61cm) Armored wire leads
  • Reed switch has deactivated rhodium on gold underplating
  • For closed-loop circuits
  • IP66 – Epoxy sealed for weatherproof installation
  • Mounting bracket included
  • Limited lifetime warranty
Characteristics
Packaging of this product

  • IP Rating: IP66 – Epoxy sealed
  • Operating Voltage: 12~24 VDC
  • Loop Type: Closed loop
  • Electrical Configuration: SPDT
  • Operation Gap: 2-3/4″, (70mm)
  • Material – Magnet: ABS plastic on L-bracket
  • Material – Switch: Heavy-duty cast-aluminum case
  • Material – Terminals: 24″ (61cm) armored leads
  • Contacts: Deactivated rhodium on gold under-plating
  • Contact Rating: 0.2A@10VDC (max), 3W (max)
  • Operating Temperature: -15º~+160º F (-25º~70º C)
  • Switch Cycles: 50 Million (0.1mA@5VDC)
  • Switch Dimensions: 4-5/16″x1-3/4″x7/16″ (110x44x11mm)
  • Magnet Dimensions: 3-15/16″x2″x2″ (100x51x51mm)
  • Magnet Type: Alnico 5

Download Datasheets and Manuals of this product

SM-226LQ

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Seco-Larm by Seco-Larm

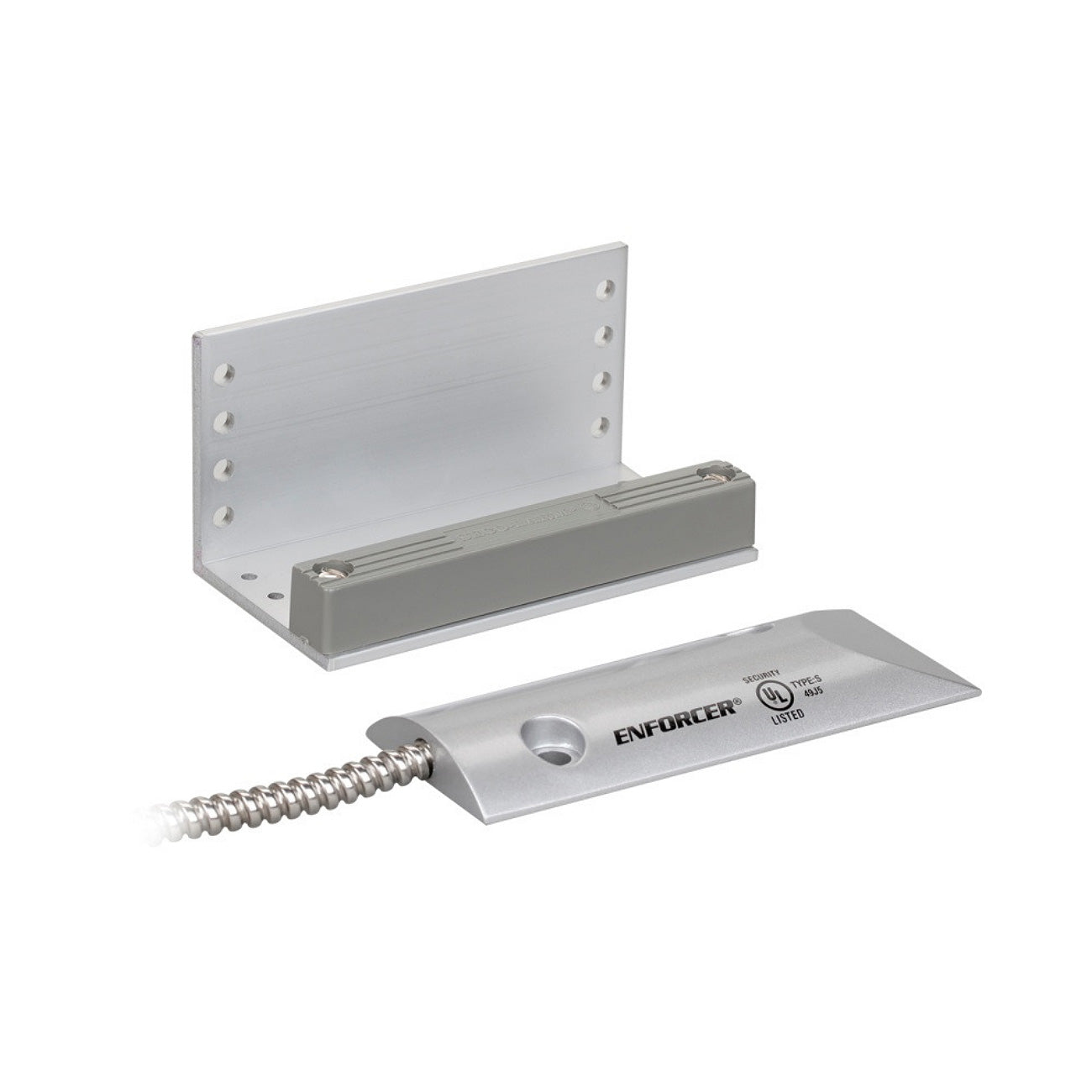

SM-226LQ Seco-Larm Overhead Door Magnetic Contact, 2-3/4″ (70mm) Gap, Closed Loop, Adjustable To Fit Most Door-Channel Widths, Magnet Enclosed In Gray ABS Case On L-Bracket, 12~24 VDC

SM-226LQ

UPC Code: 676544006466
Product Weight: 1.0 lb
$16.50
