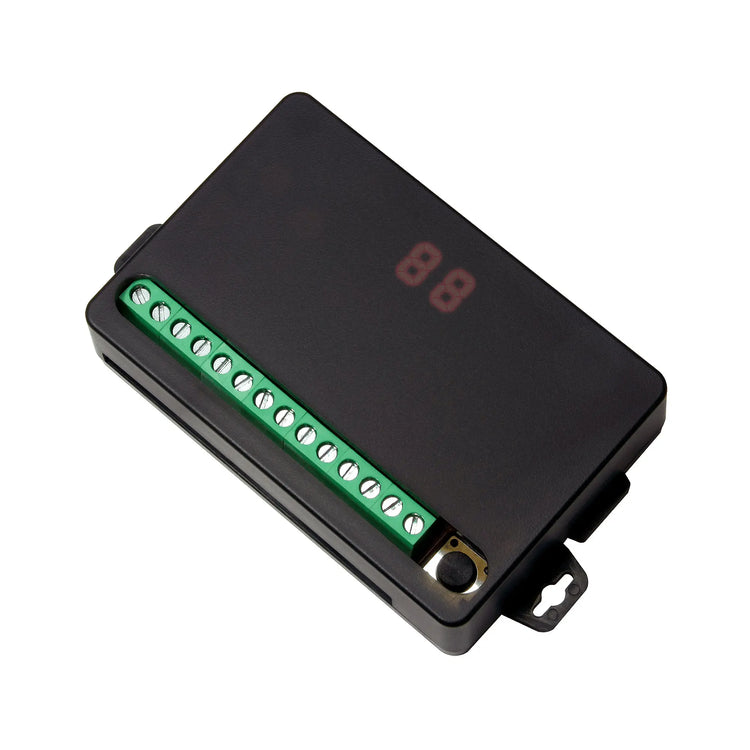

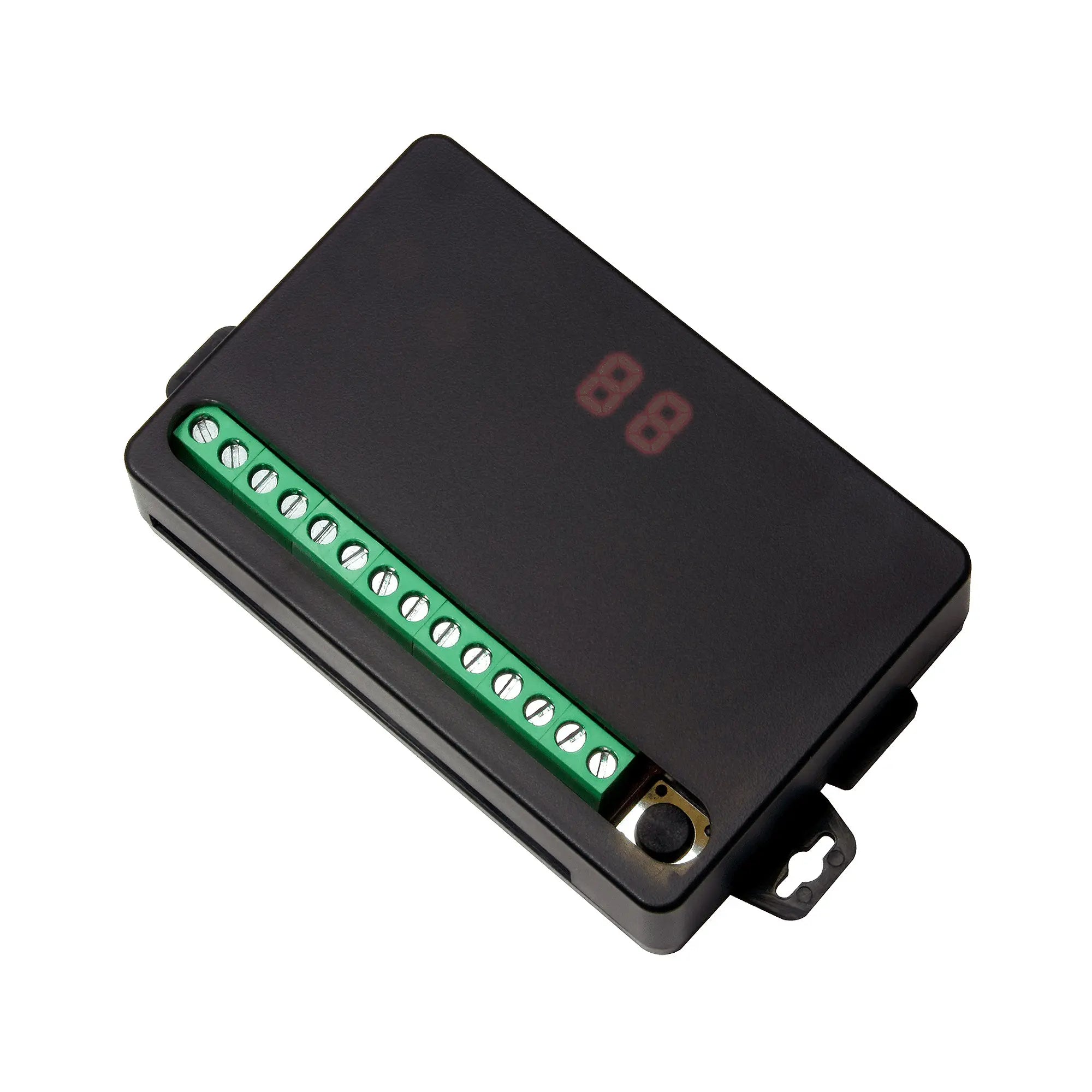

Seco-larm SK-910RD4 - 4-Channel Receiver 315mhz
    Seco-larm SK-910RD4 - 4-Channel Receiver 315mhz
Seco-larm SK-910RD4 - 4-Channel Receiver 315mhz
Seco-larm SK-910RD4 - 4-Channel Receiver 315mhz
    Seco-larm SK-910RD4 - 4-Channel Receiver 315mhz
Seco-larm SK-910RD4 - 4-Channel Receiver 315mhz
Description

The ENFORCER 4-Channel RF receivers meet the growing demand for multi-channel receivers with multiple independently controlled output modes and can be used to remotely control a variety of devices including garage doors, lights, motorized gates, lifts, or others. Now also dual frequency, they are even more flexible and compatible with all ENFORCER transmitters of the same frequencies, including both fixed and code-hopping CODEBUMP™ variants.

Features

  • Five programmable relay output modes – 0.5~99-second timed pulse, 1~99-minute timed pulse, toggle, latch, follow (validity)
  • Dual frequency operation – 315MHz is standard operation. Will also do 433.92MHz with use of optional Extended Range Antenna (SK-93ERSD)
  • Range*: Up to 500ft (150m), or up to 1,000ft (300m) with optional Extended Range Antenna (SK-91ERSD)
  • Up to 60 transmitter button codes can be learned per channel
  • Alphanumeric display indicates learn mode entered, transmitter learned, memory cleared, RF reception, and relay output mode
  • Display hidden in semi-transparent case until lit
  • Pushbutton programming, no need to cut jumpers
  • Compatible with all ENFORCER transmitters of the same frequency
  • 433.92MHz models are also available. Contact SECO-LARM for details
Characteristics

Model No. SK-910RD4:

  • Operating frequency: 315MHz*
  • Memory capacity: 60 per channel
  • Operating voltage: 10~24 VAC/VDC
  • Operating current: Standby: 16mA@12VDC, 12mA@24VDC
    Active: 60mA@12VDC, 50mA@24VDC (both per channel)
  • Relay output: Type: Independent, sequence, access control
    Modes: 1~99 sec momentary (default, 1s) 1~99 min momentary, toggle, latch, follow (validity)
  • Relay contacts: Number: 4
    Rating: Form C 10A@14VDC
  • Connectors: Screw terminals, +, -, with NO/NC/COM per relay
  • Digital display: 2-digit, 7-segment LED
  • Operating humidity: 5~95%, non-condensing
  • Operating temperature: 32°~167° F (0°~75° C)
  • Dimensions: 4-3/16″x7/8″x2-3/8″ (107x23x60 mm)


*Can simultaneously receive 433.92MHz signals with optional SK-93ERSD Extended Range Antenna


Description

The ENFORCER 4-Channel RF receivers meet the growing demand for multi-channel receivers with multiple independently controlled output modes and can be used to remotely control a variety of devices including garage doors, lights, motorized gates, lifts, or others. Now also dual frequency, they are even more flexible and compatible with all ENFORCER transmitters of the same frequencies, including both fixed and code-hopping CODEBUMP™ variants.

Features

  • Five programmable relay output modes – 0.5~99-second timed pulse, 1~99-minute timed pulse, toggle, latch, follow (validity)
  • Dual frequency operation – 315MHz is standard operation. Will also do 433.92MHz with use of optional Extended Range Antenna (SK-93ERSD)
  • Range*: Up to 500ft (150m), or up to 1,000ft (300m) with optional Extended Range Antenna (SK-91ERSD)
  • Up to 60 transmitter button codes can be learned per channel
  • Alphanumeric display indicates learn mode entered, transmitter learned, memory cleared, RF reception, and relay output mode
  • Display hidden in semi-transparent case until lit
  • Pushbutton programming, no need to cut jumpers
  • Compatible with all ENFORCER transmitters of the same frequency
  • 433.92MHz models are also available. Contact SECO-LARM for details
Characteristics
Packaging of this product

Model No. SK-910RD4:

  • Operating frequency: 315MHz*
  • Memory capacity: 60 per channel
  • Operating voltage: 10~24 VAC/VDC
  • Operating current: Standby: 16mA@12VDC, 12mA@24VDC
    Active: 60mA@12VDC, 50mA@24VDC (both per channel)
  • Relay output: Type: Independent, sequence, access control
    Modes: 1~99 sec momentary (default, 1s) 1~99 min momentary, toggle, latch, follow (validity)
  • Relay contacts: Number: 4
    Rating: Form C 10A@14VDC
  • Connectors: Screw terminals, +, -, with NO/NC/COM per relay
  • Digital display: 2-digit, 7-segment LED
  • Operating humidity: 5~95%, non-condensing
  • Operating temperature: 32°~167° F (0°~75° C)
  • Dimensions: 4-3/16″x7/8″x2-3/8″ (107x23x60 mm)


*Can simultaneously receive 433.92MHz signals with optional SK-93ERSD Extended Range Antenna
