Description

The SK-910RBQ series of wireless receivers meet the growing demand for receivers with multiple, independently-controlled output functions. These RF receivers are compatible with both code hopping and fixed code transmitters. The receivers can be used to remotely control a variety of home automation devices such as garage door openers, lights, motorized gates, lifts, or other devices.

Characteristics
  • Type: WIRELESS – Two-Channel RF Receiver
  • Operating voltage: 11~24 VAC/VDC
  • Range: Up to 500′ (150m) with SECO-LARM transmitter. Range will vary.
  • Relay Rating: Form C dry relay contact (NO/NC/COM); max 10 Amp at 24VDC per channel
  • Current Draw: 8mA@12VDC (standby), 30mA/channel @12VDC (activated)
  • Extended Range Antenna Compatible: Yes (SK-91ERSD)
  • Connectors: 5 Quick-connect screw terminals (+, -, with NO/NC/COM)
    Dimensions: 3-1/8″ x 2-9/16″ x 1″ (80 x 65 x 25 mm)

Description

The SK-910RBQ series of wireless receivers meet the growing demand for receivers with multiple, independently-controlled output functions. These RF receivers are compatible with both code hopping and fixed code transmitters. The receivers can be used to remotely control a variety of home automation devices such as garage door openers, lights, motorized gates, lifts, or other devices.

Characteristics
Packaging of this product
  • Type: WIRELESS – Two-Channel RF Receiver
  • Operating voltage: 11~24 VAC/VDC
  • Range: Up to 500′ (150m) with SECO-LARM transmitter. Range will vary.
  • Relay Rating: Form C dry relay contact (NO/NC/COM); max 10 Amp at 24VDC per channel
  • Current Draw: 8mA@12VDC (standby), 30mA/channel @12VDC (activated)
  • Extended Range Antenna Compatible: Yes (SK-91ERSD)
  • Connectors: 5 Quick-connect screw terminals (+, -, with NO/NC/COM)
    Dimensions: 3-1/8″ x 2-9/16″ x 1″ (80 x 65 x 25 mm)

Download Datasheets and Manuals of this product

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Seco-Larm by Seco-Larm

5.0

1 reviews

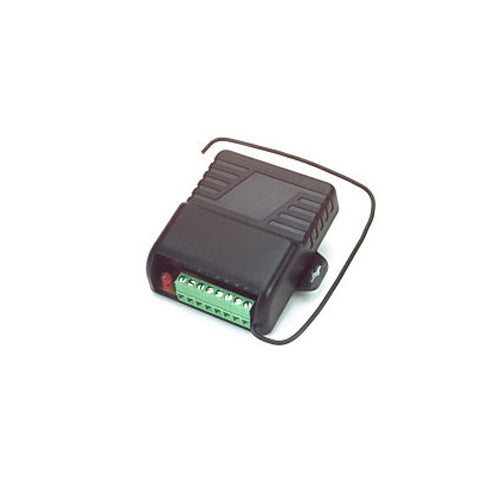

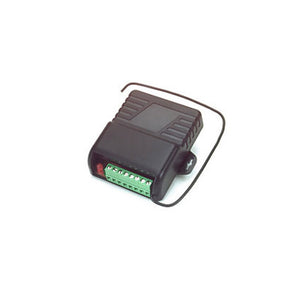

Seco-larm SK-910RB2Q 2-Channel Receiver 315mhz 11-24 VAC/DC

Translation missing: en.products.product.sku:SK-910RB2Q

UPC Code: 676544011484
Product Weight: 1.0 lb
  • CE Certificate
  • FCC Certificate
Regular price
$43.96
Sale price
$43.96
Regular price
Shipping calculated at checkout.

In Stock
