Description
  • Operating Frequency: 315MHz (433.92MHz also available by request)
  • Operating Voltage: 11~24V AC/DC
  • Operating Distance: Up to 500′ (150m)*
  • Operating Temperature: -4º~162º F (-20º~72º C)
  • Current Drain: ~12mA@12VDC (standby), 50mA@12VDC per channel activated
  • Sensitivity: -87dBm (typical)
  • Data Format: PWM
  • RF Codes: 18 quintillion, for ENFORCER CODEBUMP remotes. 68 billion, for ENFORCER fixed-code remotes
  • Coded Channels: Three
  • Number of Stored Transmitter Codes: 15 per channel, 45 per receiver
  • Receiver Outputs: Three Form “C” dry relay contacts (NO/NC/COM); rated 10A@24VDC
  • Receiver Output Modes: Programmable independent outputs: timed momentary (1, 2, 3, 4, 5, 10, 30, 60 sec.), toggle (ON/OFF), latched, continuous
  • Case Construction: High-impact ABS plastic
  • Size: 55/16″x315/16″x11/8″ (135x100x27.5 mm)
  • Weight: 3.5-oz (100g)
Characteristics

Model SK-910R3Q:

  • Operating Frequency: 315MHz (433.92MHz also available by request)
  • Operating Voltage: 11~24V AC/DC
  • Operating Distance: Up to 500′ (150m)*
  • Operating Temperature: -4º~162º F (-20º~72º C)
  • Current Drain: ~12mA@12VDC (standby), 50mA@12VDC per channel activated
  • Sensitivity: -87dBm (typical)
  • Data Format: PWM
  • RF Codes: 18 quintillion, for ENFORCER CODEBUMP remotes. 68 billion, for ENFORCER fixed-code remotes
  • Coded Channels: Three
  • Number of Stored Transmitter Codes: 15 per channel, 45 per receiver
  • Receiver Outputs: Three Form “C” dry relay contacts (NO/NC/COM); rated 10A@24VDC
  • Receiver Output Modes: Programmable independent outputs: timed momentary (1, 2, 3, 4, 5, 10, 30, 60 sec.), toggle (ON/OFF), latched, continuous
  • Case Construction: High-impact ABS plastic
  • Size: 55/16″x315/16″x11/8″ (135x100x27.5 mm)
  • Weight: 3.5-oz (100g)

Description
  • Operating Frequency: 315MHz (433.92MHz also available by request)
  • Operating Voltage: 11~24V AC/DC
  • Operating Distance: Up to 500′ (150m)*
  • Operating Temperature: -4º~162º F (-20º~72º C)
  • Current Drain: ~12mA@12VDC (standby), 50mA@12VDC per channel activated
  • Sensitivity: -87dBm (typical)
  • Data Format: PWM
  • RF Codes: 18 quintillion, for ENFORCER CODEBUMP remotes. 68 billion, for ENFORCER fixed-code remotes
  • Coded Channels: Three
  • Number of Stored Transmitter Codes: 15 per channel, 45 per receiver
  • Receiver Outputs: Three Form “C” dry relay contacts (NO/NC/COM); rated 10A@24VDC
  • Receiver Output Modes: Programmable independent outputs: timed momentary (1, 2, 3, 4, 5, 10, 30, 60 sec.), toggle (ON/OFF), latched, continuous
  • Case Construction: High-impact ABS plastic
  • Size: 55/16″x315/16″x11/8″ (135x100x27.5 mm)
  • Weight: 3.5-oz (100g)
Characteristics
Packaging of this product

Model SK-910R3Q:

  • Operating Frequency: 315MHz (433.92MHz also available by request)
  • Operating Voltage: 11~24V AC/DC
  • Operating Distance: Up to 500′ (150m)*
  • Operating Temperature: -4º~162º F (-20º~72º C)
  • Current Drain: ~12mA@12VDC (standby), 50mA@12VDC per channel activated
  • Sensitivity: -87dBm (typical)
  • Data Format: PWM
  • RF Codes: 18 quintillion, for ENFORCER CODEBUMP remotes. 68 billion, for ENFORCER fixed-code remotes
  • Coded Channels: Three
  • Number of Stored Transmitter Codes: 15 per channel, 45 per receiver
  • Receiver Outputs: Three Form “C” dry relay contacts (NO/NC/COM); rated 10A@24VDC
  • Receiver Output Modes: Programmable independent outputs: timed momentary (1, 2, 3, 4, 5, 10, 30, 60 sec.), toggle (ON/OFF), latched, continuous
  • Case Construction: High-impact ABS plastic
  • Size: 55/16″x315/16″x11/8″ (135x100x27.5 mm)
  • Weight: 3.5-oz (100g)

Download Datasheets and Manuals of this product

SK-910R3Q

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Seco-Larm by Seco-Larm

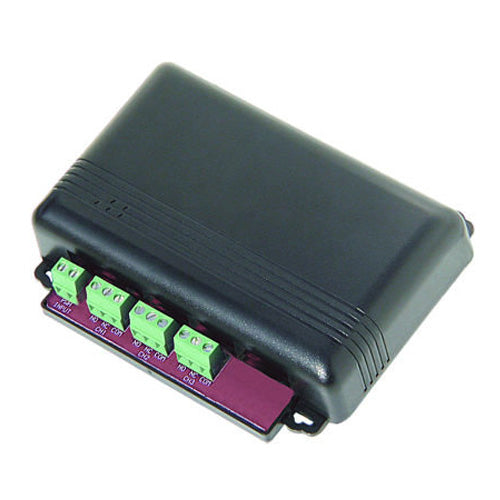

Seco-larm SK-910R3Q - 3-Channel Receiver 315mhz 11-24 VAC/DC

Translation missing: en.products.product.sku:SK-910R3Q

UPC Code: 676544014218
Product Weight: 1.0 lb
Regular price
$45.50
Sale price
$45.50
Regular price
Shipping calculated at checkout.
Contact an Expert
Return Policy
NOTE
Order Before 3:00pm EST on a week day and your order will be shipped out the same day
Free Shipping
Free shipping with in the USA
Including Puerto Rico, Hawaii and Alaska
ATTENTION:
Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
