This PRODUCT has a 2 YEAR warranty with full access to tech support in the USA!

Description

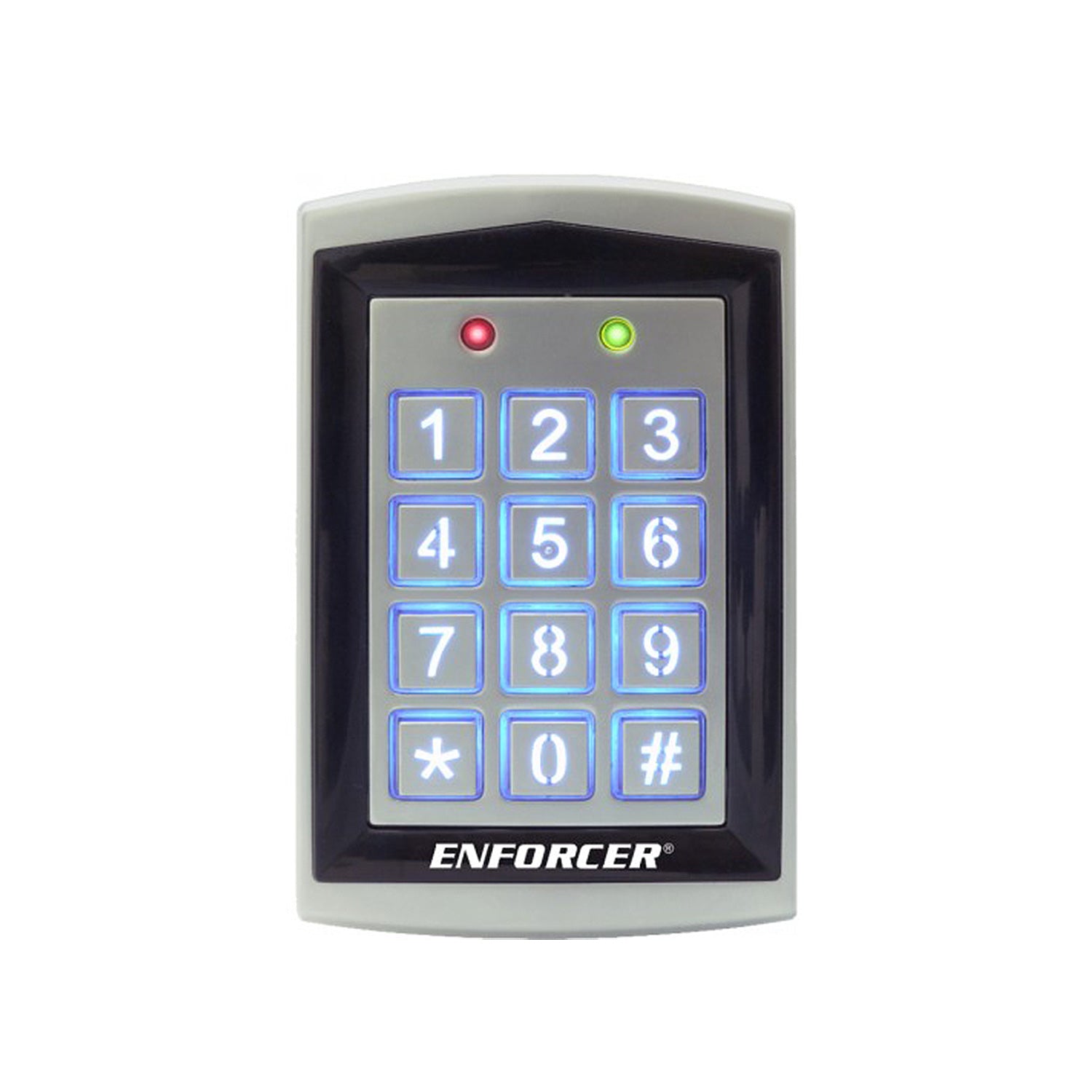

SECO-LARM SK-1323-SPQ Sealed Housing Weatherproof Stand-Alone Keypad with Proximity Card Reader; 12~24 VAC/VDC operation; 1,010 Users (Output #1: 1,000 users, Output #2: 10 users); 2 Form C relays, each rated 1 Amp @ 30VDC



Features:

  • 1,010 Users (Output #1: 1,000 users, Output #2: 10 users).
  • 2 Form C relay outputs.
  • Each relay has programmable output time from 1~99 seconds or toggle.
  • Output #2 can be programmed for use with a doorbell.
  • 2 Egress inputs and 1 door sensor input.
  • Backlit keys for easy nighttime use.
  • 2 Multi-colored status LEDs
  • All features are programmed directly from the keypad—no need for an external programmer.
  • EEPROM protects programmed information in case of power loss.
  • Optical tamper sensor for added security.
  • Circuitry is potted with epoxy for outdoor use.
  • Weatherproof (IP65).
  • Rugged aluminum construction.
Characteristics
  • Type: Sealed Housing Weatherproof Outdoor Digital Access Keypad
  • Number of User Codes: Up to 1,010
  • Operating Voltage: 12~24 VAC/VDC
  • Current Draw – Standby: 64mA@12VDC
  • Current Draw- Active: 92-120 mA@12VDC
  • Relay Outputs (2): 1A@30VDC, Form C, NO/COM/NC
  • Egress Inputs: 2, N.O. Ground
  • Door Sensor Input: N.C. Ground
  • Tamper Sensor: Optical
  • Proximity Reader Frequency: 125kHz
  • Keypad LED Life: 60,000 hours (over 6.8 years)
  • Proximity Reader Sensing Distance: 1-15/16″ (50mm)
  • Operating Temperature: -4°~122° F (-20°~50° C)
  • Dimensions: 4-3/4″x3″x7/8″ (120x76x22 mm)
  • Weight: 1-lb, 2-oz (510g)

Description

SECO-LARM SK-1323-SPQ Sealed Housing Weatherproof Stand-Alone Keypad with Proximity Card Reader; 12~24 VAC/VDC operation; 1,010 Users (Output #1: 1,000 users, Output #2: 10 users); 2 Form C relays, each rated 1 Amp @ 30VDC



Features:

  • 1,010 Users (Output #1: 1,000 users, Output #2: 10 users).
  • 2 Form C relay outputs.
  • Each relay has programmable output time from 1~99 seconds or toggle.
  • Output #2 can be programmed for use with a doorbell.
  • 2 Egress inputs and 1 door sensor input.
  • Backlit keys for easy nighttime use.
  • 2 Multi-colored status LEDs
  • All features are programmed directly from the keypad—no need for an external programmer.
  • EEPROM protects programmed information in case of power loss.
  • Optical tamper sensor for added security.
  • Circuitry is potted with epoxy for outdoor use.
  • Weatherproof (IP65).
  • Rugged aluminum construction.
Characteristics
Packaging of this product
  • Type: Sealed Housing Weatherproof Outdoor Digital Access Keypad
  • Number of User Codes: Up to 1,010
  • Operating Voltage: 12~24 VAC/VDC
  • Current Draw – Standby: 64mA@12VDC
  • Current Draw- Active: 92-120 mA@12VDC
  • Relay Outputs (2): 1A@30VDC, Form C, NO/COM/NC
  • Egress Inputs: 2, N.O. Ground
  • Door Sensor Input: N.C. Ground
  • Tamper Sensor: Optical
  • Proximity Reader Frequency: 125kHz
  • Keypad LED Life: 60,000 hours (over 6.8 years)
  • Proximity Reader Sensing Distance: 1-15/16″ (50mm)
  • Operating Temperature: -4°~122° F (-20°~50° C)
  • Dimensions: 4-3/4″x3″x7/8″ (120x76x22 mm)
  • Weight: 1-lb, 2-oz (510g)
