This PRODUCT has a 2 YEAR warranty with full access to tech support in the USA!

Description
  • Use in closed-circuit alarm systems
  • Detects shock to window glass, walls, or ceilings
  • Pure silver contact with gold plating assures reliable, long-term operation
  • Built-in tamper switch for complete security
  • Contact pressure: Adjustable from 1 to 50 grams, recommended setting between 5 and 25 grams
  • Contact rating: 1.0A at 50VDC
  • Life: Over 100,000 contacts
  • Size: 5/8“x7/8“x23/8” (15x21x60 mm)
Characteristics

  • Circuit: Normally-closed contact, momentarily open when activated
  • Contact Pressure: Adjustable from 1 to 50 grams but recommended setting between 5 and 25 grams only. Supplied with pressure of approx. 6 grams
  • Relay Rating: 1A @ 50VDC
  • Break Time: Approx. 45 ms max. (at 6-gram pressure)
  • Life: Over 100,000 contacts
  • Contacts: Pure silver
  • Case: ABS resin
  • Color: White
  • Dimensions: 5/8″ x 7/8″ x 2-3/8″ (15 x 21 x 60 mm).
  • Weight: 20 g

Description
  • Use in closed-circuit alarm systems
  • Detects shock to window glass, walls, or ceilings
  • Pure silver contact with gold plating assures reliable, long-term operation
  • Built-in tamper switch for complete security
  • Contact pressure: Adjustable from 1 to 50 grams, recommended setting between 5 and 25 grams
  • Contact rating: 1.0A at 50VDC
  • Life: Over 100,000 contacts
  • Size: 5/8“x7/8“x23/8” (15x21x60 mm)
Characteristics
Packaging of this product

  • Circuit: Normally-closed contact, momentarily open when activated
  • Contact Pressure: Adjustable from 1 to 50 grams but recommended setting between 5 and 25 grams only. Supplied with pressure of approx. 6 grams
  • Relay Rating: 1A @ 50VDC
  • Break Time: Approx. 45 ms max. (at 6-gram pressure)
  • Life: Over 100,000 contacts
  • Contacts: Pure silver
  • Case: ABS resin
  • Color: White
  • Dimensions: 5/8″ x 7/8″ x 2-3/8″ (15 x 21 x 60 mm).
  • Weight: 20 g

Download Datasheets and Manuals of this product

SS-040Q/W

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Seco-Larm by Seco-Larm

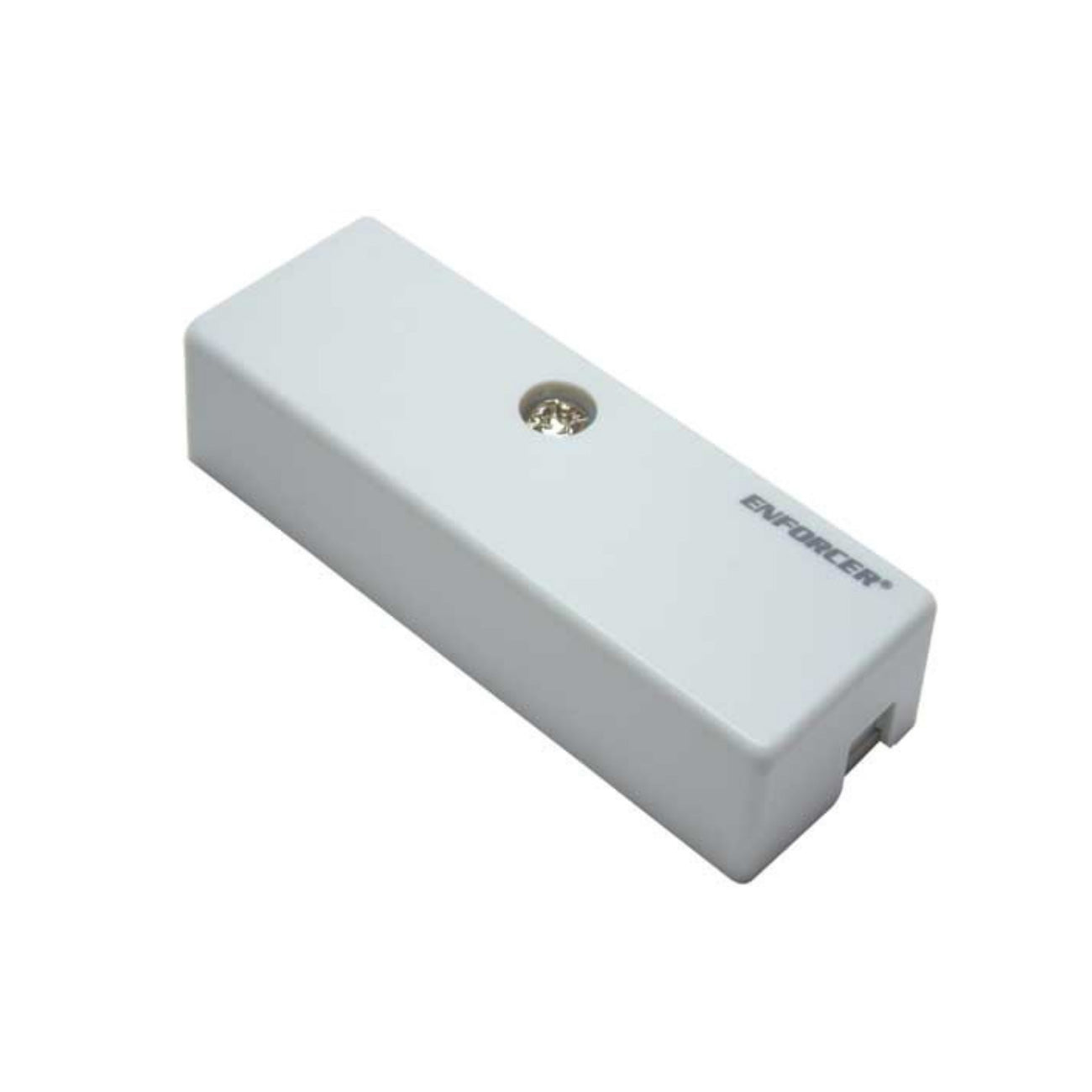

Seco-Larm SS-040Q/W Vibration Detector (White Color)
