This PRODUCT has a 2 YEAR warranty with full access to tech support in the USA!

Description

Key Features

  • Adjustable door lock delay timer (0, 2.5, 5, or 9 sec)
  • Control wire allows release without cutting unit’s power
  • Magnetic switch determines door position for positive locking
  • Solenoid attempts to lock several times and then shuts off if door not closed properly to prevent burning out
  • Use with an optional digital keypad for high security without a key
  • Easily connects to SECO-LARM’s Electronic Keypads
  • Suitable for office-type applications
  • Shallow design for use with most metal door jambs
  • No limiting installation orientation
  • Powered by a solenoid
  • Stainless steel for strength and long life
  • 1,000,000 operations lifetime
  • Plastic material Tefulon Polymonochlorotrifluoethylene
  • Over-current protection 1.5A
  • Stainless steel bolt, 5/8″ diameter, 5/8″ throw
Characteristics

  • Current Draw-Standby: 340mA@12VDC/180mA@24VDC
  • Current Draw-Active: 900mA@12VDC/440mA@24VDC
  • Status Sensor: SPDT, 250mA @ 12VDC (NO/NC/COM)
  • Operating Voltage: 12/24 VDC
  • Lock body (faceplate) dimensions: 7-7/8″x1-5/16″
  • Lock body (cavity) dimensions: 5-3/4″x1-1/8″x1-1/2″
  • Strike plate dimensions: 3-9/16″x1″x1-1/8″
  • Plug: Special conic cavity stainless steel (thickness 1.5mm~1.8mm)
  • Weight: 1-lb 13-oz


Description

Key Features

  • Adjustable door lock delay timer (0, 2.5, 5, or 9 sec)
  • Control wire allows release without cutting unit’s power
  • Magnetic switch determines door position for positive locking
  • Solenoid attempts to lock several times and then shuts off if door not closed properly to prevent burning out
  • Use with an optional digital keypad for high security without a key
  • Easily connects to SECO-LARM’s Electronic Keypads
  • Suitable for office-type applications
  • Shallow design for use with most metal door jambs
  • No limiting installation orientation
  • Powered by a solenoid
  • Stainless steel for strength and long life
  • 1,000,000 operations lifetime
  • Plastic material Tefulon Polymonochlorotrifluoethylene
  • Over-current protection 1.5A
  • Stainless steel bolt, 5/8″ diameter, 5/8″ throw
Characteristics
Packaging of this product

  • Current Draw-Standby: 340mA@12VDC/180mA@24VDC
  • Current Draw-Active: 900mA@12VDC/440mA@24VDC
  • Status Sensor: SPDT, 250mA @ 12VDC (NO/NC/COM)
  • Operating Voltage: 12/24 VDC
  • Lock body (faceplate) dimensions: 7-7/8″x1-5/16″
  • Lock body (cavity) dimensions: 5-3/4″x1-1/8″x1-1/2″
  • Strike plate dimensions: 3-9/16″x1″x1-1/8″
  • Plug: Special conic cavity stainless steel (thickness 1.5mm~1.8mm)
  • Weight: 1-lb 13-oz

Download Datasheets and Manuals of this product

SD-997B-GBQ

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Seco-Larm by Seco-Larm

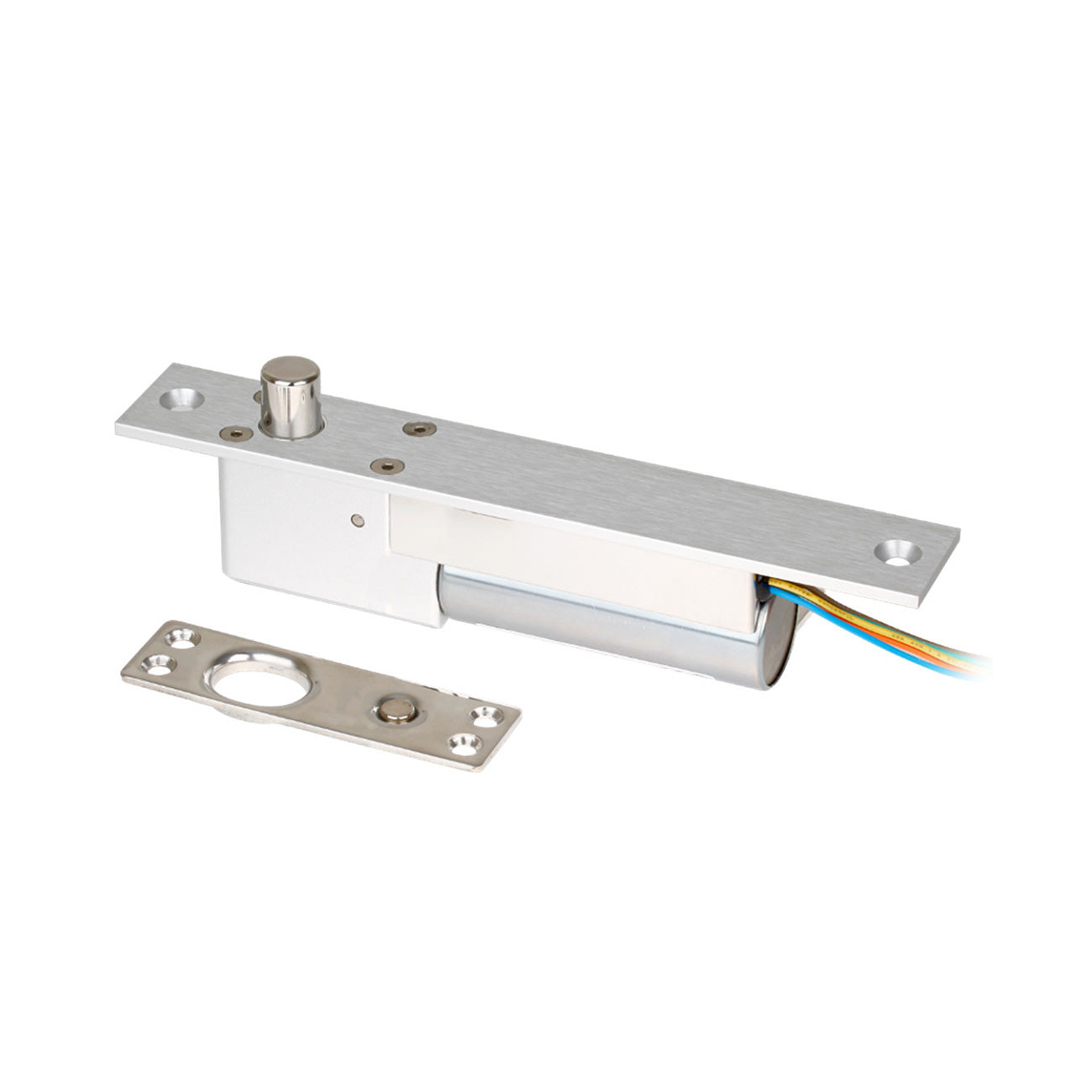

SD-997B-GBQ Seco-Larm Electric Deadbolt/Fail-Safe, Adds Concealed Deadbolt Security To Most Wood Or Hollow Metal Doors With The Added Convenience Ofelectrical Operation, Fail-Safe Operation (Unlocks If Power Is Lost)

Translation missing: en.products.product.sku:SD-997B-GBQ

UPC Code: 676544015383
Product Weight: 2.0 lb
Regular price
$121.90
Sale price
$121.90
Regular price
Shipping calculated at checkout.

In Stock

Phone Support Icon

Phone Life-Time Technical Support

Return Policy Icon

30-Day No Questions Return Policy

Free Shipping Icon

*Free Shipping within the USA

Contact an Expert
Return Policy
NOTE
Order Before 3:00pm EST on a week day and your order will be shipped out the same day
Free Shipping
*Free shipping within the USA
Including Puerto Rico, Hawaii and Alaska
ATTENTION:
Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
