This PRODUCT has a 2 YEAR warranty with full access to tech support in the USA!

Description

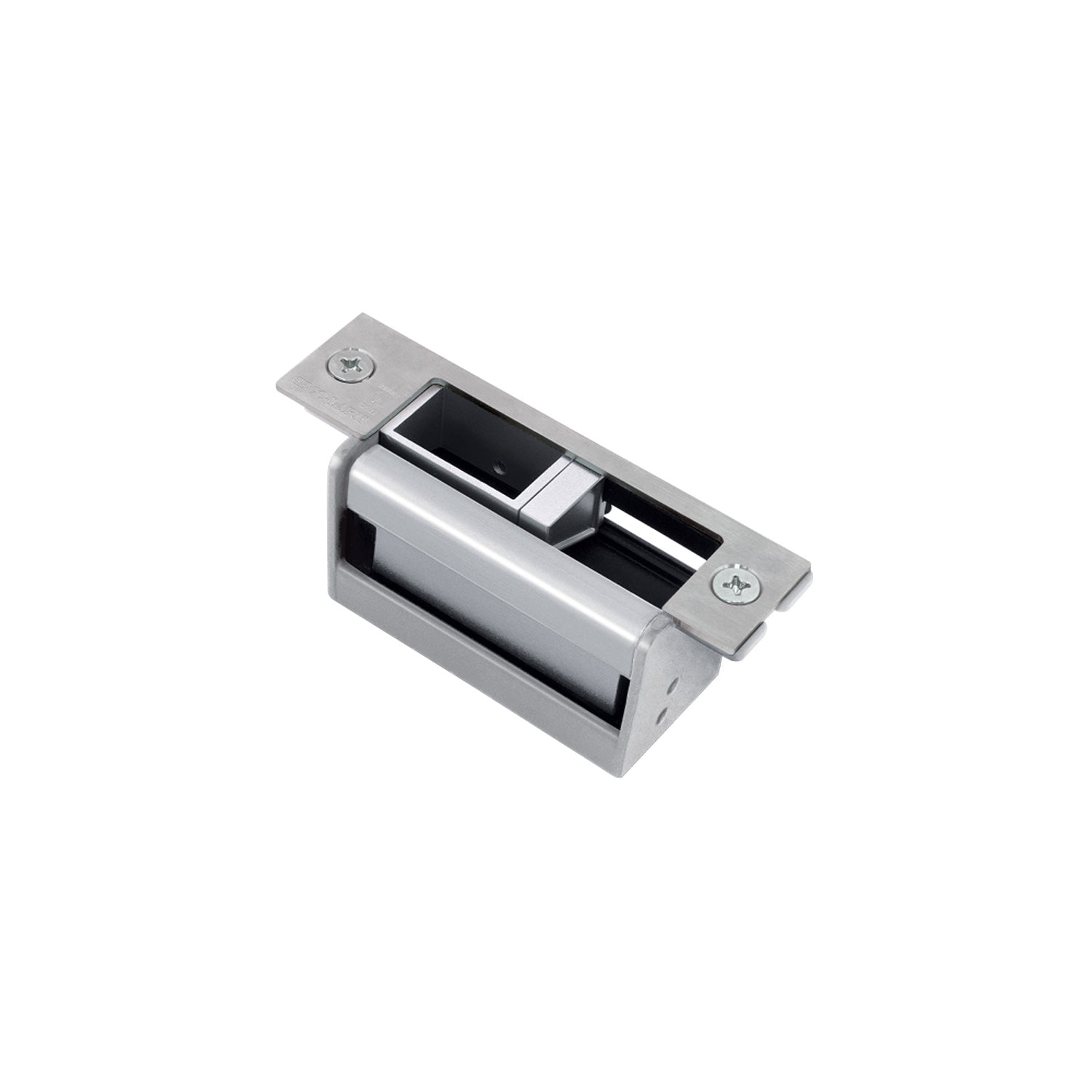

The SECO-LARM SD-996C-NUVQ Electric Door Strike with Vertical Adjustment is compatible with a wide range of lock types including cylindrical, mortise, and mortise exit devices and can be configured for use in wood, aluminum, or metal doors. Included are various ANSI-sized faceplates to match the door lock type. The strike is easily field-configurable for fail-safe or fail-secure applications.

Key Features

  • 12/24 VDC Operation
  • Vertical adjustable deadbolt opening, sliding shim keeper, and deadlatch ramp accommodates a wide range of lock types
  • Accommodates deadbolts up to 1″
  • Field selectable for fail-safe or fail-secure
  • Includes 5 different stainless-steel faceplates
  • Includes trim plate to hide gaps in installation
  • Reversible non-handed design
  • Static strength 1,000 lbs. (454kg)
  • Tested to 250,000 cycles (UL Tested)
Characteristics

  • Operating Voltage: 12/24 VDC
  • Current Draw: 300mA@12VDC, 150mA@24VDC
  • Dynamic strength: 33 ft-lbs. (4.56 m-kgs)
  • Latch Throw: 1” (25mm) max with 1/8” (3mm) door gap
  • Operating Temperature: 14°F~113°F (-10°~45° C)
  • Operating Humidity: 0~85%
  • Dimensions: 1-13/16”x1-5/8”x3-5/16” (47x42x84 mm)

Description

The SECO-LARM SD-996C-NUVQ Electric Door Strike with Vertical Adjustment is compatible with a wide range of lock types including cylindrical, mortise, and mortise exit devices and can be configured for use in wood, aluminum, or metal doors. Included are various ANSI-sized faceplates to match the door lock type. The strike is easily field-configurable for fail-safe or fail-secure applications.

Key Features

  • 12/24 VDC Operation
  • Vertical adjustable deadbolt opening, sliding shim keeper, and deadlatch ramp accommodates a wide range of lock types
  • Accommodates deadbolts up to 1″
  • Field selectable for fail-safe or fail-secure
  • Includes 5 different stainless-steel faceplates
  • Includes trim plate to hide gaps in installation
  • Reversible non-handed design
  • Static strength 1,000 lbs. (454kg)
  • Tested to 250,000 cycles (UL Tested)
Characteristics
Packaging of this product

  • Operating Voltage: 12/24 VDC
  • Current Draw: 300mA@12VDC, 150mA@24VDC
  • Dynamic strength: 33 ft-lbs. (4.56 m-kgs)
  • Latch Throw: 1” (25mm) max with 1/8” (3mm) door gap
  • Operating Temperature: 14°F~113°F (-10°~45° C)
  • Operating Humidity: 0~85%
  • Dimensions: 1-13/16”x1-5/8”x3-5/16” (47x42x84 mm)
