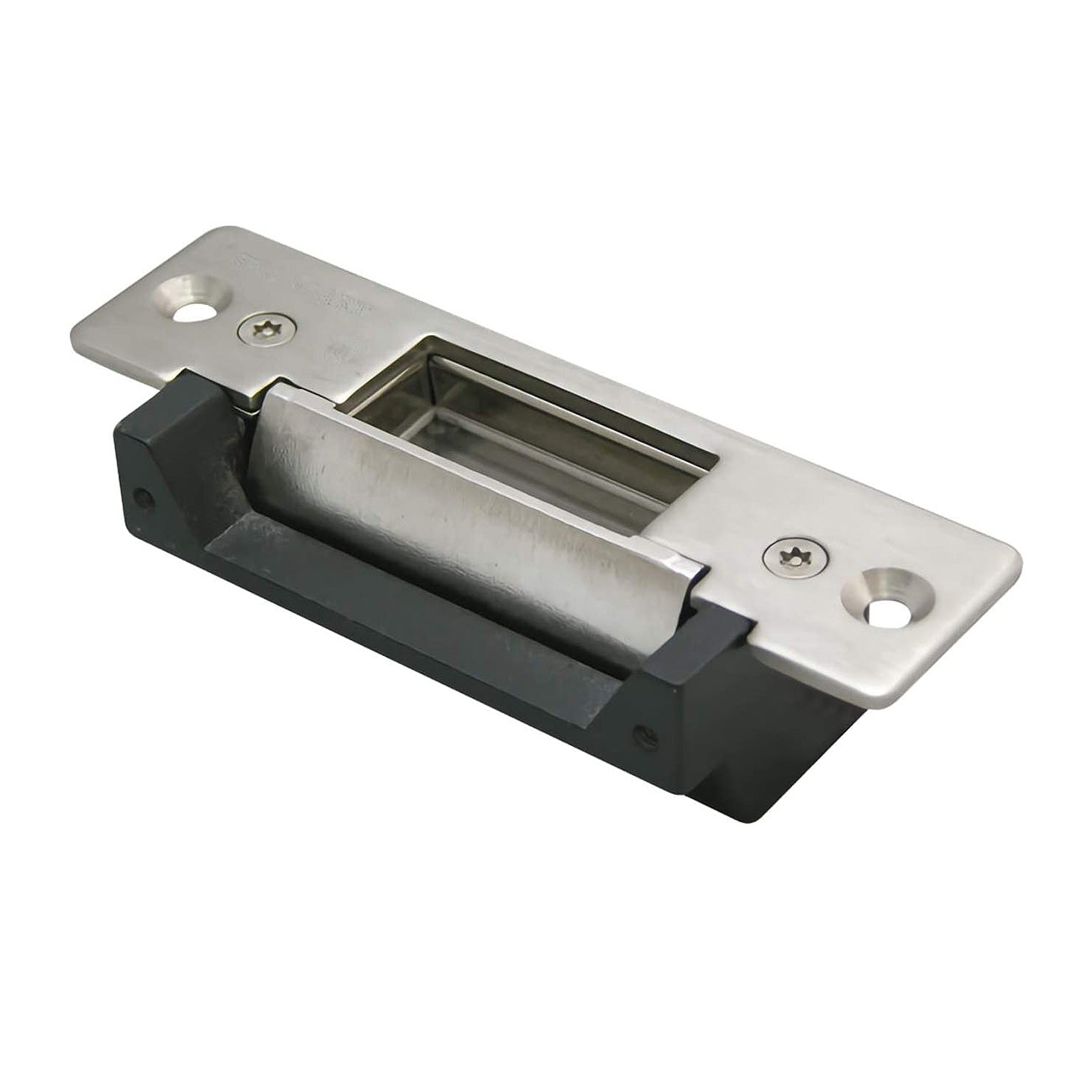

SD-995C24 Seco-Larm Electric Door Strike For Metal Doors
    SD-995C24 Seco-Larm Electric Door Strike For Metal Doors
SD-995C24 Seco-Larm Electric Door Strike For Metal Doors
SD-995C24 Seco-Larm Electric Door Strike For Metal Doors
    SD-995C24 Seco-Larm Electric Door Strike For Metal Doors
SD-995C24 Seco-Larm Electric Door Strike For Metal Doors

This PRODUCT has a 2 YEAR warranty with full access to tech support in the USA!

Description

The SECO-LARM® Electric Door Strike can be used to convert cylindrical lock sets into an electronic access controlled locking system. Combine with an optional SECO-LARM® digital keypad for keyless high security.

  • UL 294 & UL1034 Listed
  • Field-selectable for fail safe or fail-secure operation
  • Can be used with virtually any cylindrical door locking system
  • Can use with an optional digital keypad
  • Suitable for office-type applications
  • Reversible non-handed design fits either right hand or left-handed doors
  • Shallow design for use with most metal doors
  • Powered by a solenoid, not a buzzer coil
  • Static strength – 1,000 lbs. (454kg)
  • Stainless steel keeper for strength and long life
  • Non-polarized connection
  • Tested to 250,000 cycles
Characteristics
  • Operating voltage: 24VDC
  • Current draw: 140mA
  • Static strength: 1,000 lbs(454kg)
  • Dynamic strength: 50 ft-lbs (6.91 m-kgs)
  • Operating temperature: 14° to 113° F (-10° to 45° C)
  • Dimensions: 4 7/8″ x 1 1/4″ x 1 1/4″ (124 x 32 x 32 mm)
Description

The SECO-LARM® Electric Door Strike can be used to convert cylindrical lock sets into an electronic access controlled locking system. Combine with an optional SECO-LARM® digital keypad for keyless high security.

  • UL 294 & UL1034 Listed
  • Field-selectable for fail safe or fail-secure operation
  • Can be used with virtually any cylindrical door locking system
  • Can use with an optional digital keypad
  • Suitable for office-type applications
  • Reversible non-handed design fits either right hand or left-handed doors
  • Shallow design for use with most metal doors
  • Powered by a solenoid, not a buzzer coil
  • Static strength – 1,000 lbs. (454kg)
  • Stainless steel keeper for strength and long life
  • Non-polarized connection
  • Tested to 250,000 cycles
Characteristics
Packaging of this product
  • Operating voltage: 24VDC
  • Current draw: 140mA
  • Static strength: 1,000 lbs(454kg)
  • Dynamic strength: 50 ft-lbs (6.91 m-kgs)
  • Operating temperature: 14° to 113° F (-10° to 45° C)
  • Dimensions: 4 7/8″ x 1 1/4″ x 1 1/4″ (124 x 32 x 32 mm)

Download Datasheets and Manuals of this product

SD-995C24

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Seco-Larm by Seco-Larm

SD-995C24 Seco-Larm Electric Door Strike For Metal Doors, 24VDC, Shallow Design, Non-Polarized Connection, Reversible Non-Handed Design, Up To 250000 Cycles, Up To 1000 Lbs Of Static Strength

SD-995C24

UPC Code: 676544002895 Weight: 1.0 lb
