SD-995C-D3Q Seco-Larm No Cut Door Strike
    SD-995C-D3Q Seco-Larm No Cut Door Strike
SD-995C-D3Q Seco-Larm No Cut Door Strike
SD-995C-D3Q Seco-Larm No Cut Door Strike
    SD-995C-D3Q Seco-Larm No Cut Door Strike
SD-995C-D3Q Seco-Larm No Cut Door Strike

This PRODUCT has a 2 YEAR warranty with full access to tech support in the USA!

Description

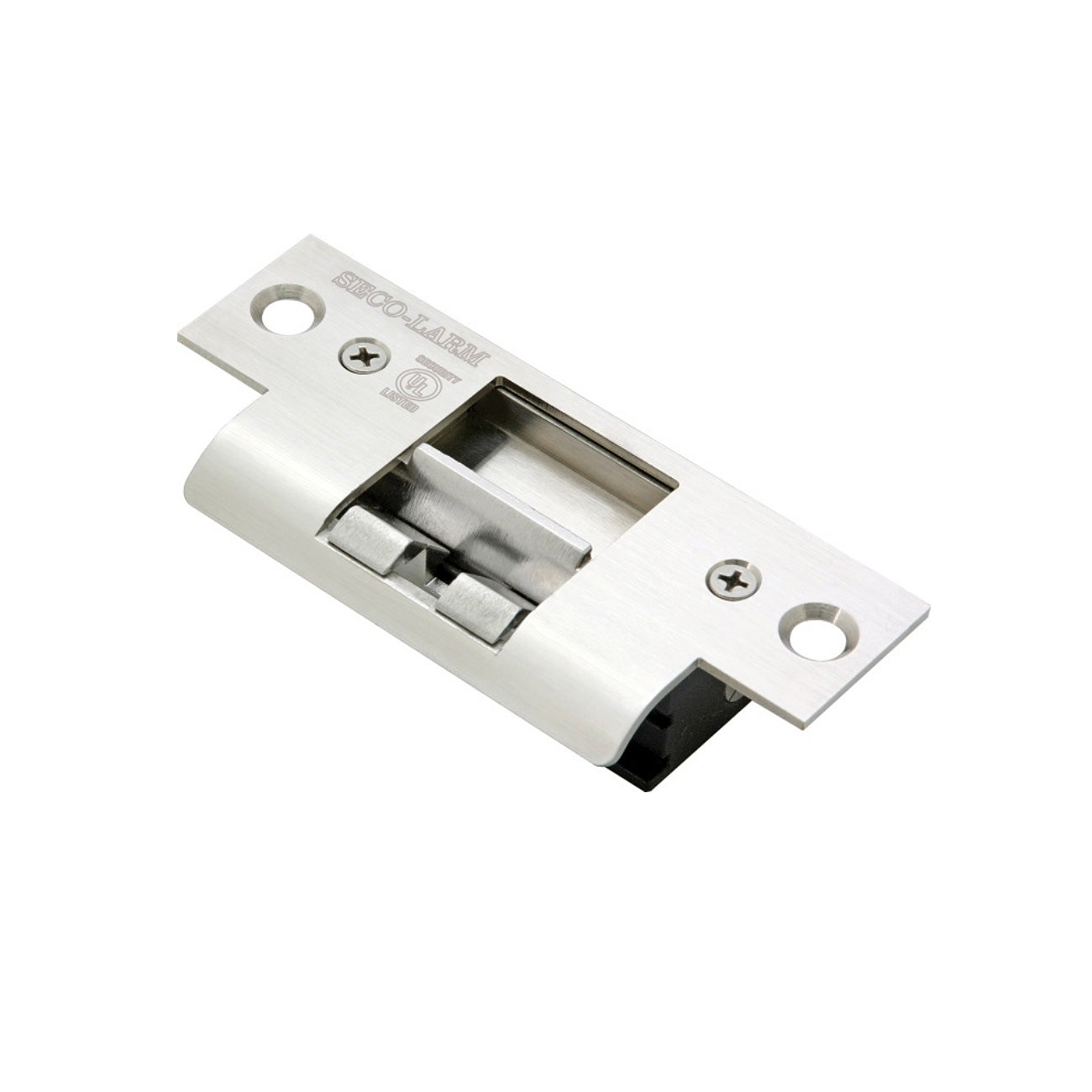

The SECO-LARM® Electric Door Strike can be used to convert cylindrical lock sets into an electronic access controlled locking system. Combine with an optional SECO-LARM® digital keypad for keyless high security.

  • Field-selectable for fail safe or fail-secure operation
  • Can be used with virtually any cylindrical door locking system
  • Can use with an optional digital keypad
  • Suitable for office-type applications
  • Reversible non-handed design fits either right hand or left-handed doors
  • Shallow design for use with most metal doors
  • Powered by a solenoid, not a buzzer coil
  • Static strength – 1,500 lbs. (680N)
  • Stainless-steel keeper for strength and long life
  • Non-polarized connection
  • Tested to 100,000 cycles (UL Tested)
  • No horizontal or vertical adjustment
Characteristics
  • Operating Voltage: 12/24 VDC
  • Operation: Fail-secure or Fail-safe
  • Current Draw: 300mA@12VDC, 150nA@24VDC
  • Static Strength: 1,500 lbs. (680kg)
  • Dynamic strength: 70-ft-lbs. (9.68 m-kgs)
  • Operating Temperature: 32°F~120°F (0°~49° C)
  • Dimensions: 4-7/8″x1-1/4″x1-1/16″ (124x32x27.5 mm)
Description

The SECO-LARM® Electric Door Strike can be used to convert cylindrical lock sets into an electronic access controlled locking system. Combine with an optional SECO-LARM® digital keypad for keyless high security.

  • Field-selectable for fail safe or fail-secure operation
  • Can be used with virtually any cylindrical door locking system
  • Can use with an optional digital keypad
  • Suitable for office-type applications
  • Reversible non-handed design fits either right hand or left-handed doors
  • Shallow design for use with most metal doors
  • Powered by a solenoid, not a buzzer coil
  • Static strength – 1,500 lbs. (680N)
  • Stainless-steel keeper for strength and long life
  • Non-polarized connection
  • Tested to 100,000 cycles (UL Tested)
  • No horizontal or vertical adjustment
Characteristics
Packaging of this product
  • Operating Voltage: 12/24 VDC
  • Operation: Fail-secure or Fail-safe
  • Current Draw: 300mA@12VDC, 150nA@24VDC
  • Static Strength: 1,500 lbs. (680kg)
  • Dynamic strength: 70-ft-lbs. (9.68 m-kgs)
  • Operating Temperature: 32°F~120°F (0°~49° C)
  • Dimensions: 4-7/8″x1-1/4″x1-1/16″ (124x32x27.5 mm)
Download Datasheets and Manuals of this product

SD-995C-D3Q

Contact Us for Support
LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Seco-Larm by Seco-Larm

SD-995C-D3Q Seco-Larm No Cut Door Strike, Field-Selectable For Fail Safe Or Fail-Secure Operation, 1500 Lbs. (680Kg) Static Strength, Suitable For Office-Type Applications, Non-Polarized Connection

SD-995C-D3Q

UPC Code: 676544019282 Weight: 2.0 lb
$109.57
