This PRODUCT has a 2 YEAR warranty with full access to tech support in the USA!

Description

Key Features

  • Converts cylindrical lock sets into an electronic access-controlled locking system
  • Fail-secure operation – Door remains locked if power to the strike is lost
  • 2-wire installation, non-polarized connection
  • Stainless steel keeper for strength and long life
  • Includes Stainless Steel No-Cut and Silver-Colored Aluminum Low-Cut Strike Plates
  • Can be used with virtually any cylindrical door locking system
  • Can be used with an optional digital keypad, pushbutton switch, and other entry devices
  • Suitable for office-type applications
  • Reversible non-handed design fits either right-hand or left-hand doors
  • Shallow design for use with most metal doors
  • Powered by a solenoid, not a buzzer coil
  • For indoor use​
Characteristics

  • Operating Voltage: 12~24 VAC/VDC
  • Current Draw-Standby: 64mA@12VDC
  • Current Draw-Active: 92-120 mA@12VDC
  • Relay Outputs (2): 1A@30VDC, Form C, NO/COM/NC
  • Egress Inputs: 2, N.O. Ground
  • Door Sensor Input: N.C. Ground
  • Tamper Sensor: Optical
  • Operating Temperature: -4°~122°F
  • Keypad LED Life: 60,000 hours (over 6.8 years)
  • Weight: 1-lb, 2-oz
  • Dimensions: 4-3/4″x3″x7/8″
  • Proximity Reader Frequency: 125kHz
  • Proximity Reader Distance: 1-15/16″


Description

Key Features

  • Converts cylindrical lock sets into an electronic access-controlled locking system
  • Fail-secure operation – Door remains locked if power to the strike is lost
  • 2-wire installation, non-polarized connection
  • Stainless steel keeper for strength and long life
  • Includes Stainless Steel No-Cut and Silver-Colored Aluminum Low-Cut Strike Plates
  • Can be used with virtually any cylindrical door locking system
  • Can be used with an optional digital keypad, pushbutton switch, and other entry devices
  • Suitable for office-type applications
  • Reversible non-handed design fits either right-hand or left-hand doors
  • Shallow design for use with most metal doors
  • Powered by a solenoid, not a buzzer coil
  • For indoor use​
Characteristics
Packaging of this product

  • Operating Voltage: 12~24 VAC/VDC
  • Current Draw-Standby: 64mA@12VDC
  • Current Draw-Active: 92-120 mA@12VDC
  • Relay Outputs (2): 1A@30VDC, Form C, NO/COM/NC
  • Egress Inputs: 2, N.O. Ground
  • Door Sensor Input: N.C. Ground
  • Tamper Sensor: Optical
  • Operating Temperature: -4°~122°F
  • Keypad LED Life: 60,000 hours (over 6.8 years)
  • Weight: 1-lb, 2-oz
  • Dimensions: 4-3/4″x3″x7/8″
  • Proximity Reader Frequency: 125kHz
  • Proximity Reader Distance: 1-15/16″

Download Datasheets and Manuals of this product

SD-991A-D1Q

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Seco-Larm by Seco-Larm

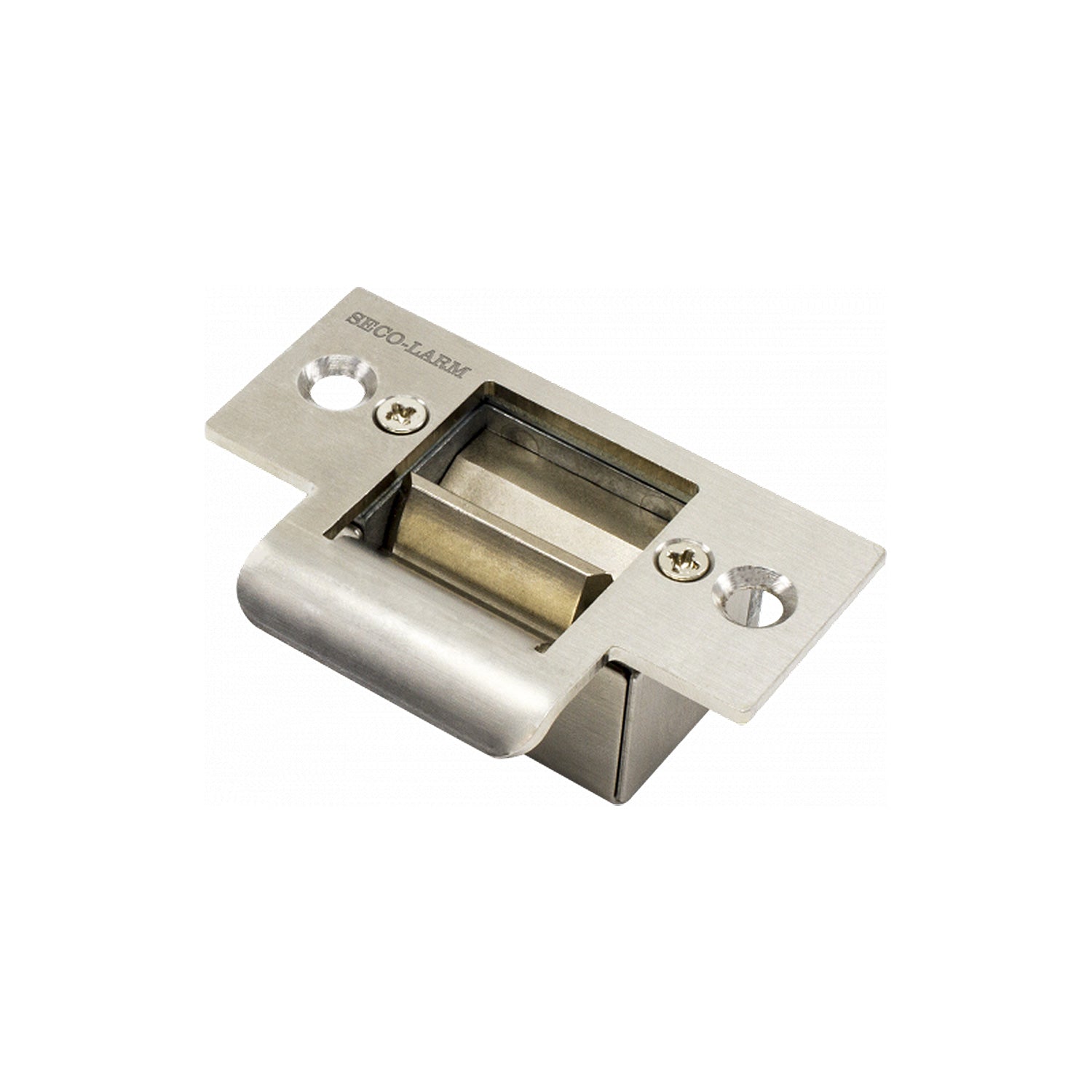

SD-991A-D1Q Seco-Larm Mini No-Cut Electric Door Strike For Indoor Use, Converts Cylindrical Lock Sets Into An Electronic Access-Controlled Locking System, Stainless Steel Keeper

Translation missing: en.products.product.sku:SD-991A-D1Q

UPC Code: 676544018230
Product Weight: 2.0 lb
