This PRODUCT has a 1 YEAR warranty with full access to tech support in the USA!

Description

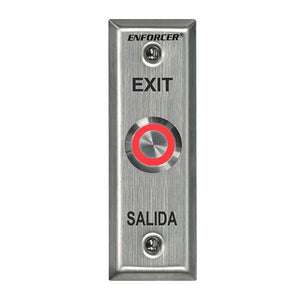

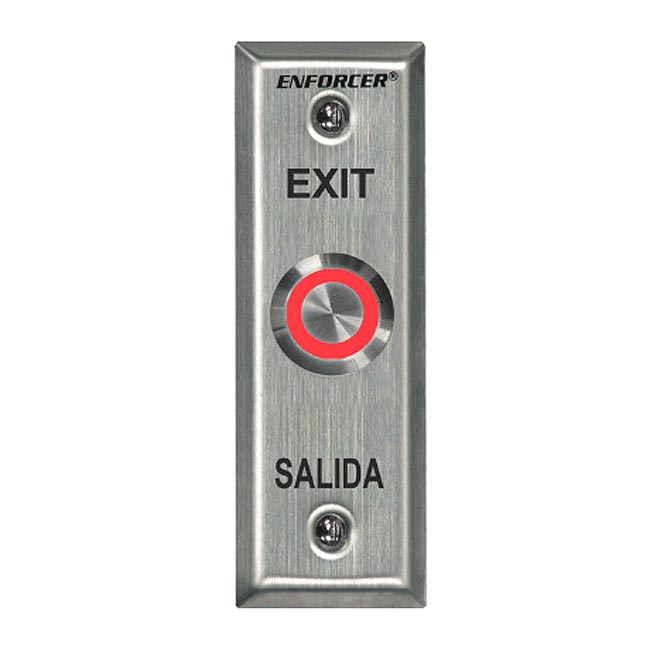

The ENFORCER Multicolor Illuminated Vandal-Resistant Request-to-Exit Plates come with seven field-selectable LED colors, practical for a wide range of indoor/outdoor applications. The ENFORCER Multicolor Illuminated Vandal Resistant Request-To-Exit Plates use a stainless steel vandal resistant button, illuminated by a circular perimeter LED. The LED color is easily selectable during installation to not only red, green, or blue, but also yellow, cyan, magenta, or white.



  • Illuminated vandal-resistant ø1″ (ø25mm) push button
  • 12VDC LED – supports 24VDC with included 1kΩ, 1/4W resistor
  • Field-selectable LED color: red, green, blue, magenta, yellow, cyan, or white
  • NO/NC (DPST) switch
  • Switch contact rating: 20A@24VAC / 1A@24VDC
  • Switch is weatherproof (IP65) for outdoor use
  • “EXIT” and “SALIDA” silk-screened on plate
Characteristics

Model No. SD-7175SGEX1Q:

  • Faceplate: Brushed stainless, slimline
  • Button: Vandal resistant with multi-color circular perimeter LED
  • LED colors: Red, green, blue, magenta, yellow, cyan, or white
  • Operating voltage: 12/24 VDC
  • Contact rating: 20A@24VAC / 1A@24VDC
  • Electrical configuration: DPST
  • IP rating: Weatherproof IP65
  • Operating temperature: -13°~131° F (-25°~55° C)
  • Dimensions: 1-1/2″x4-1/2″x1-3/16″ (38x114x30 mm)
Description

The ENFORCER Multicolor Illuminated Vandal-Resistant Request-to-Exit Plates come with seven field-selectable LED colors, practical for a wide range of indoor/outdoor applications. The ENFORCER Multicolor Illuminated Vandal Resistant Request-To-Exit Plates use a stainless steel vandal resistant button, illuminated by a circular perimeter LED. The LED color is easily selectable during installation to not only red, green, or blue, but also yellow, cyan, magenta, or white.



  • Illuminated vandal-resistant ø1″ (ø25mm) push button
  • 12VDC LED – supports 24VDC with included 1kΩ, 1/4W resistor
  • Field-selectable LED color: red, green, blue, magenta, yellow, cyan, or white
  • NO/NC (DPST) switch
  • Switch contact rating: 20A@24VAC / 1A@24VDC
  • Switch is weatherproof (IP65) for outdoor use
  • “EXIT” and “SALIDA” silk-screened on plate
Characteristics
Packaging of this product

Model No. SD-7175SGEX1Q:

  • Faceplate: Brushed stainless, slimline
  • Button: Vandal resistant with multi-color circular perimeter LED
  • LED colors: Red, green, blue, magenta, yellow, cyan, or white
  • Operating voltage: 12/24 VDC
  • Contact rating: 20A@24VAC / 1A@24VDC
  • Electrical configuration: DPST
  • IP rating: Weatherproof IP65
  • Operating temperature: -13°~131° F (-25°~55° C)
  • Dimensions: 1-1/2″x4-1/2″x1-3/16″ (38x114x30 mm)

Download Datasheets and Manuals of this product

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Seco-Larm by Seco-Larm

Seco-Larm SD-7175SGEX1Q Enforcer Slimline Request-To-Exit Plate With 1″ Illuminated Red/Green LED Push Button

SD-7175SGEX1Q

UPC Code: 676544002420 Weight: 1.0 lb
$46.00
$46.00
Shipping calculated at checkout.

In Stock
Phone Support Icon

Phone Life-Time Technical Support

Return Policy Icon

30-Day No Questions Return Policy

Free Shipping Icon

*Free Shipping within the USA

Contact an Expert
Return Policy
NOTE
Order Before 3:00pm EST on a week day and your order will be shipped out the same day
Free Shipping
*Free shipping within the USA
Including Puerto Rico, Hawaii and Alaska

Popup Title

Popup description
ATTENTION:
Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
