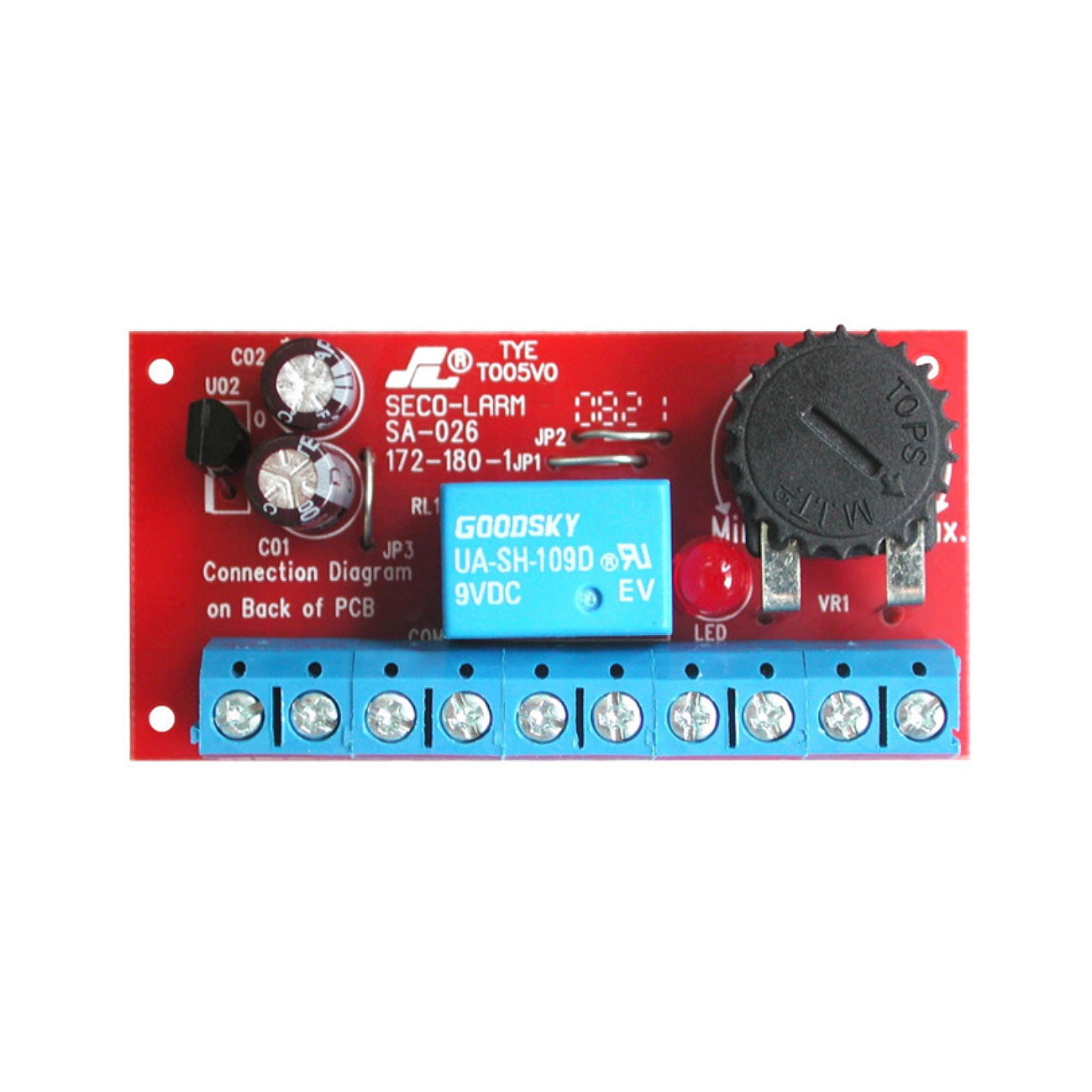

The ENFORCER® SA-026Q is a low-voltage miniature delay timer module which operates on 12 to 24 volts AC or DC. This timer module will extend the activation time of a momentary contact switch for 1~180 seconds via a field-adjustable rotary pot. Use with electrical locks which do not have a built-in time delay function. Its compact size makes it small enough to fit in a single-gang box or inside a door frame cavity.

• Adjustable timer from 1~180 seconds via a pot on board
• NO/NC switch trigger
• Compact design: 1³/₁₆“x2⁹/₃₂“x⁵/₈” (30x58x16 mm)
• Operating voltage: 12~24 volts AC or DC
• Current: 2mA (standby), 75mA (active)
• Relay output: Form-C (SPDT) via terminal blocks
• Contact rating: 3A@24VDC
• With built-in buzzer output (100mA@24VDC)
• Includes double-sided foam tape

---
