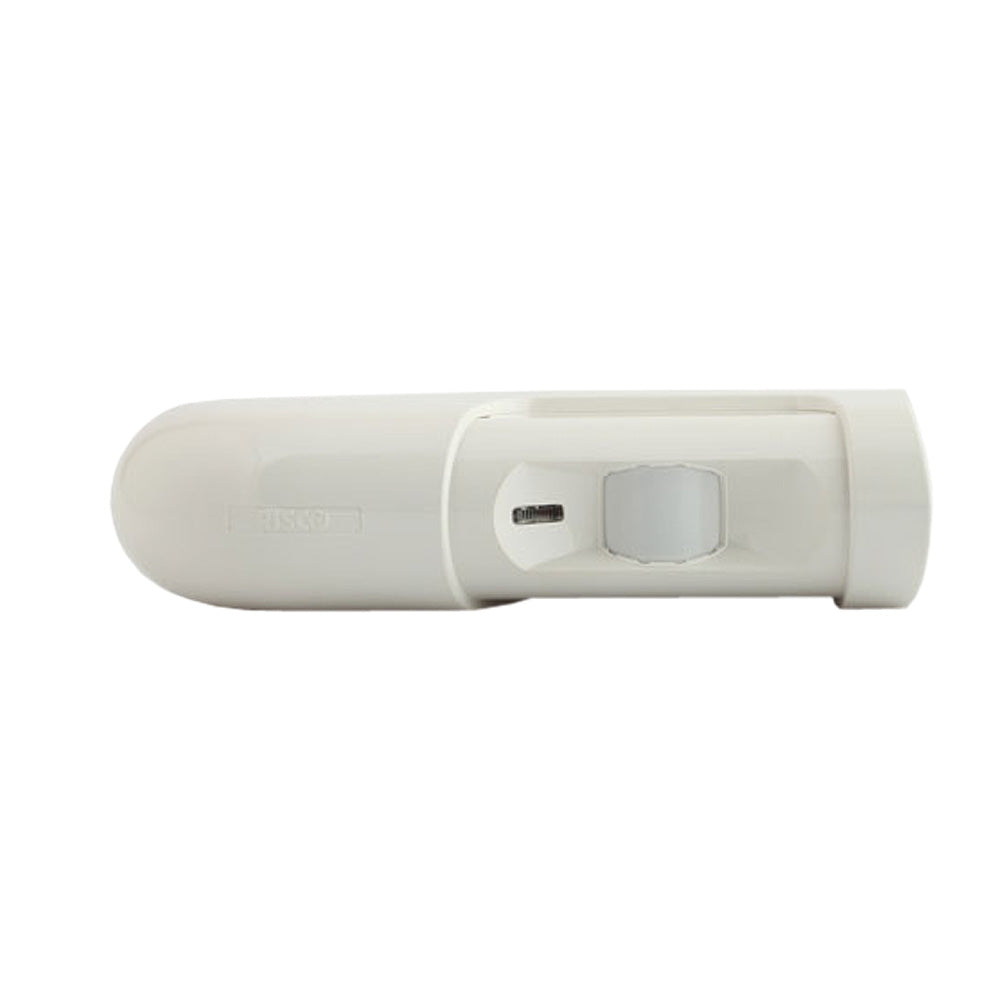

iREX and iREX Plus are intelligent PIR detectors specifically designed for a wide variety of request-to-exit applications. Both iREX and iREX Plus – with IQ Logic™ for added security -meet the most stringent request-to-exit requirements. iREX detectors have ample wiring space and are quick and easy to install. Advanced technology and attention to quality guarantee excellent performance.



• Digital PIR motion detection
• Wall or ceiling mount up to 4.6m (15’)
• Selectable Fail Safe mode or Fail Secure mode
• Adjustable relay latch time
• Single or double door use: Two “Form C” Relays, selectable NC or NO
• Remote input for Parallel Door Control – the door lock opens either upon iREX motion detection OR from an external device
• LED for walk-test
• Operates with 12 to 30V AC or DC power
• IQ Logic™ provides added security, by enabling iREX motion detection only after an external device has been activated (such as a floor switch, additional PIR, or burglar alarm system disarmed)
• Door Secure Mode prevents unwanted persons from entering following a valid exit
• Internal buzzer – 85dB with adjustable volume and direct external activation
• Door Alarm Mode activates the buzzer if the door is forced open or left open too long
• Cover tamper output

---
