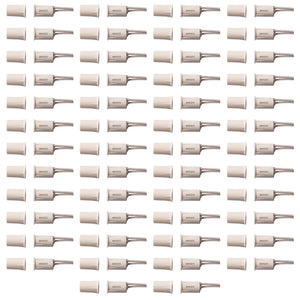

Kit Includes:

(50)
MINI-10-WG-WH: TANE Mini Recessed Wired Window Door Contact Sensor Alarm Magnetic Reed Switch for Home Security and Burglar Alarm Systems WHITE Color Normally Open, UL Listed
Description

0.37″ (9.5mm) Mini-Recessed Type WHITE Color.

The TANE MINI-10-WG-WH recessed contacts offer a small, clean profile that fits neatly into door and window frames. Designed in white to match most modern finishes, and built with UL Listed quality, these sensors provide strong, subtle protection for your home or office.

This product does NOT INCLUDE screws or adhesive tape.

  • Contact Size: 0.37″×0.61″ (9.5mm×15.5mm)
  • Standard Magnet Size: 0.37″×0.61″ (9.5mm×15.5mm)
  • Color: White
  • 12″(305mm) 22 AWG Leads Standard
  • Standard Gap: 0.5″ (12.5mm)


For Brown color Magnetic Contact look at MINI-10-WG-BR



Outline Dimensions

MINI-10-WG-WH Magnetic contact dimensions

Installation Diagram

Installation TANE Mini Recessed Wired Window Door Contact Sensor Alarm Magnetic Reed Switch for Home Security MINI-10-WG-WH

Characteristics

Model No. MINI-10-WG-WH:

  • Color: WHITE
  • Contact Size: 0.37"×0.61" (9.5mm×15.5mm)
  • Standard Magnet Size: 0.37"×0.61" (9.5mm×15.5mm)
  • Gap Inch (mm): 1″ (25)
  • Loop Open/Closed: CLOSED
  • Reed Form: Normally Open
  • Max. Contact Rating (W): 10
  • Max. Initial Contact Resistance (mΩ): 100
  • Max. Switching Voltage (V): AC24/DC24
  • Max. Switching Current (A): 0.1
  • Operating Temperature:-40°C to +60°C (-40°F to 140°F)
Description

0.37″ (9.5mm) Mini-Recessed Type WHITE Color.

The TANE MINI-10-WG-WH recessed contacts offer a small, clean profile that fits neatly into door and window frames. Designed in white to match most modern finishes, and built with UL Listed quality, these sensors provide strong, subtle protection for your home or office.

This product does NOT INCLUDE screws or adhesive tape.

  • Contact Size: 0.37″×0.61″ (9.5mm×15.5mm)
  • Standard Magnet Size: 0.37″×0.61″ (9.5mm×15.5mm)
  • Color: White
  • 12″(305mm) 22 AWG Leads Standard
  • Standard Gap: 0.5″ (12.5mm)


For Brown color Magnetic Contact look at MINI-10-WG-BR



Outline Dimensions

MINI-10-WG-WH Magnetic contact dimensions

Installation Diagram

Installation TANE Mini Recessed Wired Window Door Contact Sensor Alarm Magnetic Reed Switch for Home Security MINI-10-WG-WH
