Kit Includes:

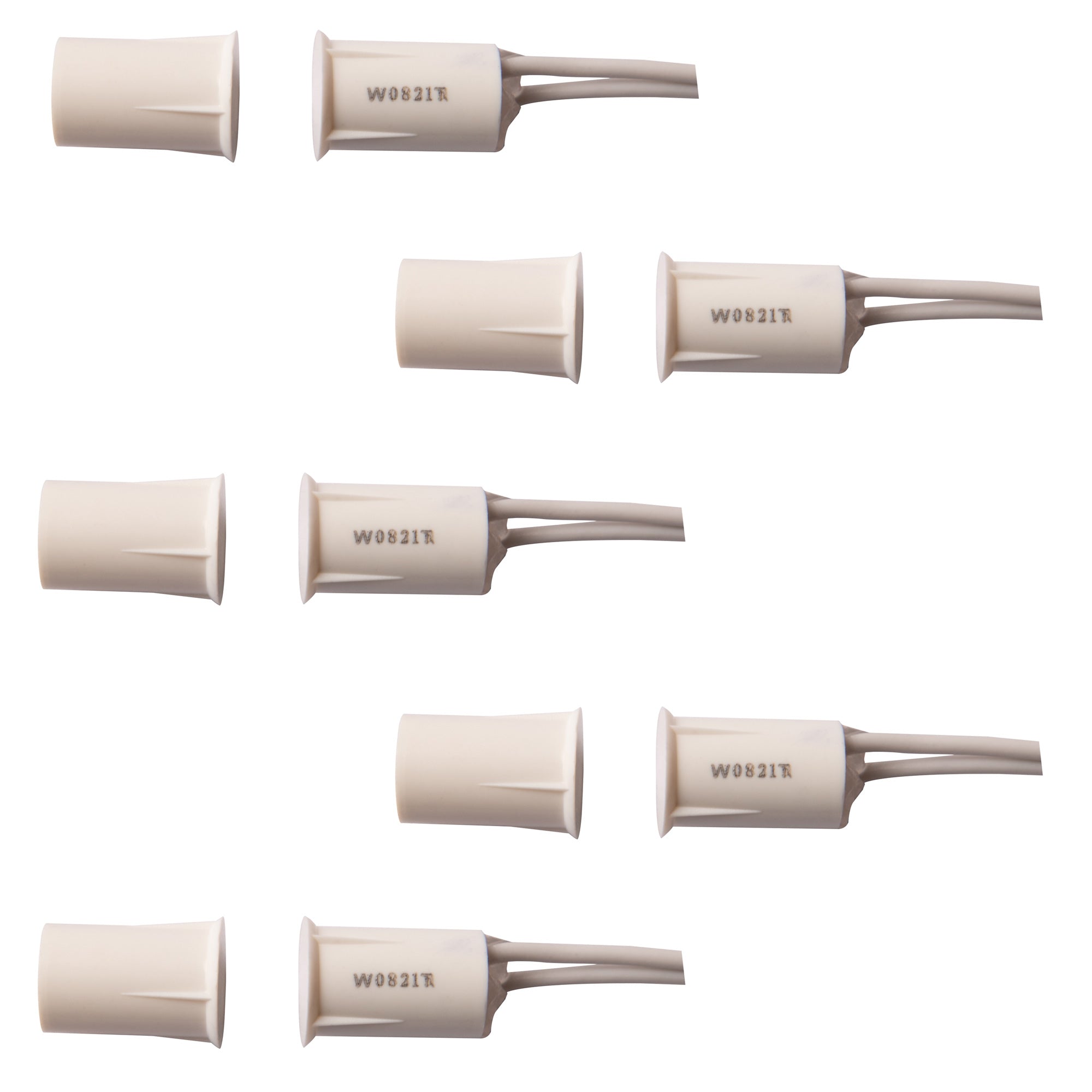

(5)

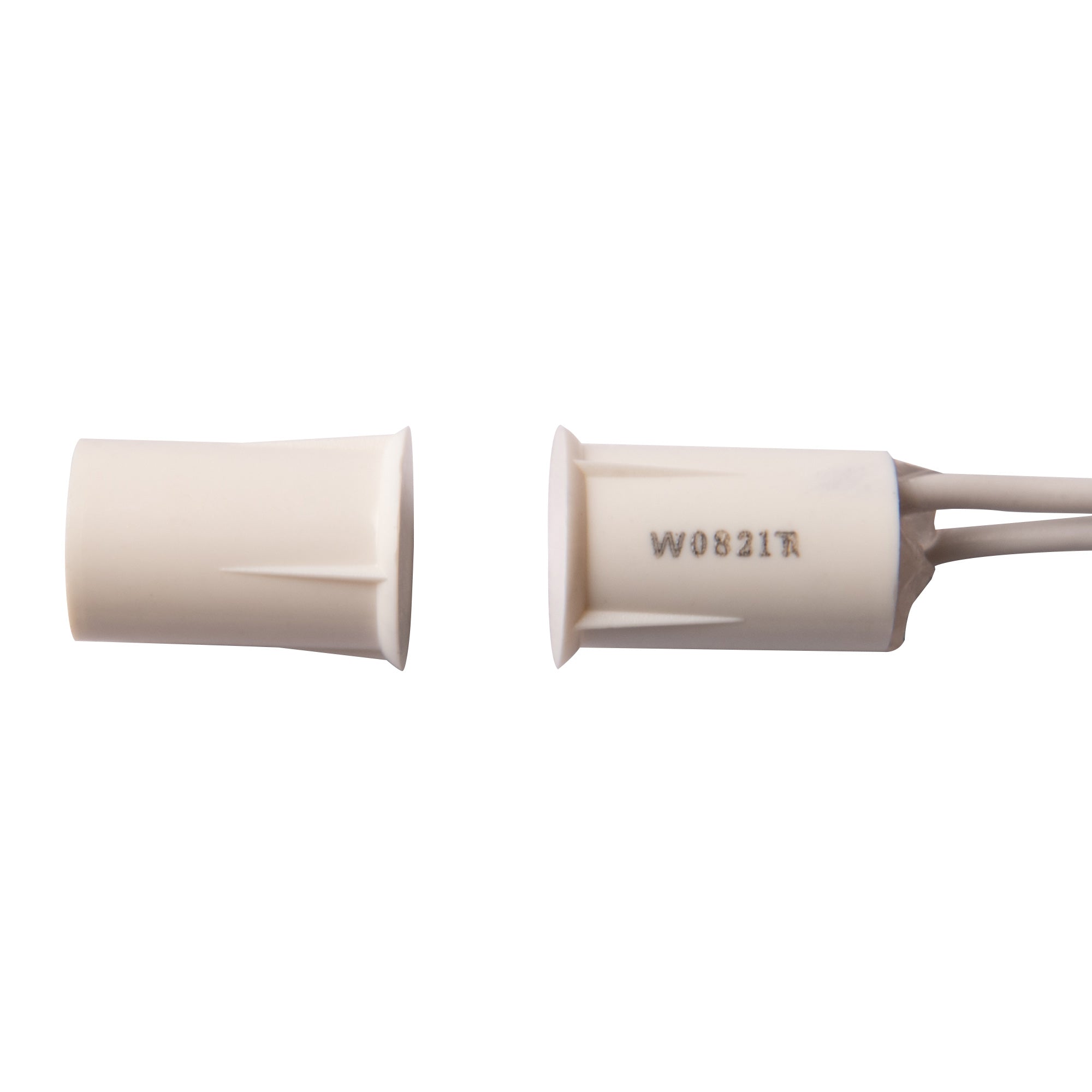

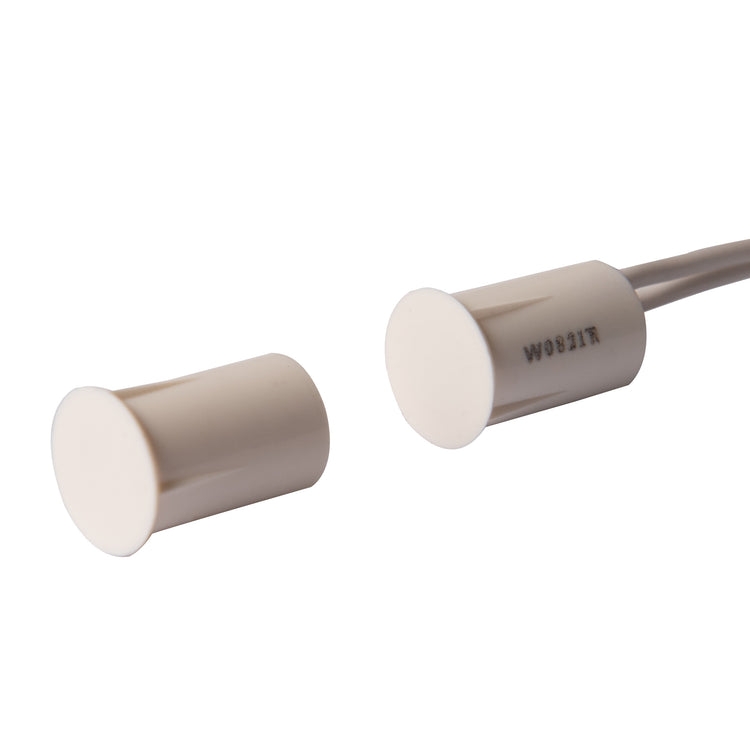

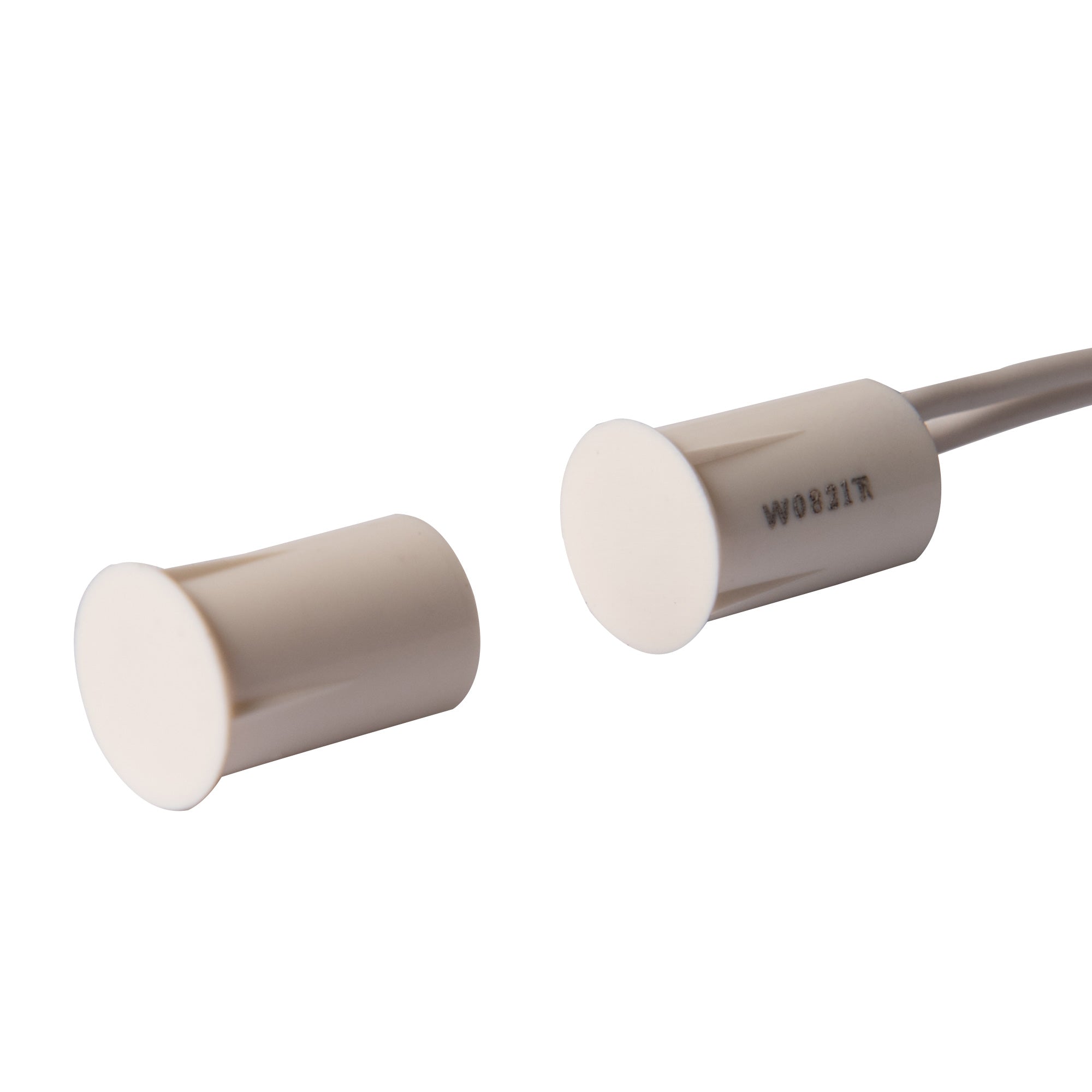

MINI-10-WG-WH: TANE Mini Recessed Wired Window Door Contact Sensor Alarm Magnetic Reed Switch for Home Security and Burglar Alarm Systems WHITE Color Normally Open, UL Listed
Description

0.37″ (9.5mm) Mini-Recessed Type WHITE Color.

Upgrade your alarm system with TANE MINI-10-WG-WH magnetic contacts. Their compact recessed style, white finish, and UL Listed reliability make them a perfect choice for achieving professional-grade, invisible security in any space.

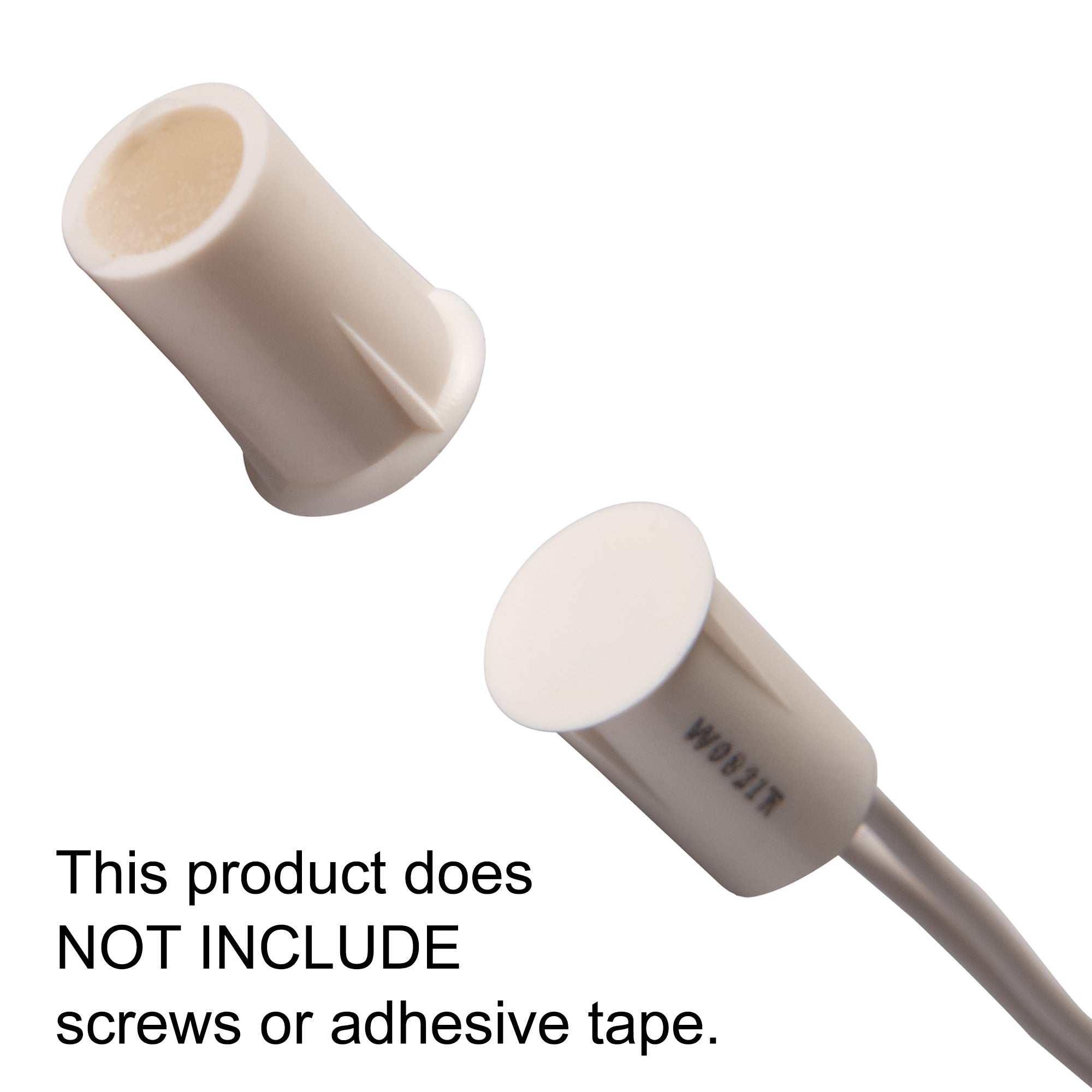

You can install this recessed wired magnetic sensor on a door or window frame. This product does NOT INCLUDE screws or adhesive tape.

  • Contact Size: 0.37″×0.61″ (9.5mm×15.5mm)
  • Standard Magnet Size: 0.37″×0.61″ (9.5mm×15.5mm)
  • Color: White
  • 12″(305mm) 22 AWG Leads Standard
  • Standard Gap: 0.5″ (12.5mm)


For Brown color Magnetic Contact look at MINI-10-WG-BR

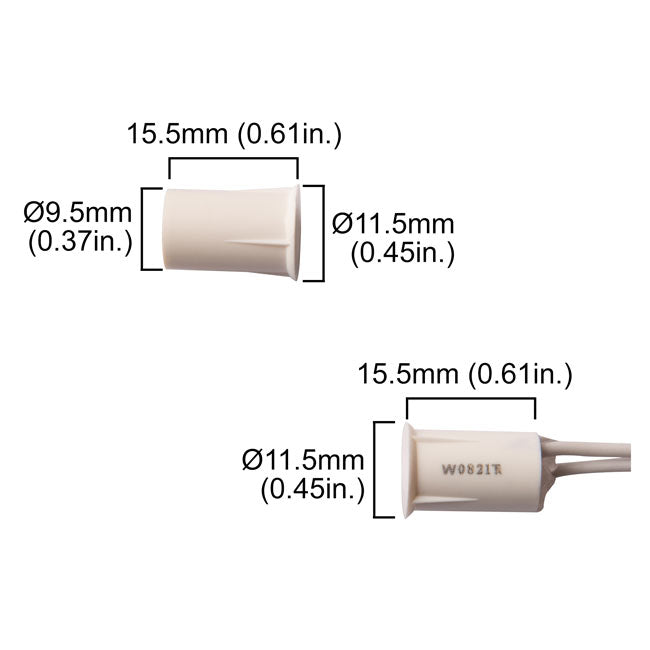

Outline Dimensions

MINI-10-WG-WH Magnetic contact dimensions

Installation Diagram

Installation TANE Mini Recessed Wired Window Door Contact Sensor Alarm Magnetic Reed Switch for Home Security MINI-10-WG-WH

Characteristics

Model No. MINI-10-WG-WH:

  • Color: WHITE
  • Contact Size: 0.37"×0.61" (9.5mm×15.5mm)
  • Standard Magnet Size: 0.37"×0.61" (9.5mm×15.5mm)
  • Gap Inch (mm): 1″ (25)
  • Loop Open/Closed: CLOSED
  • Reed Form: Normally Open
  • Max. Contact Rating (W): 10
  • Max. Initial Contact Resistance (mΩ): 100
  • Max. Switching Voltage (V): AC24/DC24
  • Max. Switching Current (A): 0.1
  • Operating Temperature:-40°C to +60°C (-40°F to 140°F)
Description

0.37″ (9.5mm) Mini-Recessed Type WHITE Color.

Upgrade your alarm system with TANE MINI-10-WG-WH magnetic contacts. Their compact recessed style, white finish, and UL Listed reliability make them a perfect choice for achieving professional-grade, invisible security in any space.

You can install this recessed wired magnetic sensor on a door or window frame. This product does NOT INCLUDE screws or adhesive tape.

  • Contact Size: 0.37″×0.61″ (9.5mm×15.5mm)
  • Standard Magnet Size: 0.37″×0.61″ (9.5mm×15.5mm)
  • Color: White
  • 12″(305mm) 22 AWG Leads Standard
  • Standard Gap: 0.5″ (12.5mm)


For Brown color Magnetic Contact look at MINI-10-WG-BR

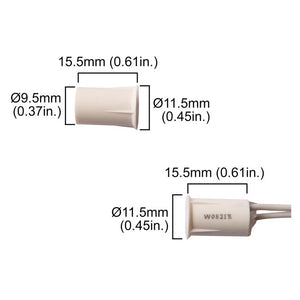

Outline Dimensions

MINI-10-WG-WH Magnetic contact dimensions

Installation Diagram

Installation TANE Mini Recessed Wired Window Door Contact Sensor Alarm Magnetic Reed Switch for Home Security MINI-10-WG-WH

Download Datasheets and Manuals of this product

TANE MINI-10-WG

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Tane by Tane

TANE Mini Recessed Wired Window Door Contact Sensor Alarm Magnetic Reed Switch For Home Security And Burglar Alarm Systems WHITE Color Normally Open + UL Listed MINI-10-WG-WH-PK5 (Pack Of 5)

MINI-10-WG-WH-PK5

UPC Code: 734598803940 Weight: 1.0 lb
  • UL Certificate
  • CE Certificate
$16.99
$16.99
Shipping calculated at checkout.

Out of Stock
