Kit Includes:

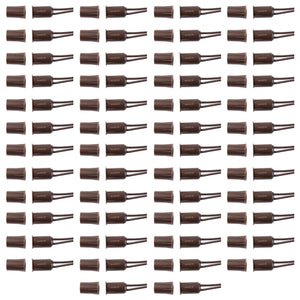

(50)

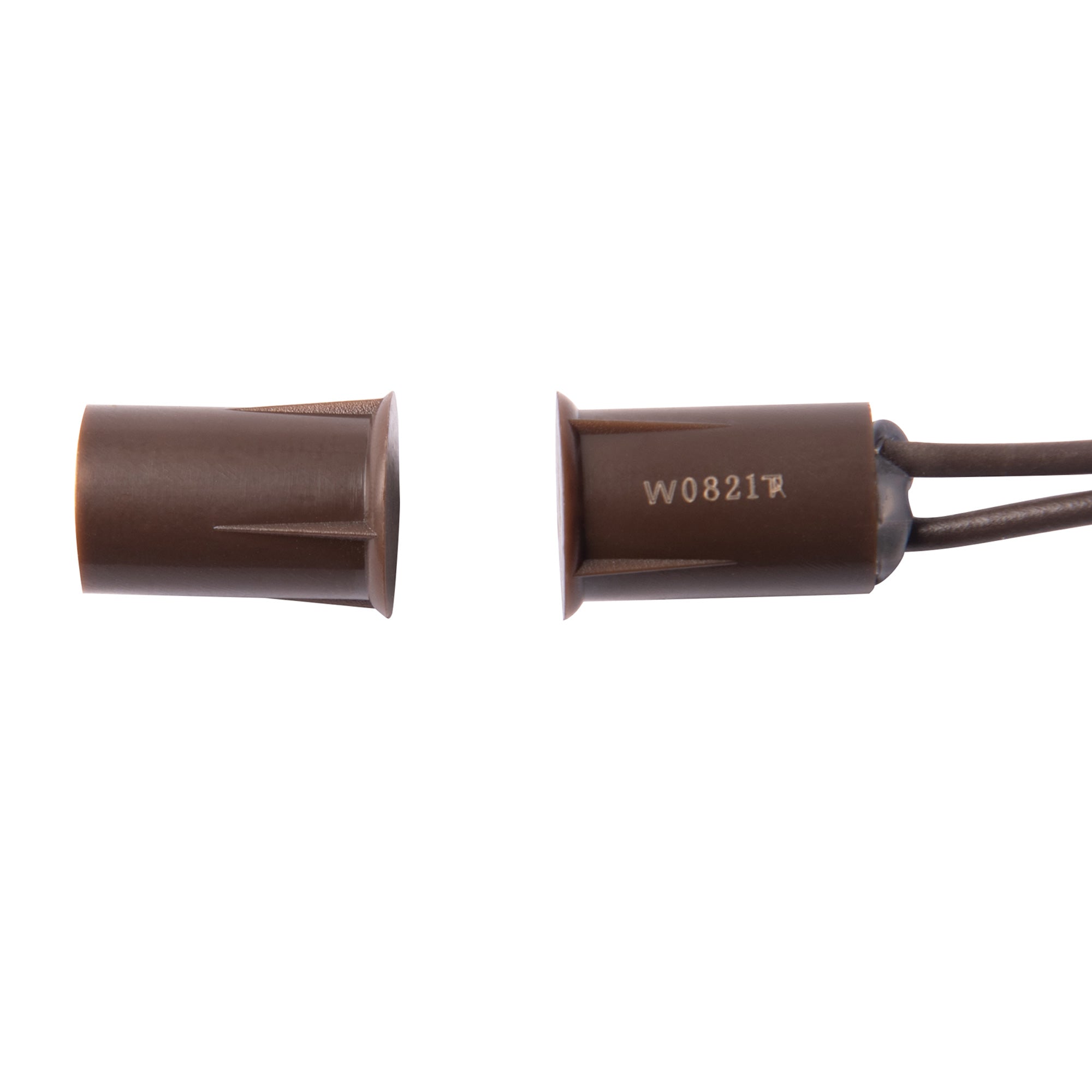

MINI-10-WG-BR: TANE Mini Recessed Wired Window Door Contact Sensor Alarm Magnetic Reed Switch for Home Security and Burglar Alarm Systems BROWN Color Normally Open, UL Listed
Description

0.37″ (9.5mm) Mini-Recessed Type BROWN Color.

Secure your doors and windows without ruining the look. The TANE MINI-10-WG-BR recessed magnetic contacts are small, effective, and finished in brown to blend perfectly with wood surfaces.

UL Listed for trusted protection and built for a clean, hidden installation.

(No screws or tape included.)

  • Contact Size: 0.37″×0.61″ (9.5mm×15.5mm)
  • Standard Magnet Size: 0.37″×0.61″ (9.5mm×15.5mm)
  • Color: White
  • 12″(305mm) 22 AWG Leads Standard
  • Standard Gap: 0.5″ (12.5mm)


For White color Magnetic Contact look at MINI-10-WG-WH



Outline Dimensions

MINI-10-WG-WH Magnetic contact dimensions

Installation Diagram

Installation TANE Mini Recessed Wired Window Door Contact Sensor Alarm Magnetic Reed Switch for Home Security MINI-10-WG-WH

Characteristics

Model No. MINI-10-WG-BR:

  • Color: BROWN
  • Contact Size: 0.37"×0.61" (9.5mm×15.5mm)
  • Standard Magnet Size: 0.37"×0.61" (9.5mm×15.5mm)
  • Gap Inch (mm): 1″ (25)
  • Loop Open/Closed: CLOSED
  • Reed Form: Normally Open
  • Max. Contact Rating (W): 10
  • Max. Initial Contact Resistance (mΩ): 100
  • Max. Switching Voltage (V): AC24/DC24
  • Max. Switching Current (A): 0.1
  • Operating Temperature:-40°C to +60°C (-40°F to 140°F)
Description

0.37″ (9.5mm) Mini-Recessed Type BROWN Color.

Secure your doors and windows without ruining the look. The TANE MINI-10-WG-BR recessed magnetic contacts are small, effective, and finished in brown to blend perfectly with wood surfaces.

UL Listed for trusted protection and built for a clean, hidden installation.

(No screws or tape included.)

  • Contact Size: 0.37″×0.61″ (9.5mm×15.5mm)
  • Standard Magnet Size: 0.37″×0.61″ (9.5mm×15.5mm)
  • Color: White
  • 12″(305mm) 22 AWG Leads Standard
  • Standard Gap: 0.5″ (12.5mm)


For White color Magnetic Contact look at MINI-10-WG-WH



Outline Dimensions

MINI-10-WG-WH Magnetic contact dimensions

Installation Diagram

Installation TANE Mini Recessed Wired Window Door Contact Sensor Alarm Magnetic Reed Switch for Home Security MINI-10-WG-WH

Download Datasheets and Manuals of this product

TANE MINI-10-WG
