Kit Includes:

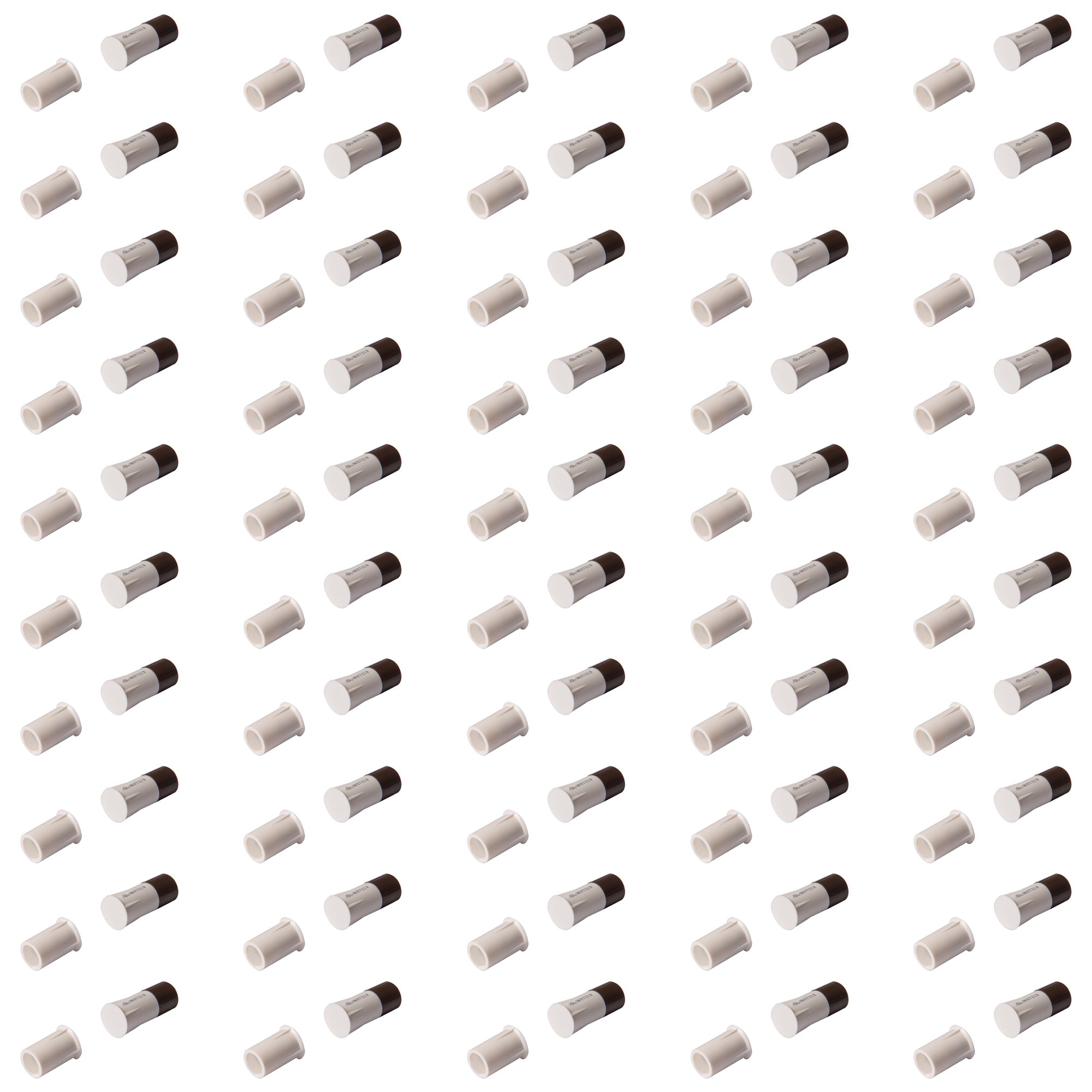

(50)

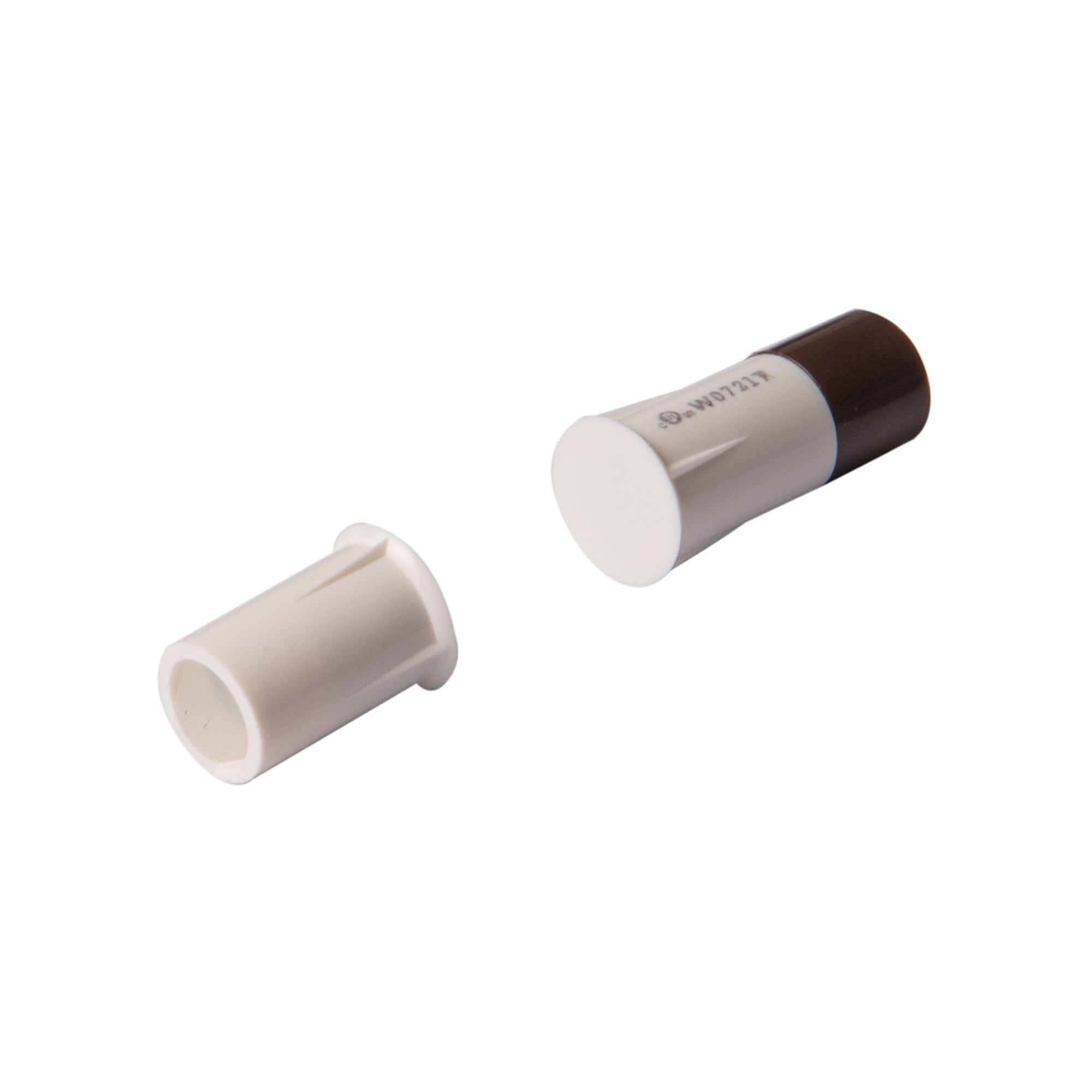

STB-3/8-TC: TANE Recessed with Terminal Quick-Connect Wired Security Window Door Magnetic Contact Sensor Normally Open WHITE Color, UL Listed

Description

0.37″ (9.5mm) Recessed Type with Terminal Quick-Connect.

Secure doors and windows discreetly with the TANE STB-3/8-TC recessed magnetic contact.

Featuring a quick-connect terminal (no leads required), installation is fast and easy. With a 0.6-inch standard gap and UL Listed certification, it’s perfect for professional-grade home and commercial security systems.

(Screws and tape not included.)

Contact Size: 0.37″×0.92″ (9.5mm×23.3mm)
Standard Magnet Size: 0.37″×0.58″ (9.5mm×14.8mm)
Color: White
Terminal Connect, No Leads.
Standard Gap: 0.6″ (15mm)

Dimensions

STB-3/8-TC Magnetic contact dimensions

Characteristics

Model No. STB-3/8-TC:

Color: WHITE
Contact Size: .37"×.92" (9.5mm×23.3mm)
Standard Magnet Size: .37"×.58" (9.5mm×14.8mm)
Gap Inch (mm): .6" (15)
Loop Open/Closed: CLOSED
Reed Form: Normally Open
Max. Contact Rating (W): 10
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC110/DC100
Max. Switching Current (A): 0.5
Operating Temperature:-40°C to +60°C (-40°F to 140°F)

Description

0.37″ (9.5mm) Recessed Type with Terminal Quick-Connect.

Secure doors and windows discreetly with the TANE STB-3/8-TC recessed magnetic contact.

Featuring a quick-connect terminal (no leads required), installation is fast and easy. With a 0.6-inch standard gap and UL Listed certification, it’s perfect for professional-grade home and commercial security systems.

(Screws and tape not included.)

Contact Size: 0.37″×0.92″ (9.5mm×23.3mm)
Standard Magnet Size: 0.37″×0.58″ (9.5mm×14.8mm)
Color: White
Terminal Connect, No Leads.
Standard Gap: 0.6″ (15mm)

Dimensions

STB-3/8-TC Magnetic contact dimensions

Download Datasheets and Manuals of this product

TANE STB-3/8-TC

Tane by Tane

TANE Recessed With Terminal Quick-Connect Wired Security Window Door Magnetic Contact Sensor For Alarm Home Security And Burglar Alarm Systems WHITE Color + UL Listed STB-3/8-TC-PK50 (Pack Of 50)

Name: TANE Recessed With Terminal Quick-Connect Wired Security Window Door Magnetic Contact Sensor For Alarm Home Security And Burglar Alarm Systems WHITE Color + UL Listed STB-3/8-TC-PK50 (Pack Of 50)
Brand: Tane
SKU: STB-3/8-TC-PK50
Price: 119.99 USD
Availability: OutOfStock

Translation missing: en.products.product.sku:STB-3/8-TC-PK50

UPC Code: 734598804626 Weight: 1.0 lb
