Kit Includes:

(5)

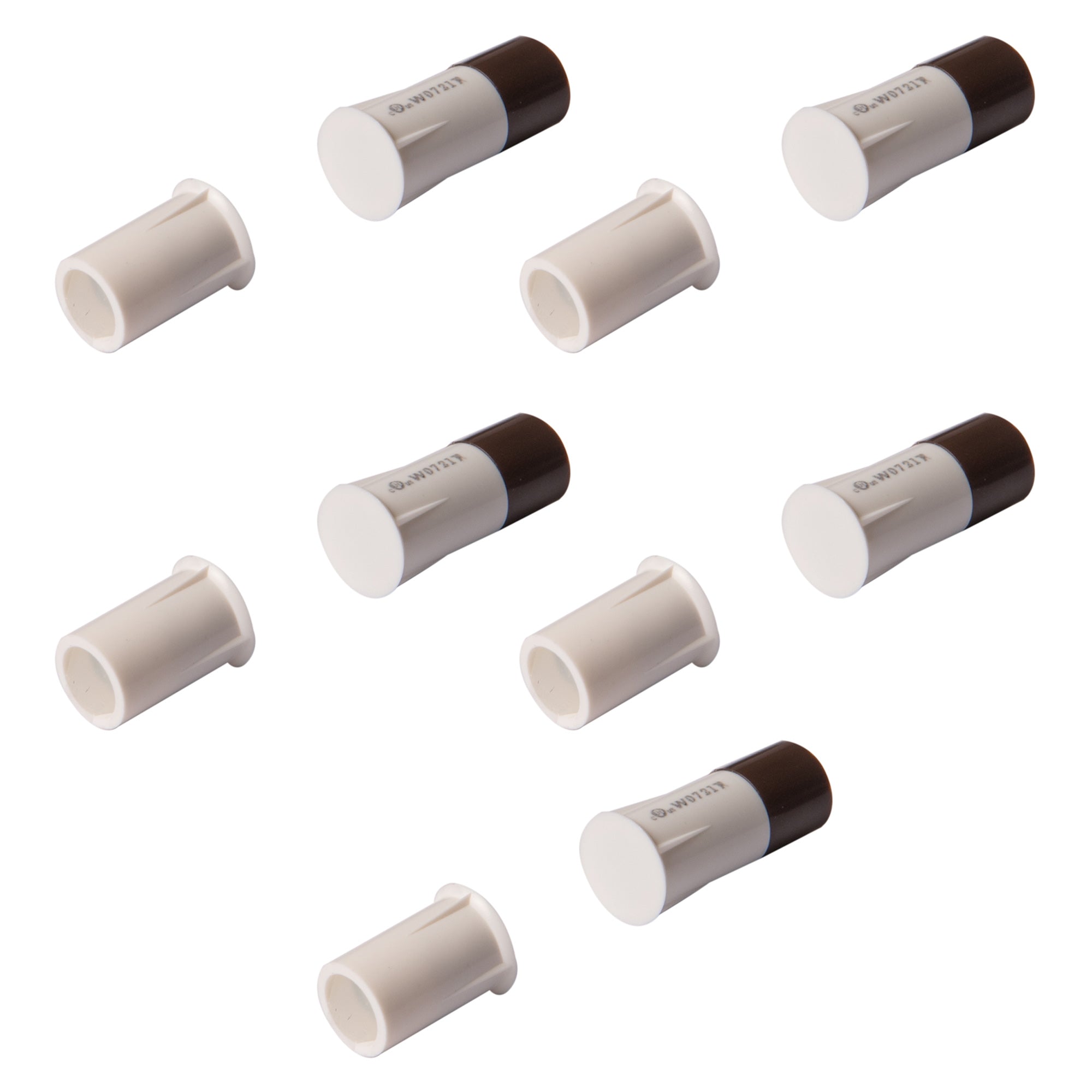

STB-3/8-TC: TANE Recessed with Terminal Quick-Connect Wired Security Window Door Magnetic Contact Sensor Normally Open WHITE Color, UL Listed

Description

0.37″ (9.5mm) Recessed Type with Terminal Quick-Connect.

You can install this recessed wired magnetic sensor on the door or window frame. This product does NOT INCLUDE screws or adhesive tape.

Contact Size: 0.37″×0.92″ (9.5mm×23.3mm)
Standard Magnet Size: 0.37″×0.58″ (9.5mm×14.8mm)
Color: White
Terminal Connect, No Leads.
Standard Gap: 0.6″ (15mm)

Dimensions

STB-3/8-TC Magnetic contact dimensions

Characteristics

Model No. STB-3/8-TC:

Color: WHITE
Contact Size: .37"×.92" (9.5mm×23.3mm)
Standard Magnet Size: .37"×.58" (9.5mm×14.8mm)
Gap Inch (mm): .6" (15)
Loop Open/Closed: CLOSED
Reed Form: Normally Open
Max. Contact Rating (W): 10
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC110/DC100
Max. Switching Current (A): 0.5
Operating Temperature:-40°C to +60°C (-40°F to 140°F)

Description

0.37″ (9.5mm) Recessed Type with Terminal Quick-Connect.

You can install this recessed wired magnetic sensor on the door or window frame. This product does NOT INCLUDE screws or adhesive tape.

Contact Size: 0.37″×0.92″ (9.5mm×23.3mm)
Standard Magnet Size: 0.37″×0.58″ (9.5mm×14.8mm)
Color: White
Terminal Connect, No Leads.
Standard Gap: 0.6″ (15mm)

Dimensions

STB-3/8-TC Magnetic contact dimensions
