Kit Includes:
(50)

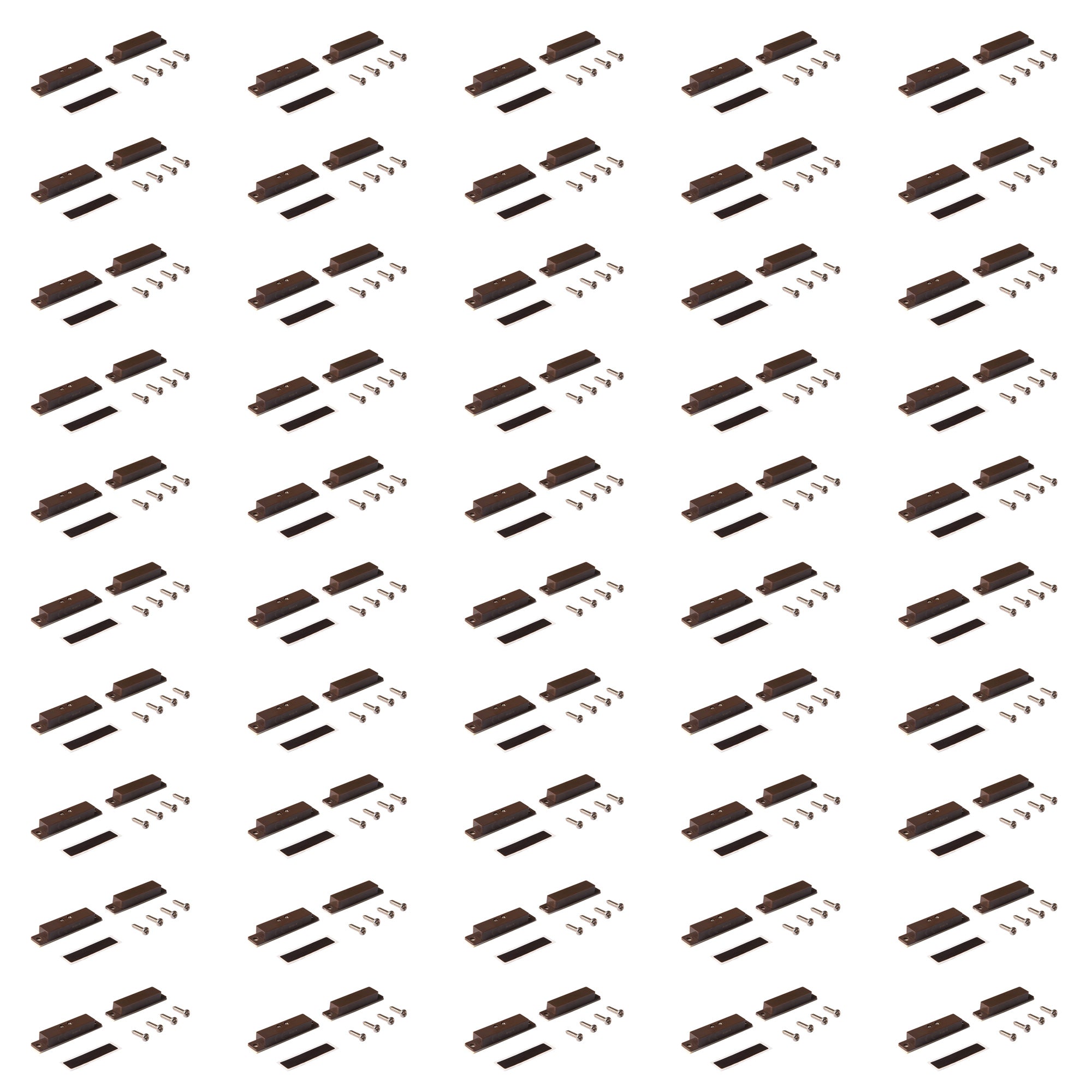

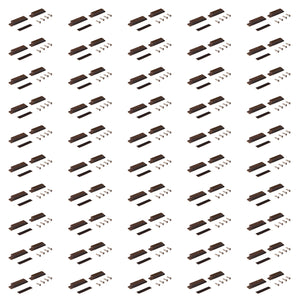

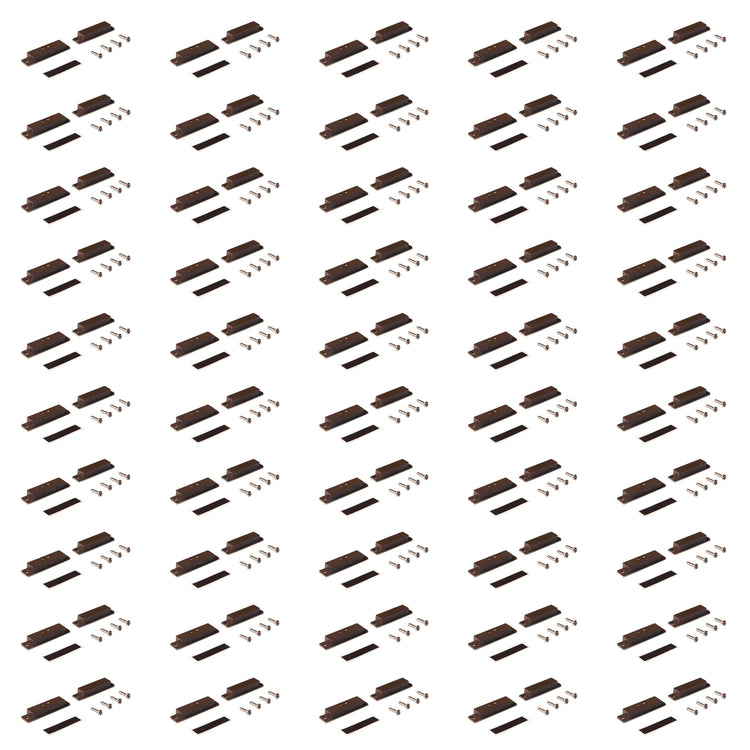

TANE-60QC-WG-BR: TANE Wired Surface Mount Quick Connect Magnetic Door Window Contact BROWN Color Alarm Security Magnetic Contact Switch Reed Switch Normally Open, UL Listed
Description

2″L×.37″W×.28″H Surface Mount Quick Connect Type BROWN Color.

Whether you prefer adhesive or screws, the TANE 60QC-WG-BR has you covered.

 Featuring hidden quick-connect terminals and a strong 1.26" standard gap, these brown magnetic contacts bring convenience, style, and trusted protection to any security system.

  • Contact Size: 2″L×.37″W×.28″H (50.8mm×9.5mm×7.1mm)
  • Standard Magnet Size: 2″L×.37″W×.28″H (50.8mm×9.5mm×7.1mm)
  • Color: White
  • Standard Gap: 1.26″(32)



For White color Magnetic Contact look at TANE-60QC-WG-WH



Dimensions

TANE-60QC-WG-WH Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Quick Connect Magnetic Door Window Switch TANE-60QC-WG-WH

Characteristics

Model No. TANE-60QC-WG-BR:

  • Color: BROWN
  • Contact Size: 2"L×.37"W×.28"H (50.8mm×9.5mm×7.1mm)
  • Standard Magnet Size: 2"L×.37"W×.28"H (50.8mm×9.5mm×7.1mm)
  • Gap Inch (mm): 1.26″(32)
  • Loop Open/Closed: CLOSED
  • Reed Form: Normally Open
  • Max. Contact Rating (W): 10
  • Max. Initial Contact Resistance (mΩ): 100
  • Max. Switching Voltage (V): AC110/DC100
  • Max. Switching Current (A): 0.5
  • Operating Temperature:-40°C to +60°C (-40°F to 140°F)
Description

2″L×.37″W×.28″H Surface Mount Quick Connect Type BROWN Color.

Whether you prefer adhesive or screws, the TANE 60QC-WG-BR has you covered.

 Featuring hidden quick-connect terminals and a strong 1.26" standard gap, these brown magnetic contacts bring convenience, style, and trusted protection to any security system.

  • Contact Size: 2″L×.37″W×.28″H (50.8mm×9.5mm×7.1mm)
  • Standard Magnet Size: 2″L×.37″W×.28″H (50.8mm×9.5mm×7.1mm)
  • Color: White
  • Standard Gap: 1.26″(32)



For White color Magnetic Contact look at TANE-60QC-WG-WH



Dimensions

TANE-60QC-WG-WH Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Quick Connect Magnetic Door Window Switch TANE-60QC-WG-WH

Download Datasheets and Manuals of this product
