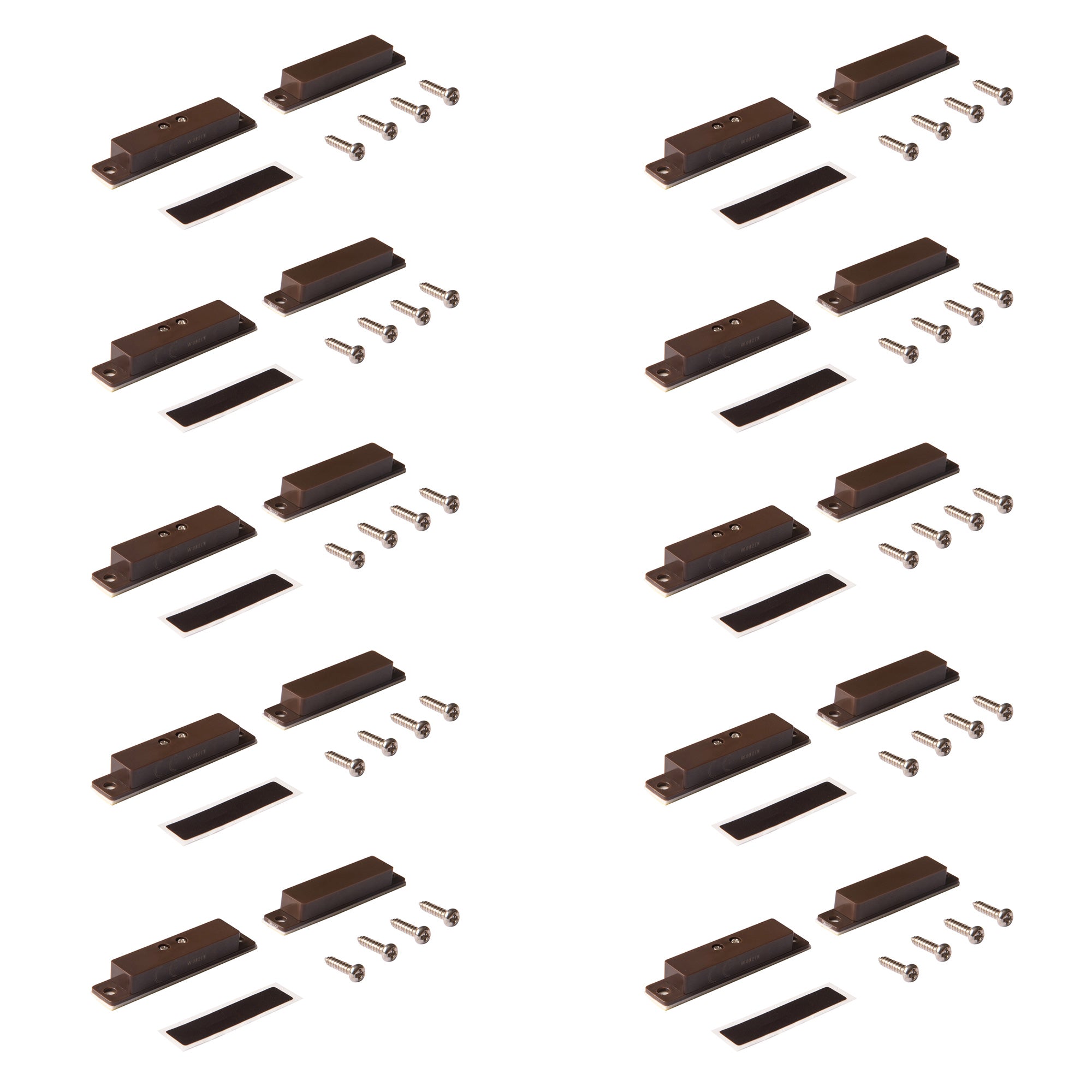

Kit Includes:
(10)
TANE-60QC-WG-BR: TANE Wired Surface Mount Quick Connect Magnetic Door Window Contact BROWN Color Alarm Security Magnetic Contact Switch Reed Switch Normally Open, UL Listed
Description

2″L×.37″W×.28″H Surface Mount Quick Connect Type BROWN Color.

The TANE 60QC-WG-BR magnetic contacts deliver professional-grade performance in a compact brown housing that blends naturally into darker surfaces.

Fast install with included hardware or 3M tape — and UL Listed for dependable security every day.

  • Contact Size: 2″L×.37″W×.28″H (50.8mm×9.5mm×7.1mm)
  • Standard Magnet Size: 2″L×.37″W×.28″H (50.8mm×9.5mm×7.1mm)
  • Color: White
  • Standard Gap: 1.26″(32)



For White color Magnetic Contact look at TANE-60QC-WG-WH



Dimensions

TANE-60QC-WG-WH Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Quick Connect Magnetic Door Window Switch TANE-60QC-WG-WH

Characteristics

Model No. TANE-60QC-WG-BR:

  • Color: BROWN
  • Contact Size: 2"L×.37"W×.28"H (50.8mm×9.5mm×7.1mm)
  • Standard Magnet Size: 2"L×.37"W×.28"H (50.8mm×9.5mm×7.1mm)
  • Gap Inch (mm): 1.26″(32)
  • Loop Open/Closed: CLOSED
  • Reed Form: Normally Open
  • Max. Contact Rating (W): 10
  • Max. Initial Contact Resistance (mΩ): 100
  • Max. Switching Voltage (V): AC110/DC100
  • Max. Switching Current (A): 0.5
  • Operating Temperature:-40°C to +60°C (-40°F to 140°F)
Description

2″L×.37″W×.28″H Surface Mount Quick Connect Type BROWN Color.

The TANE 60QC-WG-BR magnetic contacts deliver professional-grade performance in a compact brown housing that blends naturally into darker surfaces.

Fast install with included hardware or 3M tape — and UL Listed for dependable security every day.

  • Contact Size: 2″L×.37″W×.28″H (50.8mm×9.5mm×7.1mm)
  • Standard Magnet Size: 2″L×.37″W×.28″H (50.8mm×9.5mm×7.1mm)
  • Color: White
  • Standard Gap: 1.26″(32)



For White color Magnetic Contact look at TANE-60QC-WG-WH



Dimensions

TANE-60QC-WG-WH Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Quick Connect Magnetic Door Window Switch TANE-60QC-WG-WH

Download Datasheets and Manuals of this product

TANE-60QC-WG

Contact Us for Support
LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Tane by Tane

TANE Wired Surface Mount Quick Connect Magnetic Door Window Contact BROWN Color Alarm Security Magnetic Contact Switch Reed Switch Normally Open + UL Listed TANE-60QC-WG-BR-PK10 (Pack Of 10)

TANE-60QC-WG-BR-PK10

UPC Code: 734598804107 Weight: 1.0 lb
  • CE Certificate
  • UL Certificate
$26.99
$26.99
Shipping calculated at checkout.

Out of Stock
