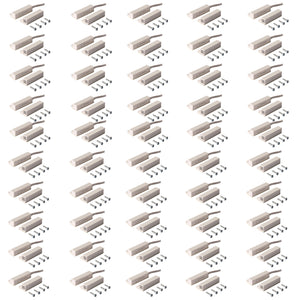

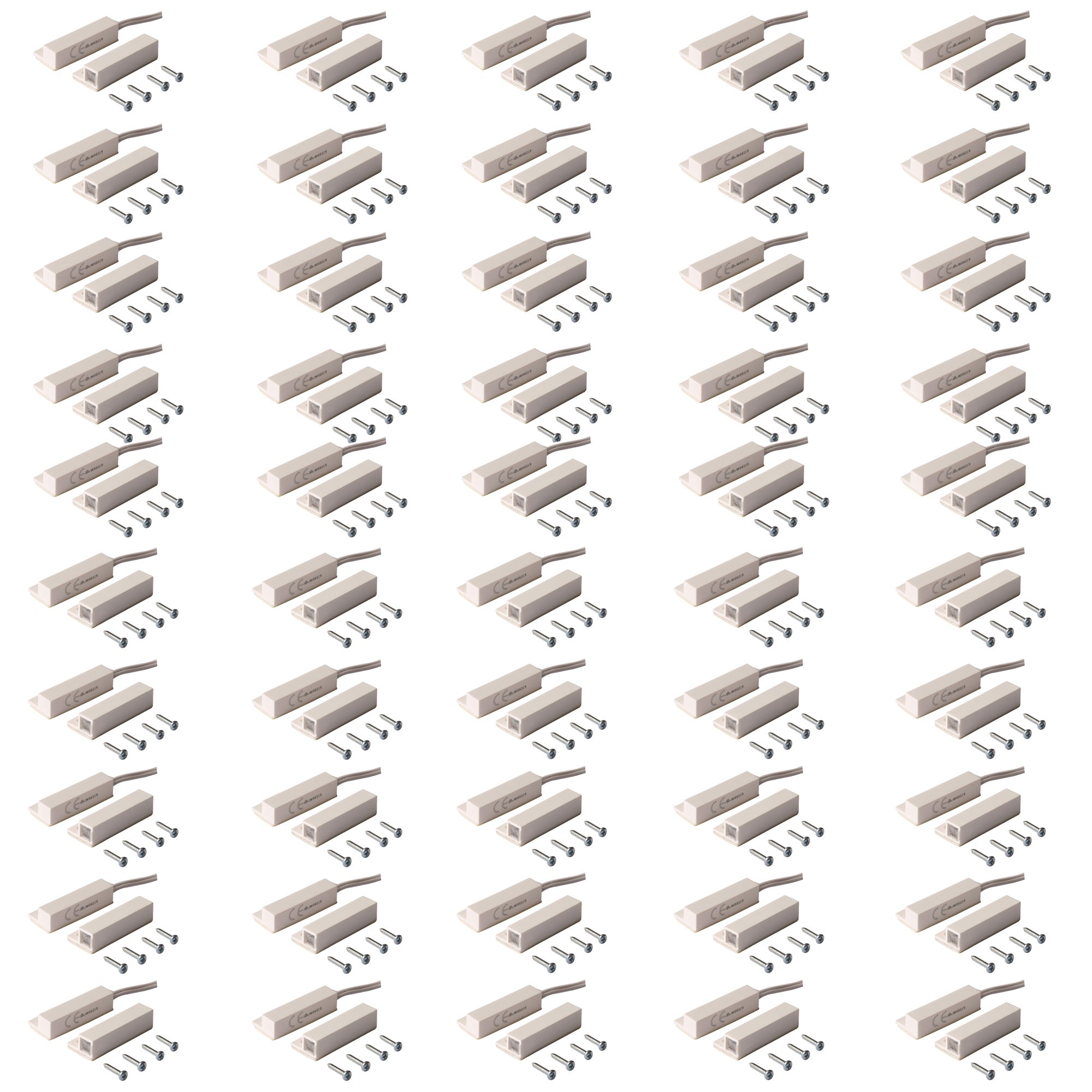

Kit Includes:

(50)
FM-102-WH: TANE Wired Side Lead Surface Mount Magnetic Contact WHITE Color Alarm Window Security Magnetic Door Switch Magnetic Contact Switch, UL Listed
Description

1.32″L×.53″W×.3″H Side Lead Surface Mount Type Magnetic Contact WHITE Color.

You can install the magnetic sensor on the door or window frame in two ways: with the 3M double sided tape or just with the screws that come included in the package.

  • Contact Size: 1.32″L×.53″W×.3″H (33.6mm×13.5mm×7.5mm)
  • Standard Magnet Size: 1.32″L×.53″W×.3″H (33.6mm×13.5mm×7.5mm)
  • Color: White
  • 12″ (305mm) 22 AWG Leads Standard
  • Standard Gap: .83″ (21mm)



For Brown color Magnetic Contact look at FM-102-BR



Dimensions

FM-102-WH Magnetic contact dimensions

Installation Diagram

FM-102-WH Magnetic contact installation

Characteristics

Model No. FM-102-WH:

  • Color: WHITE
  • Contact Size: 1.32"L×.53"W×.3"H (33.6mm×13.5mm×7.5mm)
  • Standard Magnet Size: 1.32"L×.53"W×.3"H (33.6mm×13.5mm×7.5mm)
  • Gap Inch (mm): 0.83″(21)
  • Loop Open/Closed: CLOSED
  • Reed Form: Normally Open
  • Max. Contact Rating (W): 10
  • Max. Initial Contact Resistance (mΩ): 100
  • Max. Switching Voltage (V): AC110/DC100
  • Max. Switching Current (A): 0.5
  • Operating Temperature:-40°C to +60°C (-40°F to 140°F)
Description

1.32″L×.53″W×.3″H Side Lead Surface Mount Type Magnetic Contact WHITE Color.

You can install the magnetic sensor on the door or window frame in two ways: with the 3M double sided tape or just with the screws that come included in the package.

  • Contact Size: 1.32″L×.53″W×.3″H (33.6mm×13.5mm×7.5mm)
  • Standard Magnet Size: 1.32″L×.53″W×.3″H (33.6mm×13.5mm×7.5mm)
  • Color: White
  • 12″ (305mm) 22 AWG Leads Standard
  • Standard Gap: .83″ (21mm)



For Brown color Magnetic Contact look at FM-102-BR



Dimensions

FM-102-WH Magnetic contact dimensions

Installation Diagram

FM-102-WH Magnetic contact installation

Download Datasheets and Manuals of this product

TANE FM-102

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Tane by Tane

TANE Wired Side Lead Surface Mount Magnetic Contact WHITE Color Alarm Window Security Magnetic Door Switch Magnetic Contact Switch Reed Switch Normally Open + UL Listed FM-102-WH-PK50 (Pack Of 50)

FM-102-WH-PK50

UPC Code: 734598803872
Product Weight: 1.0 lb
  • UL Certificate
  • CE Certificate
$109.99
$109.99
Shipping calculated at checkout.

Out of Stock
