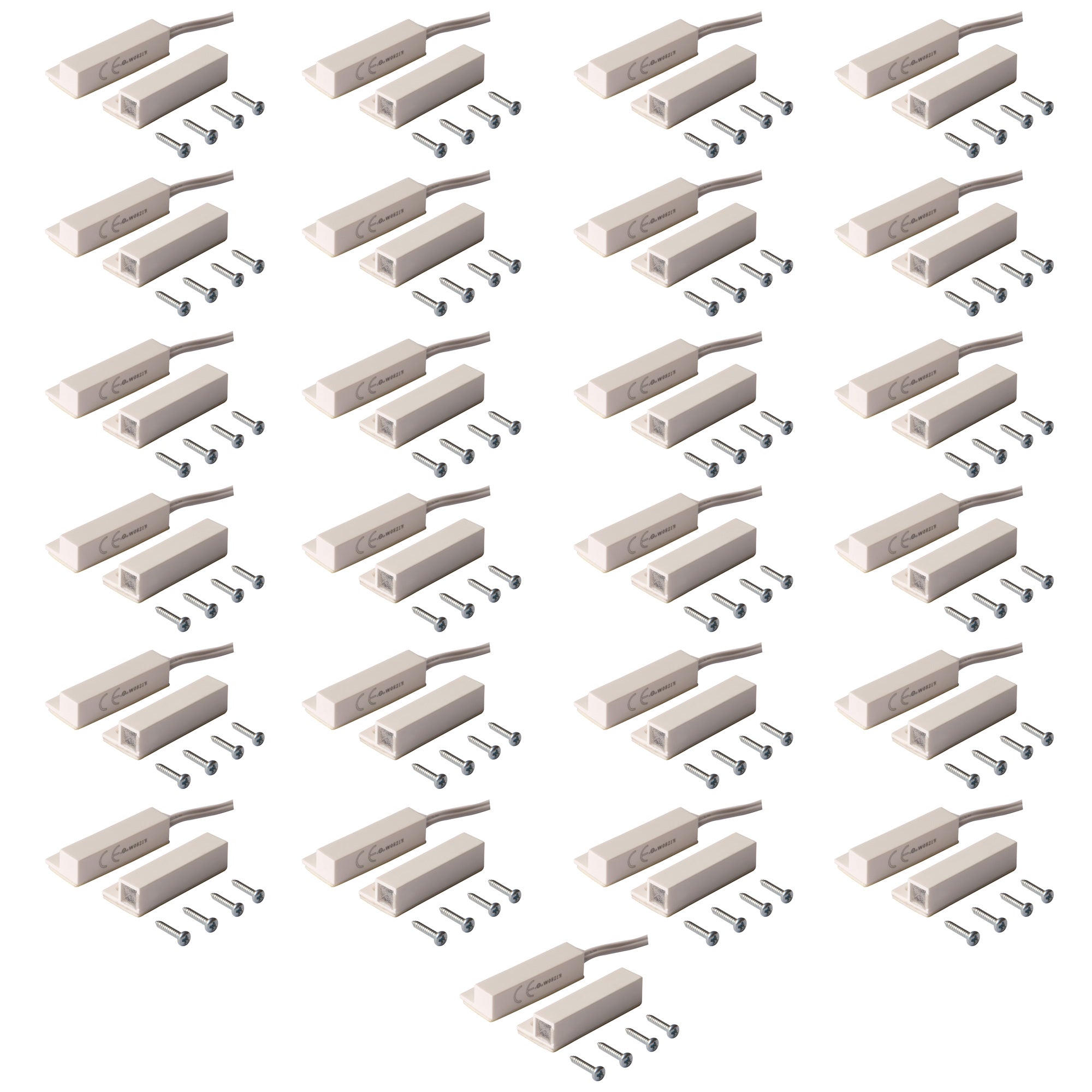

Kit Includes:
(25)
FM-102-WH: TANE Wired Side Lead Surface Mount Magnetic Contact WHITE Color Alarm Window Security Magnetic Door Switch Magnetic Contact Switch, UL Listed
Description

1.32″L×.53″W×.3″H Side Lead Surface Mount Type Magnetic Contact WHITE Color.

The TANE FM-102-WH-PK25 Surface Mount Magnetic Door or Window Contacts offer flexible installation with either tape or screws.

These low-profile, side-lead contacts are ideal for any security project where both reliability and appearance matter. Featuring a .83" gap and 12" pre-attached leads, they deliver dependable security you can trust — all UL Listed for your peace of mind.

  • Contact Size: 1.32″L×.53″W×.3″H (33.6mm×13.5mm×7.5mm)
  • Standard Magnet Size: 1.32″L×.53″W×.3″H (33.6mm×13.5mm×7.5mm)
  • Color: White
  • 12″ (305mm) 22 AWG Leads Standard
  • Standard Gap: .83″ (21mm)



For Brown color Magnetic Contact look at FM-102-BR



Dimensions

FM-102-WH Magnetic contact dimensions

Installation Diagram

FM-102-WH Magnetic contact installation

Characteristics

Model No. FM-102-WH:

  • Color: WHITE
  • Contact Size: 1.32"L×.53"W×.3"H (33.6mm×13.5mm×7.5mm)
  • Standard Magnet Size: 1.32"L×.53"W×.3"H (33.6mm×13.5mm×7.5mm)
  • Gap Inch (mm): 0.83″(21)
  • Loop Open/Closed: CLOSED
  • Reed Form: Normally Open
  • Max. Contact Rating (W): 10
  • Max. Initial Contact Resistance (mΩ): 100
  • Max. Switching Voltage (V): AC110/DC100
  • Max. Switching Current (A): 0.5
  • Operating Temperature:-40°C to +60°C (-40°F to 140°F)
Description

1.32″L×.53″W×.3″H Side Lead Surface Mount Type Magnetic Contact WHITE Color.

The TANE FM-102-WH-PK25 Surface Mount Magnetic Door or Window Contacts offer flexible installation with either tape or screws.

These low-profile, side-lead contacts are ideal for any security project where both reliability and appearance matter. Featuring a .83" gap and 12" pre-attached leads, they deliver dependable security you can trust — all UL Listed for your peace of mind.

  • Contact Size: 1.32″L×.53″W×.3″H (33.6mm×13.5mm×7.5mm)
  • Standard Magnet Size: 1.32″L×.53″W×.3″H (33.6mm×13.5mm×7.5mm)
  • Color: White
  • 12″ (305mm) 22 AWG Leads Standard
  • Standard Gap: .83″ (21mm)



For Brown color Magnetic Contact look at FM-102-BR



Dimensions

FM-102-WH Magnetic contact dimensions

Installation Diagram

FM-102-WH Magnetic contact installation

Download Datasheets and Manuals of this product
