Kit Includes:

(50)

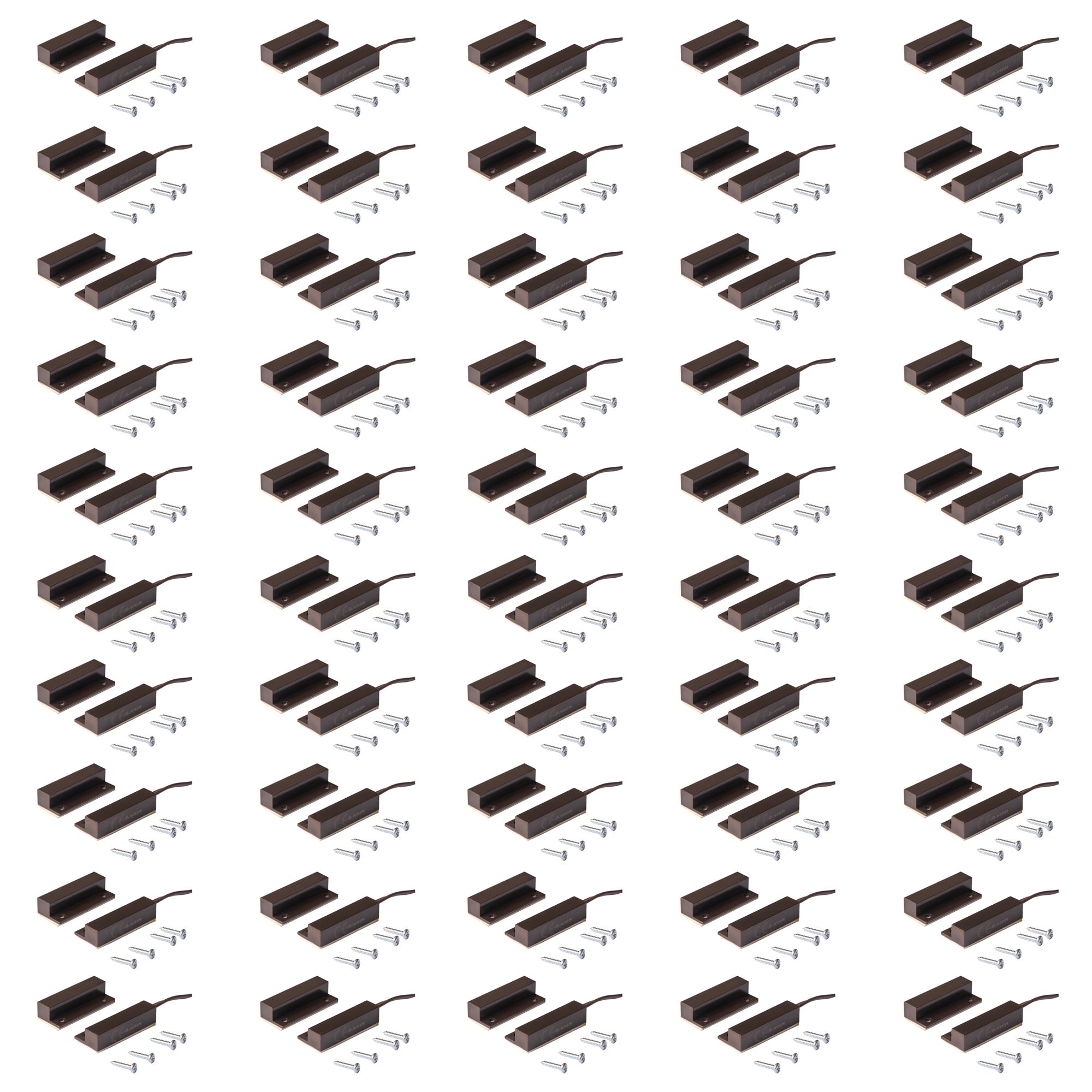

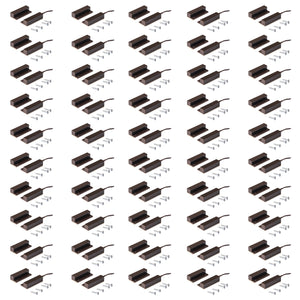

FM-102-BR: TANE Wired Side Lead Surface Mount Magnetic Contact BROWN Color Alarm Window Security Magnetic Door Switch Magnetic Contact, UL Listed
Description

Get bulk security coverage with the 50-pack of TANE FM-102-BR magnetic door/window contacts.

These brown, UL Listed, side-lead contacts offer normally open reed switch function, a .83″ gap, and a 1.32″ × .53″ × .3″ footprint.

Designed for quick surface mount installation, each includes both screws and 3M tape. Ideal for large-scale security projects or multi-door installations.

  • Contact Size: 1.32″L×.53″W×.3″H (33.6mm×13.5mm×7.5mm)
  • Standard Magnet Size: 1.32″L×.53″W×.3″H (33.6mm×13.5mm×7.5mm)
  • Color: White
  • 12″ (305mm) 22 AWG Leads Standard
  • Standard Gap: .83″ (21mm)



For White color Magnetic Contact look at FM-102-WH



Dimensions

FM-102-WH Magnetic contact dimensions

Installation Diagram

FM-102-WH Magnetic contact installation

Characteristics

Model No. FM-102-BR:

  • Color: BROWN
  • Contact Size: 1.32"L×.53"W×.3"H (33.6mm×13.5mm×7.5mm)
  • Standard Magnet Size: 1.32"L×.53"W×.3"H (33.6mm×13.5mm×7.5mm)
  • Gap Inch (mm): 0.83″(21)
  • Loop Open/Closed: CLOSED
  • Reed Form: Normally Open
  • Max. Contact Rating (W): 10
  • Max. Initial Contact Resistance (mΩ): 100
  • Max. Switching Voltage (V): AC110/DC100
  • Max. Switching Current (A): 0.5
  • Operating Temperature:-40°C to +60°C (-40°F to 140°F)
Description

Get bulk security coverage with the 50-pack of TANE FM-102-BR magnetic door/window contacts.

These brown, UL Listed, side-lead contacts offer normally open reed switch function, a .83″ gap, and a 1.32″ × .53″ × .3″ footprint.

Designed for quick surface mount installation, each includes both screws and 3M tape. Ideal for large-scale security projects or multi-door installations.

  • Contact Size: 1.32″L×.53″W×.3″H (33.6mm×13.5mm×7.5mm)
  • Standard Magnet Size: 1.32″L×.53″W×.3″H (33.6mm×13.5mm×7.5mm)
  • Color: White
  • 12″ (305mm) 22 AWG Leads Standard
  • Standard Gap: .83″ (21mm)



For White color Magnetic Contact look at FM-102-WH



Dimensions

FM-102-WH Magnetic contact dimensions

Installation Diagram

FM-102-WH Magnetic contact installation

Download Datasheets and Manuals of this product

TANE FM-102

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Tane by Tane

TANE Wired Side Lead Surface Mount Magnetic Contact BROWN Color Alarm Window Security Magnetic Door Switch Magnetic Contact Switch Reed Switch Normally Open + UL Listed FM-102-BR-PK50 (Pack Of 50)

FM-102-BR-PK50

UPC Code: 734598803926 Weight: 1.0 lb
  • CE Certificate
  • UL Certificate
$99.99
