Kit Includes:

(5)

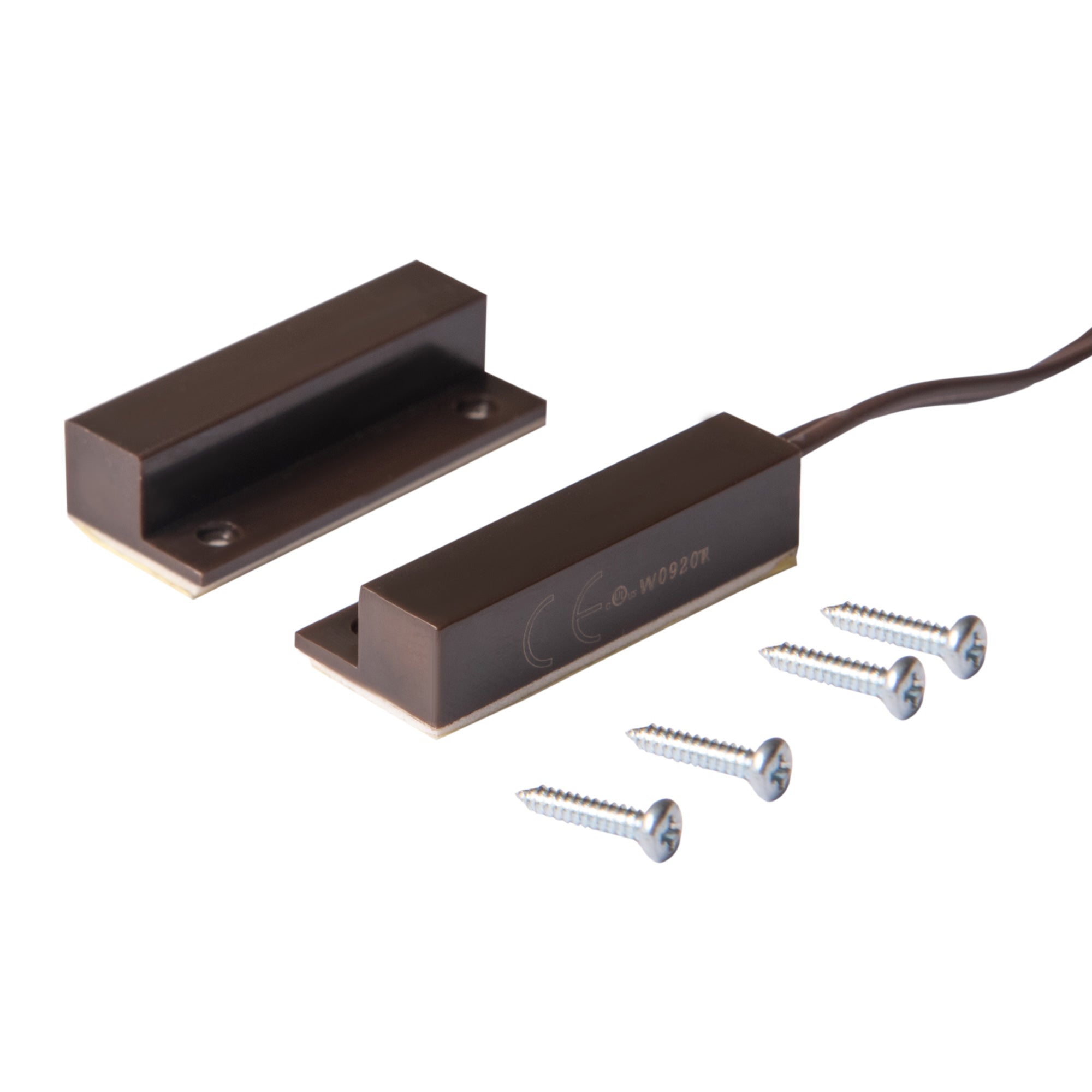

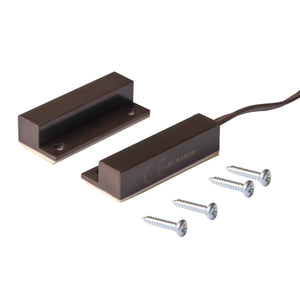

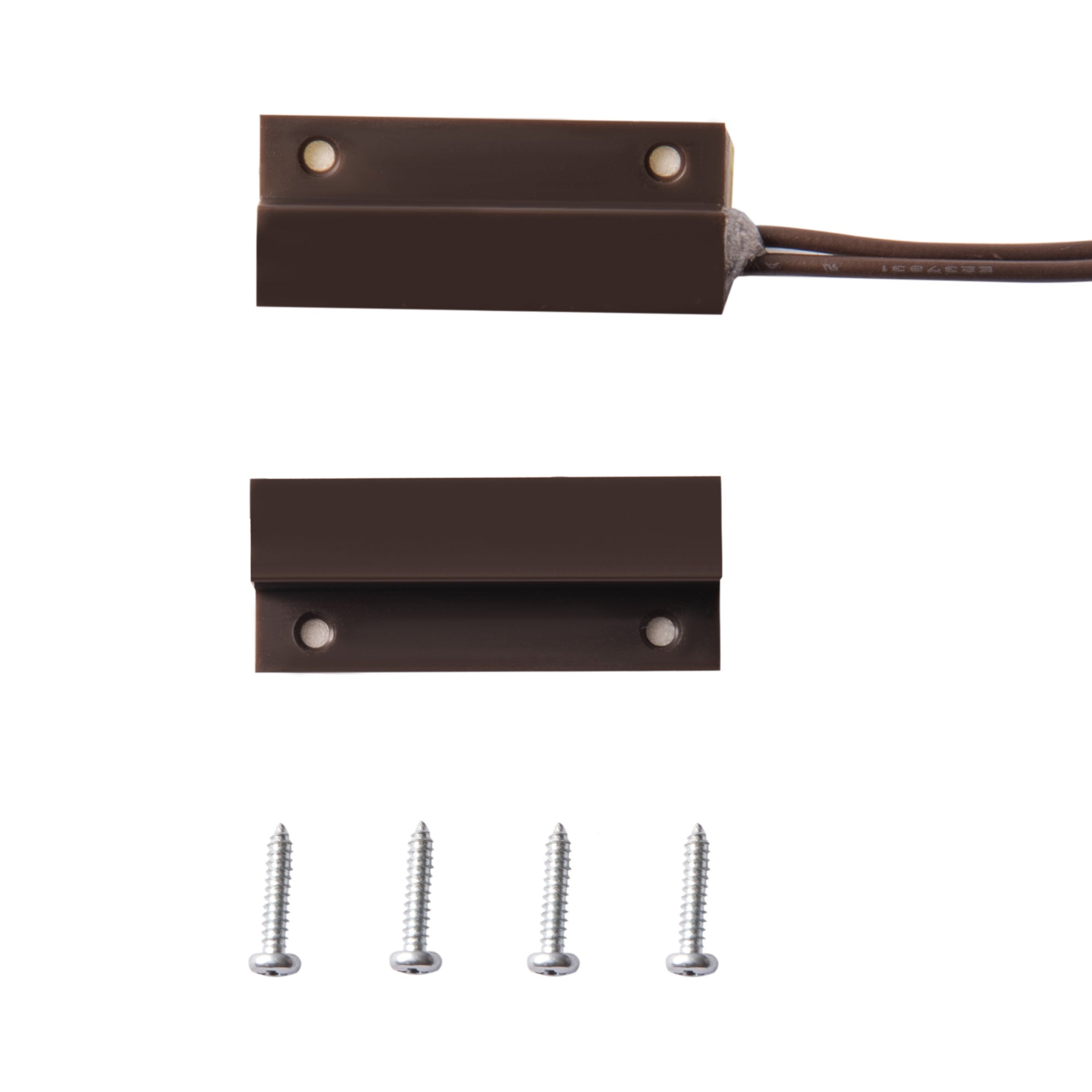

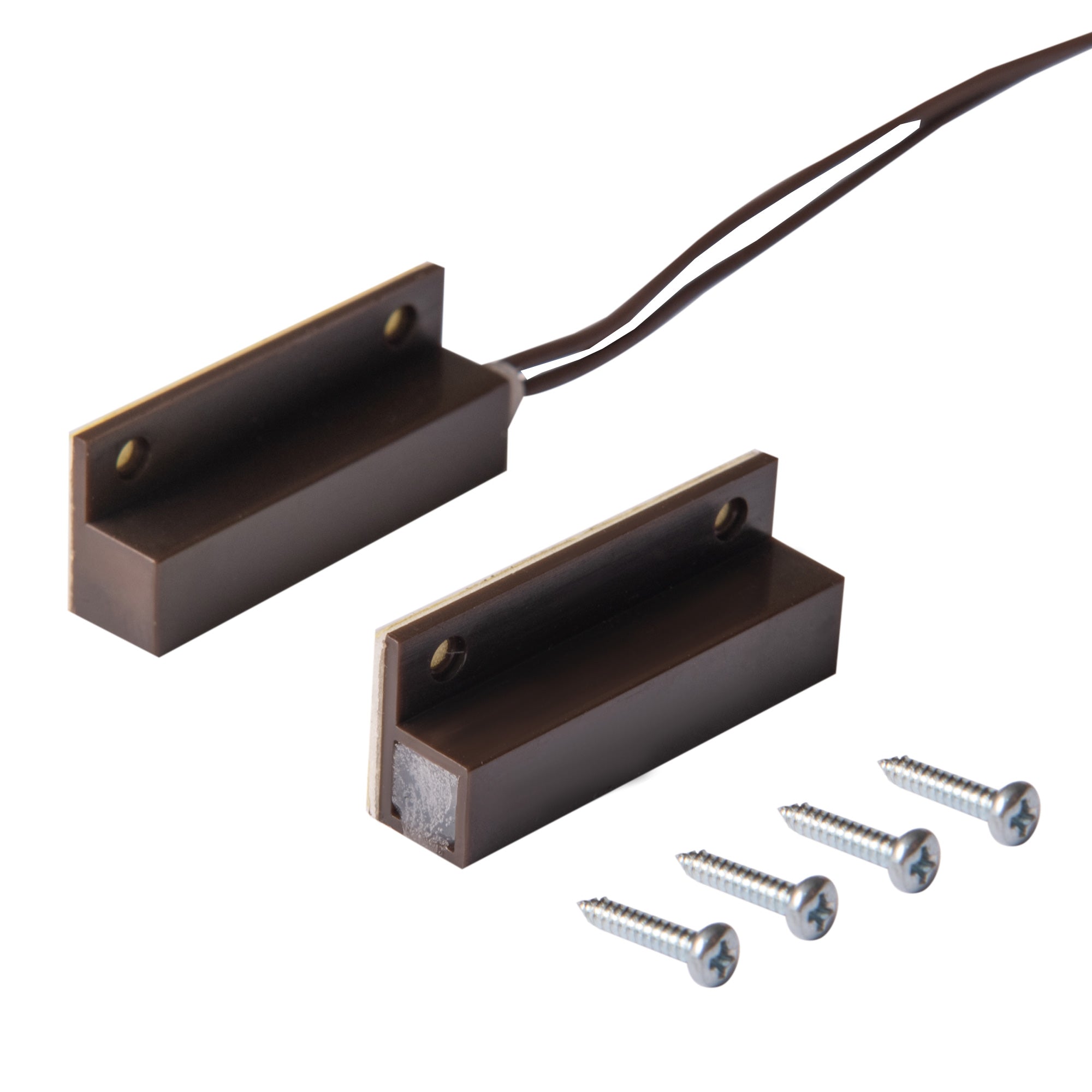

FM-102-BR: TANE Wired Side Lead Surface Mount Magnetic Contact BROWN Color Alarm Window Security Magnetic Door Switch Magnetic Contact, UL Listed

Description

Characteristics

Model No. FM-102-BR:

Color: BROWN

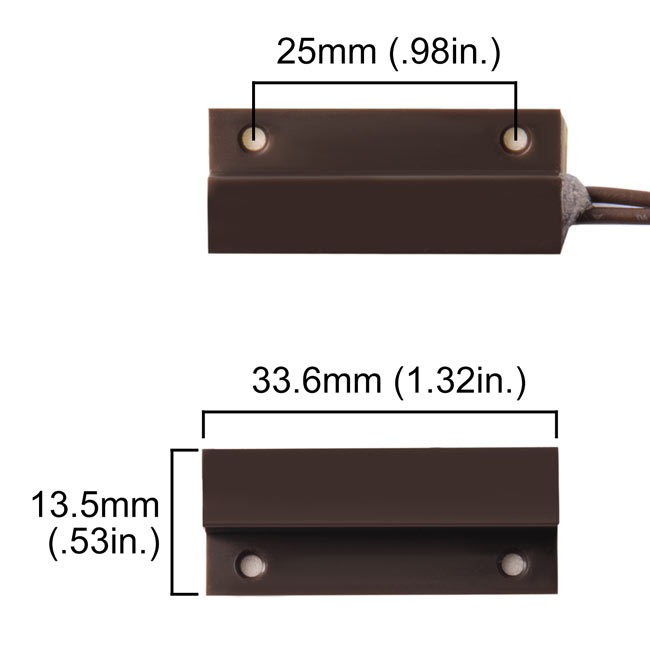

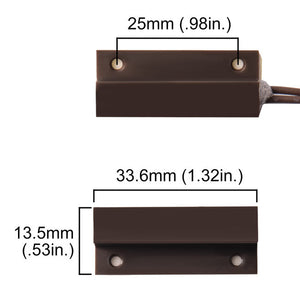

Contact Size: 1.32"L×.53"W×.3"H (33.6mm×13.5mm×7.5mm)
Standard Magnet Size: 1.32"L×.53"W×.3"H (33.6mm×13.5mm×7.5mm)
Gap Inch (mm): 0.83″(21)
Loop Open/Closed: CLOSED
Reed Form: Normally Open
Max. Contact Rating (W): 10
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC110/DC100
Max. Switching Current (A): 0.5
Operating Temperature:-40°C to +60°C (-40°F to 140°F)

Description

Download Datasheets and Manuals of this product

TANE FM-102

Tane by Tane

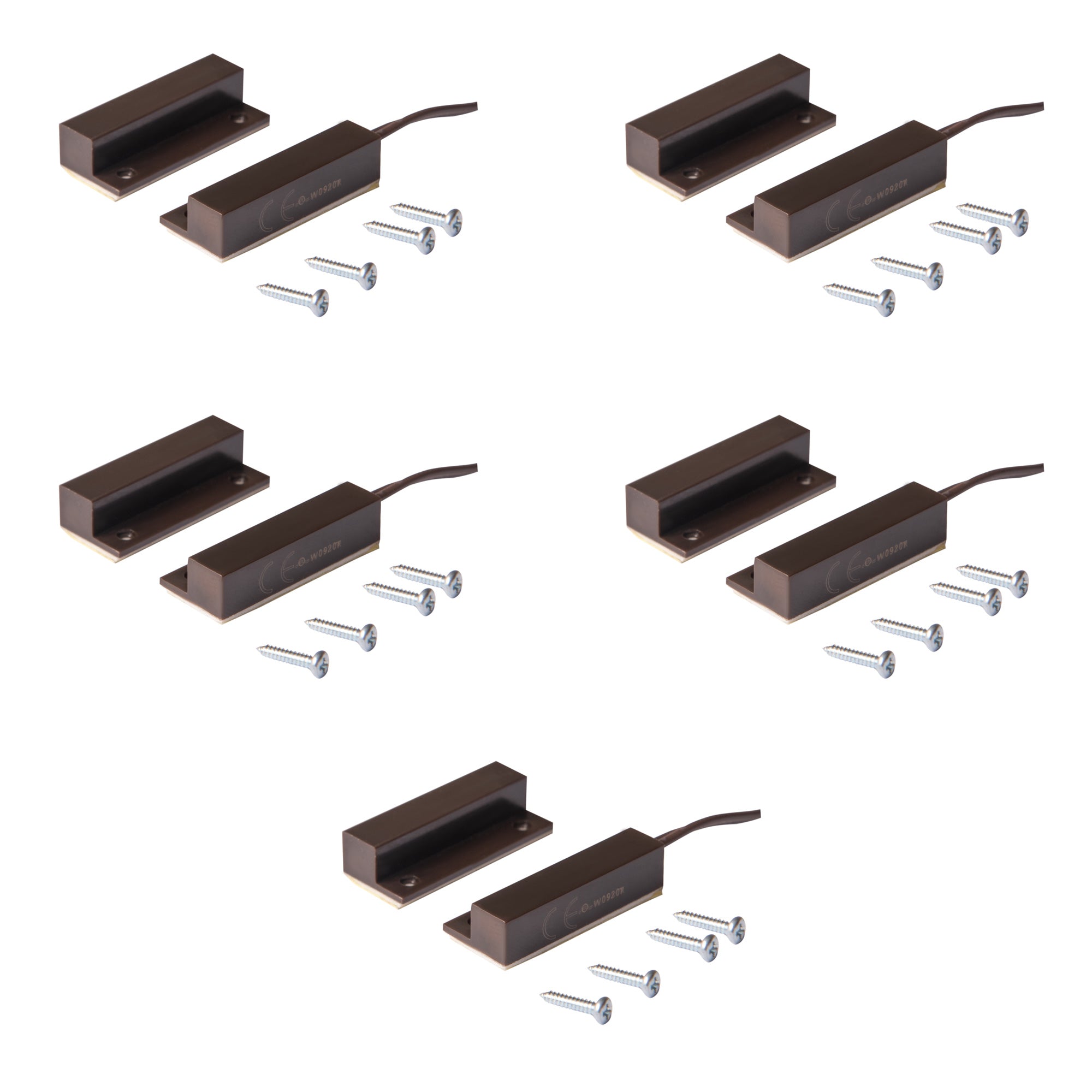

TANE Wired Side Lead Surface Mount Magnetic Door Contact BROWN Color Alarm Window Security Magnetic Contact Switch Reed Switch Normally Open + UL Listed FM-102-BR-PK5 (Pack of 5)

Name: TANE Wired Side Lead Surface Mount Magnetic Door Contact BROWN Color Alarm Window Security Magnetic Contact Switch Reed Switch Normally Open + UL Listed FM-102-BR-PK5 (Pack of 5)
Brand: Tane
SKU: FM-102-BR-PK5
Price: 14.99 USD
Availability: OutOfStock

Translation missing: en.products.product.sku:FM-102-BR-PK5

UPC Code: 734598803896

Product Weight: 1.0 lb

Regular price: $14.99
Sale price: $14.99
Regular price

Shipping calculated at checkout.

Out of Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

NOTE

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
