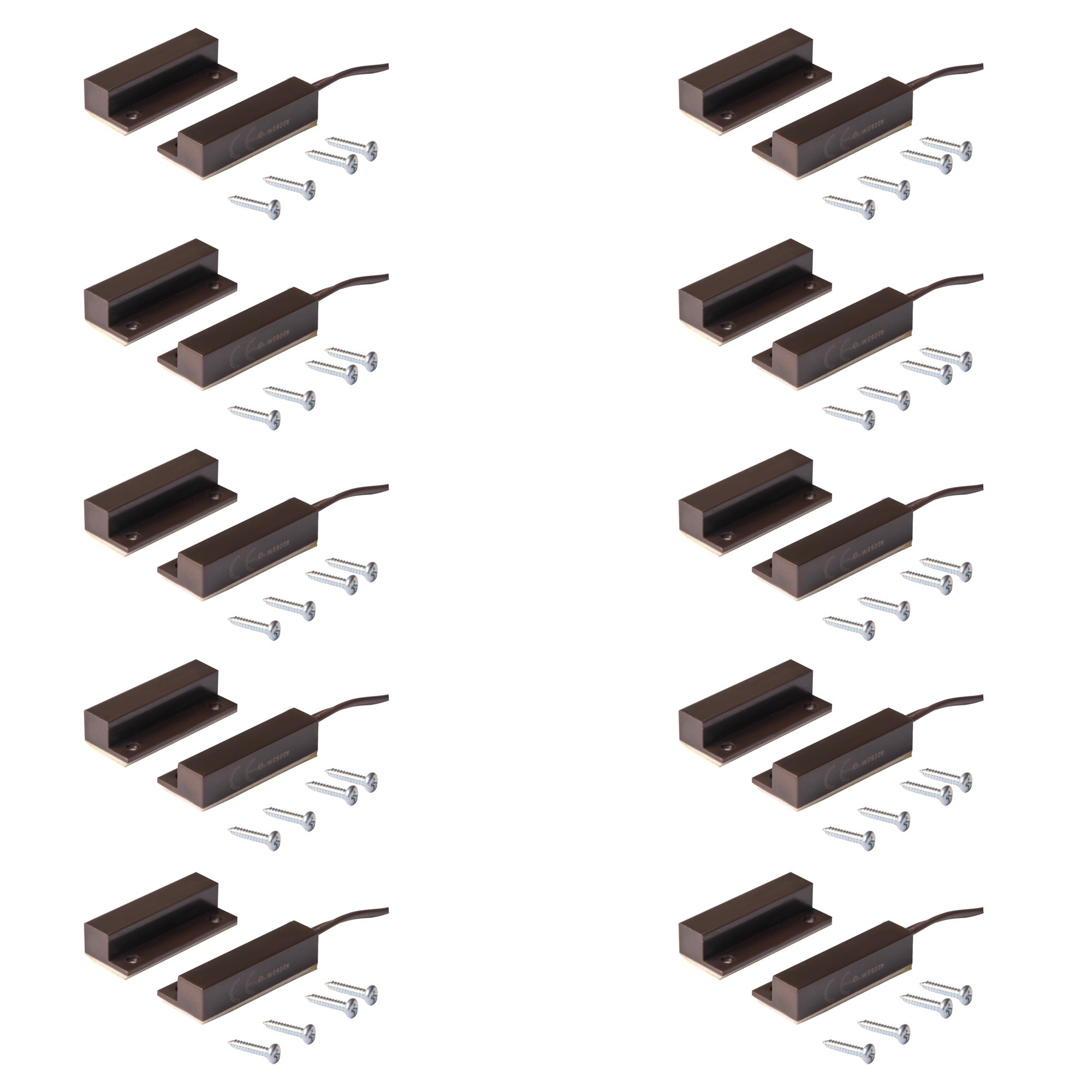

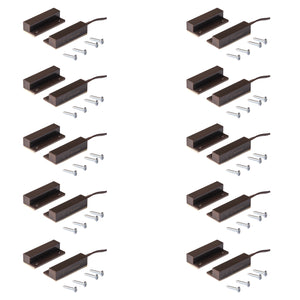

Kit Includes:

(10)

FM-102-BR: TANE Wired Side Lead Surface Mount Magnetic Contact BROWN Color Alarm Window Security Magnetic Door Switch Magnetic Contact, UL Listed

Description

The TANE FM-102-BR 10-pack offers reliable magnetic contacts for door and window security. With a side lead, surface mount design and compact brown housing, each contact measures 1.32″ × .53″ × .3″ and supports a standard .83″ gap.

UL Listed and ideal for alarm systems, these contacts include 12″ 22 AWG leads and install easily using screws or 3M adhesive (both included).

Contact Size: 1.32″L×.53″W×.3″H (33.6mm×13.5mm×7.5mm)
Standard Magnet Size: 1.32″L×.53″W×.3″H (33.6mm×13.5mm×7.5mm)
Color: White
12″ (305mm) 22 AWG Leads Standard
Standard Gap: .83″ (21mm)

Characteristics

Model No. FM-102-BR:

Color: BROWN
Contact Size: 1.32"L×.53"W×.3"H (33.6mm×13.5mm×7.5mm)
Standard Magnet Size: 1.32"L×.53"W×.3"H (33.6mm×13.5mm×7.5mm)
Gap Inch (mm): 0.83″(21)
Loop Open/Closed: CLOSED
Reed Form: Normally Open
Max. Contact Rating (W): 10
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC110/DC100
Max. Switching Current (A): 0.5
Operating Temperature:-40°C to +60°C (-40°F to 140°F)

Description

The TANE FM-102-BR 10-pack offers reliable magnetic contacts for door and window security. With a side lead, surface mount design and compact brown housing, each contact measures 1.32″ × .53″ × .3″ and supports a standard .83″ gap.

UL Listed and ideal for alarm systems, these contacts include 12″ 22 AWG leads and install easily using screws or 3M adhesive (both included).

Contact Size: 1.32″L×.53″W×.3″H (33.6mm×13.5mm×7.5mm)
Standard Magnet Size: 1.32″L×.53″W×.3″H (33.6mm×13.5mm×7.5mm)
Color: White
12″ (305mm) 22 AWG Leads Standard
Standard Gap: .83″ (21mm)

Download Datasheets and Manuals of this product

TANE FM-102

Tane by Tane

TANE Wired Side Lead Surface Mount Magnetic Contact BROWN Color Alarm Window Security Magnetic Door Switch Magnetic Contact Switch Reed Switch Normally Open + UL Listed FM-102-BR-PK10 (Pack Of 10)

Name: TANE Wired Side Lead Surface Mount Magnetic Contact BROWN Color Alarm Window Security Magnetic Door Switch Magnetic Contact Switch Reed Switch Normally Open + UL Listed FM-102-BR-PK10 (Pack Of 10)
Brand: Tane
SKU: FM-102-BR-PK10
Price: 22.99 USD
Availability: OutOfStock

Translation missing: en.products.product.sku:FM-102-BR-PK10

UPC Code: 734598803902 Weight: 1.0 lb

Regular price: $22.99
Sale price: $22.99
Regular price

Shipping calculated at checkout.

Out of Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

NOTE

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
