Kit Includes:

(50)

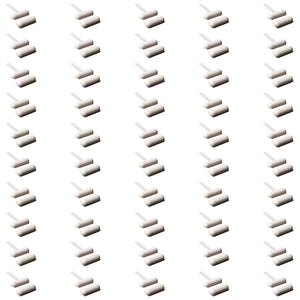

TANE-PILL: TANE Wired Surface Mount Magnetic Contact Door Switch with Center Leads, WHITE Color Alarm Window Security Reed Switch Normally Open, UL Listed
Description

1.1″L×0.37″W×0.19″H Surface Mount Type with Center Leads.

Built for durability and easy installation, the TANE Surface Mount Magnetic Door and Window Switches deliver commercial-grade protection in a compact white body.

Just peel and stick with the included 3M tape—no screws, no fuss. With UL Listing and a normally open design, these contacts integrate seamlessly into most alarm systems.

It does NOT INCLUDE screws.

  • Contact Size: 1.1″L×0.37″W×0.19″H (27.8mm×9.5mm×4.75mm)
  • Standard Magnet Size: 1.1″L×0.37″W×0.19″H (27.8mm×9.5mm×4.75mm)
  • Color: White
  • 12″ (305mm) 22 AWG Leads Standard
  • Standard Gap: 0.5″ (12.5mm)



Dimensions

TANE-PILL Magnetic contact dimensions

Characteristics

Model No. TANE-PILL:

  • Color: WHITE
  • Contact Size: 1.1"L×.37"W×.19"H (27.8mm×9.5mm×4.75mm)
  • Standard Magnet Size: 1.1"L×.37"W×.19"H (27.8mm×9.5mm×4.75mm)
  • Gap Inch (mm): .5" (12.5)
  • Loop Open/Closed: CLOSED
  • Reed Form: Normally Open
  • Max. Contact Rating (W): 10
  • Max. Initial Contact Resistance (mΩ): 100
  • Max. Switching Voltage (V): AC110/DC100
  • Max. Switching Current (A): 0.5
  • Operating Temperature:-40°C to +60°C (-40°F to 140°F)
Description

1.1″L×0.37″W×0.19″H Surface Mount Type with Center Leads.

Built for durability and easy installation, the TANE Surface Mount Magnetic Door and Window Switches deliver commercial-grade protection in a compact white body.

Just peel and stick with the included 3M tape—no screws, no fuss. With UL Listing and a normally open design, these contacts integrate seamlessly into most alarm systems.

It does NOT INCLUDE screws.

  • Contact Size: 1.1″L×0.37″W×0.19″H (27.8mm×9.5mm×4.75mm)
  • Standard Magnet Size: 1.1″L×0.37″W×0.19″H (27.8mm×9.5mm×4.75mm)
  • Color: White
  • 12″ (305mm) 22 AWG Leads Standard
  • Standard Gap: 0.5″ (12.5mm)



Dimensions

TANE-PILL Magnetic contact dimensions

Download Datasheets and Manuals of this product

TANE-PILL

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Tane by Tane

TANE Wired Surface Mount Magnetic Contact Door Switch With Center Leads, WHITE Color Alarm Window Security Reed Switch Normally Open UL Listed TANE-PILL-PK50 (Pack Of 50)

TANE-PILL-PK50

UPC Code: 734598804725 Weight: 1.0 lb
  • CE Certificate
  • UL Certificate
$119.99
$119.99
Shipping calculated at checkout.

Out of Stock
