Description

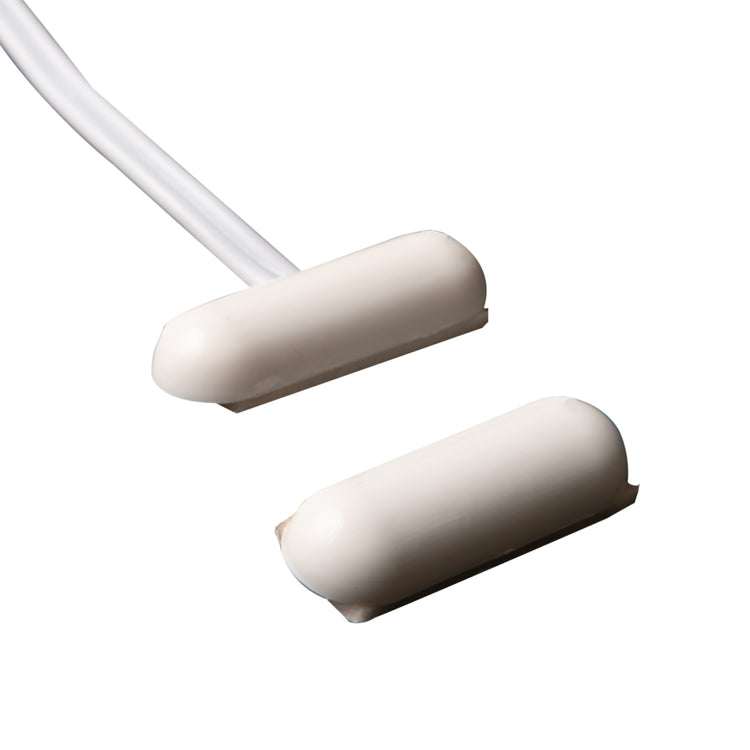

1.1″L×0.37″W×0.19″H Surface Mount Type with Center Leads.

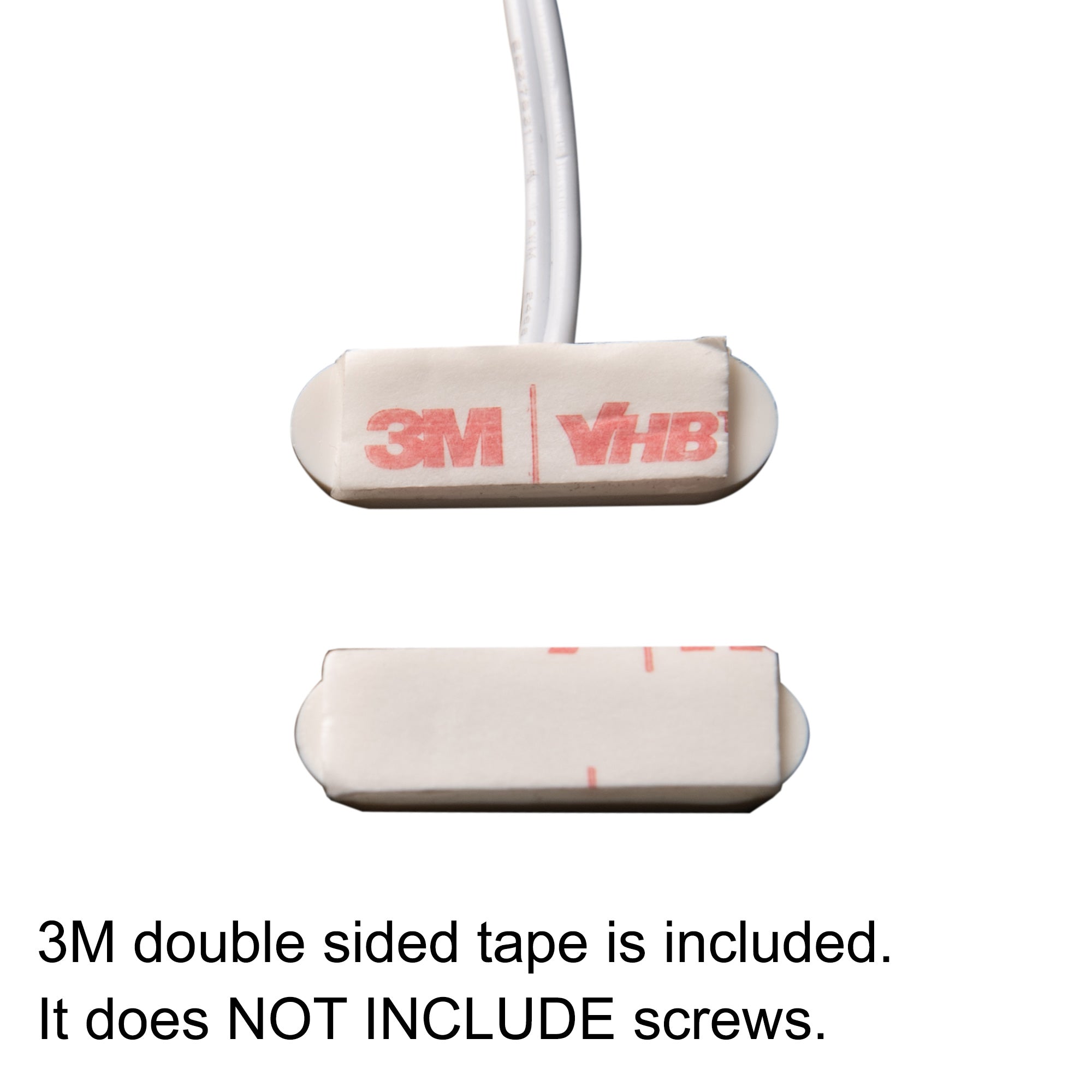

You can install this surface mount magnetic contact on the door or window frame. This product includes 3M double sided tape. It does NOT INCLUDE screws.

  • Contact Size: 1.1″L×0.37″W×0.19″H (27.8mm×9.5mm×4.75mm)
  • Standard Magnet Size: 1.1″L×0.37″W×0.19″H (27.8mm×9.5mm×4.75mm)
  • Color: White
  • 12″ (305mm) 22 AWG Leads Standard
  • Standard Gap: 0.5″ (12.5mm)



Dimensions

TANE-PILL Magnetic contact dimensions

Characteristics

Model No. TANE-PILL:

  • Color: WHITE
  • Contact Size: 1.1"L×.37"W×.19"H (27.8mm×9.5mm×4.75mm)
  • Standard Magnet Size: 1.1"L×.37"W×.19"H (27.8mm×9.5mm×4.75mm)
  • Gap Inch (mm): .5" (12.5)
  • Loop Open/Closed: CLOSED
  • Reed Form: Normally Open
  • Max. Contact Rating (W): 10
  • Max. Initial Contact Resistance (mΩ): 100
  • Max. Switching Voltage (V): AC110/DC100
  • Max. Switching Current (A): 0.5
  • Operating Temperature:-40°C to +60°C (-40°F to 140°F)
Description

1.1″L×0.37″W×0.19″H Surface Mount Type with Center Leads.

You can install this surface mount magnetic contact on the door or window frame. This product includes 3M double sided tape. It does NOT INCLUDE screws.

  • Contact Size: 1.1″L×0.37″W×0.19″H (27.8mm×9.5mm×4.75mm)
  • Standard Magnet Size: 1.1″L×0.37″W×0.19″H (27.8mm×9.5mm×4.75mm)
  • Color: White
  • 12″ (305mm) 22 AWG Leads Standard
  • Standard Gap: 0.5″ (12.5mm)



Dimensions

TANE-PILL Magnetic contact dimensions

Download Datasheets and Manuals of this product

TANE-PILL

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Tane by Tane

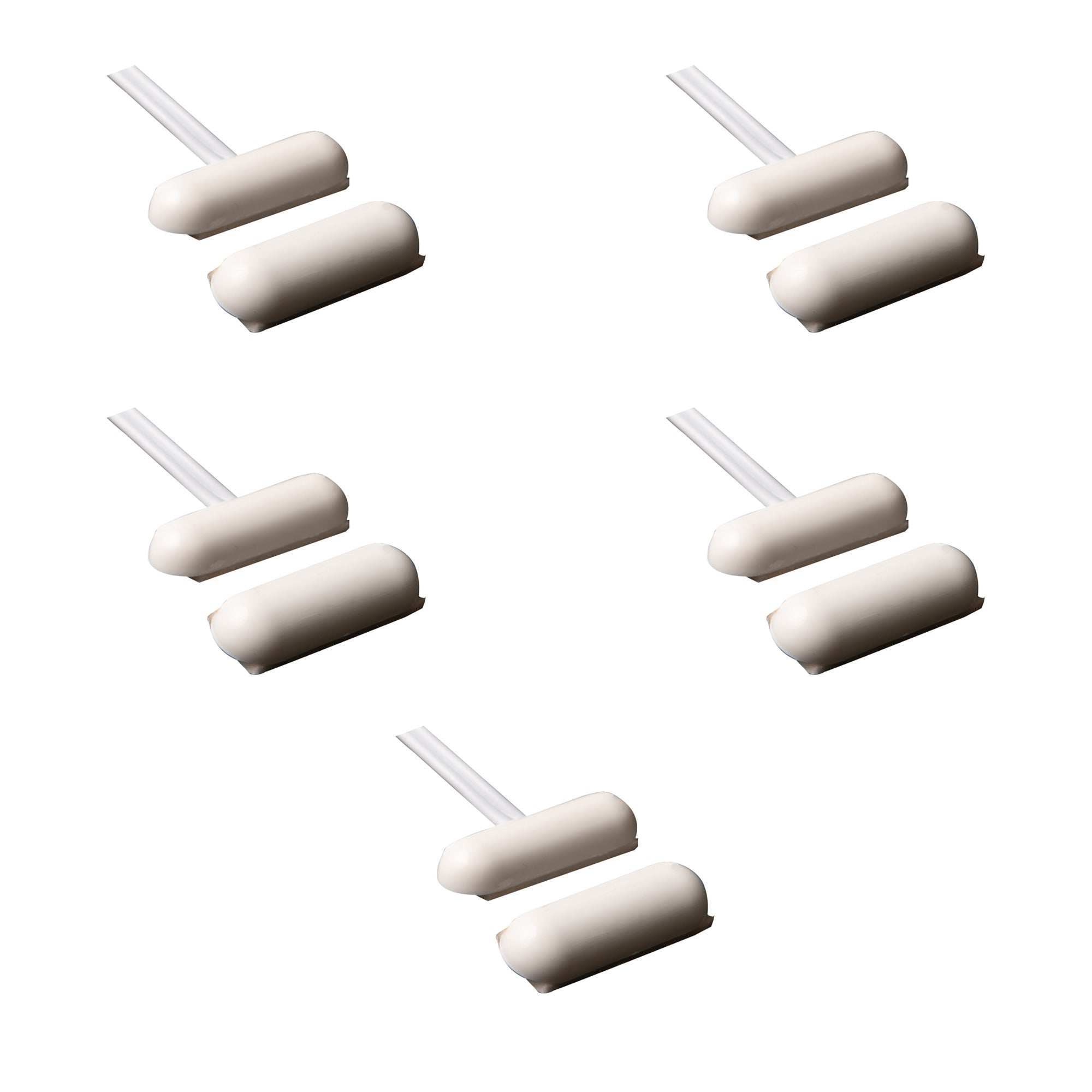

TANE Wired Surface Mount Magnetic Contact Door Switch With Center Leads, WHITE Color Alarm Window Security Reed Switch Normally Open – UL Listed TANE-PILL-PK5 (Pack Of 5)

Translation missing: en.products.product.sku:TANE-PILL-PK5

UPC Code: 734598804695
Product Weight: 1.0 lb
  • CE Certificate
  • UL Certificate
Regular price
$14.99
Sale price
$14.99
Regular price
Shipping calculated at checkout.

Out of Stock

Phone Support Icon

Phone Life-Time Technical Support

Return Policy Icon

30-Day No Questions Return Policy

Free Shipping Icon

*Free Shipping within the USA

Contact an Expert
Return Policy
NOTE
Order Before 3:00pm EST on a week day and your order will be shipped out the same day
Free Shipping
*Free shipping within the USA
Including Puerto Rico, Hawaii and Alaska
ATTENTION:
Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
