Kit Includes:

(25)
TANE-PILL: TANE Wired Surface Mount Magnetic Contact Door Switch with Center Leads, WHITE Color Alarm Window Security Reed Switch Normally Open, UL Listed
Description

1.1″L×0.37″W×0.19″H Surface Mount Type with Center Leads.

Enhance your alarm system with the TANE PILL-PK25 Magnetic Contacts. These tiny but tough sensors are built to detect unauthorized access fast, with a 0.5" standard gap for accurate triggering.

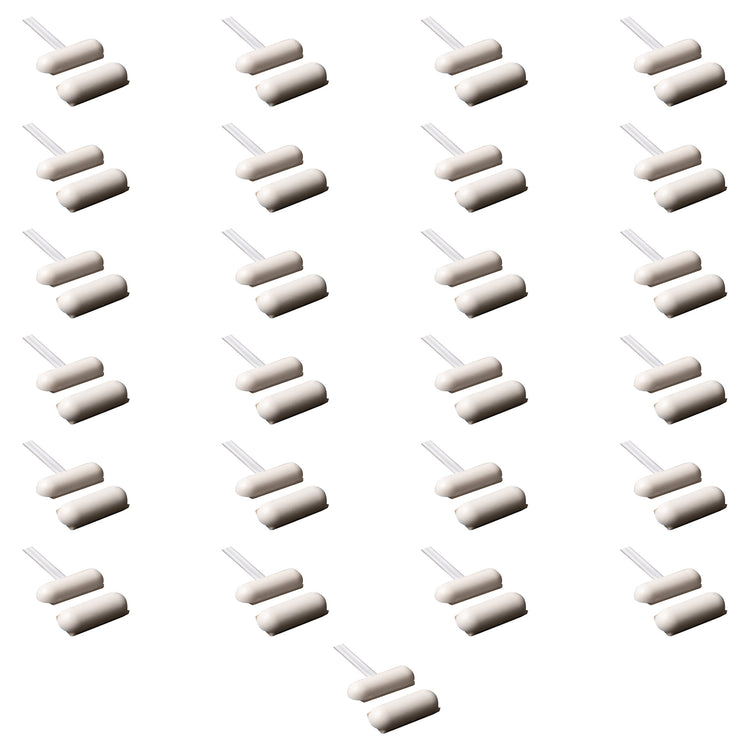

Each pack includes twenty five white, surface-mount sensors with pre-attached center leads and 3M tape for simple, tool-free installation.

(Note: Screws not included.)

  • Contact Size: 1.1″L×0.37″W×0.19″H (27.8mm×9.5mm×4.75mm)
  • Standard Magnet Size: 1.1″L×0.37″W×0.19″H (27.8mm×9.5mm×4.75mm)
  • Color: White
  • 12″ (305mm) 22 AWG Leads Standard
  • Standard Gap: 0.5″ (12.5mm)



Dimensions

TANE-PILL Magnetic contact dimensions

Characteristics

Model No. TANE-PILL:

  • Color: WHITE
  • Contact Size: 1.1"L×.37"W×.19"H (27.8mm×9.5mm×4.75mm)
  • Standard Magnet Size: 1.1"L×.37"W×.19"H (27.8mm×9.5mm×4.75mm)
  • Gap Inch (mm): .5" (12.5)
  • Loop Open/Closed: CLOSED
  • Reed Form: Normally Open
  • Max. Contact Rating (W): 10
  • Max. Initial Contact Resistance (mΩ): 100
  • Max. Switching Voltage (V): AC110/DC100
  • Max. Switching Current (A): 0.5
  • Operating Temperature:-40°C to +60°C (-40°F to 140°F)
Description

1.1″L×0.37″W×0.19″H Surface Mount Type with Center Leads.

Enhance your alarm system with the TANE PILL-PK25 Magnetic Contacts. These tiny but tough sensors are built to detect unauthorized access fast, with a 0.5" standard gap for accurate triggering.

Each pack includes twenty five white, surface-mount sensors with pre-attached center leads and 3M tape for simple, tool-free installation.

(Note: Screws not included.)

  • Contact Size: 1.1″L×0.37″W×0.19″H (27.8mm×9.5mm×4.75mm)
  • Standard Magnet Size: 1.1″L×0.37″W×0.19″H (27.8mm×9.5mm×4.75mm)
  • Color: White
  • 12″ (305mm) 22 AWG Leads Standard
  • Standard Gap: 0.5″ (12.5mm)



Dimensions

TANE-PILL Magnetic contact dimensions
