Kit Includes:

(10)

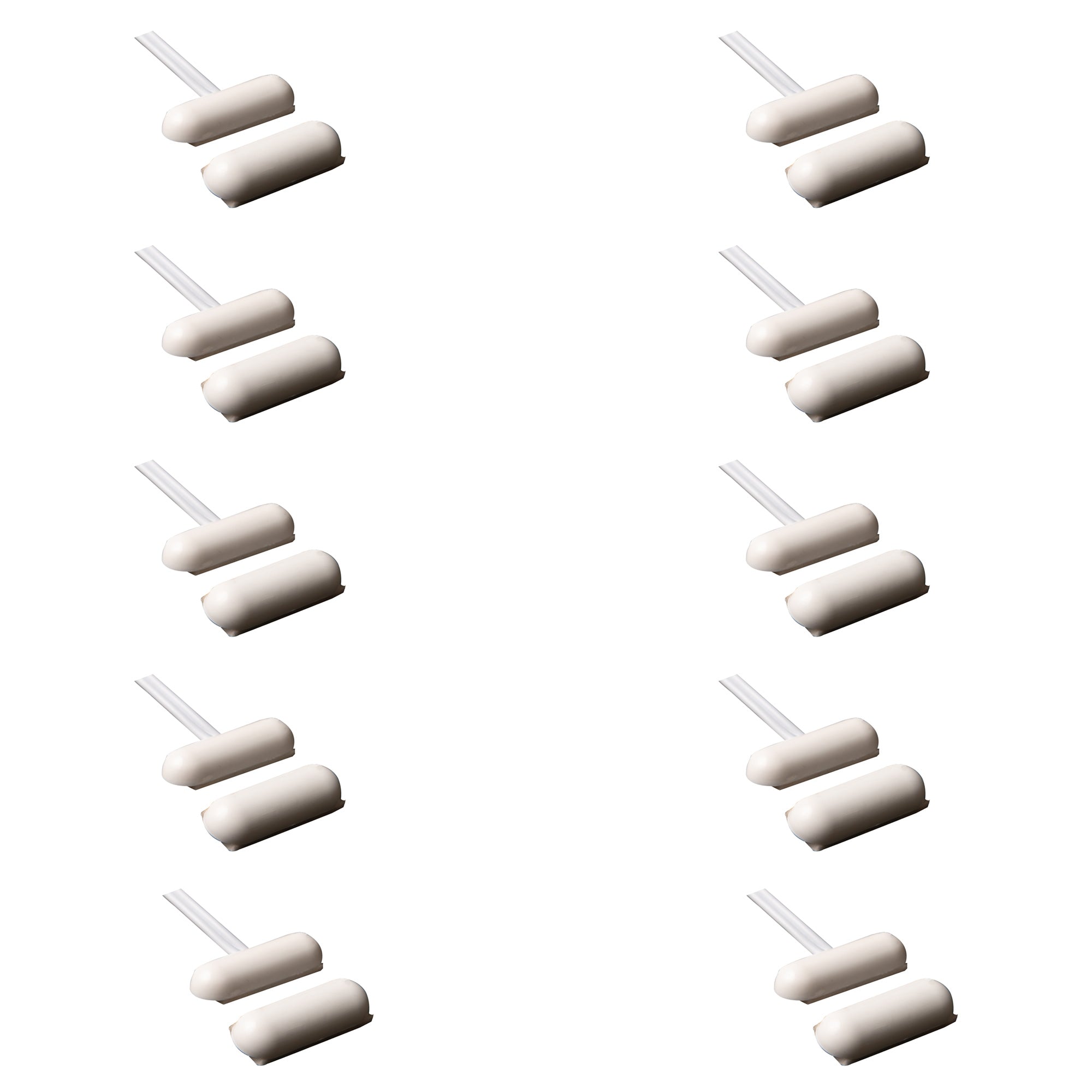

TANE-PILL: TANE Wired Surface Mount Magnetic Contact Door Switch with Center Leads, WHITE Color Alarm Window Security Reed Switch Normally Open, UL Listed

Description

1.1″L×0.37″W×0.19″H Surface Mount Type with Center Leads.

Don’t let bulky sensors ruin the look of your home or office. The TANE Wired Surface Mount Magnetic Contact features a low-profile white design and center leads for clean, professional installs.

Thanks to strong 3M adhesive, you can mount it quickly to any door or window frame. UL certified for peace of mind, and engineered for dependable intrusion detection.

It does NOT INCLUDE screws.

Contact Size: 1.1″L×0.37″W×0.19″H (27.8mm×9.5mm×4.75mm)
Standard Magnet Size: 1.1″L×0.37″W×0.19″H (27.8mm×9.5mm×4.75mm)
Color: White
12″ (305mm) 22 AWG Leads Standard
Standard Gap: 0.5″ (12.5mm)

Dimensions

TANE-PILL Magnetic contact dimensions

Characteristics

Model No. TANE-PILL:

Color: WHITE
Contact Size: 1.1"L×.37"W×.19"H (27.8mm×9.5mm×4.75mm)
Standard Magnet Size: 1.1"L×.37"W×.19"H (27.8mm×9.5mm×4.75mm)
Gap Inch (mm): .5" (12.5)
Loop Open/Closed: CLOSED
Reed Form: Normally Open
Max. Contact Rating (W): 10
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC110/DC100
Max. Switching Current (A): 0.5
Operating Temperature:-40°C to +60°C (-40°F to 140°F)

Description

1.1″L×0.37″W×0.19″H Surface Mount Type with Center Leads.

Don’t let bulky sensors ruin the look of your home or office. The TANE Wired Surface Mount Magnetic Contact features a low-profile white design and center leads for clean, professional installs.

Thanks to strong 3M adhesive, you can mount it quickly to any door or window frame. UL certified for peace of mind, and engineered for dependable intrusion detection.

It does NOT INCLUDE screws.

Contact Size: 1.1″L×0.37″W×0.19″H (27.8mm×9.5mm×4.75mm)
Standard Magnet Size: 1.1″L×0.37″W×0.19″H (27.8mm×9.5mm×4.75mm)
Color: White
12″ (305mm) 22 AWG Leads Standard
Standard Gap: 0.5″ (12.5mm)

Dimensions

TANE-PILL Magnetic contact dimensions

Download Datasheets and Manuals of this product

TANE-PILL

Tane by Tane

TANE Wired Surface Mount Magnetic Contact Door Switch With Center Leads, WHITE Color Alarm Window Security Reed Switch Normally Open UL Listed TANE-PILL-PK10 (Pack Of 10)

Name: TANE Wired Surface Mount Magnetic Contact Door Switch With Center Leads, WHITE Color Alarm Window Security Reed Switch Normally Open UL Listed TANE-PILL-PK10 (Pack Of 10)
Brand: Tane
SKU: TANE-PILL-PK10
Price: 24.99 USD
Availability: OutOfStock

Translation missing: en.products.product.sku:TANE-PILL-PK10

UPC Code: 734598804701 Weight: 1.0 lb

Regular price: $24.99
Sale price: $24.99
Regular price

Shipping calculated at checkout.

Out of Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

NOTE

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
