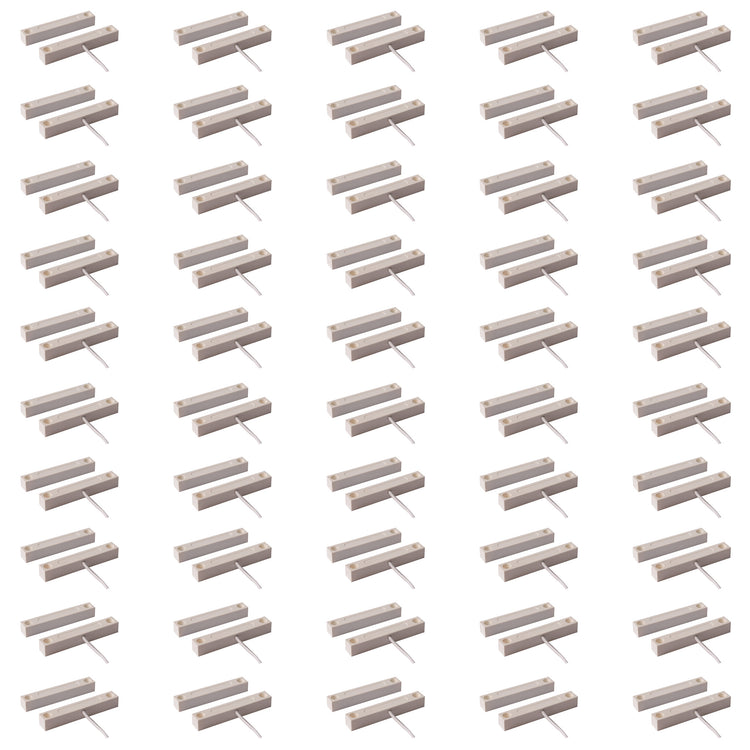

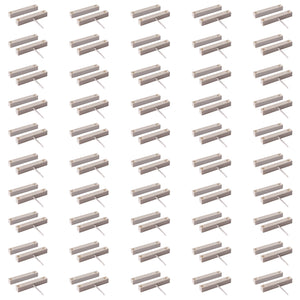

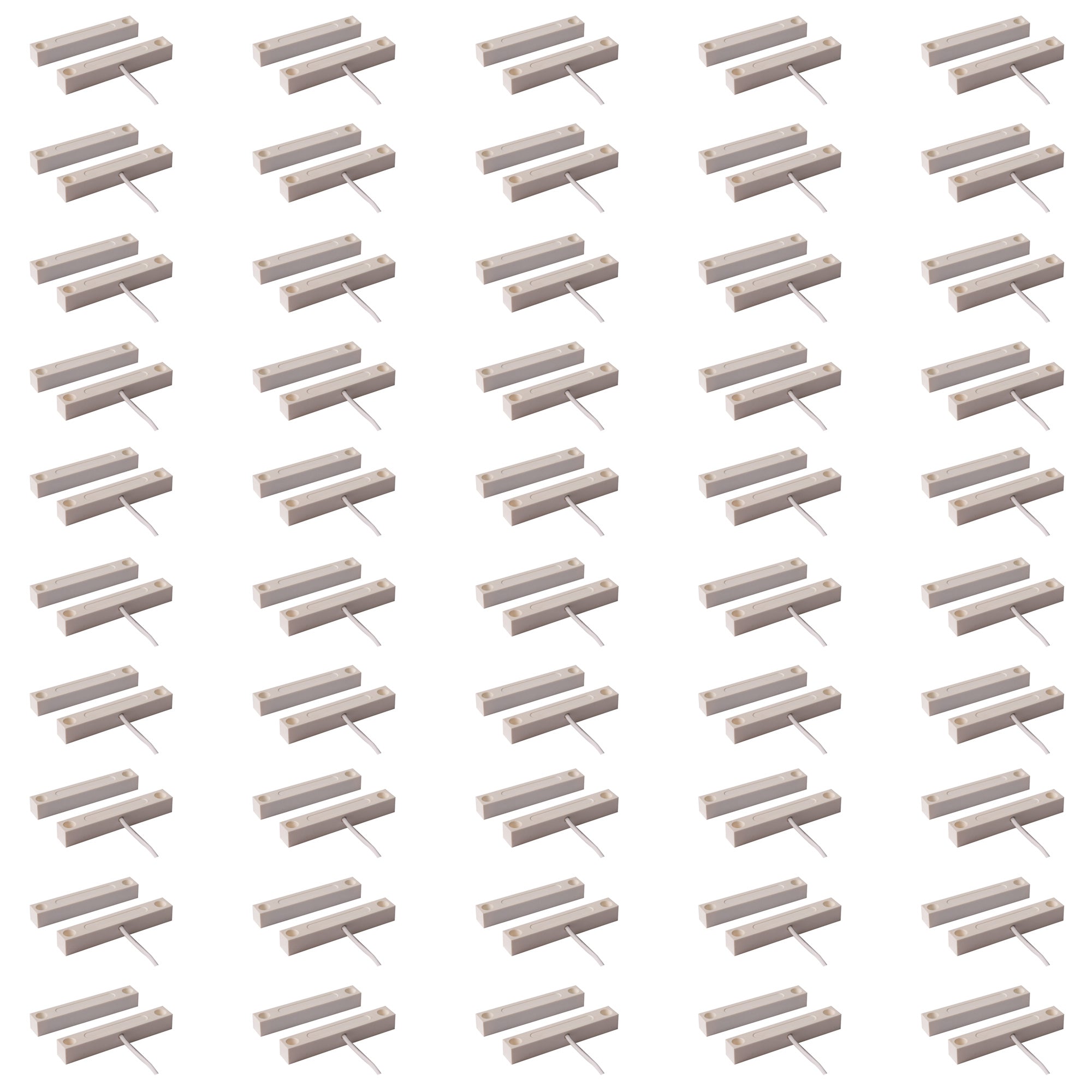

Kit Includes:

(50)

SM-20-WG-WH: TANE Wired Surface Mount Magnetic Door Window Contact WHITE Color Magnetic Contact Switch Reed Switch Normally Open Alarm Security, UL Listed

Description

4.13″L×.65″W×.63″H Surface Mount Commercial Type WHITE Color.

Simple, effective, and built to last — the TANE SM-20-WG-WH-PK50 surface-mount magnetic contacts are your first line of defense against unauthorized entry.

With their durable white housing, standard 2-inch gap, and UL certification, these switches work seamlessly with most burglar alarm systems.

Install them on doors, windows, or anywhere extra security is needed. (Pack includes 50 contacts.)

This product does NOT INCLUDE screws or adhesive tape in the package.

Contact Size: 4.13″L×.65″W×.63″H (105mm×16.5mm×16mm)
Standard Magnet Size: 4.13″L×.65″W×.63″H (105mm×16.5mm×16mm)
Color: White
18″ (458mm) 22 AWG Jacketed Leads
Standard Gap: 2″(50mm)

For Brown color Magnetic Contact look at SM-20-WG-BR

Dimensions

SM-20-WG-WH Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Magnetic Door Window Contact WHITE Color Magnetic Contact Switch SM-20-WG-WH

Characteristics

Model No. SM-20-WG-WH:

Color: WHITE
Contact Size: 4.13"L×.65"W×.63"H (105mm×16.5mm×16mm)
Standard Magnet Size: 4.13"L×.65"W×.63"H (105mm×16.5mm×16mm)
Gap Inch (mm): 2″(50)
Loop Open/Closed: CLOSED
Reed Form: Normally Open
Max. Contact Rating (W): 10
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC110/DC100
Max. Switching Current (A): 0.5
Operating Temperature:-40°C to +60°C (-40°F to 140°F)

Description

4.13″L×.65″W×.63″H Surface Mount Commercial Type WHITE Color.

Simple, effective, and built to last — the TANE SM-20-WG-WH-PK50 surface-mount magnetic contacts are your first line of defense against unauthorized entry.

With their durable white housing, standard 2-inch gap, and UL certification, these switches work seamlessly with most burglar alarm systems.

Install them on doors, windows, or anywhere extra security is needed. (Pack includes 50 contacts.)

This product does NOT INCLUDE screws or adhesive tape in the package.

Contact Size: 4.13″L×.65″W×.63″H (105mm×16.5mm×16mm)
Standard Magnet Size: 4.13″L×.65″W×.63″H (105mm×16.5mm×16mm)
Color: White
18″ (458mm) 22 AWG Jacketed Leads
Standard Gap: 2″(50mm)

For Brown color Magnetic Contact look at SM-20-WG-BR

Dimensions

SM-20-WG-WH Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Magnetic Door Window Contact WHITE Color Magnetic Contact Switch SM-20-WG-WH
