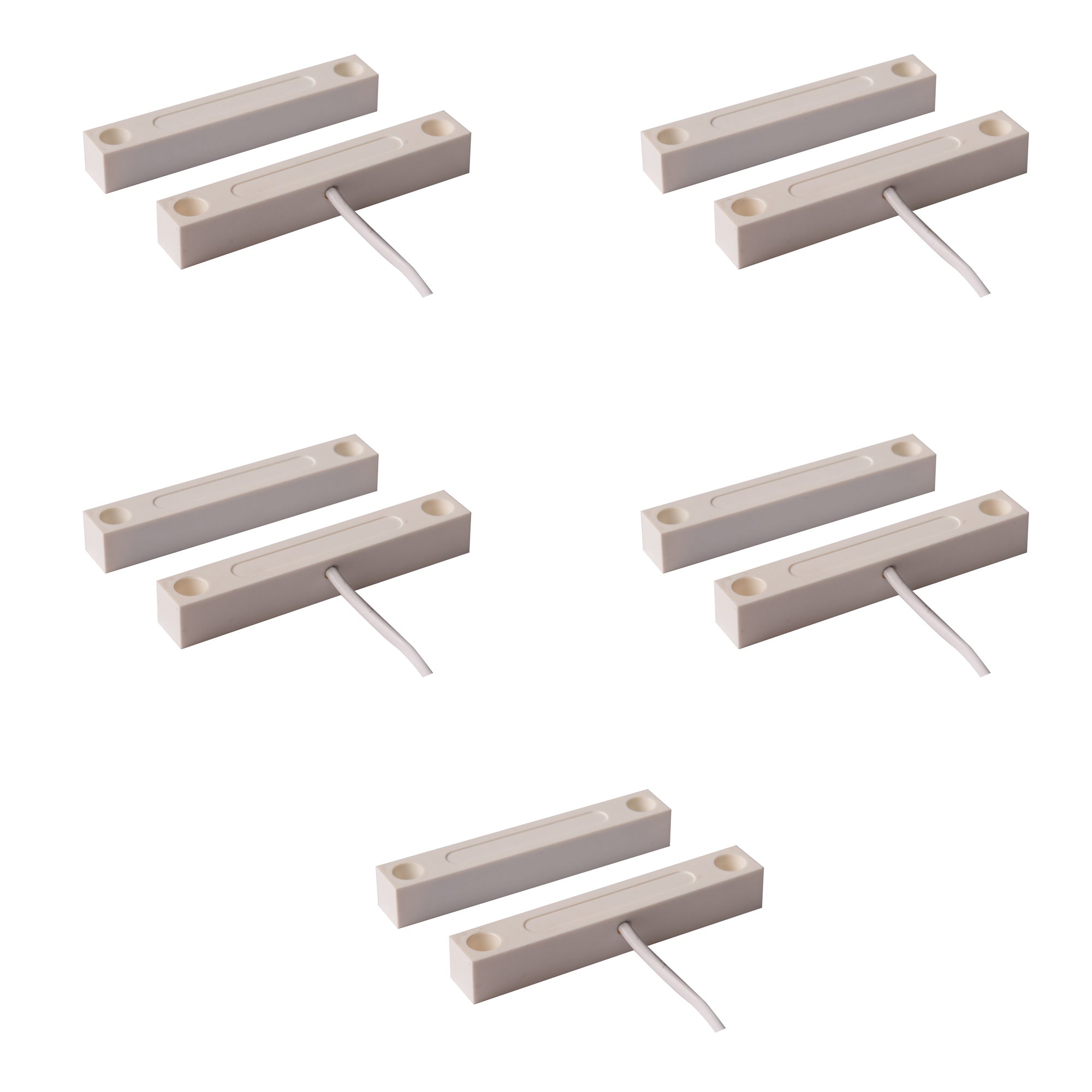

Kit Includes:

(5)
SM-20-WG-WH: TANE Wired Surface Mount Magnetic Door Window Contact WHITE Color Magnetic Contact Switch Reed Switch Normally Open Alarm Security, UL Listed
Description

4.13″L×.65″W×.63″H Surface Mount Commercial Type WHITE Color.

You can install this magnetic sensor on the door or window frame. This product does NOT INCLUDE screws or adhesive tape in the package.

  • Contact Size: 4.13″L×.65″W×.63″H (105mm×16.5mm×16mm)
  • Standard Magnet Size: 4.13″L×.65″W×.63″H (105mm×16.5mm×16mm)
  • Color: White
  • 18″ (458mm) 22 AWG Jacketed Leads
  • Standard Gap: 2″(50mm)



For Brown color Magnetic Contact look at SM-20-WG-BR



Dimensions

SM-20-WG-WH Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Magnetic Door Window Contact WHITE Color Magnetic Contact Switch SM-20-WG-WH

Characteristics

Model No. SM-20-WG-WH:

  • Color: WHITE
  • Contact Size: 4.13"L×.65"W×.63"H (105mm×16.5mm×16mm)
  • Standard Magnet Size: 4.13"L×.65"W×.63"H (105mm×16.5mm×16mm)
  • Gap Inch (mm): 2″(50)
  • Loop Open/Closed: CLOSED
  • Reed Form: Normally Open
  • Max. Contact Rating (W): 10
  • Max. Initial Contact Resistance (mΩ): 100
  • Max. Switching Voltage (V): AC110/DC100
  • Max. Switching Current (A): 0.5
  • Operating Temperature:-40°C to +60°C (-40°F to 140°F)
Description

4.13″L×.65″W×.63″H Surface Mount Commercial Type WHITE Color.

You can install this magnetic sensor on the door or window frame. This product does NOT INCLUDE screws or adhesive tape in the package.

  • Contact Size: 4.13″L×.65″W×.63″H (105mm×16.5mm×16mm)
  • Standard Magnet Size: 4.13″L×.65″W×.63″H (105mm×16.5mm×16mm)
  • Color: White
  • 18″ (458mm) 22 AWG Jacketed Leads
  • Standard Gap: 2″(50mm)



For Brown color Magnetic Contact look at SM-20-WG-BR



Dimensions

SM-20-WG-WH Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Magnetic Door Window Contact WHITE Color Magnetic Contact Switch SM-20-WG-WH

Download Datasheets and Manuals of this product

TANE SM-20-WG

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Tane by Tane

TANE Wired Surface Mount Magnetic Door Window Contact WHITE Color Magnetic Contact Switch Reed Switch Alarm Security, Home Security, Burglar Alarm Systems + UL Listed SM-20-WG-WH-PK5 (Pack Of 5)

SM-20-WG-WH-PK5

UPC Code: 734598804343
Product Weight: 1.0 lb
  • CE Certificate
  • UL Certificate
$39.99
$39.99
Shipping calculated at checkout.

In Stock
