Kit Includes:

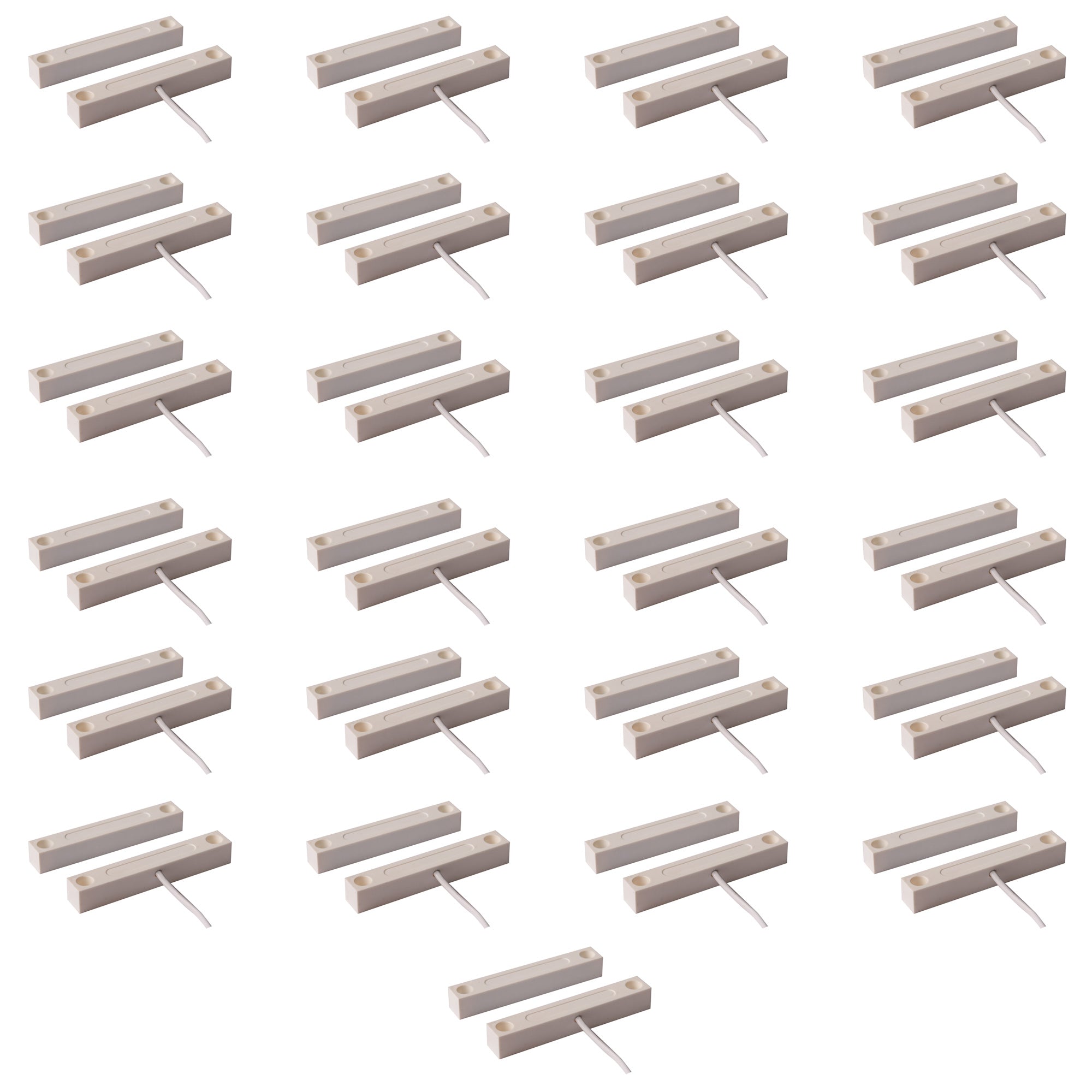

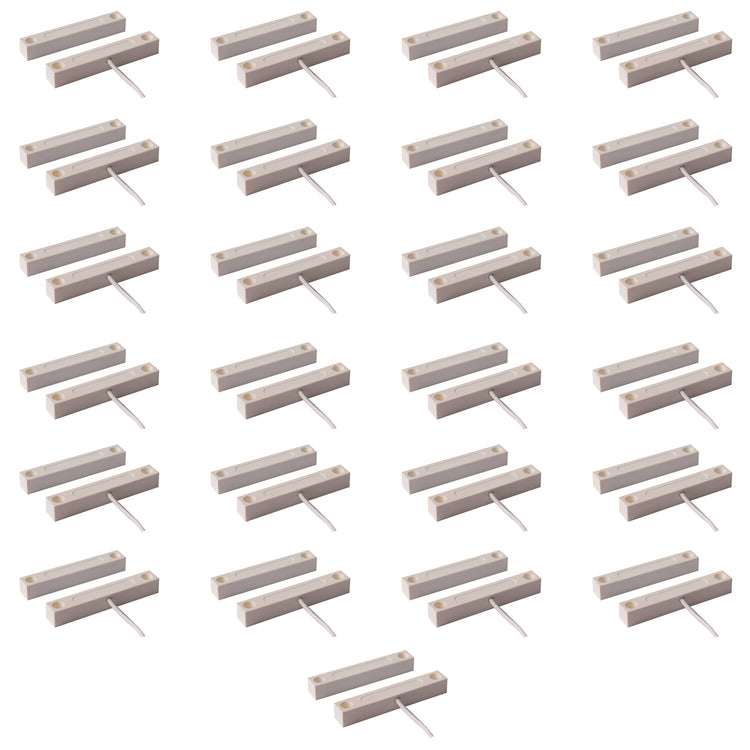

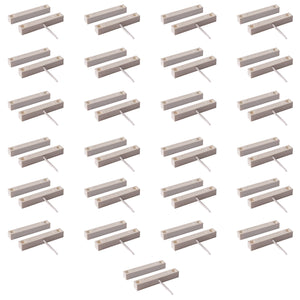

(25)

SM-20-WG-WH: TANE Wired Surface Mount Magnetic Door Window Contact WHITE Color Magnetic Contact Switch Reed Switch Normally Open Alarm Security, UL Listed

Description

4.13″L×.65″W×.63″H Surface Mount Commercial Type WHITE Color.

Simple, effective, and built to last — the TANE SM-20-WG-WH-PK25 surface-mount magnetic contacts are your first line of defense against unauthorized entry. The TANE Wired Surface Mount Magnetic Contact Switch offers high-quality construction in a discreet white finish.

Install them on doors, windows, or anywhere extra security is needed. (Pack includes 25 contacts.)

This product does NOT INCLUDE screws or adhesive tape in the package.

Contact Size: 4.13″L×.65″W×.63″H (105mm×16.5mm×16mm)
Standard Magnet Size: 4.13″L×.65″W×.63″H (105mm×16.5mm×16mm)
Color: White
18″ (458mm) 22 AWG Jacketed Leads
Standard Gap: 2″(50mm)

For Brown color Magnetic Contact look at SM-20-WG-BR

Dimensions

SM-20-WG-WH Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Magnetic Door Window Contact WHITE Color Magnetic Contact Switch SM-20-WG-WH

Characteristics

Model No. SM-20-WG-WH:

Color: WHITE
Contact Size: 4.13"L×.65"W×.63"H (105mm×16.5mm×16mm)
Standard Magnet Size: 4.13"L×.65"W×.63"H (105mm×16.5mm×16mm)
Gap Inch (mm): 2″(50)
Loop Open/Closed: CLOSED
Reed Form: Normally Open
Max. Contact Rating (W): 10
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC110/DC100
Max. Switching Current (A): 0.5
Operating Temperature:-40°C to +60°C (-40°F to 140°F)

Description

4.13″L×.65″W×.63″H Surface Mount Commercial Type WHITE Color.

Simple, effective, and built to last — the TANE SM-20-WG-WH-PK25 surface-mount magnetic contacts are your first line of defense against unauthorized entry. The TANE Wired Surface Mount Magnetic Contact Switch offers high-quality construction in a discreet white finish.

Install them on doors, windows, or anywhere extra security is needed. (Pack includes 25 contacts.)

This product does NOT INCLUDE screws or adhesive tape in the package.

Contact Size: 4.13″L×.65″W×.63″H (105mm×16.5mm×16mm)
Standard Magnet Size: 4.13″L×.65″W×.63″H (105mm×16.5mm×16mm)
Color: White
18″ (458mm) 22 AWG Jacketed Leads
Standard Gap: 2″(50mm)

For Brown color Magnetic Contact look at SM-20-WG-BR

Dimensions

SM-20-WG-WH Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Magnetic Door Window Contact WHITE Color Magnetic Contact Switch SM-20-WG-WH

Download Datasheets and Manuals of this product

TANE SM-20-WG

Tane by Tane

TANE Wired Surface Mount Magnetic Door Window Contact WHITE Color Magnetic Contact Switch Reed Switch Alarm Security, Home Security, Burglar Alarm Systems + UL Listed SM-20-WG-WH-PK25 (Pack Of 25)

Name: TANE Wired Surface Mount Magnetic Door Window Contact WHITE Color Magnetic Contact Switch Reed Switch Alarm Security, Home Security, Burglar Alarm Systems + UL Listed SM-20-WG-WH-PK25 (Pack Of 25)
Brand: Tane
SKU: SM-20-WG-WH-PK25
Price: 149.99 USD
Availability: OutOfStock

Translation missing: en.products.product.sku:SM-20-WG-WH-PK25

UPC Code: 734598804367 Weight: 1.0 lb
