Kit Includes:

(10)

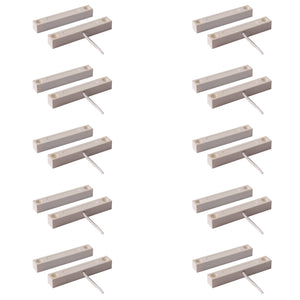

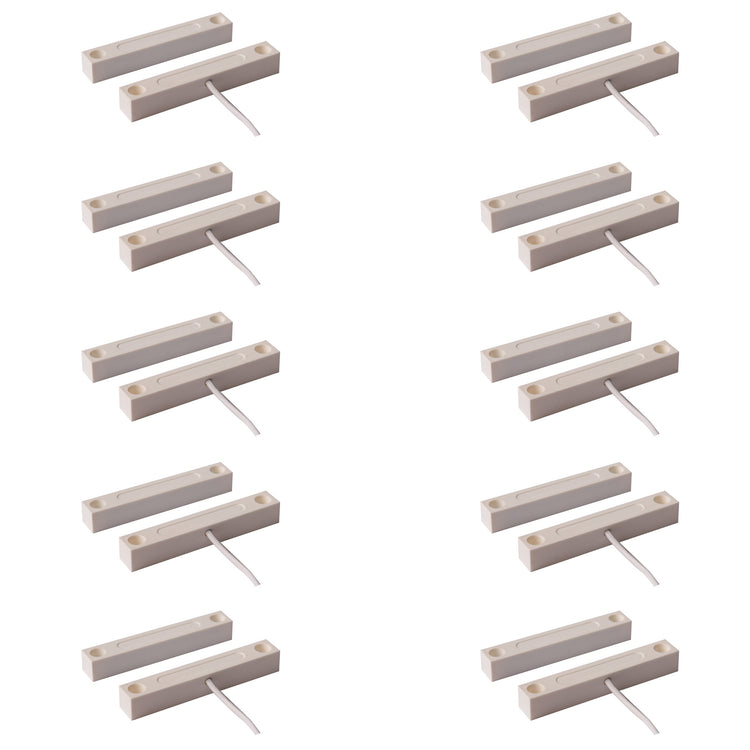

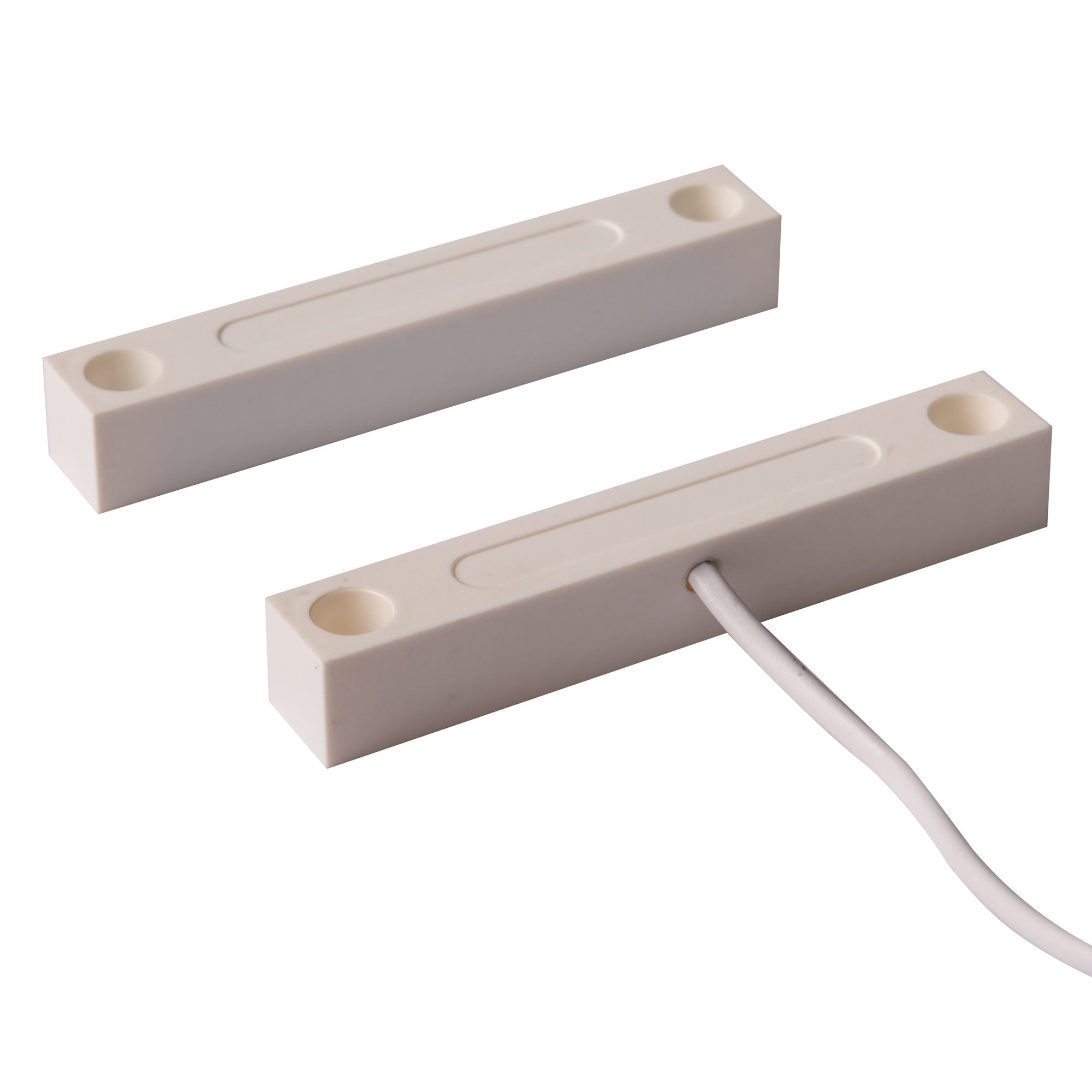

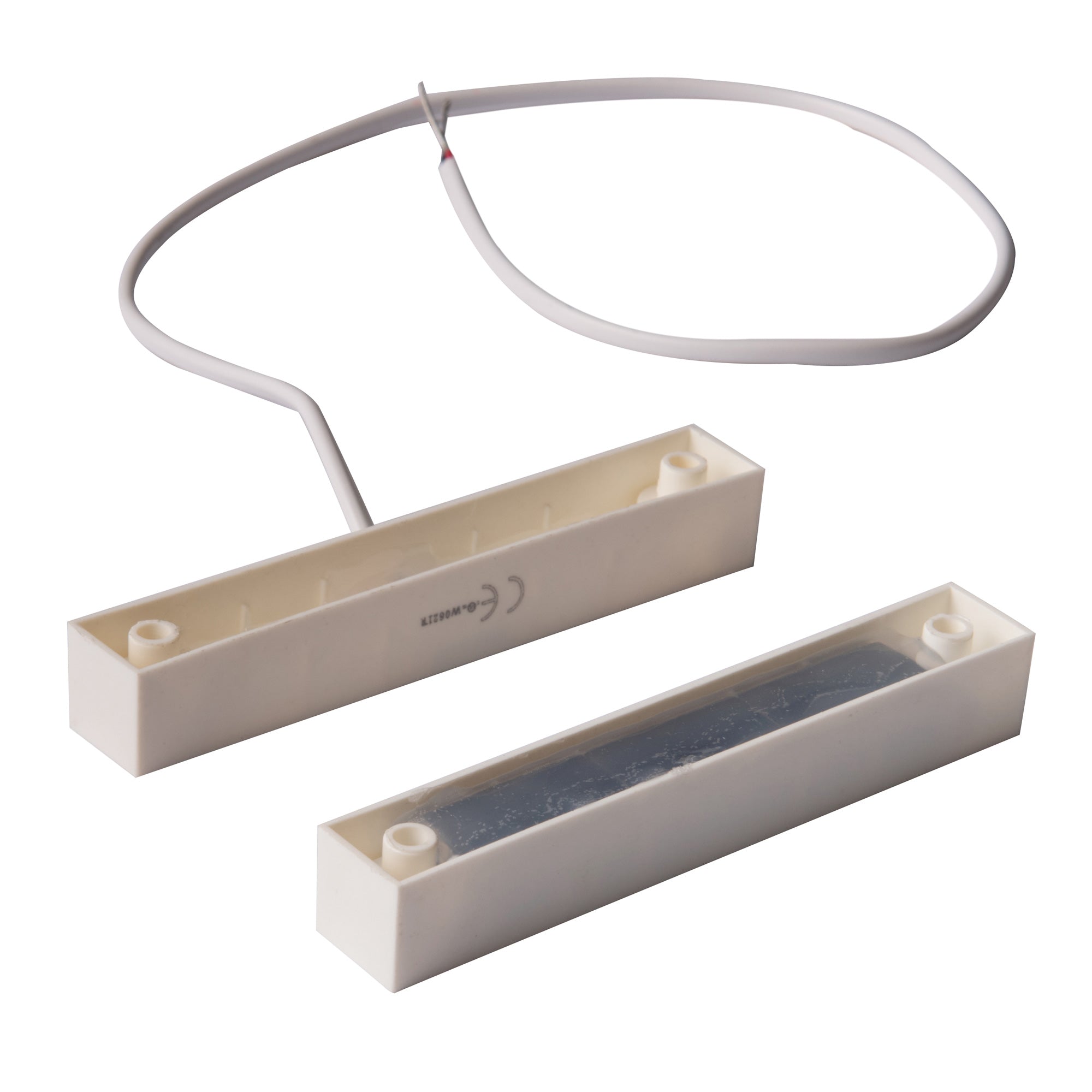

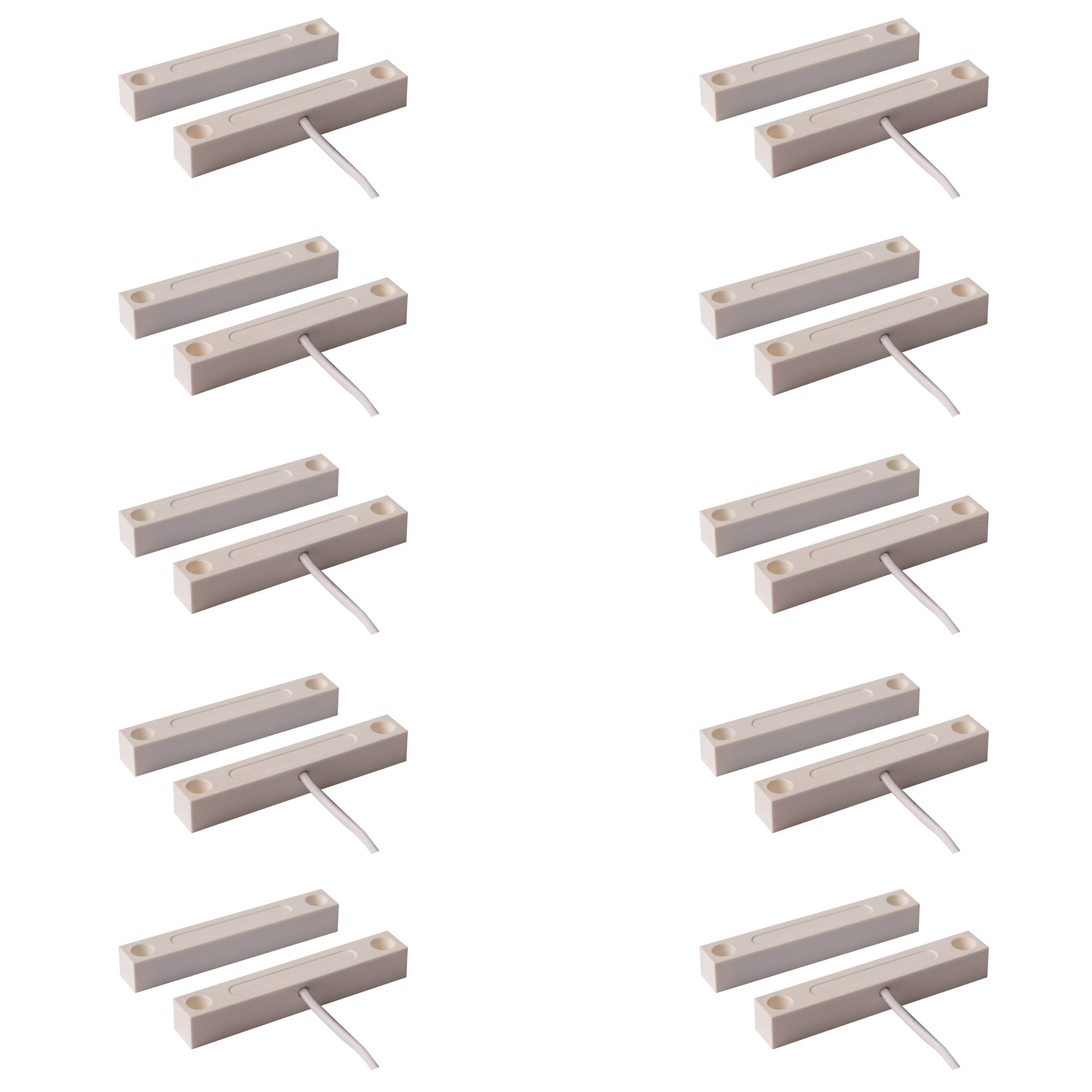

SM-20-WG-WH: TANE Wired Surface Mount Magnetic Door Window Contact WHITE Color Magnetic Contact Switch Reed Switch Normally Open Alarm Security, UL Listed

Description

4.13″L×.65″W×.63″H Surface Mount Commercial Type WHITE Color.

Upgrade your security setup without the complexity. The TANE Wired Surface Mount Magnetic Contact Switch offers high-quality construction in a discreet brown finish — blending seamlessly with wood or dark-colored surfaces.

This pack of 10 UL Listed sensors offers dependable performance with a strong magnetic hold and 18" jacketed leads for easier wiring.

Perfect for DIYers or professional installers looking for reliability without the guesswork. Note: Screws and adhesive not included.

Contact Size: 4.13″L×.65″W×.63″H (105mm×16.5mm×16mm)
Standard Magnet Size: 4.13″L×.65″W×.63″H (105mm×16.5mm×16mm)
Color: White
18″ (458mm) 22 AWG Jacketed Leads
Standard Gap: 2″(50mm)

For Brown color Magnetic Contact look at SM-20-WG-BR

Dimensions

SM-20-WG-WH Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Magnetic Door Window Contact WHITE Color Magnetic Contact Switch SM-20-WG-WH

Characteristics

Model No. SM-20-WG-WH:

Color: WHITE
Contact Size: 4.13"L×.65"W×.63"H (105mm×16.5mm×16mm)
Standard Magnet Size: 4.13"L×.65"W×.63"H (105mm×16.5mm×16mm)
Gap Inch (mm): 2″(50)
Loop Open/Closed: CLOSED
Reed Form: Normally Open
Max. Contact Rating (W): 10
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC110/DC100
Max. Switching Current (A): 0.5
Operating Temperature:-40°C to +60°C (-40°F to 140°F)

Description

4.13″L×.65″W×.63″H Surface Mount Commercial Type WHITE Color.

Upgrade your security setup without the complexity. The TANE Wired Surface Mount Magnetic Contact Switch offers high-quality construction in a discreet brown finish — blending seamlessly with wood or dark-colored surfaces.

This pack of 10 UL Listed sensors offers dependable performance with a strong magnetic hold and 18" jacketed leads for easier wiring.

Perfect for DIYers or professional installers looking for reliability without the guesswork. Note: Screws and adhesive not included.

Contact Size: 4.13″L×.65″W×.63″H (105mm×16.5mm×16mm)
Standard Magnet Size: 4.13″L×.65″W×.63″H (105mm×16.5mm×16mm)
Color: White
18″ (458mm) 22 AWG Jacketed Leads
Standard Gap: 2″(50mm)

For Brown color Magnetic Contact look at SM-20-WG-BR

Dimensions

SM-20-WG-WH Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Magnetic Door Window Contact WHITE Color Magnetic Contact Switch SM-20-WG-WH

Download Datasheets and Manuals of this product

TANE SM-20-WG

Tane by Tane

TANE Wired Surface Mount Magnetic Door Window Contact WHITE Color Magnetic Contact Switch Reed Switch Alarm Security, Home Security, Burglar Alarm Systems + UL Listed SM-20-WG-WH-PK10 (Pack of 10)

Name: TANE Wired Surface Mount Magnetic Door Window Contact WHITE Color Magnetic Contact Switch Reed Switch Alarm Security, Home Security, Burglar Alarm Systems + UL Listed SM-20-WG-WH-PK10 (Pack of 10)
Brand: Tane
SKU: SM-20-WG-WH-PK10
Price: 63.99 USD
Availability: OutOfStock

Translation missing: en.products.product.sku:SM-20-WG-WH-PK10

UPC Code: 734598804350 Weight: 1.0 lb
