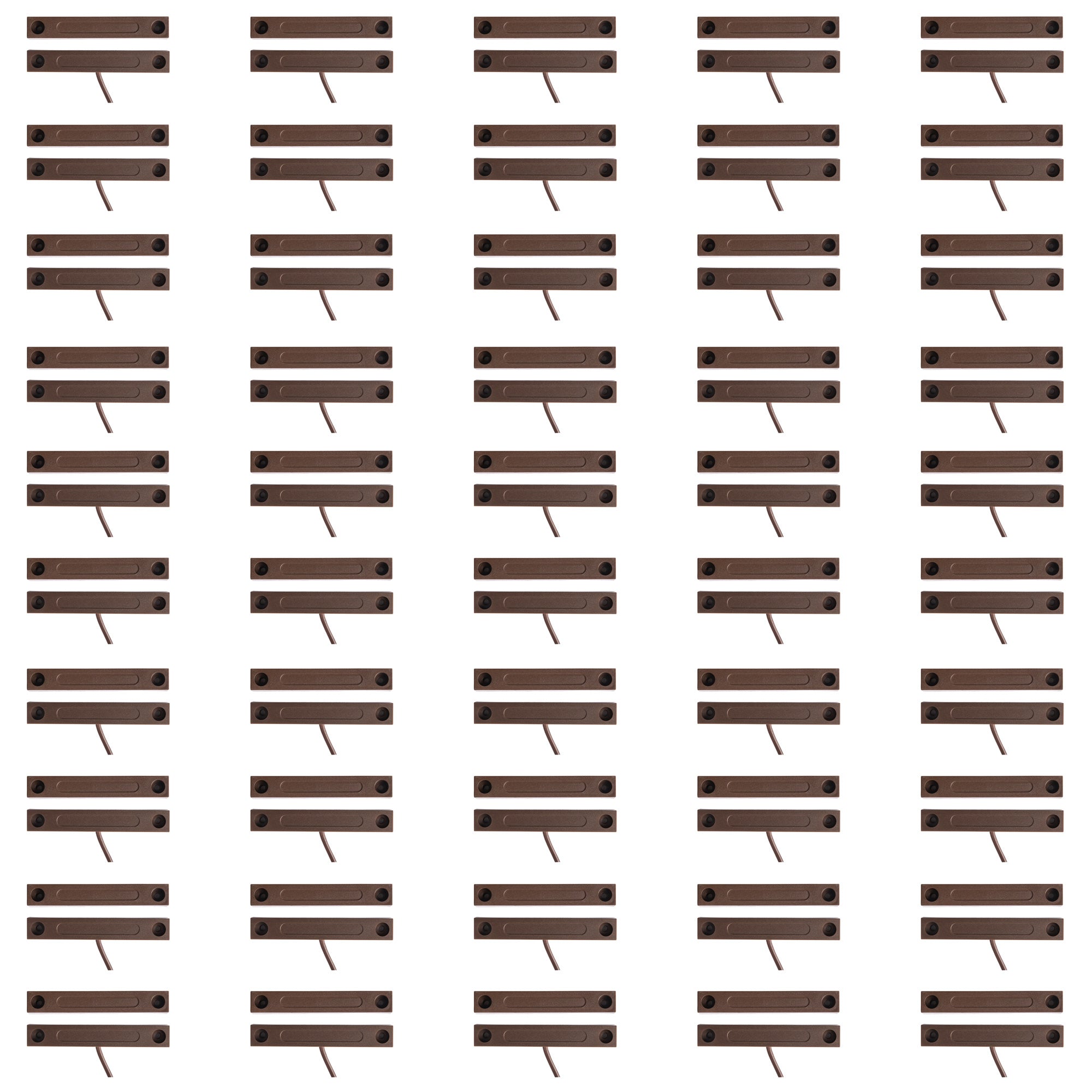

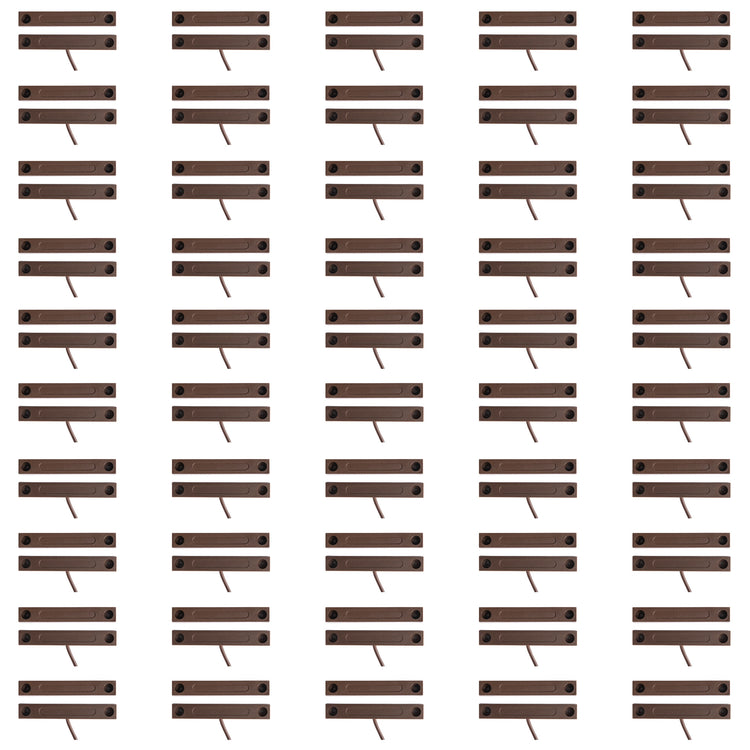

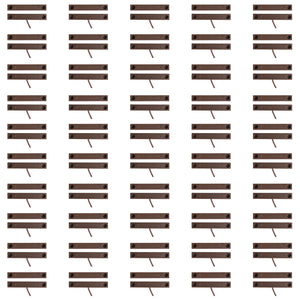

Kit Includes:

(50)

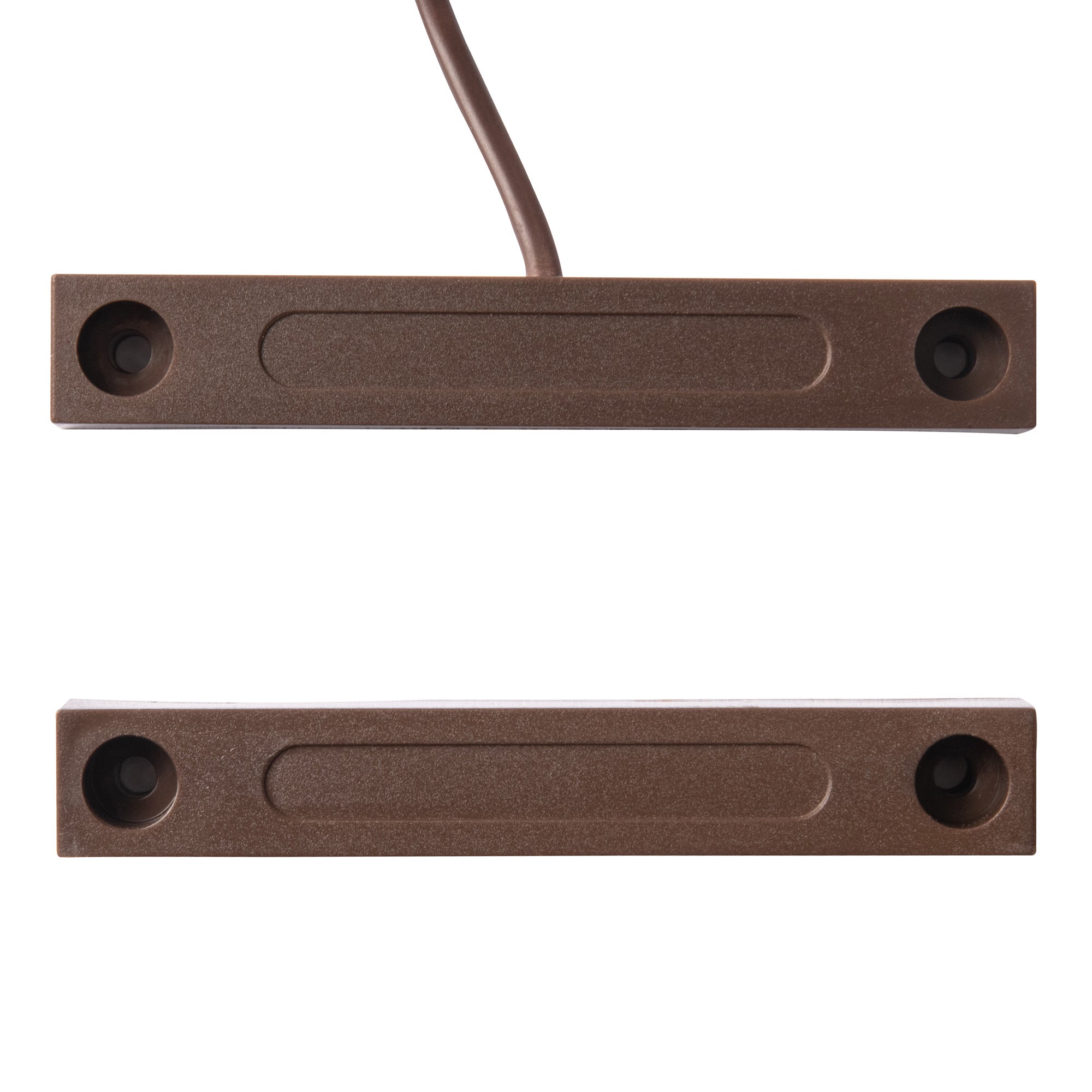

SM-20-WG-BR: TANE Wired Surface Mount Magnetic Door Window Contact BROWN Color Magnetic Contact Switch Reed Switch Normally Open Alarm Security, UL Listed

Description

4.13″L×.65″W×.63″H Surface Mount Commercial Type BROWN Color.

Upgrade your security setup without the complexity. The TANE Wired Surface Mount Magnetic Contact Switch offers high-quality construction in a discreet brown finish — blending seamlessly with wood or dark-colored surfaces.

Sized at just over 4 inches long, with a standard 2-inch activation gap, it's the smart choice for dependable perimeter protection. Plus, with UL certification, you get performance you can count on.

You can install this magnetic sensor on the door or window frame. This product does NOT INCLUDE screws or adhesive tape in the package.

Contact Size: 4.13″L×.65″W×.63″H (105mm×16.5mm×16mm)
Standard Magnet Size: 4.13″L×.65″W×.63″H (105mm×16.5mm×16mm)
Color: White
18″ (458mm) 22 AWG Jacketed Leads
Standard Gap: 2″(50mm)

For White color Magnetic Contact look at SM-20-WG-WH

Dimensions

SM-20-WG-WH Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Magnetic Door Window Contact WHITE Color Magnetic Contact Switch SM-20-WG-WH

Characteristics

Model No. SM-20-WG-BR:

Color: BROWN
Contact Size: 4.13"L×.65"W×.63"H (105mm×16.5mm×16mm)
Standard Magnet Size: 4.13"L×.65"W×.63"H (105mm×16.5mm×16mm)
Gap Inch (mm): 2″(50)
Loop Open/Closed: CLOSED
Reed Form: Normally Open
Max. Contact Rating (W): 10
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC110/DC100
Max. Switching Current (A): 0.5
Operating Temperature:-40°C to +60°C (-40°F to 140°F)

Description

4.13″L×.65″W×.63″H Surface Mount Commercial Type BROWN Color.

Upgrade your security setup without the complexity. The TANE Wired Surface Mount Magnetic Contact Switch offers high-quality construction in a discreet brown finish — blending seamlessly with wood or dark-colored surfaces.

Sized at just over 4 inches long, with a standard 2-inch activation gap, it's the smart choice for dependable perimeter protection. Plus, with UL certification, you get performance you can count on.

You can install this magnetic sensor on the door or window frame. This product does NOT INCLUDE screws or adhesive tape in the package.

Contact Size: 4.13″L×.65″W×.63″H (105mm×16.5mm×16mm)
Standard Magnet Size: 4.13″L×.65″W×.63″H (105mm×16.5mm×16mm)
Color: White
18″ (458mm) 22 AWG Jacketed Leads
Standard Gap: 2″(50mm)

For White color Magnetic Contact look at SM-20-WG-WH

Dimensions

SM-20-WG-WH Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Magnetic Door Window Contact WHITE Color Magnetic Contact Switch SM-20-WG-WH

Download Datasheets and Manuals of this product

TANE SM-20-WG

Tane by Tane

TANE Wired Surface Mount Magnetic Door Window Contact BROWN Color Magnetic Contact Switch Reed Switch Alarm Security, Home Security, Burglar Alarm Systems + UL Listed SM-20-WG-BR-PK50 (Pack Of 50)

Name: TANE Wired Surface Mount Magnetic Door Window Contact BROWN Color Magnetic Contact Switch Reed Switch Alarm Security, Home Security, Burglar Alarm Systems + UL Listed SM-20-WG-BR-PK50 (Pack Of 50)
Brand: Tane
SKU: SM-20-WG-BR-PK50
Price: 269.99 USD
Availability: OutOfStock

Translation missing: en.products.product.sku:SM-20-WG-BR-PK50

UPC Code: 734598804411 Weight: 1.0 lb
