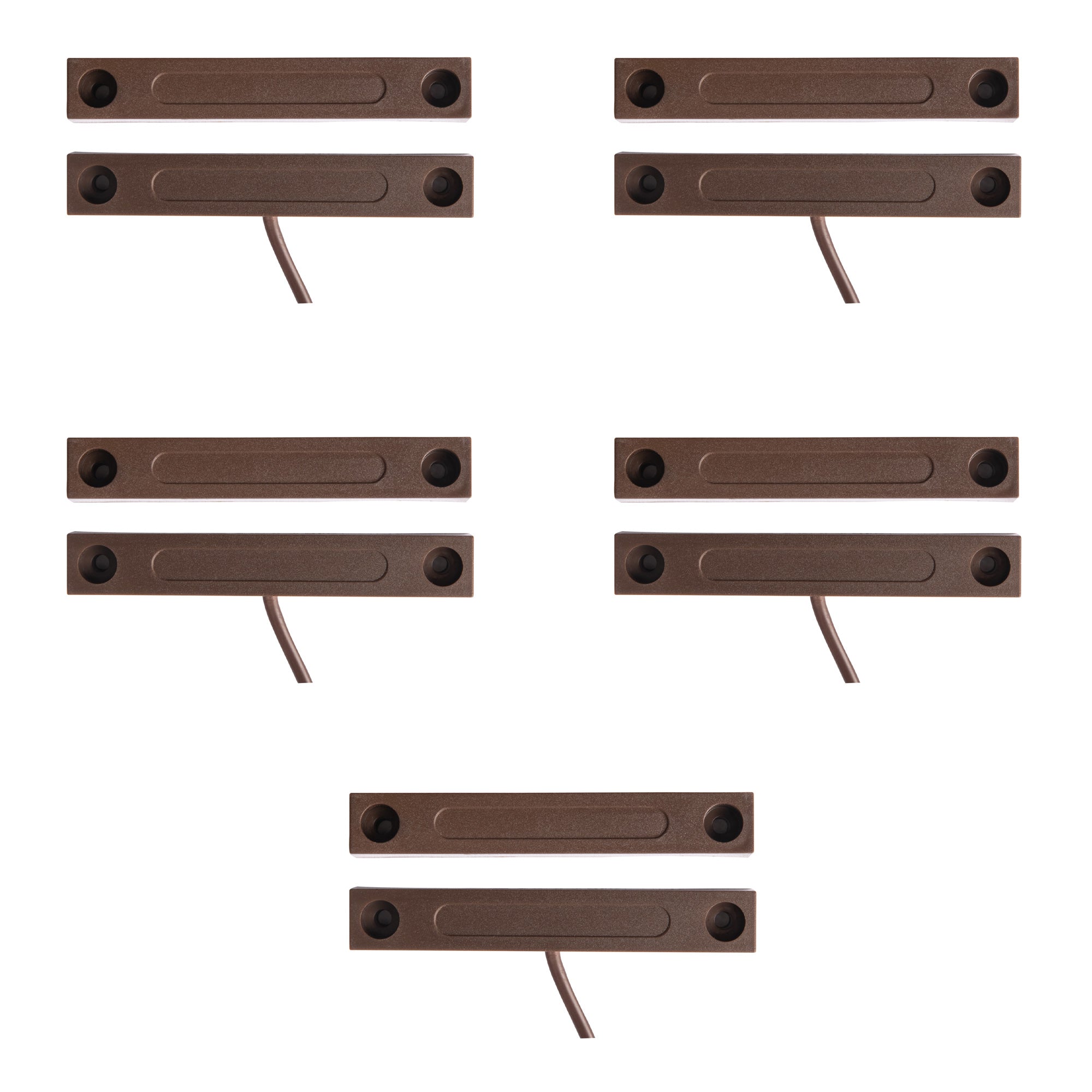

Kit Includes:

(5)

SM-20-WG-BR: TANE Wired Surface Mount Magnetic Door Window Contact BROWN Color Magnetic Contact Switch Reed Switch Normally Open Alarm Security, UL Listed

Description

Secure your home or business with the trusted performance of TANE Surface Mount Magnetic Contacts. Built for reliability, these commercial-grade sensors are perfect for doors and windows.

Designed in a sleek brown finish to blend with wood frames, these UL Listed contacts offer a standard 2" gap and durable 22 AWG jacketed leads. Installation is simple (hardware not included), making it easy to upgrade your security system today.

4.13″L×.65″W×.63″H Surface Mount Commercial Type BROWN Color.

Contact Size: 4.13″L×.65″W×.63″H (105mm×16.5mm×16mm)
Standard Magnet Size: 4.13″L×.65″W×.63″H (105mm×16.5mm×16mm)
Color: White
18″ (458mm) 22 AWG Jacketed Leads
Standard Gap: 2″(50mm)

For White color Magnetic Contact look at SM-20-WG-WH

Dimensions

SM-20-WG-WH Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Magnetic Door Window Contact WHITE Color Magnetic Contact Switch SM-20-WG-WH

Characteristics

Model No. SM-20-WG-BR:

Color: BROWN
Contact Size: 4.13"L×.65"W×.63"H (105mm×16.5mm×16mm)
Standard Magnet Size: 4.13"L×.65"W×.63"H (105mm×16.5mm×16mm)
Gap Inch (mm): 2″(50)
Loop Open/Closed: CLOSED
Reed Form: Normally Open
Max. Contact Rating (W): 10
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC110/DC100
Max. Switching Current (A): 0.5
Operating Temperature:-40°C to +60°C (-40°F to 140°F)

Description

Secure your home or business with the trusted performance of TANE Surface Mount Magnetic Contacts. Built for reliability, these commercial-grade sensors are perfect for doors and windows.

Designed in a sleek brown finish to blend with wood frames, these UL Listed contacts offer a standard 2" gap and durable 22 AWG jacketed leads. Installation is simple (hardware not included), making it easy to upgrade your security system today.

4.13″L×.65″W×.63″H Surface Mount Commercial Type BROWN Color.

Contact Size: 4.13″L×.65″W×.63″H (105mm×16.5mm×16mm)
Standard Magnet Size: 4.13″L×.65″W×.63″H (105mm×16.5mm×16mm)
Color: White
18″ (458mm) 22 AWG Jacketed Leads
Standard Gap: 2″(50mm)

For White color Magnetic Contact look at SM-20-WG-WH

Dimensions

SM-20-WG-WH Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Magnetic Door Window Contact WHITE Color Magnetic Contact Switch SM-20-WG-WH

Download Datasheets and Manuals of this product
