Kit Includes:

(25)

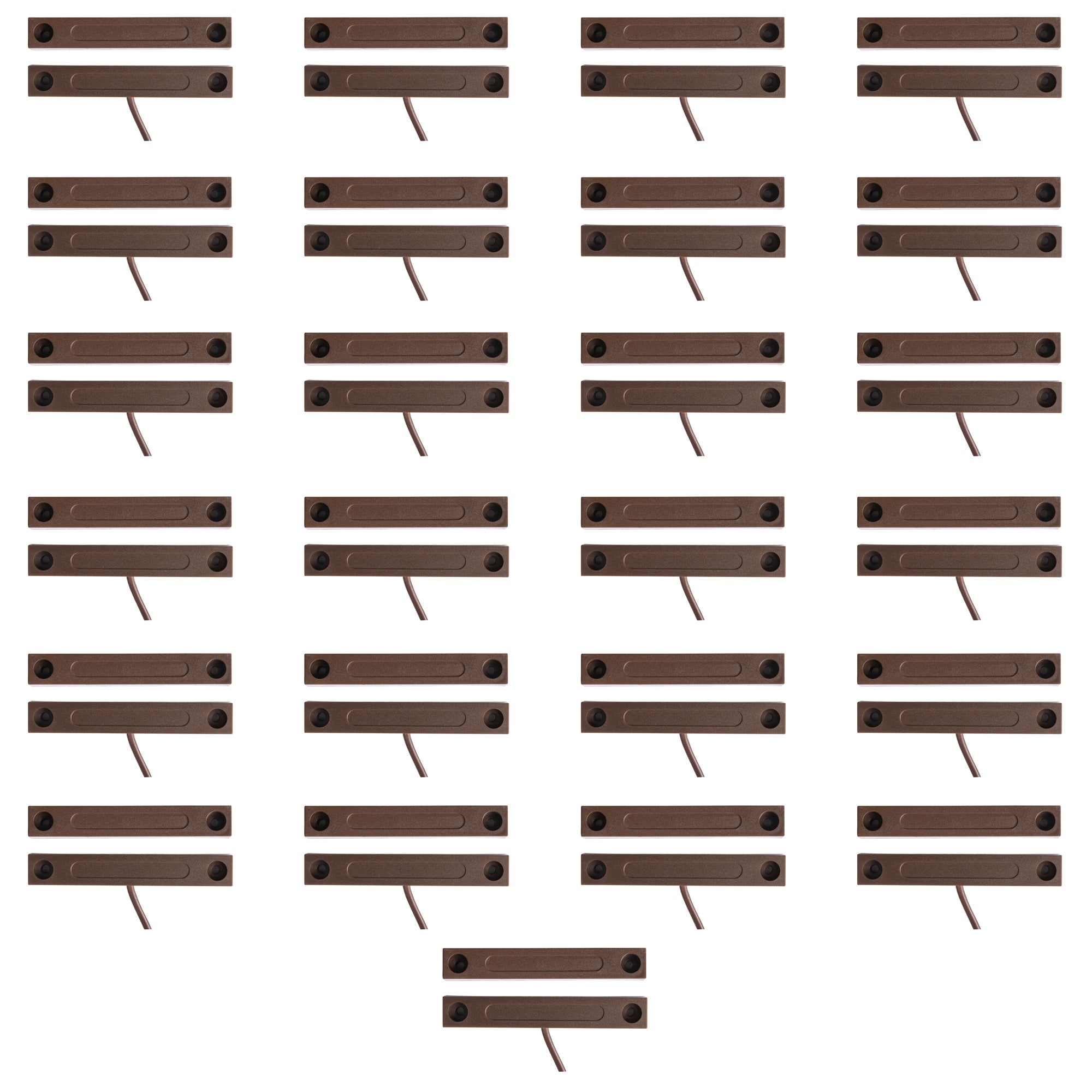

SM-20-WG-BR: TANE Wired Surface Mount Magnetic Door Window Contact BROWN Color Magnetic Contact Switch Reed Switch Normally Open Alarm Security, UL Listed
Description

4.13″L×.65″W×.63″H Surface Mount Commercial Type BROWN Color.

The same TANE magnetic contacts trusted in commercial installations are available for your home security system. This pack of 25 UL Listed sensors offers dependable performance with a strong magnetic hold and 18" jacketed leads for easier wiring.

Perfect for DIYers or professional installers looking for reliability without the guesswork. Note: Screws and adhesive not included.

  • Contact Size: 4.13″L×.65″W×.63″H (105mm×16.5mm×16mm)
  • Standard Magnet Size: 4.13″L×.65″W×.63″H (105mm×16.5mm×16mm)
  • Color: White
  • 18″ (458mm) 22 AWG Jacketed Leads
  • Standard Gap: 2″(50mm)



For White color Magnetic Contact look at SM-20-WG-WH



Dimensions

SM-20-WG-WH Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Magnetic Door Window Contact WHITE Color Magnetic Contact Switch SM-20-WG-WH

Characteristics

Model No. SM-20-WG-BR:

  • Color: BROWN
  • Contact Size: 4.13"L×.65"W×.63"H (105mm×16.5mm×16mm)
  • Standard Magnet Size: 4.13"L×.65"W×.63"H (105mm×16.5mm×16mm)
  • Gap Inch (mm): 2″(50)
  • Loop Open/Closed: CLOSED
  • Reed Form: Normally Open
  • Max. Contact Rating (W): 10
  • Max. Initial Contact Resistance (mΩ): 100
  • Max. Switching Voltage (V): AC110/DC100
  • Max. Switching Current (A): 0.5
  • Operating Temperature:-40°C to +60°C (-40°F to 140°F)
Description

4.13″L×.65″W×.63″H Surface Mount Commercial Type BROWN Color.

The same TANE magnetic contacts trusted in commercial installations are available for your home security system. This pack of 25 UL Listed sensors offers dependable performance with a strong magnetic hold and 18" jacketed leads for easier wiring.

Perfect for DIYers or professional installers looking for reliability without the guesswork. Note: Screws and adhesive not included.

  • Contact Size: 4.13″L×.65″W×.63″H (105mm×16.5mm×16mm)
  • Standard Magnet Size: 4.13″L×.65″W×.63″H (105mm×16.5mm×16mm)
  • Color: White
  • 18″ (458mm) 22 AWG Jacketed Leads
  • Standard Gap: 2″(50mm)



For White color Magnetic Contact look at SM-20-WG-WH



Dimensions

SM-20-WG-WH Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Magnetic Door Window Contact WHITE Color Magnetic Contact Switch SM-20-WG-WH

Download Datasheets and Manuals of this product

TANE SM-20-WG
