Kit Includes:

(10)

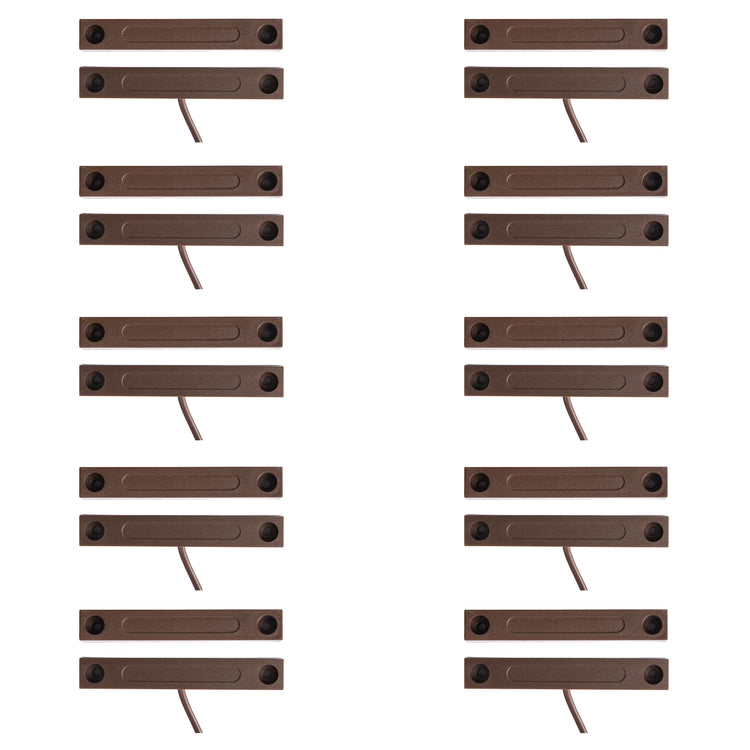

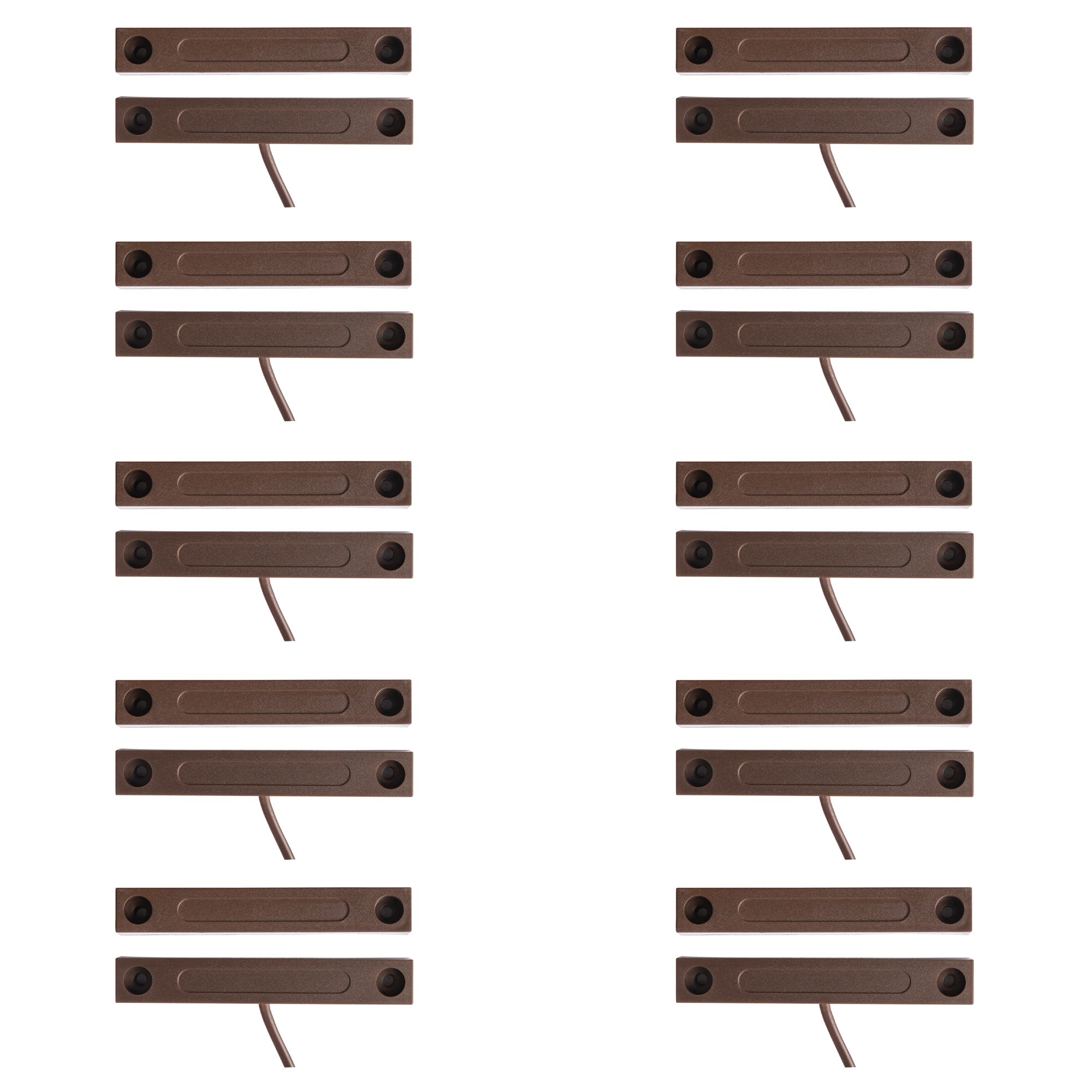

SM-20-WG-BR: TANE Wired Surface Mount Magnetic Door Window Contact BROWN Color Magnetic Contact Switch Reed Switch Normally Open Alarm Security, UL Listed
Description

Keep intruders out and peace of mind in. The TANE SM-20-WG-BR-PK10 magnetic contact set is ideal for home or business alarm systems.

Each sensor features a rugged surface-mount design, ready for quick placement on your door or window frames.

Commercial-grade quality meets easy installation — just attach with your own screws or adhesive. With UL certification, you know you’re getting trusted protection.

4.13″L×.65″W×.63″H Surface Mount Commercial Type BROWN Color.

This product does NOT INCLUDE screws or adhesive tape in the package.

  • Contact Size: 4.13″L×.65″W×.63″H (105mm×16.5mm×16mm)
  • Standard Magnet Size: 4.13″L×.65″W×.63″H (105mm×16.5mm×16mm)
  • Color: White
  • 18″ (458mm) 22 AWG Jacketed Leads
  • Standard Gap: 2″(50mm)



For White color Magnetic Contact look at SM-20-WG-WH



Dimensions

SM-20-WG-WH Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Magnetic Door Window Contact WHITE Color Magnetic Contact Switch SM-20-WG-WH

Characteristics

Model No. SM-20-WG-BR:

  • Color: BROWN
  • Contact Size: 4.13"L×.65"W×.63"H (105mm×16.5mm×16mm)
  • Standard Magnet Size: 4.13"L×.65"W×.63"H (105mm×16.5mm×16mm)
  • Gap Inch (mm): 2″(50)
  • Loop Open/Closed: CLOSED
  • Reed Form: Normally Open
  • Max. Contact Rating (W): 10
  • Max. Initial Contact Resistance (mΩ): 100
  • Max. Switching Voltage (V): AC110/DC100
  • Max. Switching Current (A): 0.5
  • Operating Temperature:-40°C to +60°C (-40°F to 140°F)
Description

Keep intruders out and peace of mind in. The TANE SM-20-WG-BR-PK10 magnetic contact set is ideal for home or business alarm systems.

Each sensor features a rugged surface-mount design, ready for quick placement on your door or window frames.

Commercial-grade quality meets easy installation — just attach with your own screws or adhesive. With UL certification, you know you’re getting trusted protection.

4.13″L×.65″W×.63″H Surface Mount Commercial Type BROWN Color.

This product does NOT INCLUDE screws or adhesive tape in the package.

  • Contact Size: 4.13″L×.65″W×.63″H (105mm×16.5mm×16mm)
  • Standard Magnet Size: 4.13″L×.65″W×.63″H (105mm×16.5mm×16mm)
  • Color: White
  • 18″ (458mm) 22 AWG Jacketed Leads
  • Standard Gap: 2″(50mm)



For White color Magnetic Contact look at SM-20-WG-WH



Dimensions

SM-20-WG-WH Magnetic contact dimensions

Installation Diagram

TANE Wired Surface Mount Magnetic Door Window Contact WHITE Color Magnetic Contact Switch SM-20-WG-WH
