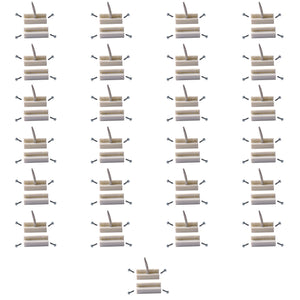

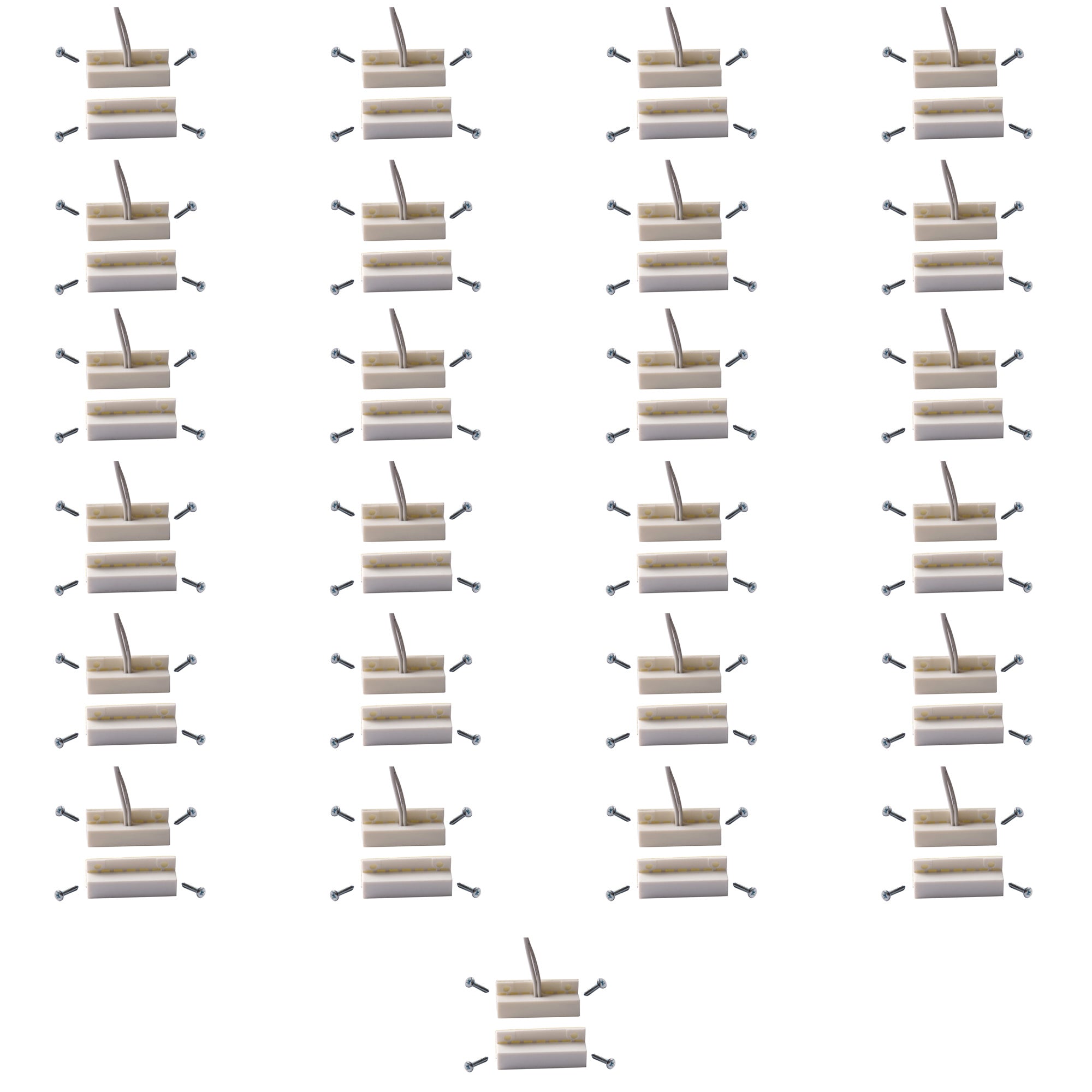

Kit Includes:

(25)
FM-106: TANE Wired Center Lead Surface Mount Magnetic Door Window Contact Reed Switch WHITE Color Normally Open for Alarm Security, UL Listed
Description

1.32″L×.51″W×.3″H Center Lead Surface Mount Type.

You can install the magnetic sensor on the door or window frame in two ways: with the 3M double sided tape or just with the screws that come included in the package.

  • Contact Size: 1.32″L×.51″W×.3″H (33.6mm×13mm×7.5mm)
  • Standard Magnet Size: 1.32″L×.51″W×.3″H (33.6mm×13mm×7.5mm)
  • Color: White
  • 12″ (305mm) 22 AWG Leads Standard
  • Standard Gap: .83″ (21mm)



Dimensions

FM-106 Magnetic contact dimensions

Characteristics

Model No. FM-106:

  • Color: WHITE
  • Contact Size: 1.32"L×.51"W×.3"H (33.6mm×13mm×7.5mm)
  • Standard Magnet Size: 1.32"L×.51"W×.3"H (33.6mm×13mm×7.5mm)
  • Gap Inch (mm): 0.83″(21)
  • Loop Open/Closed: CLOSED
  • Reed Form: Normally Open
  • Max. Contact Rating (W): 10
  • Max. Initial Contact Resistance (mΩ): 100
  • Max. Switching Voltage (V): AC110/DC100
  • Max. Switching Current (A): 0.5
  • Operating Temperature:-40°C to +60°C (-40°F to 140°F)
Description

1.32″L×.51″W×.3″H Center Lead Surface Mount Type.

You can install the magnetic sensor on the door or window frame in two ways: with the 3M double sided tape or just with the screws that come included in the package.

  • Contact Size: 1.32″L×.51″W×.3″H (33.6mm×13mm×7.5mm)
  • Standard Magnet Size: 1.32″L×.51″W×.3″H (33.6mm×13mm×7.5mm)
  • Color: White
  • 12″ (305mm) 22 AWG Leads Standard
  • Standard Gap: .83″ (21mm)



Dimensions

FM-106 Magnetic contact dimensions

Download Datasheets and Manuals of this product

TANE FM-106

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Tane by Tane

TANE Wired Center Lead Surface Mount Magnetic Door Window Contact Reed Switch WHITE Color For Alarm Security, Home Security, Burglar Alarm Systems Magnetic + UL Listed FM-106-PK25 (Pack Of 25)

FM-106-PK25

UPC Code: 734598804510
Product Weight: 1.0 lb
  • CE Certificate
  • UL Certificate
$49.99
$49.99
Shipping calculated at checkout.

Out of Stock
