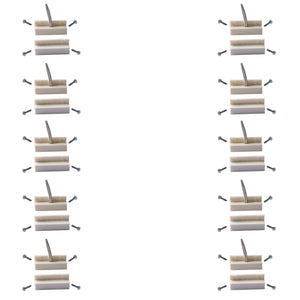

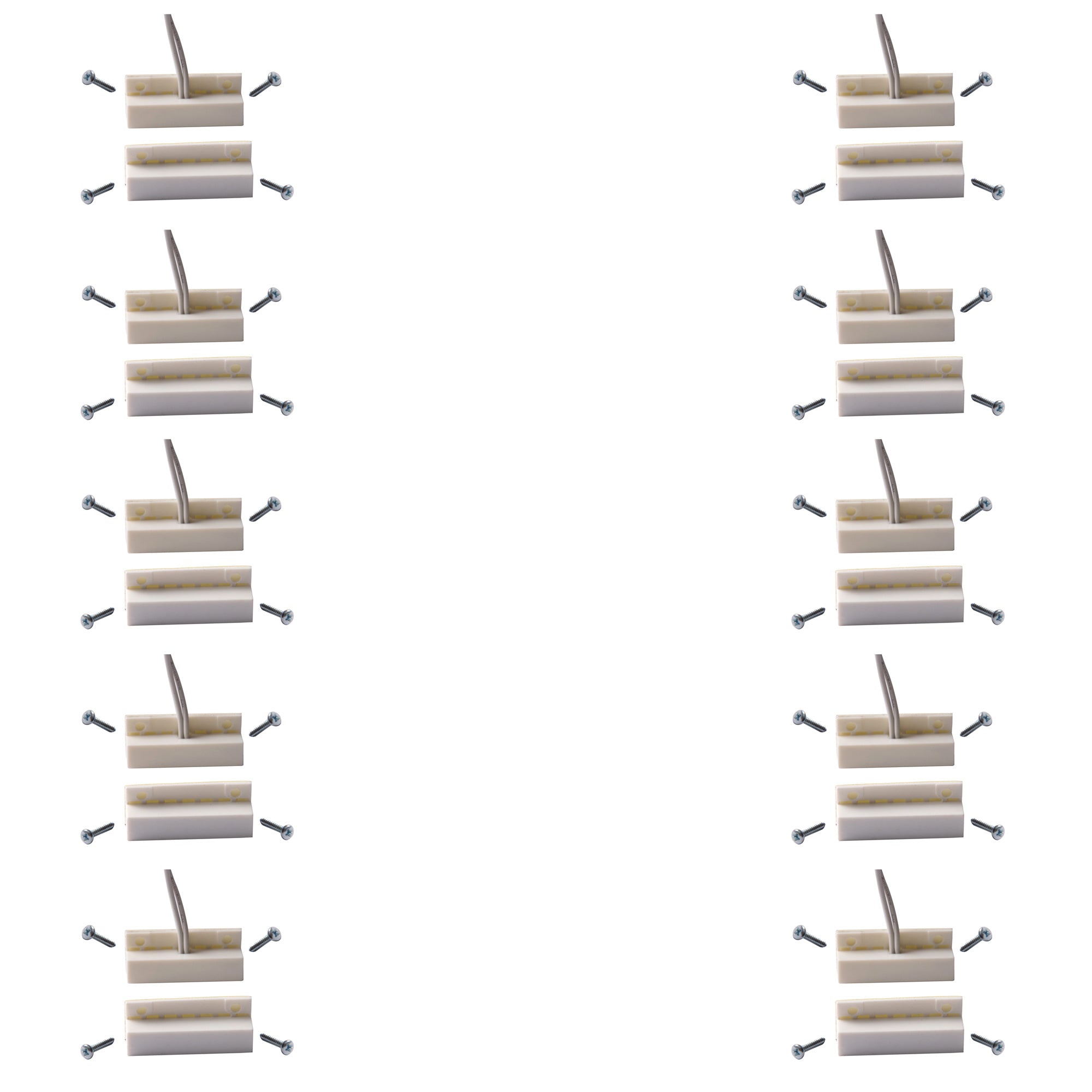

Kit Includes:

(10)

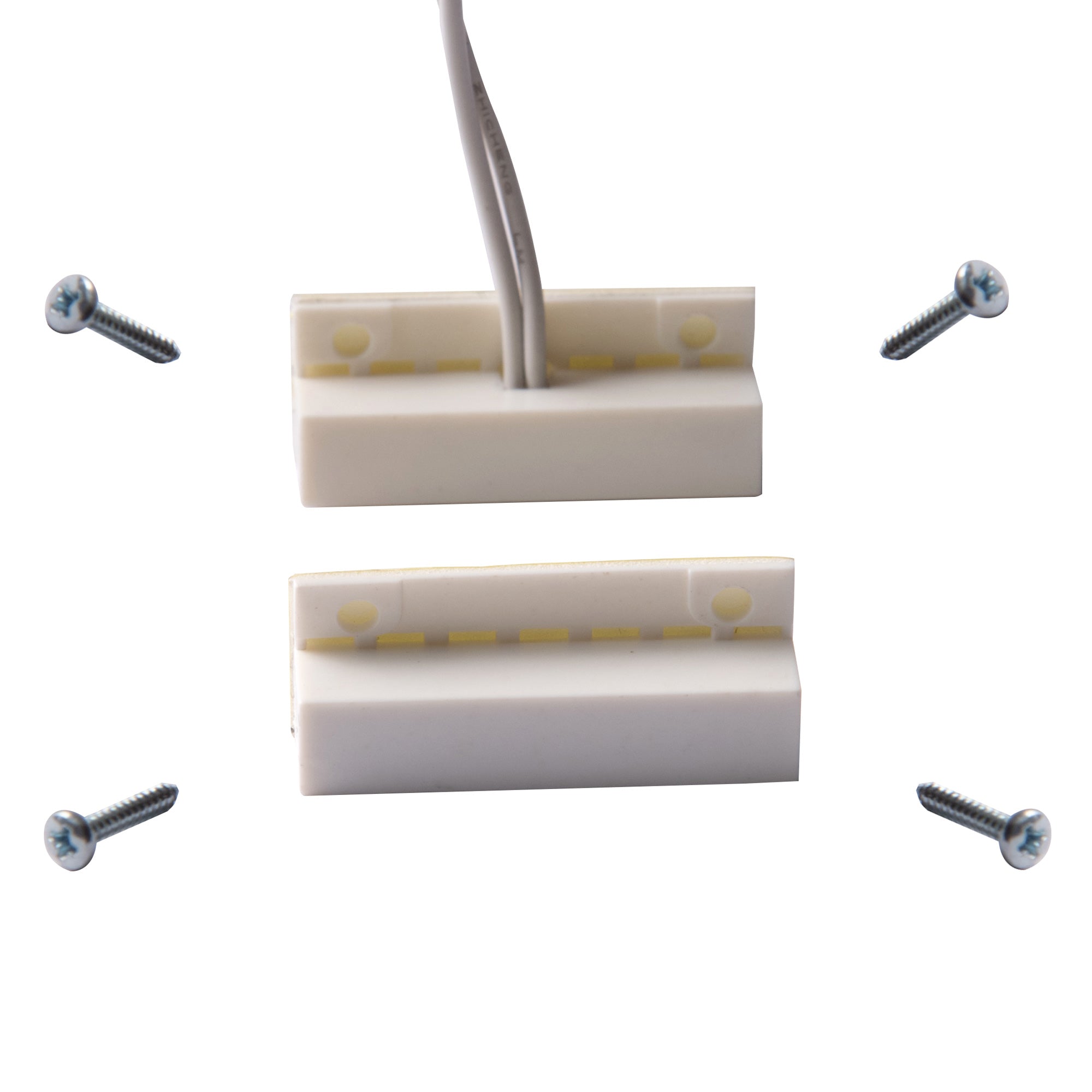

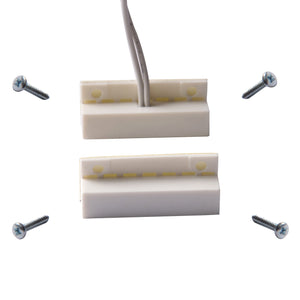

FM-106: TANE Wired Center Lead Surface Mount Magnetic Door Window Contact Reed Switch WHITE Color Normally Open for Alarm Security, UL Listed
Description

1.32″L×.51″W×.3″H Center Lead Surface Mount Type.

You can install the magnetic sensor on the door or window frame in two ways: with the 3M double sided tape or just with the screws that come included in the package.

  • Contact Size: 1.32″L×.51″W×.3″H (33.6mm×13mm×7.5mm)
  • Standard Magnet Size: 1.32″L×.51″W×.3″H (33.6mm×13mm×7.5mm)
  • Color: White
  • 12″ (305mm) 22 AWG Leads Standard
  • Standard Gap: .83″ (21mm)



Dimensions

FM-106 Magnetic contact dimensions

Characteristics

Model No. FM-106:

  • Color: WHITE
  • Contact Size: 1.32"L×.51"W×.3"H (33.6mm×13mm×7.5mm)
  • Standard Magnet Size: 1.32"L×.51"W×.3"H (33.6mm×13mm×7.5mm)
  • Gap Inch (mm): 0.83″(21)
  • Loop Open/Closed: CLOSED
  • Reed Form: Normally Open
  • Max. Contact Rating (W): 10
  • Max. Initial Contact Resistance (mΩ): 100
  • Max. Switching Voltage (V): AC110/DC100
  • Max. Switching Current (A): 0.5
  • Operating Temperature:-40°C to +60°C (-40°F to 140°F)
Description

1.32″L×.51″W×.3″H Center Lead Surface Mount Type.

You can install the magnetic sensor on the door or window frame in two ways: with the 3M double sided tape or just with the screws that come included in the package.

  • Contact Size: 1.32″L×.51″W×.3″H (33.6mm×13mm×7.5mm)
  • Standard Magnet Size: 1.32″L×.51″W×.3″H (33.6mm×13mm×7.5mm)
  • Color: White
  • 12″ (305mm) 22 AWG Leads Standard
  • Standard Gap: .83″ (21mm)



Dimensions

FM-106 Magnetic contact dimensions

Download Datasheets and Manuals of this product

TANE FM-106
