Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

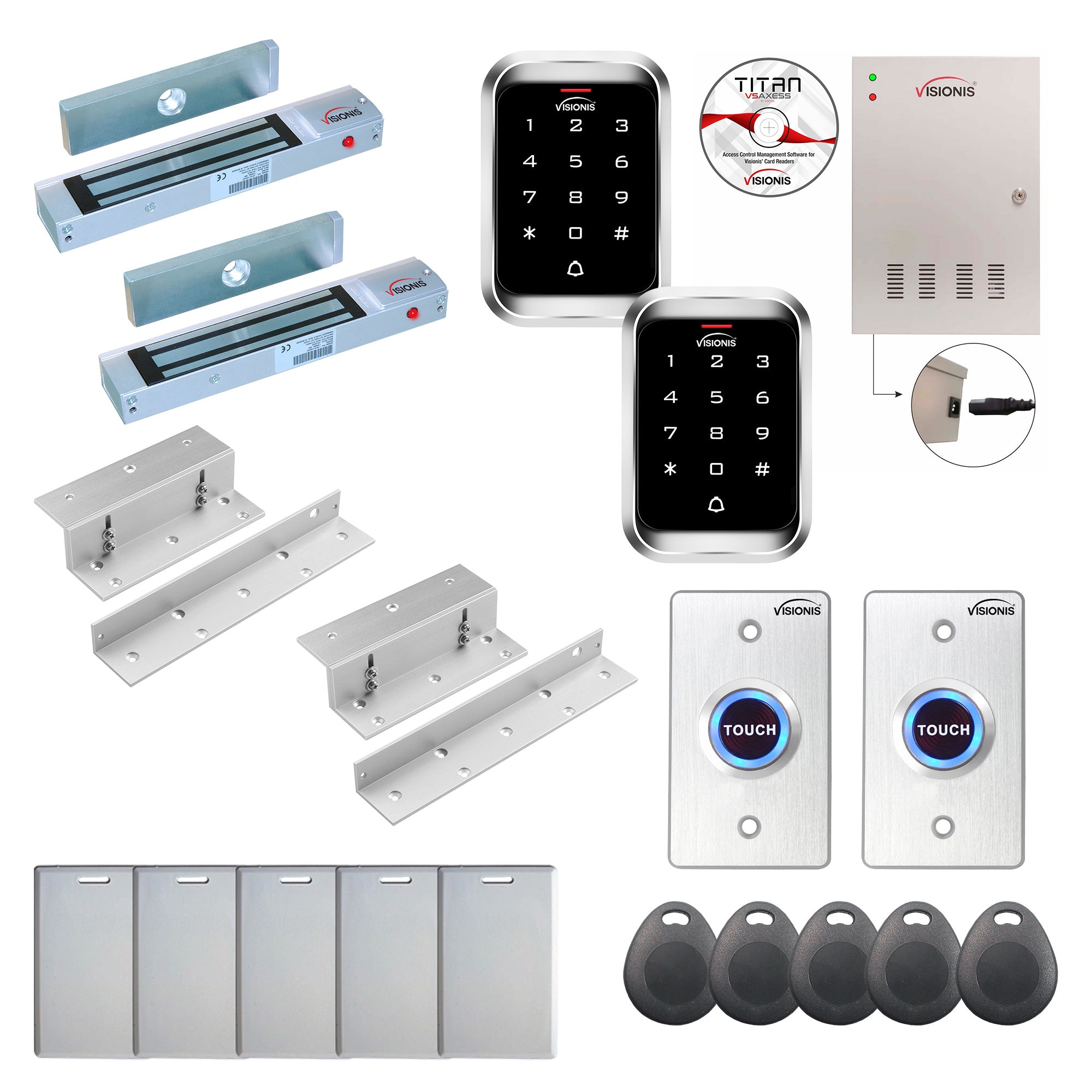

Kit Includes:

(2)

(1)

(2)

(5)

VIS-ML300LED: 300lbs Indoor Electromagnetic Lock

VIS-ZL300: L and Z Bracket for 300lbs Electromagnetic Lock

VIS-3000+: Access Control Indoor + Outdoor Rated IP68 Metal Digital Touch Keypad + Reader Standalone with Mini Controller + Wiegand 26, Wide Design, No Software, EM Cards

VIS-AXESS-2DLX: 2 Doors + Network Access Control Panel + Controller Board With Cabinet + TCP IP + Wiegand + 20,000 Users, 70,000 Records + Fire Alarm Extension Board

VIS-7005: Indoor Ultra Thin Push + Touch To Exit Button For Door Access Control With LED Light NC COM and NO Outputs

VIS-PROXCARD: Access Control Proximity Contactless Smart Entry Card 1.8mm Thick 26 Bit 125khz

VIS-AKEYTAG: Access Control Proximity Contactless Smart Entry Keyfob 26 Bit 125khz

Description

Attention:

These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.
Includes CD software
Power supply and power cord included
Install wires are not included
This software is not compatible with MAC computers, only with Microsoft.

Characteristics

Model VIS-ML300LED:

Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 300mA ; 24V / 150mA (±5%)
Holding Force: Up to 300 lbs (136 kg)
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C ( 32~131° F)
Operating Humidity: 0~95% ( non condensing)
Weight ( Magnet): 0.6 kg (±1%)
Dimensions: Magnet - (L)210x(W)35x(T)21 mm Armature - (L)130x(W)33x(T)11 mm
Green/Red LED Indication for EM Lock Status

Model No. VIS-ZL300:

L and Z bracket for 300lbs electromagnetic lock

Model No. VIS-3000:

Input Voltage: DC 12V
Idle Current: ≤25mA
Card Reading Distance: 2 - 3 cm (0.78 - 1.18 in.)
Card Frequency: 125KHz for EM // 13.56MHz for MFR
Card Transmission Format: Wiegand 26
Keypad Transmission Format: 4bit, 8bit and Virtual card number
Operating Temperature: -45°C ～55° C (-49°F ～131°F)
Operating Humidity: 0%～95%
Product Size: 118Lx81Wx21H (mm) - 4.64Lx3.18Wx0.82H (in.)
Protection Level: IP68 - No ingress of dust; complete protection against contact (dust tight), and waterproof

Model No. VIS-AXESS-2DLX-version2:

Access Mode: It supports card, card+ password, card or password, password
Event Type: Legal card, illegal card, anti-passback, exit button, password, threaten code
Alarm Event Type: Door-magnet alarm, self-defined alarm, threaten code alarm
Linkage Function: All event and alarm can linkage any or multiple relay output
Access Group: 200 group
Holiday Schedule: 300
User Capacity: 20,000
User Record Capacity: 70,000
Reader Port: 2
Exit Button Port: 2
Door-magnet Port: 2
Lock Output: 2
Door-magnet Alarm Output: 1
Self-defined Alarm Output: 1
Self-defined Alarm Input: 2
Communication Port: 10/100MTCP/IP, 1 extension RS485 communication port
Input Protection: Opto-isolator protection
Output Protection: Varistor Protection
Extension Function: It supports LED displayer, alarm host and so on
Video Recording and Snapshot: All Event and alarm can linkage any video to record or snapshot by software
First Card: Any cards can be first card
Multiple Cards: To open a door by multiple cards, manager can set 4 cards to open a door at most
Remote Control: Any doors can be opened by center authentication
Forced Control: User can open/close door forcibly
Threaten Code: 6 digits password, it is used in some special situation
Open by Password: Each of user have a group password
Timed Normal Open: User can setup three time-segment to let door open timed
Door Bolt Mode: It can open door by card during some special time
Timed Invalidation for Exit Button: Exit button invalidation can be set for three time-segments
Anti-passback: Two readers or all readers can be set in a group
Temporary Card Quantity: All users can be set as temporary cards
Self-defined Input/Output: User can self-define input/output function to relative relay
Activate/dismiss security:
By manually: Any user card can be appointed to activate/dismiss security function
By software: Activate/dismiss security function can be realized by software
Communication Security: Password encryption during data transmission
Transmission Mode: It supports TCP, UDP, RTP and multicast mode
Data Storage Mode: Cycled storage

Model No. VIS-7005:

Contact Rating: 3A/12-24V
Output Contact: NO/NC/COM
Power: 12VDC - 24VDC
LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
Panel: 4mm (0.15in.) Thick Aluminium alloy (CNC)
Suitable for Door: Hollow Door
Mechanical Life: 100.000 tests
Operating Temperature: -20°C~+55°C (14°F-131°F)
Operating Humidity: 0-95% (relative humidity)
Weight: 0.065kg
Dimension Of Plate: 86L × 50W × 25H mm - 3.38L x 1.96W x 0.98H in.

Description

Attention:

These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.
Includes CD software
Power supply and power cord included
Install wires are not included
This software is not compatible with MAC computers, only with Microsoft.

Compatible Software

TITAN VSAXESS is a powerful and complete Access control management software for Visionis products for a our second generation of Access Control Panels.

DOWNLOAD SOFTWARE

Screenshots Examples of the Software

Click the image to open a bigger version

Download Datasheets and Manuals of this product

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help

Visionis by Visionis

FPC-7960 2 Door Professional Access Control For Inswing Door Electric Lock 300lbs Time Attendance TCP/IP RS485 Wiegand Controller, Outdoor Keypad / Reader, 20,000 Users, 70,000 Records, Software

Translation missing: en.products.product.sku:FPC-7960

UPC Code: 613464751649 Weight: 22.0 lb

Regular price: $615.59
Sale price: $615.59
Regular price

Shipping calculated at checkout.

In Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
