This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Kit Includes:

(1)

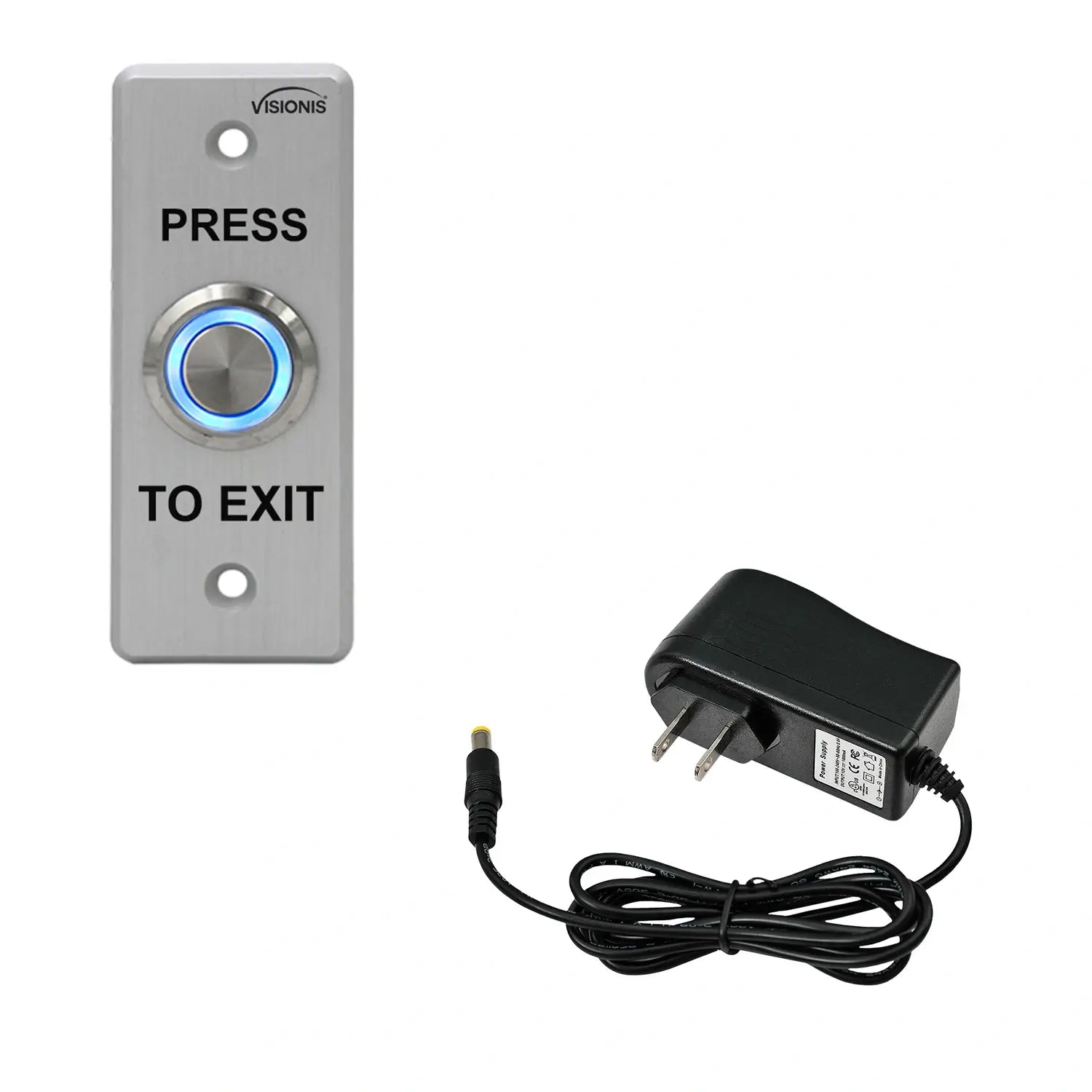

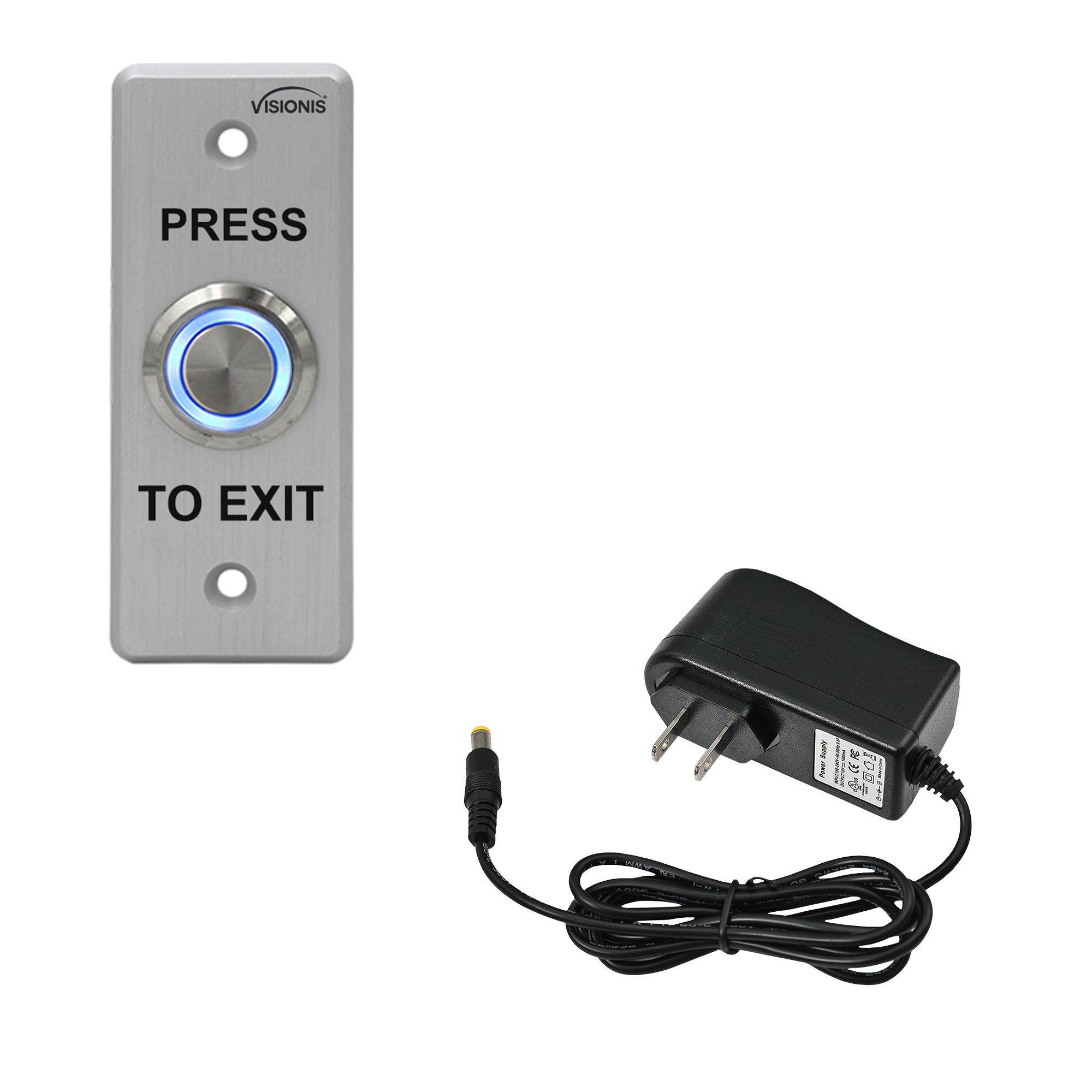

VIS-7008: Indoor + Outdoor Weather, Waterproof Rated IP65 Stainless Steel Door Bell Type Round Request to Exit Button Slim Size for Door Access Control with LED Light

VS-VISCP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

The 5405 kit has a Visionis 7008 slim sized request to exit button for outdoor use with the weather and waterproof features and a power supply. This door release exit button can be used for any access control application and is commonly used in offices, banks, gas stations, department stores, and many more. They can also be used for secret rooms and DIY projects. The power supply provided will allow you to hook it up right away.

Characteristics

Model No. VIS-7008:

Contact Rating: 3A/125-250VAC
Output Contact: NO/NC/COM
Waterproof Grade: IP65
Power: 12VDC or 24VDC
Button: Stainless Steel
LED Color: Blue
Button Installation Diameter: 19mm (0.74in.)
Panel: 1.7mm (0.06in.) Thick 304 Stainless Steel
Suitable for: Hollow Door
Mechanical Life: 100.000 tests
Operating Temperature: -20°C~+55°C (14°F-131°F)
Operating Humidity: 0-95% (relative humidity)
Weight: 0.1kg
Dimensions: 90L × 35W × 40H mm – 3.54L x 1.37W x 1.57H in.

Model No. VISCP200:

Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

The 5405 kit has a Visionis 7008 slim sized request to exit button for outdoor use with the weather and waterproof features and a power supply. This door release exit button can be used for any access control application and is commonly used in offices, banks, gas stations, department stores, and many more. They can also be used for secret rooms and DIY projects. The power supply provided will allow you to hook it up right away.

Download Datasheets and Manuals of this product

VIS-7008

Visionis by Visionis

FPC-5405 Outdoor Weather And WaterProof Stainless Steel Door Bell Type Round Request To Exit Button Slim Size For Door Access Control With Power Supply

Name: FPC-5405 Outdoor Weather And WaterProof Stainless Steel Door Bell Type Round Request To Exit Button Slim Size For Door Access Control With Power Supply
Brand: Visionis
SKU: FPC-5405
Price: 30.67 USD
Availability: InStock
